Panasonic Cs Mke7nku9nku Operating Instructions Manual

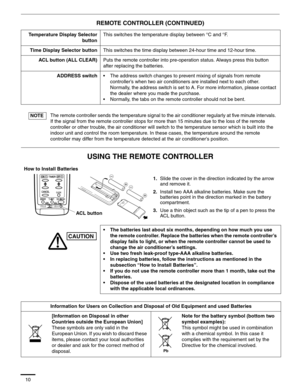

10
REMOTE CONTROLLER (CONTINUED)
USING THE REMOTE CONTROLLER
Temperature Display Selector
buttonThis switches the temperature display between °C and °F.
Time Display Selector buttonThis switches the time display between 24-hour time and 12-hour time.
ACL button (ALL CLEAR)Puts the remote controller into pre-operation status. Always press this button
after replacing the batteries.
ADDRESS switch• The address switch changes to prevent mixing of signals from remote
controller’s when two air conditioners...

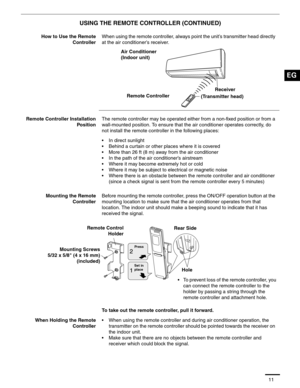

11
USING THE REMOTE CONTROLLER (CONTINUED)
How to Use the Remote
ControllerWhen using the remote controller, always point the unit’s transmitter head directly
at the air conditioner’s receiver.
Remote Controller Installation
PositionThe remote controller may be operated either from a non-fixed position or from a
wall-mounted position. To ensure that the air conditioner operates correctly, do
not install the remote controller in the following places:
• In direct sunlight
• Behind a curtain or other...

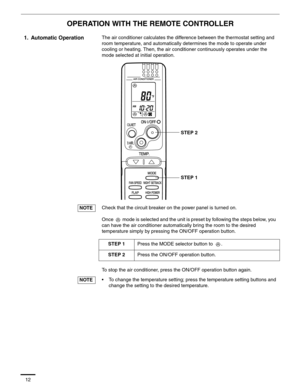

12
OPERATION WITH THE REMOTE CONTROLLER
1. Automatic OperationThe air conditioner calculates the difference between the thermostat setting and
room temperature, and automatically determines the mode to operate under
cooling or heating. Then, the air conditioner continuously operates under the
mode selected at initial operation.
Check that the circuit breaker on the power panel is turned on.
Once   mode is selected and the unit is preset by following the steps below, you
can have the air conditioner...

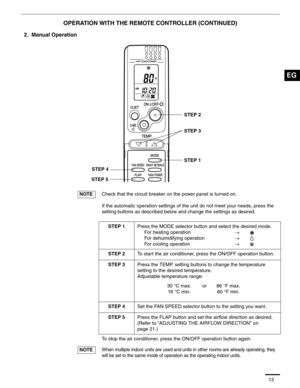

13
OPERATION WITH THE REMOTE CONTROLLER (CONTINUED)
2.  Manual Operation
Check that the circuit breaker on the power panel is turned on.
If the automatic operation settings of the unit do not meet your needs, press the
setting buttons as described below and change the settings as desired.
STEP 1Press the MODE selector button and select the desired mode.
For heating operationo
For dehumidifying operationo
For cooling operationo
STEP 2To start the air conditioner, press the ON/OFF operation button.
STEP...

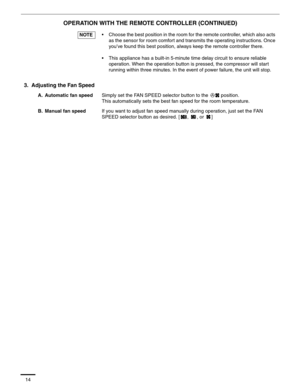

14
OPERATION WITH THE REMOTE CONTROLLER (CONTINUED)
• Choose the best position in the room for the remote controller, which also acts
as the sensor for room comfort and transmits the operating instructions. Once
you’ve found this best position, always keep the remote controller there.
• This appliance has a built-in 5-minute time delay circuit to ensure reliable
operation. When the operation button is pressed, the compressor will start
running within three minutes. In the event of power failure, the...

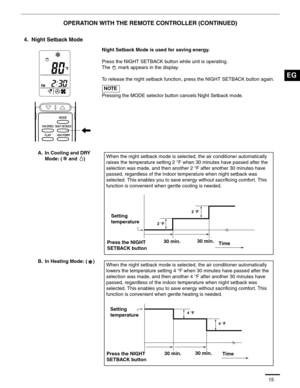

15
OPERATION WITH THE REMOTE CONTROLLER (CONTINUED)
4.  Night Setback Mode
Night Setback Mode is used for saving energy.
Press the NIGHT SETBACK button while unit is operating.
The   mark appears in the display.
To release the night setback function, press the NIGHT SETBACK button again.
Pressing the MODE selector button cancels Night Setback mode.
A.  In Cooling and DRY
Mode: ( and  )
B.  In Heating Mode: ( )
NOTE
When the night setback mode is selected, the air conditioner automatically
raises the...

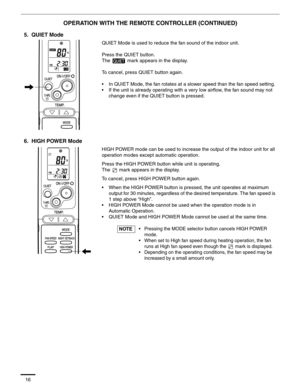

16
OPERATION WITH THE REMOTE CONTROLLER (CONTINUED)

5.  QUIET Mode
QUIET Mode is used to reduce the fan sound of the indoor unit.
Press the QUIET button.
The   mark appears in the display.
To cancel, press QUIET button again.
• In QUIET Mode, the fan rotates at a slower speed than the fan speed setting.
• If the unit is already operating with a very low airflow, the fan sound may not
change even if the QUIET button is pressed.
6.  HIGH POWER Mode
HIGH POWER mode can be used to increase the...

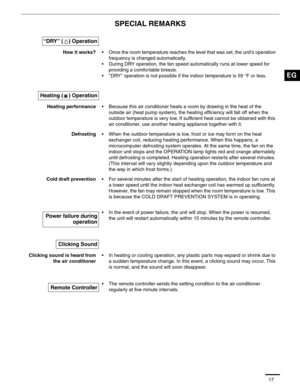

17
SPECIAL REMARKS
How it works?• Once the room temperature reaches the level that was set, the unit’s operation
frequency is changed automatically.
• During DRY operation, the fan speed automatically runs at lower speed for
providing a comfortable breeze.
• ‘‘DRY’’ operation is not possible if the indoor temperature is 59 °F or less.
Heating performance• Because this air conditioner heats a room by drawing in the heat of the
outside air (heat pump system), the heating efficiency will fall off when...

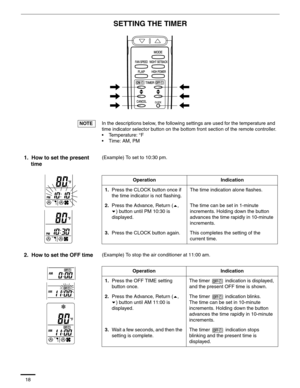

18
SETTING THE TIMER
In the descriptions below, the following settings are used for the temperature and
time indicator selector button on the bottom front section of the remote controller.
• Temperature: °F
• Time: AM, PM
1.  How to set the present
time(Example) To set to 10:30 pm.
2.  How to set the OFF time(Example) To stop the air conditioner at 11:00 am.
NOTE
Operation Indication
1.Press the CLOCK button once if
the time indicator is not flashing.The time indication alone flashes.
2.Press the...

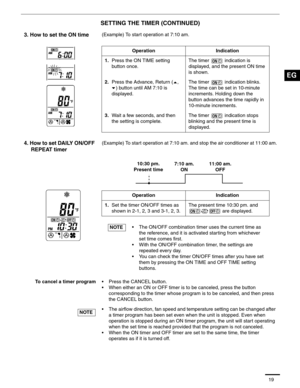

19
SETTING THE TIMER (CONTINUED)
3. How to set the ON time(Example) To start operation at 7:10 am.
4. How to set DAILY ON/OFF
REPEAT timer(Example) To start operation at 7:10 am. and stop the air conditioner at 11:00 am.
To cancel a timer program• Press the CANCEL button.
• When either an ON or OFF timer is to be canceled, press the button
corresponding to the timer whose program is to be canceled, and then press
the CANCEL button.
• The airflow direction, fan speed and temperature setting can be...
