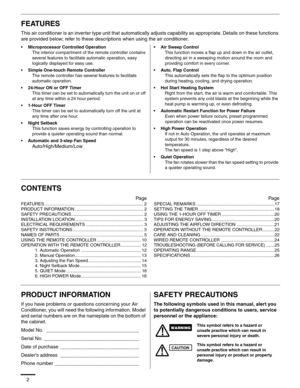

FEATURES
This air conditioner is an inverter type unit that automatically adjusts capability as appropriate. Details on these functions
are provided below; refer to these descriptions when using the air conditioner.
• Microprocessor Controlled Operation
The interior compartment of the remote controller contains
several features to facilitate automatic operation, easy
logically displayed for easy use.
• Simple One-touch Remote Controller
The remote controller has several features to facilitate...

3

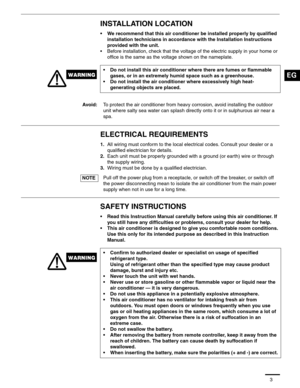

INSTALLATION LOCATION
• We recommend that this air conditioner be installed properly by qualified
installation technicians in accordance with the Installation Instructions
provided with the unit.
• Before installation, check that the voltage of the electric supply in your home or
office is the same as the voltage shown on the nameplate.
ELECTRICAL REQUIREMENTS
1.All wiring must conform to the local electrical codes. Consult your dealer or a
qualified electrician for details.
2.Each unit must be...

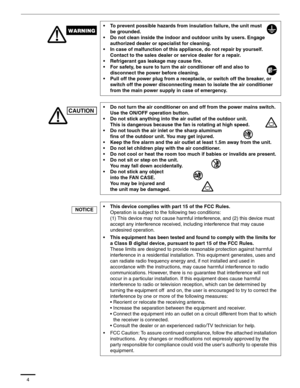

4
• To prevent possible hazards from insulation failure, the unit must
be grounded.
• Do not clean inside the indoor and outdoor units by users. Engage
authorized dealer or specialist for cleaning.
• In case of malfunction of this appliance, do not repair by yourself.
Contact to the sales dealer or service dealer for a repair.
• Refrigerant gas leakage may cause fire.
• For safety, be sure to turn the air conditioner off and also to
disconnect the power before cleaning.
• Pull off the power plug from...

5

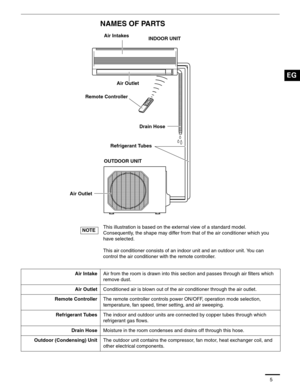

NAMES OF PARTS
This illustration is based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner which you
have selected.
This air conditioner consists of an indoor unit and an outdoor unit. You can
control the air conditioner with the remote controller.
Air IntakeAir from the room is drawn into this section and passes through air filters which
remove dust.
Air OutletConditioned air is blown out of the air conditioner through the air outlet....

6

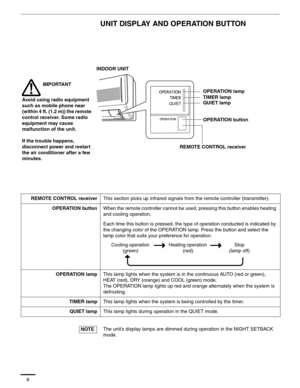

UNIT DISPLAY AND OPERATION BUTTON
REMOTE CONTROL receiverThis section picks up infrared signals from the remote controller (transmitter).
OPERATION buttonWhen the remote controller cannot be used, pressing this button enables heating
and cooling operation.
Each time this button is pressed, the type of operation conducted is indicated by
the changing color of the OPERATION lamp. Press the button and select the
lamp color that suits your preference for operation.
OPERATION lampThis lamp lights when...

7

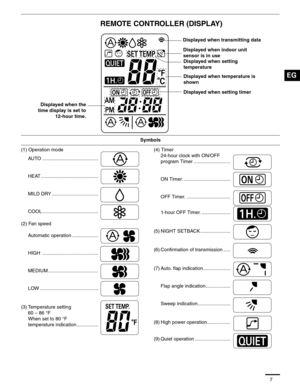

REMOTE CONTROLLER (DISPLAY)
(1) Operation mode
AUTO .........................................
HEAT ..........................................
MILD DRY ..................................
COOL .........................................
(2) Fan speed
Automatic operation ...................
HIGH .........................................
MEDIUM.....................................
LOW ...........................................
(3) Temperature setting
60–86°F
When set to 80 °F
temperature...

8
REMOTE CONTROLLER
The illustration above pictures the remote controller after the cover has been
opened.
TransmitterWhen you press the buttons on the remote controller, the   mark appears in the
display to transmit the setting changes to the receiver in the air conditioner.
Sensor
A temperature sensor inside the remote controller senses the room temperature.
DisplayInformation on the operating conditions is displayed while the remote controller is
switched on. If the unit is turned off, FLAP setting...

9

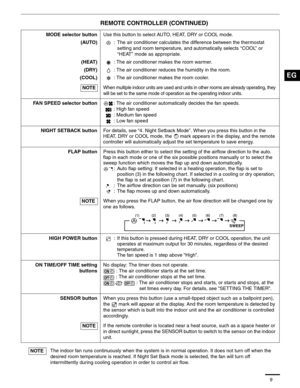

REMOTE CONTROLLER (CONTINUED)
MODE selector buttonUse this button to select AUTO, HEAT, DRY or COOL mode.
(AUTO): The air conditioner calculates the difference between the thermostat
setting and room temperature, and automatically selects ‘‘COOL’’ or
‘‘HEAT’’ mode as appropriate.
(HEAT): The air conditioner makes the room warmer.
(DRY): The air conditioner reduces the humidity in the room.
(COOL): The air conditioner makes the room cooler.
When multiple indoor units are used and units in other rooms...

10

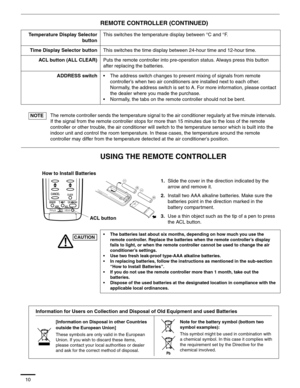

REMOTE CONTROLLER (CONTINUED)
USING THE REMOTE CONTROLLER
Temperature Display Selector
buttonThis switches the temperature display between °C and °F.
Time Display Selector buttonThis switches the time display between 24-hour time and 12-hour time.
ACL button (ALL CLEAR)Puts the remote controller into pre-operation status. Always press this button
after replacing the batteries.
ADDRESS switch• The address switch changes to prevent mixing of signals from remote
controller’s when two air conditioners...

11

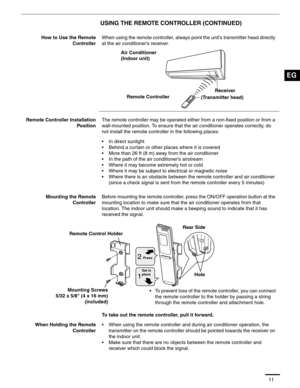

USING THE REMOTE CONTROLLER (CONTINUED)
How to Use the Remote
ControllerWhen using the remote controller, always point the unit’s transmitter head directly
at the air conditioner’s receiver.
Remote Controller Installation
PositionThe remote controller may be operated either from a non-fixed position or from a
wall-mounted position. To ensure that the air conditioner operates correctly, do
not install the remote controller in the following places:
• In direct sunlight
• Behind a curtain or other...
