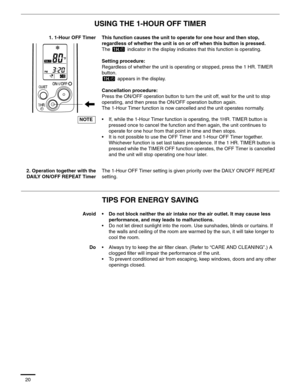

USING THE 1-HOUR OFF TIMER
TIPS FOR ENERGY SAVING
1. 1-Hour OFF Timer This function causes the unit to operate for one hour and then stop,
regardless of whether the unit is on or off when this button is pressed.
The   indicator in the display indicates that this function is operating.
Setting procedure:
Regardless of whether the unit is operating or stopped, press the 1 HR. TIMER
button.
 appears in the display.
Cancellation procedure:
Press the ON/OFF operation button to turn the unit off, wait for...

21

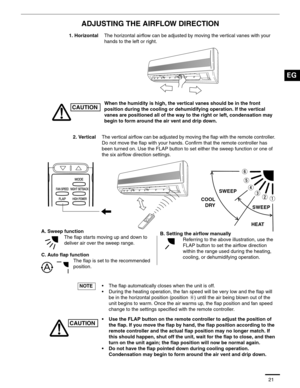

ADJUSTING THE AIRFLOW DIRECTION
1. HorizontalThe horizontal airflow can be adjusted by moving the vertical vanes with your
hands to the left or right.
When the humidity is high, the vertical vanes should be in the front
position during the cooling or dehumidifying operation. If the vertical
vanes are positioned all of the way to the right or left, condensation may
begin to form around the air vent and drip down.
2. VerticalThe vertical airflow can be adjusted by moving the flap with the remote...

22
OPERATION WITHOUT THE REMOTE CONTROLLER
CARE AND CLEANING
INDOOR UNITIf you have lost the remote controller or it has trouble, follow the steps below.
When the air conditioner is not running
Each time the OPERATION button is pressed, the type of operation conducted is
indicated by the changing color of the OPERATION lamp. Press the button and
select the lamp color that suits your preference for operation.
The temperature is set to the room temperature minus 4 °F during the cooling
operation and to...

23
CARE AND CLEANING (CONTINUED)

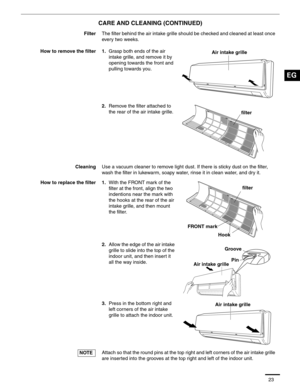

FilterThe filter behind the air intake grille should be checked and cleaned at least once
every two weeks.
How to remove the filter 1.Grasp both ends of the air
intake grille, and remove it by
opening towards the front and
pulling towards you.
2.Remove the filter attached to
the rear of the air intake grille.
CleaningUse a vacuum cleaner to remove light dust. If there is sticky dust on the filter,
wash the filter in lukewarm, soapy water, rinse it in clean water,...

24

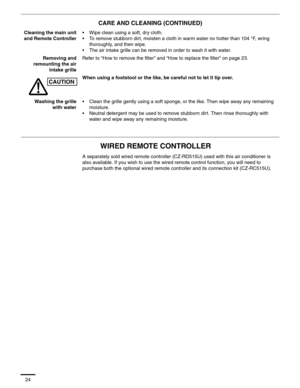

CARE AND CLEANING (CONTINUED)
WIRED REMOTE CONTROLLER
Cleaning the main unit
and Remote Controller• Wipe clean using a soft, dry cloth.
• To remove stubborn dirt, moisten a cloth in warm water no hotter than 104 °F, wring
thoroughly, and then wipe.
• The air intake grille can be removed in order to wash it with water.
Removing and
remounting the air
intake grilleRefer to “How to remove the filter” and “How to replace the filter” on page 23.
When using a footstool or the like, be careful not to let it...

25

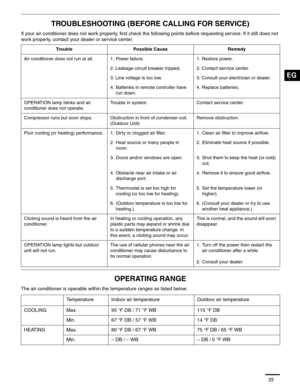

TROUBLESHOOTING (BEFORE CALLING FOR SERVICE)
If your air conditioner does not work properly, first check the following points before requesting service. If it still does not
work properly, contact your dealer or service center.
OPERATING RANGE
The air conditioner is operable within the temperature ranges as listed below:
Trouble Possible Cause Remedy
Air conditioner does not run at all. 1.  Power failure.  1. Restore power.
2. Leakage circuit breaker tripped. 2. Contact service center.
3. Line voltage...

26

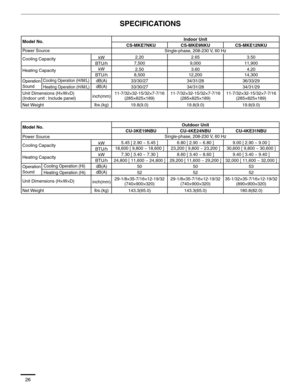

SPECIFICATIONS
Model No.Indoor Unit
CS-MKE9NKU CS-MKE7NKU
Single-phase, 208-230 V, 60 Hz
Heating Capacity
Operation
Sound
Unit Dimensions (H×W×D)
(Indoor unit : Include panel)
Net Weight Power Source
Cooling CapacitykW
BTU/h
kW
BTU/h
inch(mm)
lbs.(kg)
Cooling Operation (H/M/L)
Heating Operation (H/M/L)dB(A)
dB(A)33/30/278,5002.50 7,5002.20
33/30/27
11-7/32×32-15/32×7-7/16
(285×825×189)
19.8(9.0)34/31/2812,2003.60 9,0002.65
34/31/28
11-7/32×32-15/32×7-7/16
(285×825×189)
19.8(9.0)36/33/2914,3004.20...
