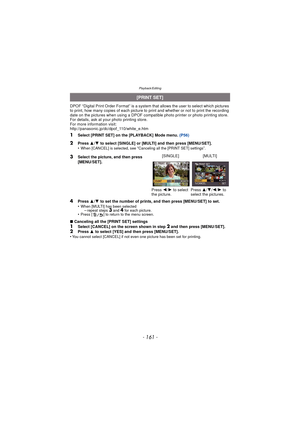

Panasonic Digital Camera Dmc Gf2 Operating Instructions

- 161 -
Playback/Editing
DPOF “Digital Print Order Format” is a system that allows the user to select which pictures
to print, how many copies of each picture to  print and whether or not to print the recording
date on the pictures when using a DPOF compatible photo printer or photo printing store.
For details, ask at your photo printing store.
For more information visit:
http://panasonic.jp/dc/dpof_110/white_e.htm
1Select [PRINT SET] on the [PLAYBACK] Mode menu.  (P56)
4Press 3/4  to set the number...

Playback/Editing

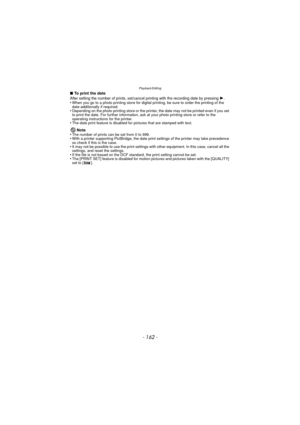

- 162 -
∫To print the dateAfter setting the number of prints, set/cancel printing with the recording date by pressing 1.
•When you go to a photo printing store for digital printing, be sure to order the printing of the
date additionally if required.
•Depending on the photo printing store or the printer, the date may not be printed even if you set
to print the date. For further information, ask at your photo printing store or refer to the
operating instructions for the printer.
•The...

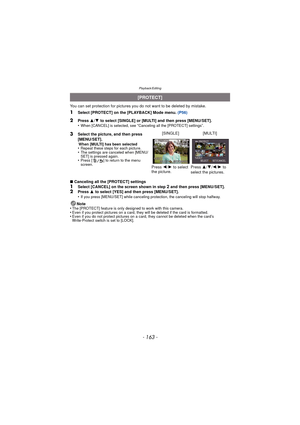

- 163 -
Playback/Editing
You can set protection for pictures you do not want to be deleted by mistake.
1Select [PROTECT] on the [PLAYBACK] Mode menu.  (P56)
∫ Canceling all the [PROTECT] settings
1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].2Press  3 to select [YES] and then press [MENU/SET].
•If you press [MENU/SET] while canceling protection, the canceling will stop halfway.
Note
•The [PROTECT] feature is only designed to work with this camera.•Even if you protect pictures...

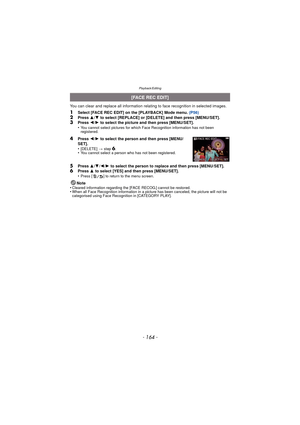

Playback/Editing
- 164 -
You can clear and replace all information relating to face recognition in selected images.
1Select [FACE REC EDIT] on the [PLAYBACK] Mode menu. (P56)
2Press 3/4  to select [REPLACE] or [DELETE] and then press [MENU/SET].3Press  2/1  to select the picture and then press [MENU/SET].
•You cannot select pictures for which Face Recognition information has not been
registered.
5Press  3/4 /2 /1 to select the person to replace and then press [MENU/SET].6Press  3 to select [YES] and...

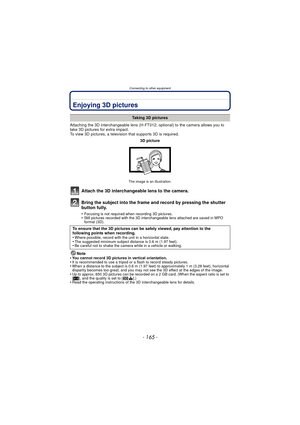

- 165 -
Connecting to other equipment
Connecting to other equipmentEnjoying 3D pictures
Attaching the 3D interchangeable lens (H-FT012; optional) to the camera allows you to
take 3D pictures for extra impact.
To view 3D pictures, a television that supports 3D is required.
Attach the 3D interchangeable lens to the camera.
Bring the subject into the frame and record by pressing the shutter
button fully.
•Focusing is not required when recording 3D pictures.•Still pictures recorded with the 3D...

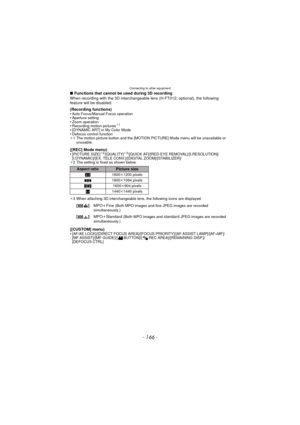

Connecting to other equipment
- 166 -
∫Functions that cannot be used during 3D recording
When recording with the 3D interchangeable lens (H-FT012; optional), the following
feature will be disabled:
(Recording functions)
•
Auto Focus/Manual Focus operation•Aperture setting•Zoom operation•Recording motion pictures¢ 1
•[DYNAMIC ART] in My Color Mode•Defocus control function
¢ 1 The motion picture button and the [MOTION PICTURE] Mode menu will be unavailable or
unusable.
([REC] Mode menu)
•[PICTURE...

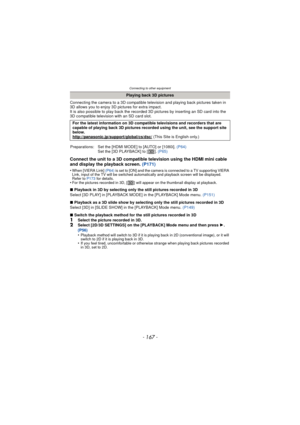

- 167 -
Connecting to other equipment
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to play back the recorded 3D pictures by inserting an SD card into the
3D compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI mini cable
and display the playback screen.  (P171)
•When [VIERA Link] (P64) is set to [ON] and the camera is connected to a TV...

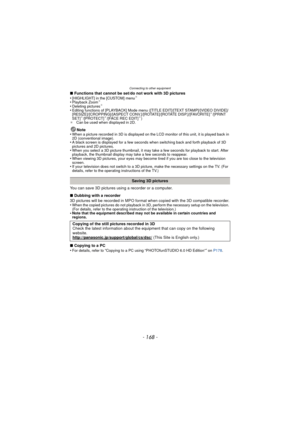

Connecting to other equipment
- 168 -
∫Functions that cannot be set/do not work with 3D pictures
•[HIGHLIGHT] in the [CUSTOM] menu¢
•Playback Zoom¢
•Deleting pictures¢
•Editing functions of [PLAYBACK] Mode menu ([TITLE EDIT]/[TEXT STAMP]/[VIDEO DIVIDE]/
[RESIZE]/[CROPPING]/[ASPECT CONV.]/[ROTATE]/[ROTATE DISP.]/[FAVORITE]¢/[PRINT
SET]¢/[PROTECT]¢/[FACE REC EDIT]¢)
¢ Can be used when displayed in 2D.
Note
•When a picture recorded in 3D is displayed on the LCD monitor of this unit, it is played back in...

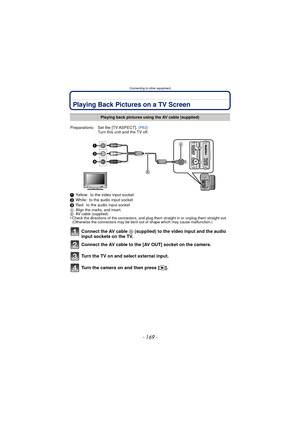

- 169 -
Connecting to other equipment
Playing Back Pictures on a TV Screen
1Yellow: to the video input socket
2 White: to the audio input socket
3 Red: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
Connect the AV cable  B (supplied) to the video input and the audio
input sockets on the TV....

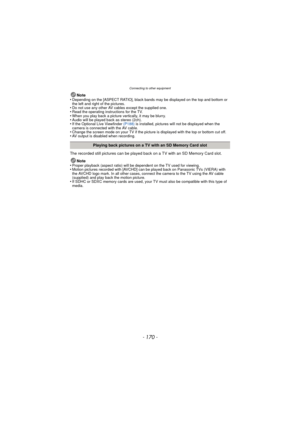

Connecting to other equipment
- 170 -
Note
•Depending on the [ASPECT RATIO], black bands may be displayed on the top and bottom or
the left and right of the pictures.
•Do not use any other AV cables except the supplied one.•Read the operating instructions for the TV.•When you play back a picture vertically, it may be blurry.•Audio will be played back as stereo (2ch).•If the Optional Live Viewfinder  (P188) is installed, pictures will not be displayed when the
camera is connected with the AV cable....
