- 171 -

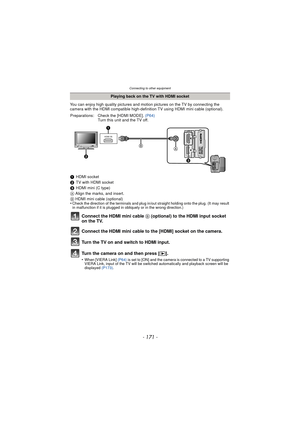

Connecting to other equipment
You can enjoy high quality pictures and motion pictures on the TV by connecting the
camera with the HDMI compatible high-definition TV using HDMI mini cable (optional).
Playing back on the TV with HDMI socket
Preparations: Check the [HDMI MODE].  (P64)
Turn this unit and the TV off.
1 HDMI socket
2 TV with HDMI socket
3 HDMI mini (C type)
A  Align the marks, and insert.
B  HDMI mini cable (optional)
•
Check the direction of the terminals and plug in/out straight...

Connecting to other equipment
- 172 -

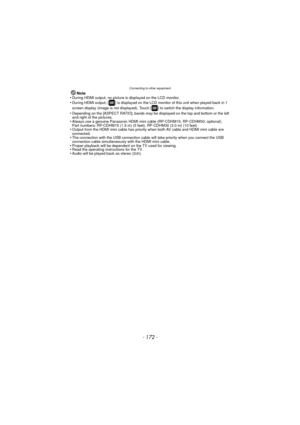

Note
•During HDMI output, no picture is displayed on the LCD monitor.•During HDMI output, [ ] is displayed on the LCD monitor of this unit when played back in 1
screen display (image is not displayed). Touch [ ] to switch the display information.
•Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
•Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30; optional).
Part numbers:...

- 173 -
Connecting to other equipment

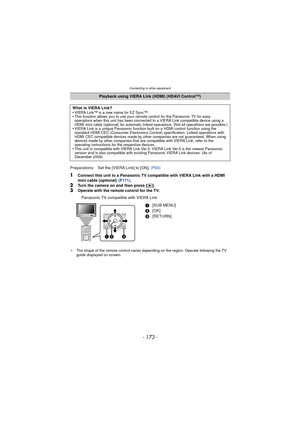

1Connect this unit to a Panasonic TV compatible with VIERA Link with a HDMI
mini cable (optional) (P171).
2Turn the camera on and then press [ (].3Operate with the remote control for the TV.
Panasonic TV compatible with VIERA Link
¢ The shape of the remote control varies depending on the region. Operate following the TV
guide displayed on screen.
Playback using VIERA Link (HDMI) (HDAVI Control™)
What is VIERA Link?
•
VIERA Link™ is a new name for EZ Sync™.•This...

Connecting to other equipment
- 174 -

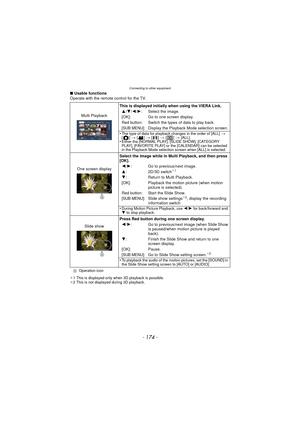

∫Usable functions
Operate with the remote control for the TV.
¢ 1 This is displayed only when 3D playback is possible.
¢ 2 This is not displayed during 3D playback.
Multi Playback This is displayed initially when using the VIERA Link.
3 /4/ 2/1: Select the image.
[OK]: Go to one screen display.
Red button: Switch the types of data to play back.
[SUB MENU]:Display the Playback Mode selection screen.
•
The type of data for playback changes in the order of [ALL] > [] >...

- 175 -
Connecting to other equipment

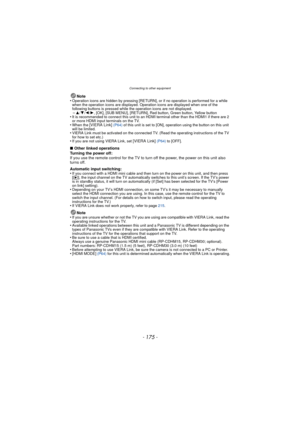

Note
•Operation icons are hidden by pressing [RETURN], or if no operation is performed for a while
when the operation icons are displayed. Operation icons are displayed when one of the
following buttons is pressed while the operation icons are not displayed.
–3/ 4/2 /1, [OK], [SUB MENU], [RETURN], Red button, Green button, Yellow button•It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there are 2
or more HDMI input terminals on...

Connecting to other equipment
- 176 -

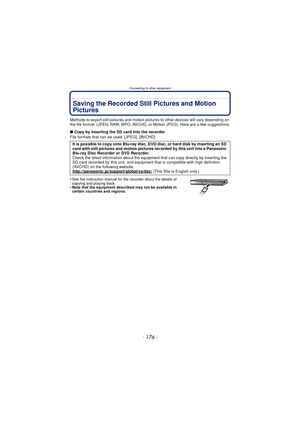

Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format. (JPEG, RAW, MPO, AVCHD, or Motion JPEG). Here are a few suggestions.
∫ Copy by inserting the SD card into the recorder
File formats that can be used: [JPEG], [AVCHD]
•
See the instruction manual for the recorder about the details of
copying and playing back.
•Note that the equipment described may not...

- 177 -
Connecting to other equipment

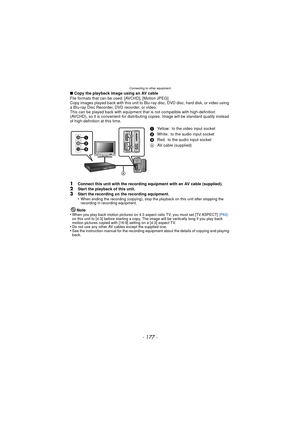

∫Copy the playback image using an AV cable
File formats that can be used: [AVCHD], [Motion JPEG]
Copy images played back with this unit to Blu -ray disc, DVD disc, hard disk, or video using
a Blu-ray Disc Recorder, DVD recorder, or video.
This can be played back with equipment that is not compatible with high-definition
(AVCHD), so it is convenient for distri buting copies. Image will be standard quality instead
of high-definition at this time.
1Connect this unit...

Connecting to other equipment
- 178 -

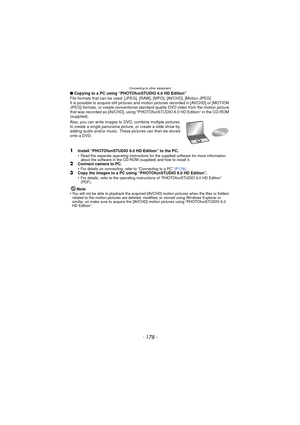

∫Copying to a PC using “PHOTOfunSTUDIO 6.0 HD Edition”
File formats that can be used: [JPEG], [RAW], [MPO], [AVCHD], [Motion JPEG]
It is possible to acquire still pictures and mo tion pictures recorded in [AVCHD] or [MOTION
JPEG] formats, or create conventional standard quality DVD video from the motion picture
that was recorded as [AVCHD], using “PHOTOfunSTUDIO 6.0 HD Edition” in the CD-ROM
(supplied).
Also, you can write images to DVD, combine multiple pictures...

- 179 -
Connecting to other equipment

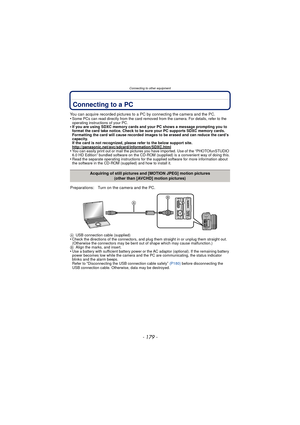

Connecting to a PC
You can acquire recorded pictures to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If you are using SDXC memory cards and your PC shows a message prompting you to
format the card take notice. Check to be sure your PC supports SDXC memory cards.
Formatting the card will cause recorded images to be erased and can reduce the...

Connecting to other equipment
- 180 -

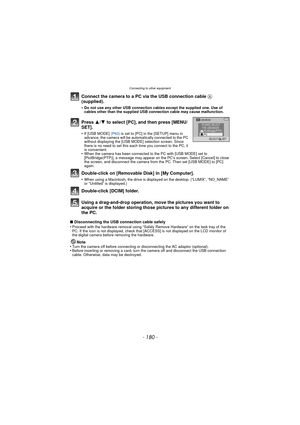

Connect the camera to a PC via the USB connection cable A
(supplied).
•Do not use any other USB connection cables except the supplied one. Use of
cables other than the supplied USB connection cable may cause malfunction.
Press  3/4 to select [PC], and then press [MENU/
SET].
•If [USB MODE]  (P63) is set to [PC] in the [SETUP] menu in
advance, the camera will be automatically connected to the PC
without displaying the [USB MODE] selection screen. Since
there is...
