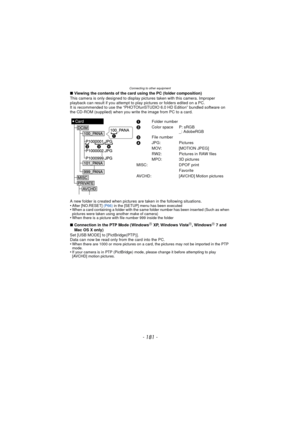

- 181 -
Connecting to other equipment
∫Viewing the contents of the card using the PC (folder composition)
This camera is only designed to display  pictures taken with this camera. Improper
playback can result if you attempt to pl ay pictures or folders edited on a PC.
It is recommended to use the “PHOTOfunSTUDIO 6.0 HD Edition” bundled software on
the CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After...

Connecting to other equipment
- 182 -

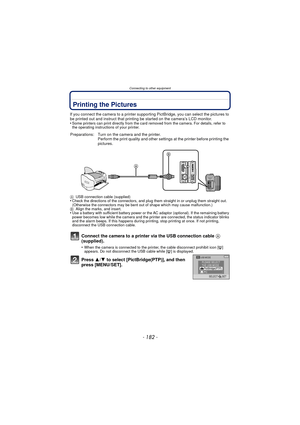

Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Connect the camera to a printer via the USB connection cable A
(supplied).
•When the camera is connected to the printer, the cable...

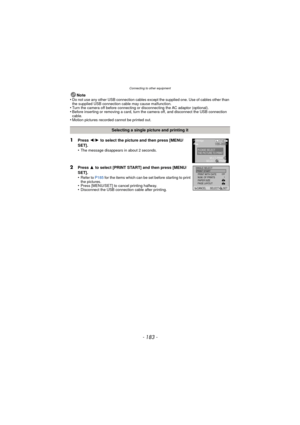

- 183 -
Connecting to other equipment
Note
•Do not use any other USB connection cables except the supplied one. Use of cables other than
the supplied USB connection cable may cause malfunction.
•Turn the camera off before connecting or disconnecting the AC adaptor (optional).•Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
•Motion pictures recorded cannot be printed out.
Selecting a single picture and printing it
1Press  2/1  to select the picture and...

Connecting to other equipment

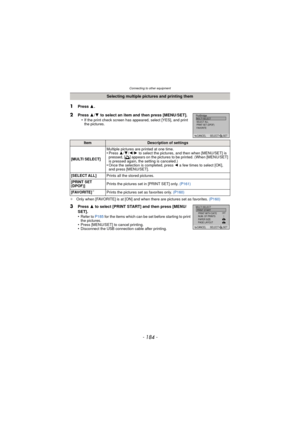

- 184 -
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites.  (P160)
Selecting multiple pictures and printing them
1Press 3.
2Press  3/4  to select an item and then press [MENU/SET].
•If the print check screen has appeared, select [YES], and print
the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Press
3/4/ 2/1 to select the pictures, and then when [MENU/SET] is
pressed, [é] appears on the...

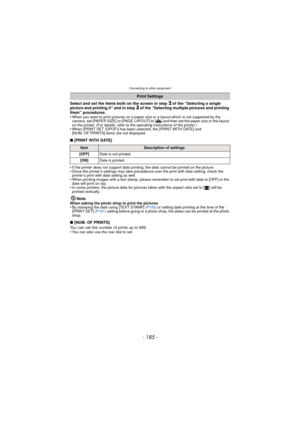

- 185 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures on a paper size or a layout which is not supported by the
camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {] and then set the paper size or the layout
on the printer. (For details, refer to the operating instructions of the printer.)
•When [PRINT...

Connecting to other equipment

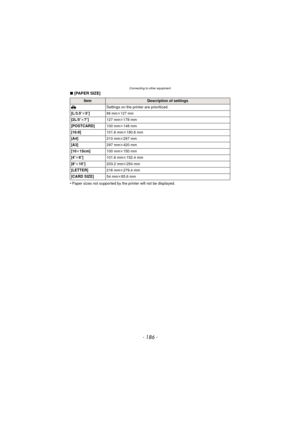

- 186 -
∫[PAPER SIZE]
•
Paper sizes not supported by the printer will not be displayed.
ItemDescription of settings
{  Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

- 187 -
Connecting to other equipment

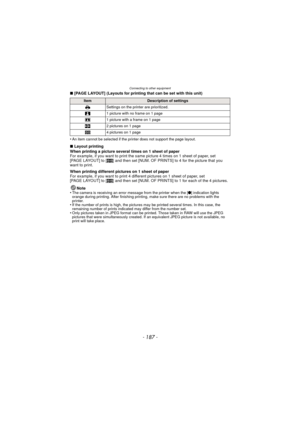

∫[PAGE LAYOUT] (Layouts for printing that can be set with this unit)
•
An item cannot be selected if the printer does not support the page layout.
∫ Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example,...

Others

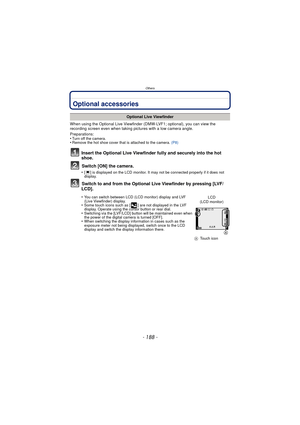

- 188 -
OthersOptional accessories
When using the Optional Live Viewfinder (DMW-LVF1; optional), you can view the
recording screen even when taking pictures with a low camera angle.
Preparations:
•
Turn off the camera.•Remove the hot shoe cover that is attached to the camera. (P8)
Insert the Optional Live Viewfinder fully and securely into the hot
shoe.
Switch [ON] the camera.
•[ ] is displayed on the LCD monitor. It may not be connected properly if it does not
display.
Switch to and from the...

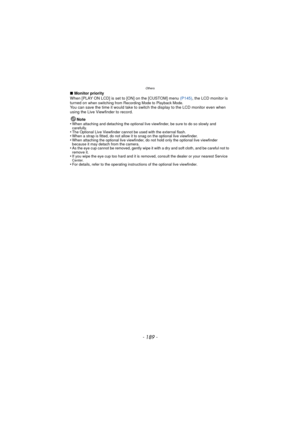

- 189 -
Others
∫Monitor priority
When [PLAY ON LCD] is set to [ON] on the [CUSTOM] menu  (P145), the LCD monitor is
turned on
when switching from Recording Mode to Playback Mode.You can save the time it would take to switch the display to the LCD monitor even when
using the Live Viewfinder to record.
Note
•
When attaching and detaching the optional live viewfinder, be sure to do so slowly and
carefully.
•The Optional Live Viewfinder cannot  be used with the external flash.•When a strap is fitted, do...

Others

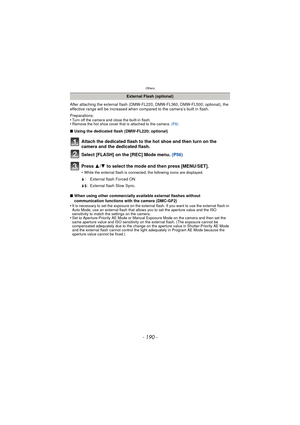

- 190 -
After attaching the external flash (DMW-FL220, DMW-FL360, DMW-FL500; optional), the
effective range will be increased when compared to the camera’s built in flash.
Preparations:
•
Turn off the camera and close the built-in flash.•Remove the hot shoe cover that is attached to the camera. (P8)
∫Using the dedicated flash (DMW-FL220; optional)
Attach the dedicated flash to the hot shoe and then turn on the
camera and the dedicated flash.
Select [FLASH] on the [REC] Mode menu.  (P56)
Press...
