Panasonic Digital Camera Dmc Ts4 Owners Manual For Advanced Features

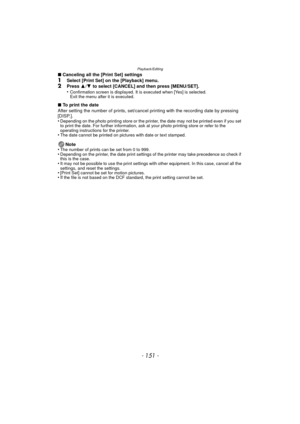

- 151 -
Playback/Editing
∫Canceling all the [Print Set] settings1Select [Print Set] on the [Playback] menu.2Press  3/4  to select [CANCEL] and then press [MENU/SET].
•Confirmation screen is displayed. It is executed when [Yes] is selected.
Exit the menu after it is executed.
∫ To print the date
After setting the number of prints, set/cancel  printing with the recording date by pressing
[DISP.].
•
Depending on the photo printing store or the printer, the date may not be printed even if you set
to print...

Playback/Editing

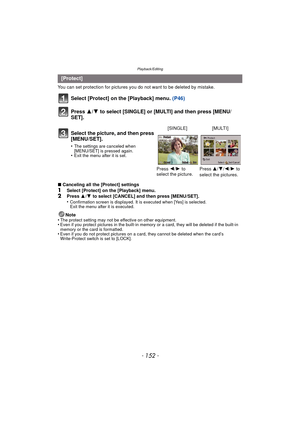

- 152 -
You can set protection for pictures you do not want to be deleted by mistake.
Select [Protect] on the [Playback] menu.  (P46)
Press  3/4 to select [SINGLE] or [MULTI] and then press [MENU/
SET].
∫ Canceling all the [Protect] settings1Select [Protect] on the [Playback] menu.2Press  3/4  to select [CANCEL] and then press [MENU/SET].
•Confirmation screen is displayed. It is executed when [Yes] is selected.
Exit the menu after it is executed.
Note
•The protect setting may not be...

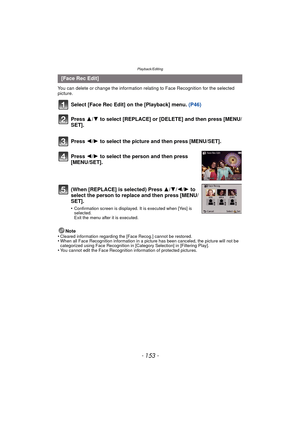

- 153 -
Playback/Editing
You can delete or change the information relating to Face Recognition for the selected
picture.
Select [Face Rec Edit] on the [Playback] menu. (P46)
Note
•Cleared information regarding the [Face Recog.] cannot be restored.•When all Face Recognition information in a picture has been canceled, the picture will not be
categorized using Face Recognition in [Category Selection] in [Filtering Play].
•You cannot edit the Face Recognition information of protected pictures.
[Face Rec...

Playback/Editing

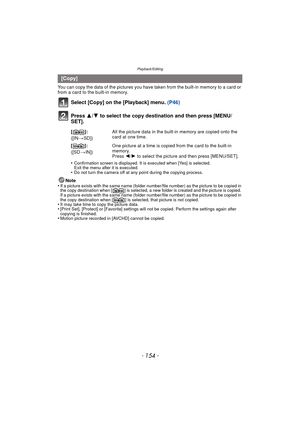

- 154 -
You can copy the data of the pictures you have taken from the built-in memory to a card or
from a card to the built-in memory.
Select [Copy] on the [Playback] menu. (P46)
Press  3/4 to select the copy destination and then press [MENU/
SET].
•Confirmation screen is displayed. It is executed when [Yes] is selected.
Exit the menu after it is executed.
•Do not turn the camera off at any point during the copying process.
Note
•If a picture exists with the same name (folder numbe...

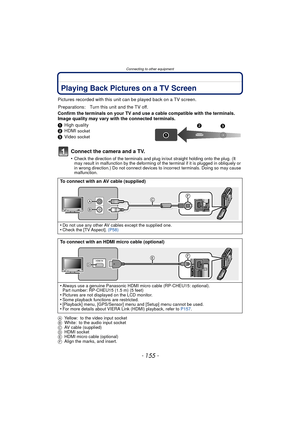

- 155 -
Connecting to other equipment
Connecting to other equipmentPlaying Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Confirm the terminals on your TV and use a cable compatible with the terminals.
Image quality may vary with the connected terminals.
1 High quality
2 HDMI
socket
3Video socket
Connect the camera and a TV.
•Check the direction of the terminals and plug in/out straight holding onto the plug. (It
may result in malfunction by the...

Connecting to other equipment

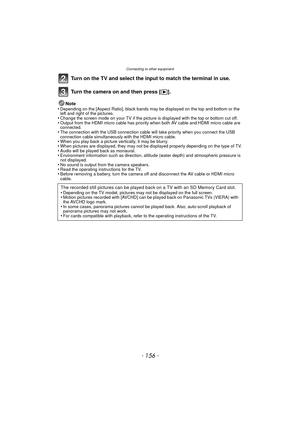

- 156 -
Turn on the TV and select the input to match the terminal in use.
Turn the camera on and then press [(].
Note
•Depending on the [Aspect Ratio], black bands may  be displayed on the top and bottom or the
left and right of the pictures.
•Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.•Output from the HDMI micro cable has priority  when both AV cable and HDMI micro cable are
connected.
•The connection with the USB...

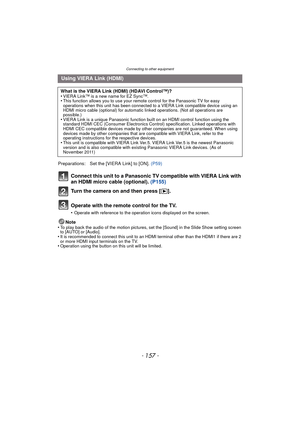

- 157 -
Connecting to other equipment
Connect this unit to a Panasonic TV compatible with VIERA Link with
an HDMI micro cable (optional). (P155)
Turn the camera on and then press [(].
Operate with the remote control for the TV.
•Operate with reference to the operation icons displayed on the screen.
Note
•To play back the audio of the motion pictures, set the [Sound] in the Slide Show setting screen
to [AUTO] or [Audio].
•It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if...

Connecting to other equipment

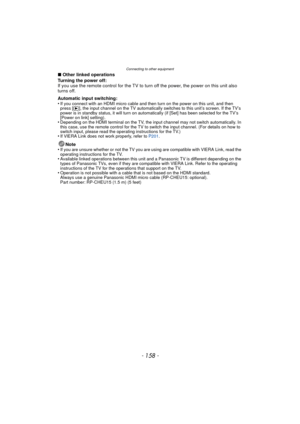

- 158 -
∫Other linked operations
Turning the power off:
If you use the remote control for the TV to turn off the power, the power on this unit also
turns off.
Automatic input switching:
•
If you connect with an HDMI micro cable and then turn on the power on this unit, and then
press [ (], the input channel on the TV automatically switches to this unit’s screen. If the TV’s
power is in standby status, it will turn on automatically (if [Set] has been selected for the TV’s...

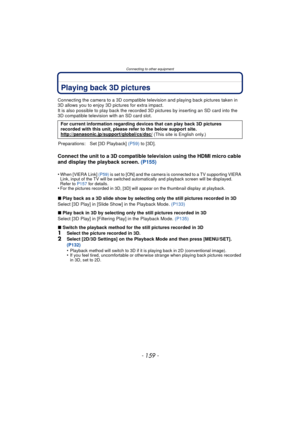

- 159 -
Connecting to other equipment
Playing back 3D pictures
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to play back the recorded 3D pictures by inserting an SD card into the
3D compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI micro cable
and display the playback screen. (P155)
•When [VIERA Link] (P59) is set to [ON] and the...

Connecting to other equipment

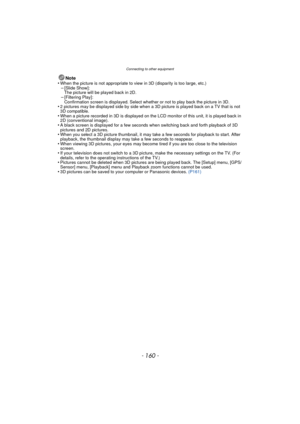

- 160 -
Note
•When the picture is not appropriate to view in 3D (disparity is too large, etc.)–[Slide Show]:
The picture will be played back in 2D.
–[Filtering Play]:
Confirmation screen is displayed. Select whether or not to play back the picture in 3D.
•2 pictures may be displayed side by side when a 3D  picture is played back on a TV that is not
3D compatible.
•When a picture recorded in 3D is displayed on the LCD monitor of this unit, it is played back in
2D...
