Panasonic Digital Camera Dmc Ts4 Owners Manual For Advanced Features

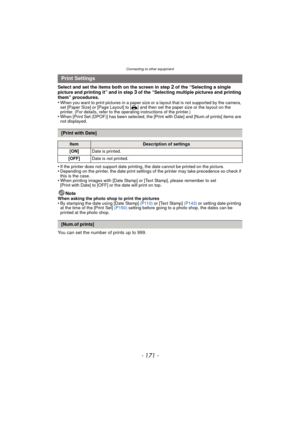

- 171 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout that is not supported by the camera,
set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on the
printer. (For details, refer to the operating instructions of the printer.)
•When [Print...

Connecting to other equipment
- 172 -
•Paper sizes not supported by the printer will not be displayed.

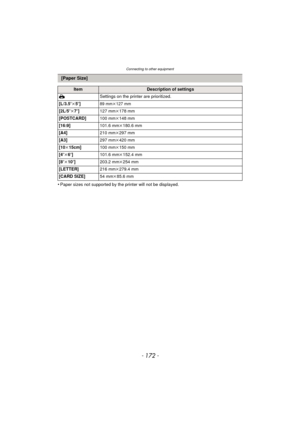

[Paper Size]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

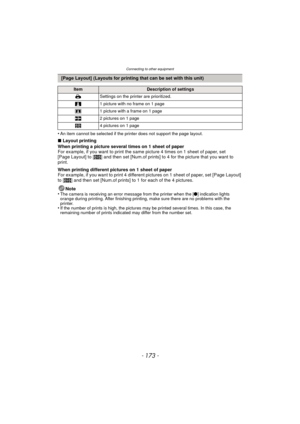

- 173 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[Page Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to
print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...

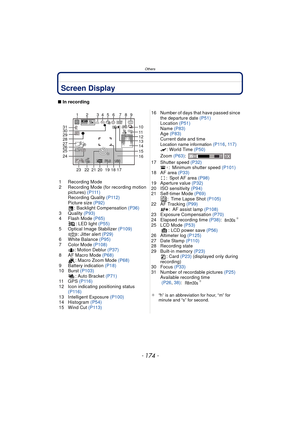

Others
- 174 -
OthersScreen Display
∫In recording
1 Recording Mode
2 Recording Mode (for recording motion  pictures)  ( P 111 )
Recording Quality  (P112)
Picture size (P92) : Backlight Compensation  (P36)
3 Quality  (P93)
4 Flash Mode  (P65)
: LED light  (P55)
5 Optical Image Stabilizer  (P109)
: Jitter alert  (P29)
6 White Balance  (P95)
7 Color Mode  (P108)
: Motion Deblur  (P37)
8 AF Macro Mode  (P68)
: Macro Zoom Mode  (P68)
9 Battery indication  (P18)
10 Burst  (P103)
: Auto Bracket (P71)
11 G P S...

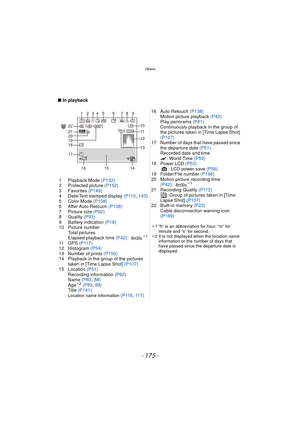

- 175 -
Others
∫In playback
1 Playback Mode (P132)
2 Protected picture  (P152)
3 Favorites  (P149)
4 Date/Text stamped display  (P110, 143)
5 Color Mode  (P108)
6 After Auto Retouch  (P138)
7 Picture size (P92)
8 Quality  (P93)
9 Battery indication  (P18)
10 Picture number Total pictures
Elapsed playback time  (P42):
¢1
11 G P S   (P117)
12 Histogram  (P54)
13 Number of prints  (P150)
14 Playback in the group of the pictures  taken in [Time Lapse Shot]  (P107)
15 Location  (P51)
Recording information...

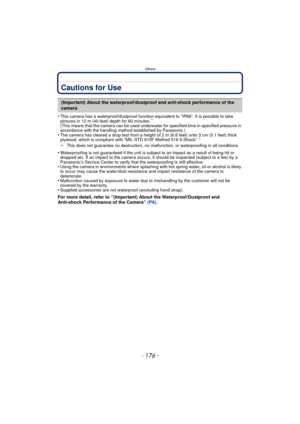

Others
- 176 -
Cautions for Use
•This camera has a waterproof/dustproof function equivalent to “IP68”. It is possible to take
pictures in 12 m (40 feet) depth for 60 minutes.¢
(This means that the camera can be used underwater for specified time in specified pressure in
accordance with the handling method established by Panasonic.)
•The camera has cleared a drop test from a height of 2 m (6.6 feet) onto 3 cm (0.1 feet) thick
plywood, which is compliant with “MIL-STD 810F Method 516.5-Shock”.¢
¢ This...

- 177 -
Others

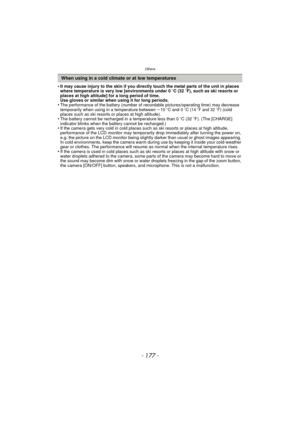

•It may cause injury to the skin if you directly touch the metal parts of the unit in places
where temperature is very low [environments under 0oC (32 oF), such as ski resorts or
places at high altitude] for a long period of time.
Use gloves or similar when using it for long periods.
•The performance of the battery (number of recordable pictures/operating time) may decrease
temporarily when using in a temperature between  j10 oC and 0 oC (14oF and 32oF) (cold
places such as ski resorts...

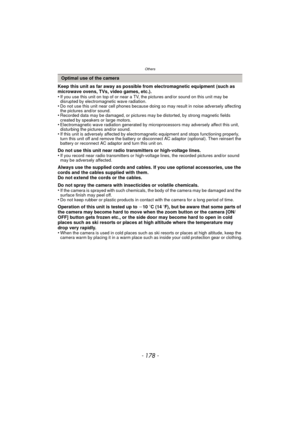

Others
- 178 -
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games, etc.).
•
If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise adversely affecting
the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields
created by speakers...

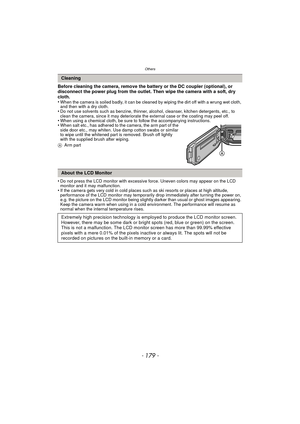

- 179 -
Others
Before cleaning the camera, remove the battery or the DC coupler (optional), or
disconnect the power plug from the outlet. Then wipe the camera with a soft, dry
cloth.
•
When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth,
and then with a dry cloth.
•Do not use solvents such as benzine, thinner, alcohol, cleanser, kitchen detergents, etc., to
clean the camera, since it may deteriorate the external case or the coating may peel off.
•When...

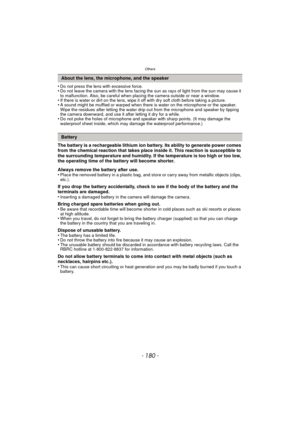

Others
- 180 -
•Do not press the lens with excessive force.•Do not leave the camera with the lens facing the sun as rays of light from the sun may cause it
to malfunction. Also, be careful when placing the camera outside or near a window.
•If there is water or dirt on the lens, wipe it off with dry soft cloth before taking a picture.•A sound might be muffled or warped when there is water on the microphone or the speaker.
Wipe the residues after letting the water drip out from the microphone and speaker...
