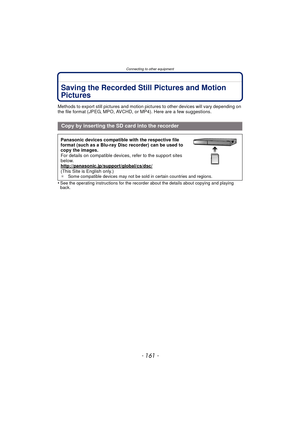

- 161 -
Connecting to other equipment
Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format (JPEG, MPO, AVCHD,  or MP4). Here are a few suggestions.
•
See the operating instructions for the recorder about the details about copying and playing
back.
Copy by inserting the SD card into the recorder
Panasonic devices compatible with the respective file
format (such as a Blu-ray Disc recorder) can...

Connecting to other equipment

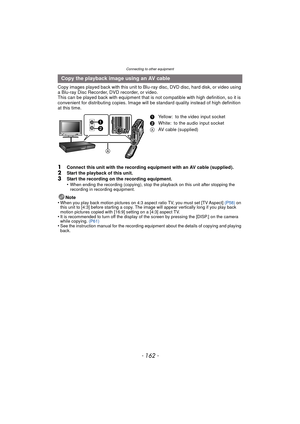

- 162 -
Copy images played back with this unit to Blu-ray disc, DVD disc, hard disk, or video using
a Blu-ray Disc Recorder, DVD recorder, or video.
This can be played back with equipment that is not compatible with high definition, so it is
convenient for distributing copies. Image will be standard quality instead of high definition
at this time.
1Connect this unit with the recording equipment with an AV cable (supplied).2Start the playback of this unit.
3Start the...

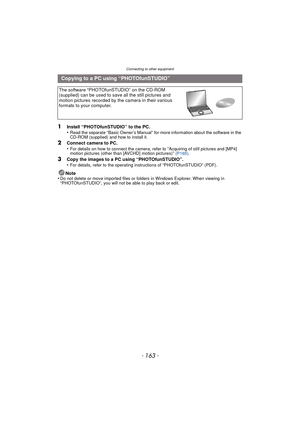

- 163 -
Connecting to other equipment
1Install “PHOTOfunSTUDIO” to the PC.
•Read the separate “Basic Owner’s Manual” for more information about the software in the
CD-ROM (supplied) and how to install it.
2Connect camera to PC.
•For details on how to connect the camera, refer to “Acquiring of still pictures and [MP4]
motion pictures (other than [AVCHD] motion pictures)”  (P165) .
3Copy the images to a PC using “PHOTOfunSTUDIO”.
•For details, refer to the operating instructions of “PHOTOfunSTUDIO”...

Connecting to other equipment

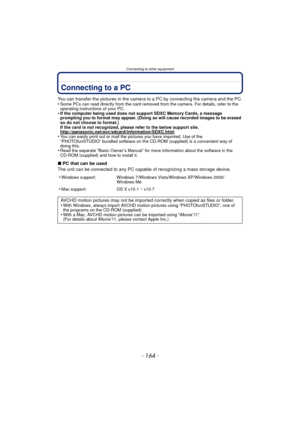

- 164 -
Connecting to a PC
You can transfer the pictures in the camera to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognized, please refer...

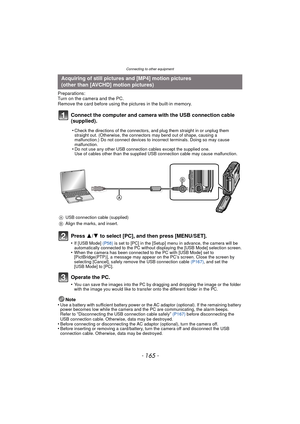

- 165 -
Connecting to other equipment
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
Connect the computer and camera with the USB connection cable
(supplied).
Press 3/4 to select [PC], and then press [MENU/SET].
•If [USB Mode] (P58)  is set to [PC] in the [Setup] menu in advance, the camera will be
automatically connected to the PC without displaying the [USB Mode] selection screen.
•When the camera has been connected to the PC with [USB...

Connecting to other equipment
- 166 -

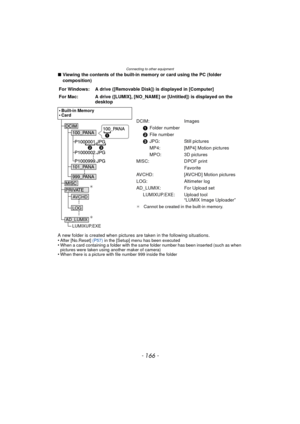

∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
A new folder is created when pictures are taken in the following situations.
•
After [No.Reset]  (P57) in the [Setup] menu has been executed•When a card containing a folder with the same folder number has been inserted (such as when
pictures were taken using another maker of camera)
•When there is a picture with file number 999 inside the folder
For Windows: A drive ([Removable...

- 167 -
Connecting to other equipment
∫Disconnecting the USB connection cable safely
Select the [ ] icon in task tray displayed on the PC, and then click [Eject
DMC-XXX] (XXX varies by model).
•
Depending on your PC’s settings, this icon may not be displayed.•If the icon is not displayed, check that [Access] is not displayed on the LCD monitor of the
digital camera before removing the hardware.
∫ Connection in the PTP Mode (WindowsR XP, Windows VistaR, WindowsR 7 and
Mac OS X only)
Set [USB Mode] to...

Connecting to other equipment

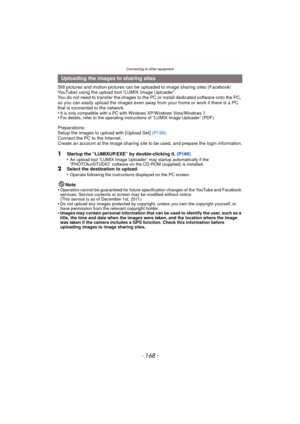

- 168 -
Still pictures and motion pictures can be uploaded to image sharing sites (Facebook/
YouTube) using the upload tool “LUMIX Image Uploader”.
You do not need to transfer the images to the PC or install dedicated software onto the PC,
so you can easily upload the images even away from your home or work if there is a PC
that is connected to the network.
•
It is only compatible with a PC with Windows XP/Windows Vista/Windows 7.•For details, refer to the operating...

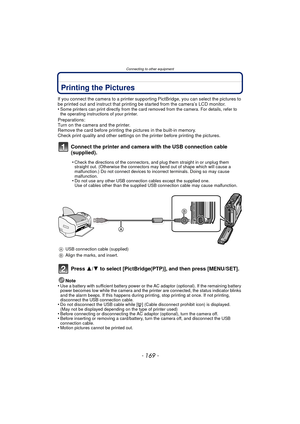

- 169 -
Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started from the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures in the built-in memory.
Check print...

Connecting to other equipment

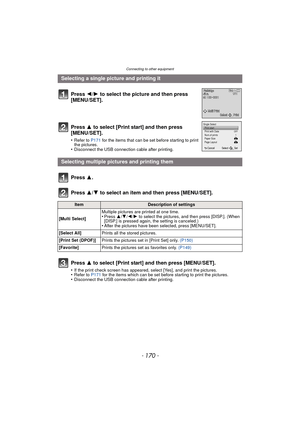

- 170 -
Selecting a single picture and printing itPress  2/1 to select the picture and then press
[MENU/SET].
Press  3 to select [Print start] and then press
[MENU/SET].
•Refer to P171 for the items that can be set before starting to print
the pictures.
•Disconnect the USB connecti on cable after printing.
Selecting multiple pictures and printing them
Press  3.
Press  3/4 to select an item and then press [MENU/SET].
ItemDescription of settings
[Multi Select] Multiple...
