Panasonic Digital Camera Dmc Zs50 Owners Manual For Advanced Features

Preparations
Names and Functions of Main Parts

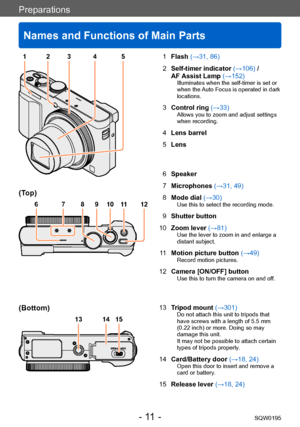

SQW0195- 11 -
1Flash (→31, 86)
2 Self-timer indicator (→106) /
AF Assist Lamp (→152)
Illuminates when the self-timer is set or
when the Auto Focus is operated in dark
locations.
3Control ring  (→33)Allows you to zoom and adjust settings
when recording.
4Lens barrel
5 Lens
6 Speaker
7 Microphones  (→31, 49)
8 Mode dial  (→30)
Use this to select the recording mode.
9Shutter button
10 Zoom lever (→81)
Use the lever to zoom in and enlarge a
distant subject....

Preparations
Names and Functions of Main PartsSQW0195

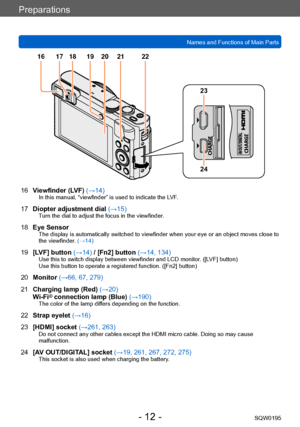

- 12 -
16Viewfinder (LVF) (→14)In this manual, “viewfinder” is used to indicate the LVF.
17Diopter adjustment dial  (→15)Turn the dial to adjust the focus in the viewfinder.
18Eye SensorThe display is automatically switched to viewfinder when your eye or an object moves close to
the viewfinder. (→14)
19[LVF] button  (→14) / [Fn2] button  (→14, 134)Use this to switch display between viewfinder and LCD monitor. ([LVF] button)
Use this button to operate...

Preparations
Names and Functions of Main PartsSQW0195

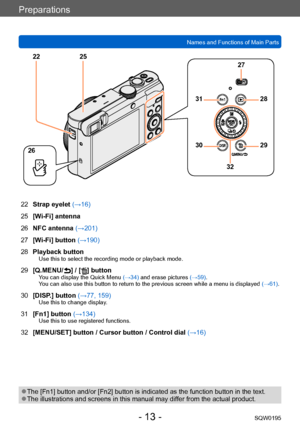

- 13 -
22Strap eyelet (→16)
25 [Wi-Fi] antenna
26 NFC antenna (→201)
27 [Wi-Fi] button  (→190)
28 Playback button
Use this to select the recording mode or playback mode.
29
[Q.MENU/ ] / [] buttonYou can display the Quick Menu  (→34) and erase pictures (→59).
You can also use this button to return to the previous screen while a menu is displayed  (→61).
30[DISP.] button  (→77, 159)Use this to change display.
31[Fn1] button  (→134)Use this to use...

Preparations
Names and Functions of Main PartsSQW0195

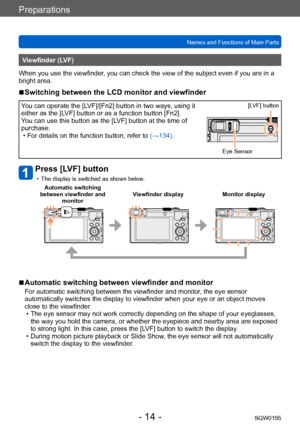

- 14 -
Viewfinder (LVF)
When you use the viewfinder, you can check the view of the subject even if you are in a
bright area.
 ■Switching between the LCD monitor and viewfinder
You can operate the [LVF]/[Fn2] button in two ways, using it
either as the [LVF] button or as a function button [Fn2].
You can use this button as the [LVF] button at the time of
purchase.
 • For details on the function button, refer to (→134)

.
Eye Sensor[LVF] button
Press...

Preparations
Names and Functions of Main PartsSQW0195
- 15 -

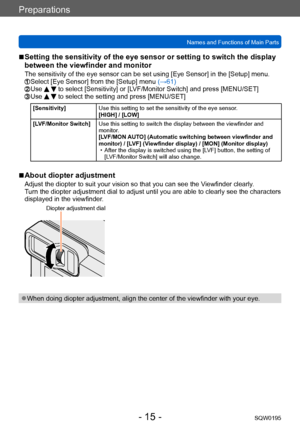

 ■Setting the sensitivity of the eye sensor or setting to switch the display
between the viewfinder and monitor
The sensitivity of the eye sensor can be set using [Eye Sensor] in the [Setup] menu.  Select [Eye Sensor] from the [Setup] menu (→61)  Use   to select [Sensitivity] or [LVF/Monitor Switch] and press [MENU/SET]  Use   to select the setting and press [MENU/SET]
[Sensitivity]Use this setting to set the sensitivity of the eye sensor....

Preparations
Names and Functions of Main PartsSQW0195

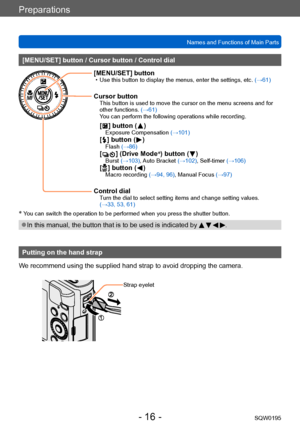

- 16 -
[MENU/SET] button / Cursor button / Control dial
[MENU/SET] button • Use this button to display the menus, enter the settings, etc. (→61)
Cursor buttonThis button is used to move the cursor on the menu screens and for
other functions. (→61)
You can perform the following operations while recording.
[  ] button (  )Exposure Compensation (→101)[  ] button (  )Flash (→86)[  ] (Drive Mode*
) button (  )Burst (→103), Auto Bracket (→102), Self-timer...

Preparations
Charging battery

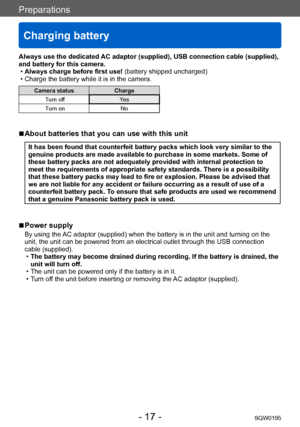

SQW0195- 17 -
Always use the dedicated AC adaptor (supplied), USB connection cable (supplied),
and battery for this camera.
 •Always charge before first use! (battery shipped uncharged) • Charge the battery while it is in the camera.
Camera status Charge
Turn off Yes
Turn on No
 ■About batteries that you can use with this unit
It has been found that counterfeit battery packs which look very similar to the
genuine products are made available to purchase in some markets....

Preparations
Charging batterySQW0195
- 18 -

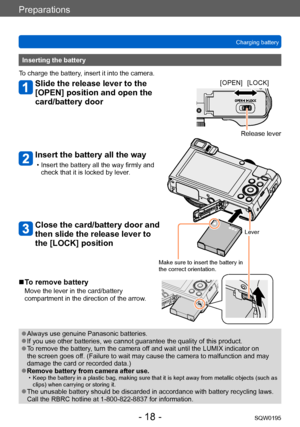

Inserting the battery
To charge the battery, insert it into the camera.
Slide the release lever to the
[OPEN] position and open the
card/battery door
Insert the battery all the way
 • Insert the battery all the way firmly and  check that it is locked by lever.
Close the card/battery door and
then slide the release lever to
the [LOCK] position
[OPEN] [LOCK]
Release lever
Lever
Make sure to insert the battery in
the correct orientation.
 ■To remove battery...

Preparations
Charging batterySQW0195

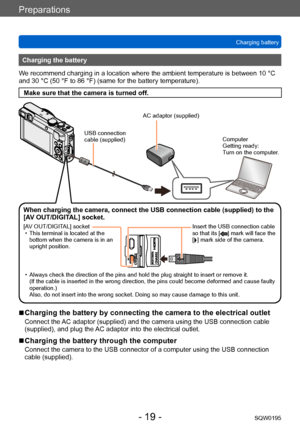

- 19 -
Charging the battery
We recommend charging in a location where the ambient temperature is between 10 °C
and 30 °C (50 °F to 86 °F) (same for the battery temperature).
Make sure that the camera is turned off.
USB connection
cable (supplied)
AC adaptor (supplied)
Computer
Getting ready:
Turn on the computer.
When charging the camera, connect the USB connection cable (supplied) to the
[AV OUT/DIGITAL] socket.
[AV OUT/DIGITAL] socket  • This terminal is located...

Preparations
Charging batterySQW0195

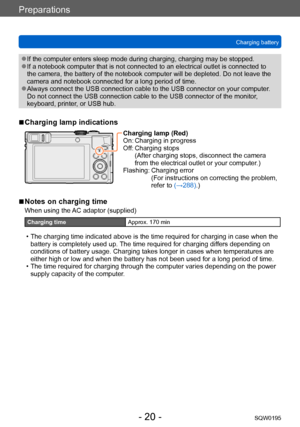

- 20 -
 ●If the computer enters sleep mode during charging, charging may be stopped. ●If a notebook computer that is not connected to an electrical outlet is connected to
the camera, the battery of the notebook computer will be depleted. Do not leave the
camera and notebook connected for a long period of time.
 ●Always connect the USB connection cable to the USB connector on your computer .
Do not connect the USB connection cable to the USB connector of the...
