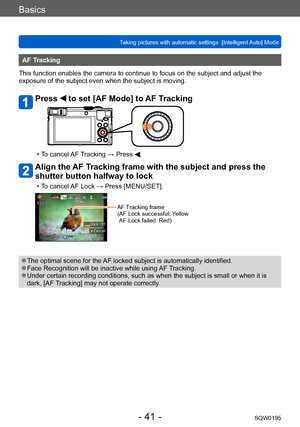

Panasonic Digital Camera Dmc Zs50 Owners Manual For Advanced Features

Basics
Taking pictures with automatic settings  [Intelligent Auto] Mode SQW0195
- 41 -
AF Tracking
This function enables the camera to continue to focus on the subject and adjust the
exposure of the subject even when the subject is moving.
Press  to set [AF Mode] to AF Tracking
 • To cancel AF Tracking → Press .
Align the AF Tracking frame with the subject and press the
shutter button halfway to lock
 • To cancel AF Lock → Press [MENU/SET].
AF Tracking frame
( AF Lock successful: Y ellow
AF Lock...

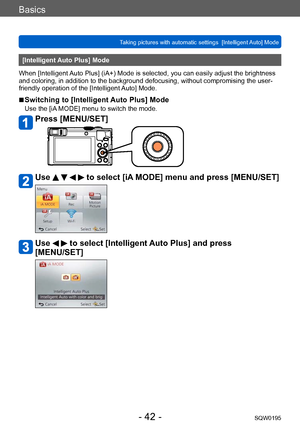

Basics
Taking pictures with automatic settings  [Intelligent Auto] Mode SQW0195
- 42 -
[Intelligent Auto Plus] Mode
When [Intelligent Auto Plus] (iA+) Mode is selected, you can easily adjust the brightness
and coloring, in addition to the background defocusing, without compromising the user-
friendly operation of the [Intelligent Auto] Mode.
 ■Switching to [Intelligent Auto Plus] Mode
Use the [iA MODE] menu to switch the mode.
Press [MENU/SET]
Use     to select [iA MODE] menu and press [MENU/SET]
Use...

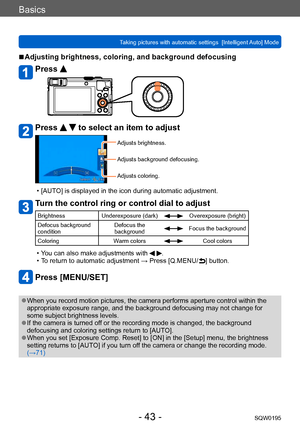

Basics
Taking pictures with automatic settings  [Intelligent Auto] Mode SQW0195
- 43 -
 ■Adjusting brightness, coloring, and background defocusing
Press
Press   to select an item to adjust
Adjusts brightness.
Adjusts background defocusing.
Adjusts coloring.
 • [AUTO] is displayed in the icon during automatic adjustment.
Turn the control ring or control dial to adjust
BrightnessUnderexposure (dark)Overexposure (bright)
Defocus background
condition Defocus the
background
Focus the background
Coloring...

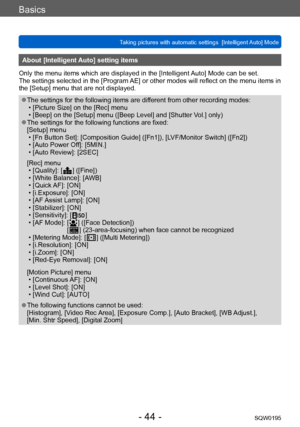

Basics
Taking pictures with automatic settings  [Intelligent Auto] Mode SQW0195
- 44 -
About [Intelligent Auto] setting items
Only the menu items which are displayed in the [Intelligent Auto] Mode can be set.
The settings selected in the [Program AE] or other modes will reflect on the menu items in
the [Setup] menu that are not displayed.
 ●The settings for the following items are different from other recording modes: • [Picture Size] on the [Rec] menu • [Beep] on the [Setup] menu ([Beep Level] and...

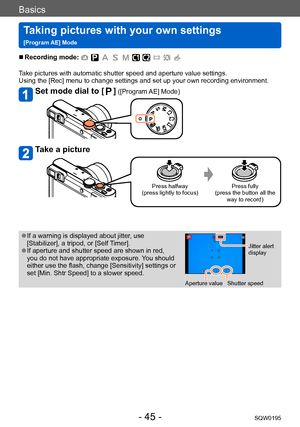

Basics
Taking pictures with your own settings
[Program AE] ModeSQW0195
- 45 -
 ■Recording mode:
Take pictures with automatic shutter speed and aperture value settings.
Using the [Rec] menu to change settings and set up your own recording environment.
Set mode dial to [] ([Program AE] Mode)
Take a picture
Press halfway
(press lightly to focus) Press fully
(press the button all the  way to record)
 ●If a warning is displayed about jitter, use
[Stabilizer], a tripod, or [Self Timer].
 ●If aperture and...

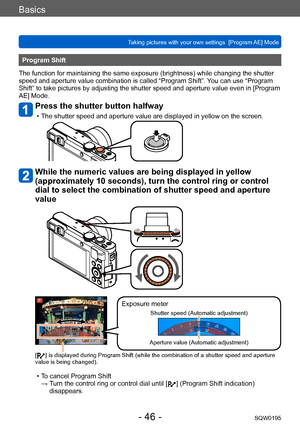

Basics
Taking pictures with your own settings  [Program AE] Mode SQW0195
- 46 -
Program Shift
The function for maintaining the same exposure (brightness) while changing the shutter
speed and aperture value combination is called “Program Shift”.  You can use “Program
Shift” to take pictures by adjusting the shutter speed and aperture value even in [Program
AE] Mode.
Press the shutter button halfway
 • The shutter speed and aperture value are displayed in yellow on the screen.
While the numeric values...

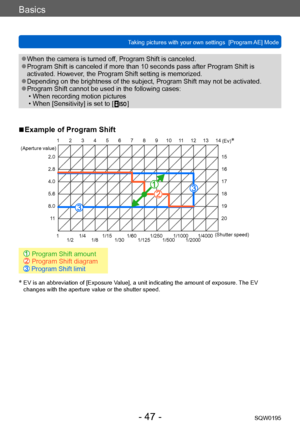

Basics
Taking pictures with your own settings  [Program AE] Mode SQW0195
- 47 -
 ●When the camera is turned off, Program Shift is canceled. ●Program Shift is canceled if more than 10 seconds pass after Program Shift is
activated. However, the Program Shift setting is memorized.
 ●Depending on the brightness of the subject, Program Shift may not be activated. ●Program Shift cannot be used in the following cases: • When recording motion pictures • When [Sensitivity] is set to [  ]
 ■Example of Program...

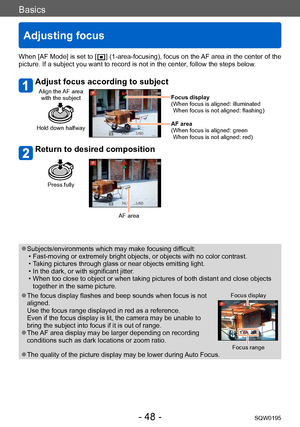

Basics
Adjusting focus
SQW0195- 48 -
When [AF Mode] is set to [  ] (1-area-focusing), focus on the AF area in the center of the
picture. If a subject you want to record is not in the center , follow the steps below.
Adjust focus according to subject
Align the AF area
with the subject
Hold down halfway
Focus display
( When focus is aligned: illuminated
When focus is not aligned: flashing)
AF area
(
 When focus is aligned: green
When focus is not aligned: red)
Return to desired composition
Press fully...

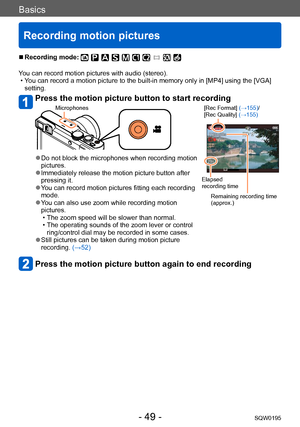

Basics
Recording motion pictures
SQW0195- 49 -
 ■Recording mode:
You can record motion pictures with audio (stereo). • You can record a motion picture to the built-in memory only in [MP4] using the [VGA] setting.
Press the motion picture button to start recording
Microphones [Rec Format] (→155)/
[Rec Quality] (→155)
Elapsed
recording time
Remaining recording time
(approx.)
 ●Do not block the microphones when recording motion
pictures.
 ●Immediately release the motion picture button after
pressing...

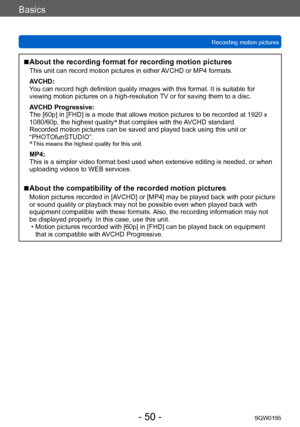

Basics
Recording motion picturesSQW0195
- 50 -
 ■About the recording format for recording motion pictures
This unit can record motion pictures in either AVCHD or MP4 formats.
AVCHD:
You can record high definition quality images with this format. It is suitable for
viewing motion pictures on a high-resolution TV or for saving them to a disc.
AVCHD Progressive:
The [60p] in [FHD] is a mode that allows motion pictures to be recorded at 1920 x
1080/60p, the highest quality *
 that complies with the AVCHD...
