Panasonic Digital Copier DP 2500/3000 Copier Operating Instructions

61
I
Problem Solving
1
2
3

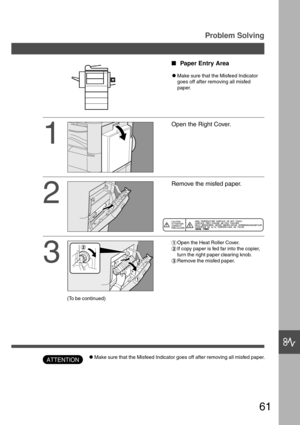

Open the Right Cover.
Remove the misfed paper.
#Open the Heat Roller Cover.
$If copy paper is fed far into the copier,
turn the right paper clearing knob.
%Remove the misfed paper.

Paper Entry Area
CMake sure that the Misfeed Indicator
goes off after removing all misfed
paper.
CMake sure that the Misfeed Indicator goes off after removing all misfed paper.ATTENTION
(To be continued)

62
Problem Solving
ATTENTIONCMake sure that the Misfeed Indicator goes off after removing all misfed paper.
4

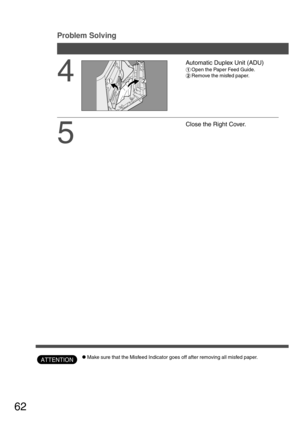

Automatic Duplex Unit (ADU)
#Open the Paper Feed Guide.
$Remove the misfed paper.
5
Close the Right Cover.

63
I
Problem Solving
1
2

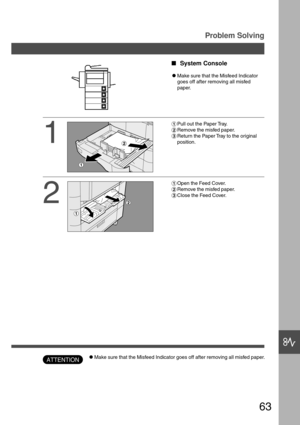

#Pull out the Paper Tray.
$Remove the misfed paper.
%Return the Paper Tray to the original
position.
#Open the Feed Cover.
$Remove the misfed paper.
%Close the Feed Cover.

System Console
CMake sure that the Misfeed Indicator
goes off after removing all misfed
paper.
CMake sure that the Misfeed Indicator goes off after removing all misfed paper.ATTENTION

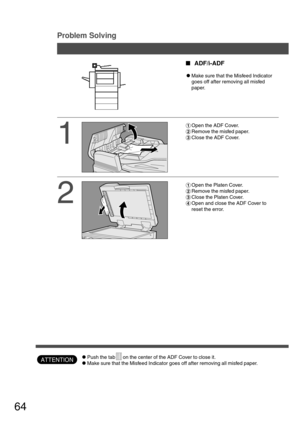

64
Problem Solving
ATTENTION
1
2
#Open the ADF Cover.
$Remove the misfed paper.
%Close the ADF Cover.
#Open the Platen Cover.
$Remove the misfed paper.
%Close the Platen Cover.
&Open and close the ADF Cover to
reset the error.

ADF/i-ADF
CMake sure that the Misfeed Indicator
goes off after removing all misfed
paper.
CPush the tab on the center of the ADF Cover to close it.
CMake sure that the Misfeed Indicator goes off after removing all misfed paper.

65
Problem Solving
ATTENTION
F
CMake sure that the Misfeed Indicator goes off after removing all misfed paper.
3

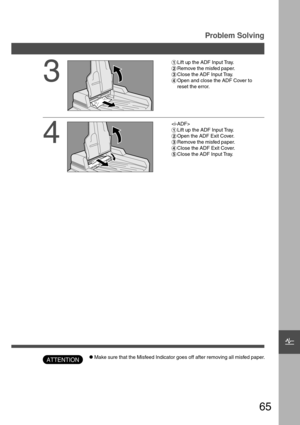

#Lift up the ADF Input Tray.
$Remove the misfed paper.
%Close the ADF Input Tray.
&Open and close the ADF Cover to
reset the error.
4

#Lift up the ADF Input Tray.
$Open the ADF Exit Cover.
%Remove the misfed paper.
&Close the ADF Exit Cover.
(Close the ADF Input Tray.

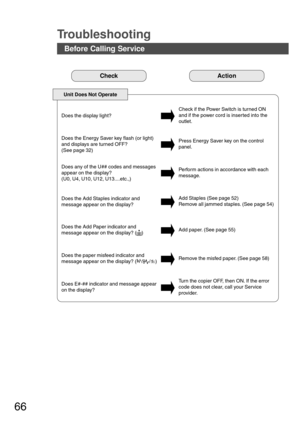

66
Troubleshooting
Before Calling Service
Check Action
Unit Does Not Operate
Does the display light?Check if the Power Switch is turned ON
and if the power cord is inserted into the
outlet.
Does the Energy Saver key flash (or light)
and displays are turned OFF?
(See page 32)Press Energy Saver key on the control
panel.
Perform actions in accordance with each
message. Does any of the U## codes and messages
appear on the display?
(U0, U4, U10, U12, U13....etc.,)
Add Staples (See page 52)
Remove all jammed...

67
Troubleshooting
Check Action

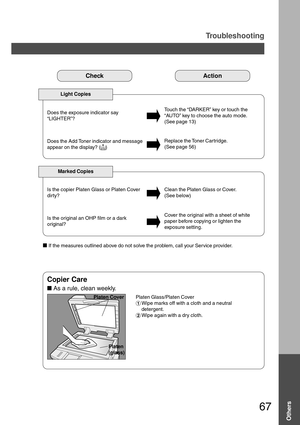

Light Copies
Does the exposure indicator say
“LIGHTER”?Touch the “DARKER” key or touch the
“AU TO” key to choose the auto mode.
(See page 13)
Does the Add Toner indicator and message
appear on the display? (?)Replace the Toner Cartridge.
(See page 56)
Marked Copies
Is the copier Platen Glass or Platen Cover
dirty?Clean the Platen Glass or Cover.
(See below)

If the measures outlined above do not solve the problem, call your Service provider.
Copier Care

 As a rule, clean...

68
Troubleshooting
CThe service life of the battery is approximately 1 year when the machine is turned “Off”.
1
Turn the Power Switch OFF.
Pull out the Battery Holder.
2

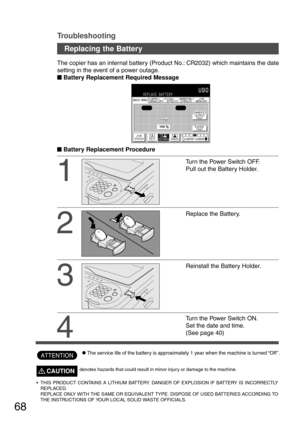

Replace the Battery. The copier has an internal battery (Product No.: CR2032) which maintains the date
setting in the event of a power outage.






 Battery Replacement Required Message






 Battery Replacement Procedure
3
Reinstall the Battery Holder.
4
Turn the Power Switch ON.
Set the date and time.
(See page 40)...

69

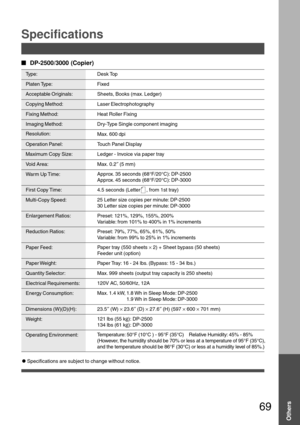

Specifications






DP-2500/3000 (Copier)
Platen Type: Fixed
Acceptable Originals: Sheets, Books (max. Ledger)
Copying Method: Laser Electrophotography
Fixing Method: Heat Roller Fixing
Resolution:
Max. 600 dpi
Operation Panel: Touch Panel Display
Maximum Copy Size: Ledger - Invoice via paper tray
Void Area:
Max. 0.2″ (5 mm)
Warm Up Time:Approx. 35 seconds (68°F/20°C): DP-2500
Approx. 45 seconds (68°F/20°C): DP-3000
First Copy Time: 4.5 seconds (Letter , from 1st tray)
Multi-Copy Speed:25 Letter...

70

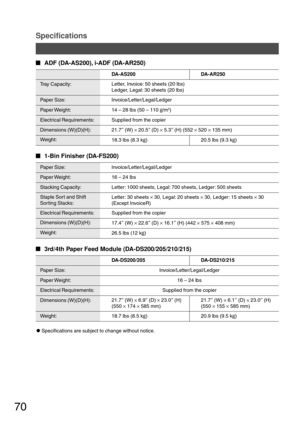

Specifications






ADF (DA-AS200), i-ADF (DA-AR250)
DA-AS200 DA-AR250






3rd/4th Paper Feed Module (DA-DS200/205/210/215)
DA-DS200/205 DA-DS210/215
Weight:
18.3 lbs (8.3 kg)
Dimensions (W)(D)(H): 21.7″ (W) × 20.5″ (D) × 5.3″ (H) (552 × 520 × 135 mm) Tray Capacity:Letter, Invoice: 50 sheets (20 lbs)
Ledger, Legal: 30 sheets (20 lbs)
Paper Size: Invoice/Letter/Legal/Ledger
Paper Weight: 14 – 28 lbs (50 – 110 g/m
2)
Electrical Requirements: Supplied from the copier
20.5 lbs (9.3 kg)




...
