- 111 -
Connecting to other equipment

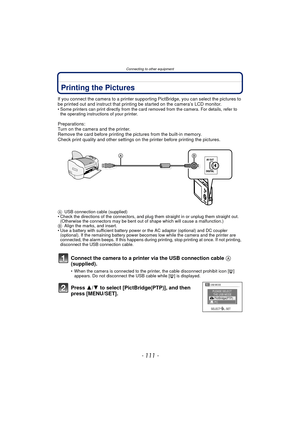

Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD monitor.
• Some printers can print directly from the card removed from the camera. For details, refer to the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in memory.
Check print...

Connecting to other equipment
- 112 -

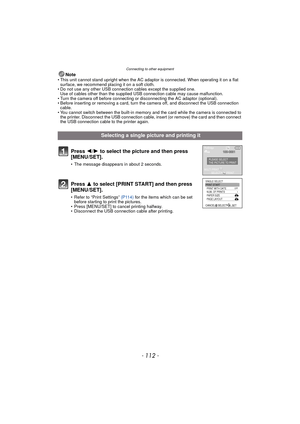

Note• This unit cannot stand upright when the AC adaptor is connected. When operating it on a flat
surface, we recommend placing it on a soft cloth.
• Do not use any other USB connection cables except the supplied one.
Use of cables other than the supplied USB connection cable may cause malfunction.
• Turn the camera off before connecting or disconnecting the AC adaptor (optional).
• Before inserting or removing a card, turn the camera off, and disconnect the USB...

- 113 -
Connecting to other equipment
¢Only when [FAVORITE] is at [ON] and when there are pictures set as Favorites.  (P103)

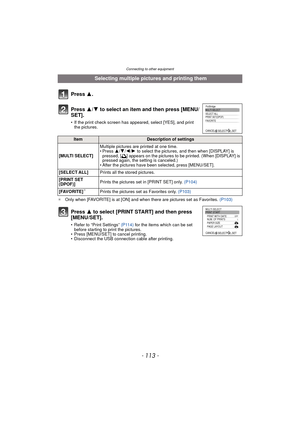

 Selecting multiple pictures and printing them
Press  3.
Press  3/4 to select an item and then press [MENU/
SET].
• If the print check screen has appeared, select [YES], and print  the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
• Press
3/4/ 2/1 to select the pictures, and then when [DISPLAY] is
pressed, [
é] appears on the...

Connecting to other equipment
- 114 -

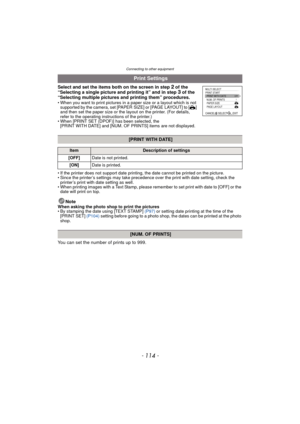

Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
• When you want to print pictures in a paper size or a layout which is not  supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
• When...

- 115 -
Connecting to other equipment

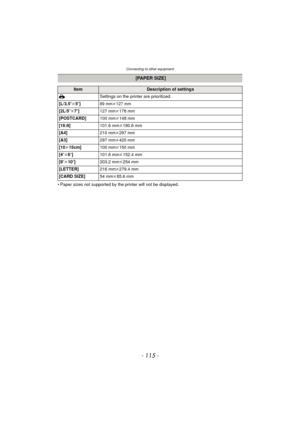

• Paper sizes not supported by the printer will not be displayed.
 [PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

Connecting to other equipment
- 116 -

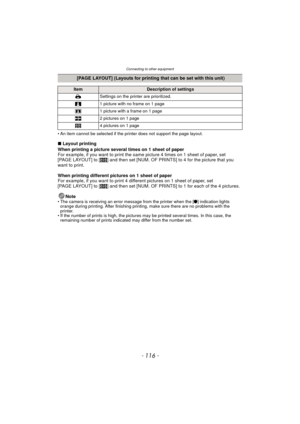

• An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...

- 117 -
Connecting to other equipment
[PLAYBACK] Mode: ¸

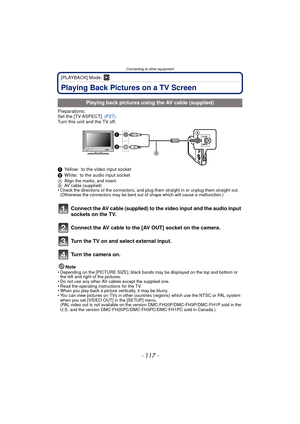

Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P27)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
• Check the directions of the connectors, and plug them straight in or unplug them straight out.  (Otherwise the connectors may be bent out of shape which will cause a malfunction.)
Connect the AV cable (supplied) to...

Connecting to other equipment
- 118 -

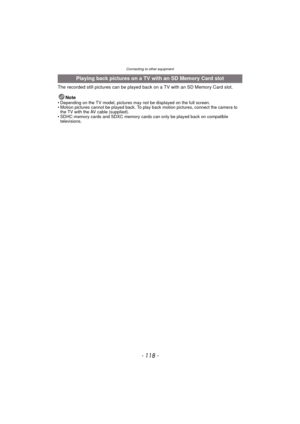

The recorded still pictures can be played back on a TV with an SD Memory Card slot.Note
• Depending on the TV model, pictures may  not be displayed on the full screen.
• Motion pictures cannot be played back. To pl ay back motion pictures, connect the camera to
the TV with the AV cable (supplied).
• SDHC memory cards and SDXC memory cards can only be played back on compatible  televisions.
Playing back pictures on a TV with an SD Memory Card slot

- 119 -
Others

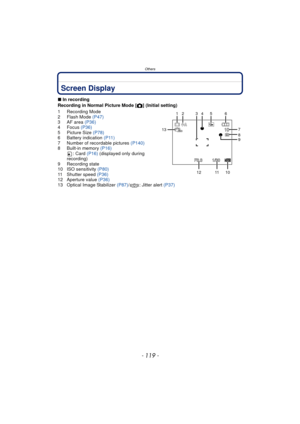

OthersScreen Display
∫In recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2 Flash Mode  (P47)
3 AF area  (P36)
4 Focus  (P36)
5 Picture Size (P78)
6 Battery indication  (P11)
7 Number of recordable pictures  (P140)
8 Built-in memory  (P16)
: Card (P16)  (displayed only during
recording)
9 Recording state
10 ISO sensitivity (P80)
11 Shutter speed  (P36)
12 Aperture value  (P36)
13 Optical Image Stabilizer  (P87)/ : Jitter alert  (P37)
*40
10 10
10
1/30...

Others
- 120 -

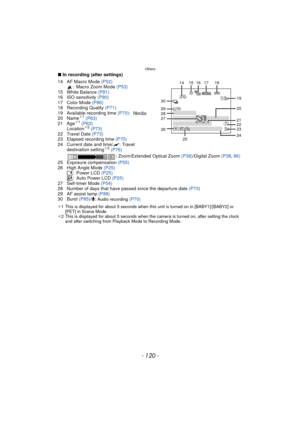

∫In recording (after settings)
14 AF Macro Mode  (P52)
: Macro Zoom Mode (P53)
15 White Balance  (P81)
16 ISO sensitivity (P80)
17 Color Mode  (P86)
18 Recording Quality  (P71)
19 Available recording time  (P70):
20 Name
¢ 1 (P63)
21 Age¢ 1 (P63)
Location¢ 2 (P73)
22 Travel Date  (P73)
23 Elapsed recording time  (P70)
24 Current date and time/ “: Travel
destination setting
¢ 2 (P76)
: Zoom/Extended Optical Zoom  (P38)/Digital Zoom  (P38, 86)
25 Exposure compensation  (P55)
26 High Angle...
