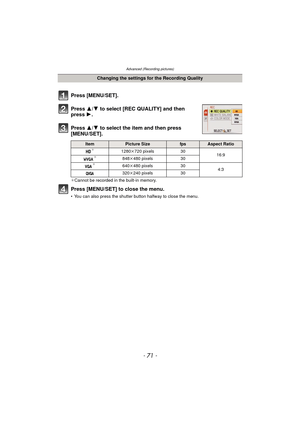

- 71 -
Advanced (Recording pictures)
Press [MENU/SET].
Press 3/4 to select [REC QUALITY] and then
press  1.
Press  3/4 to select the item and then press
[MENU/SET].
¢ Cannot be recorded in the built-in memory.
Press [MENU/SET] to close the menu.
• You can also press the shutter button halfway to close the menu.
Changing the settings for the Recording Quality
ItemPicture SizefpsAspect Ratio¢1280 k720 pixels 30
16:9¢848k480 pixels 30¢640k480 pixels 30
4:3
320k 240 pixels 30

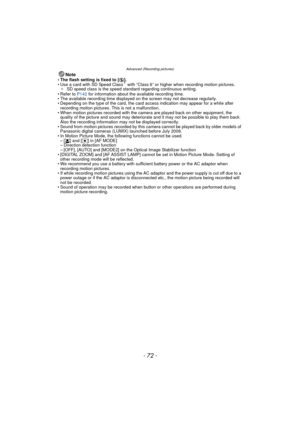

Advanced (Recording pictures)
- 72 -
Note• The flash setting is fixed to [Œ].
• Use a card with SD Speed Class¢ with “Class 6” or higher when recording motion pictures.
¢ SD speed class is the speed standard regarding continuous writing.
• Refer to  P142 for information about the available recording time.
• The available recording time displayed on the screen may not decrease regularly.
• Depending on the type of the card, the card access indication may appear for a while after  recording motion...

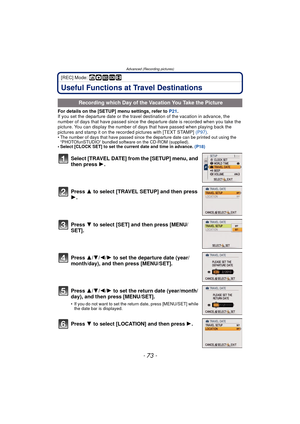

- 73 -
Advanced (Recording pictures)
[REC] Mode: ñ· ¿n
Useful Functions at Travel Destinations
For details on the [SETUP] menu settings, refer to P21.
If you set the departure date or the travel destination of the vacation in advance, the
number of days that have passed since the dep arture date is recorded when you take the
picture. You can display the number of days that have passed when playing back the
pictures and stamp it on the recorded pictures with [TEXT STAMP]  (P97).
• The number of days...

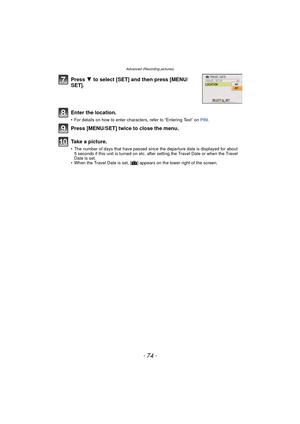

Advanced (Recording pictures)
- 74 -
Press 4 to select [SET] and then press [MENU/
SET].
Enter the location.
• For details on how to enter characters, refer to “Entering Text” on  P89.
Press [MENU/SET] twice to close the menu.
Take a picture.
• The number of days that have passed since the departure date is displayed for about
5 seconds if this unit is turned on etc. after setting the Travel Date or when the Travel
Date is set.
• When the Travel Date is set, [ —] appears on the lower right of the screen.

- 75 -
Advanced (Recording pictures)
∫Canceling the Travel Date
The Travel Date is automatically canceled if the current date is after the return date. If you
want to cancel the Travel Date before the end of the vacation, select [OFF] on the screen
shown in step
3 or 7 and then press [MENU/SET] twice. If the [TRAVEL SETUP] is set to
[OFF] in step 3, [LOCATION] will be also set to [OFF].
Note
• The Travel Date is calculated using the date in the clock setting and the departure date you set.  If you...

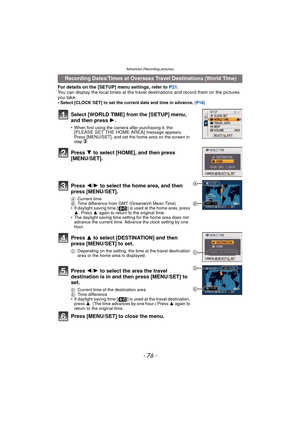

Advanced (Recording pictures)
- 76 -
For details on the [SETUP] menu settings, refer to P21.
You can display the local times at the travel  destinations and record them on the pictures
you take.
• Select [CLOCK SET] to set the current date and time in advance.  (P18)
 Recording Dates/Times at Overseas Travel Destinations (World Time)
Select [WORLD TIME] from the [SETUP] menu,
and then press  1.
• When first using the camera after purchasing it, the [PLEASE SET THE HOME AREA] message appears.
Press...

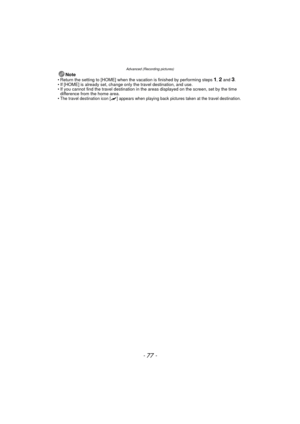

- 77 -
Advanced (Recording pictures)
Note• Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.
• If [HOME] is already set, change only the travel destination, and use.
• If you cannot find the travel destination in the areas displayed on the screen, set by the time  difference from the home area.
•
The travel destination icon [“] appears when playing back pictures taken at the travel destination.

Advanced (Recording pictures)
- 78 -

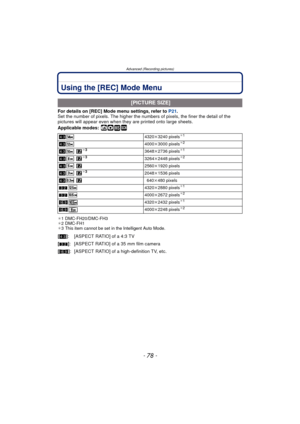

Using the [REC] Mode Menu
For details on [REC] Mode menu settings, refer to P21.
Set the number of pixels. The higher the nu mbers of pixels, the finer the detail of the
pictures will appear even when they  are printed onto large sheets.
Applicable modes:
 ñ· ¿
¢ 1 DMC-FH20/DMC-FH3
¢ 2 DMC-FH1
¢ 3 This item cannot be set in the Intelligent Auto Mode.
 [PICTURE SIZE]
X4320k 3240 pixels¢1
X4000k 3000 pixels¢2
X ¢33648k 2736 pixels¢1
X ¢33264k 2448 pixels¢2
X  2560k1920...

- 79 -

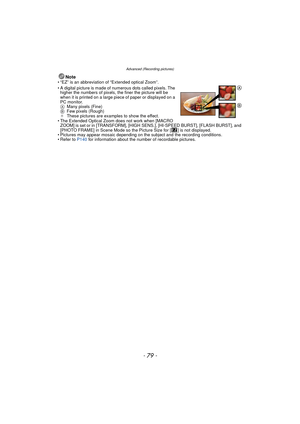

Advanced (Recording pictures)
Note• “EZ” is an abbreviation of “Extended optical Zoom”.
• A digital picture is made of numerous dots called pixels. The higher the numbers of pixels, the finer the picture will be
when it is printed on a large piece of paper or displayed on a
PC monitor.
A Many pixels (Fine)
B Few pixels (Rough)
¢ These pictures are examples to show the effect.
• The Extended Optical Zoom does not work when [MACRO  ZOOM] is set or in [TRANSFORM], [HIGH SENS.], [HI-SPEED BURST],...

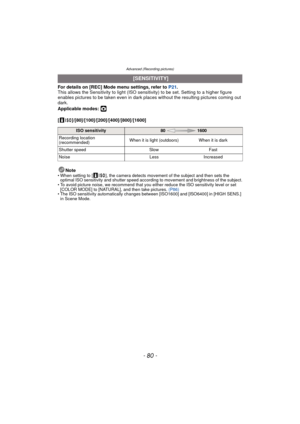

Advanced (Recording pictures)
- 80 -
For details on [REC] Mode menu settings, refer to P21.
This allows the Sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure
enables pictures to be taken even in dark plac es without the resulting pictures coming out
dark.
Applicable modes:
·
[ ]/[80]/[100]/[200]/[400]/[800]/[1600]
Note
• When setting to [ ], the camera detects movement of the subject and then sets the optimal ISO sensitivity and shutter speed according to movement and...
