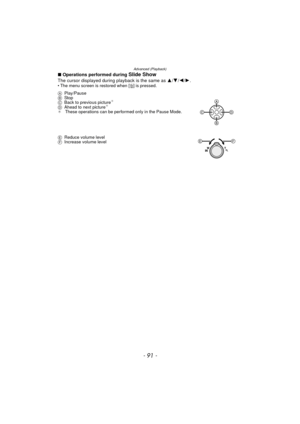

- 91 -
Advanced (Playback)
∫Operations performed during Slide ShowThe cursor displayed during playback is the same as  3/4 /2/ 1.• The menu screen is restored when [ ‚] is pressed.
A Play/Pause
B Stop
C Back to previous picture
¢
DAhead to next picture¢
¢ These operations can be performed only in the Pause Mode.
E Reduce volume level
F Increase volume level

Advanced (Playback)
- 92 -

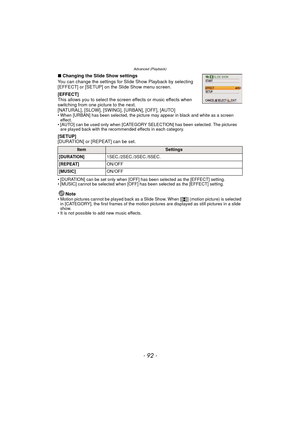

∫Changing the Slide Show settings
You can change the settings for Slide Show Playback by selecting
[EFFECT] or [SETUP] on the Slide Show menu screen.
[EFFECT]
This allows you to select the screen effects or music effects when
switching from one picture to the next.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO]
• When [URBAN] has been selected, the picture may appear in black and white as a screen  effect.
• [AUTO] can be used only when [CATEGORY SELECTION] has been...

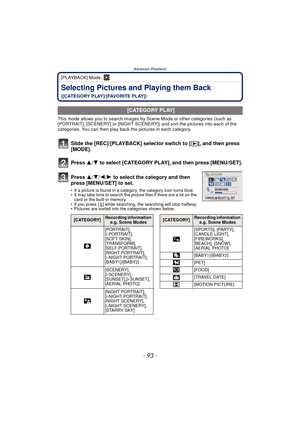

- 93 -
Advanced (Playback)
[PLAYBACK] Mode: ¸
Selecting Pictures and Playing them Back
([CATEGORY PLAY]/[FAVORITE PLAY])
This mode allows you to search images by  Scene Mode or other categories (such as
[PORTRAIT], [SCENERY] or [NIGHT SCENERY]) and sort the pictures into each of the
categories. You can then play back the pictures in each category.
Slide the [REC]/[PLAYBACK] selector switch to [ (], and then press
[MODE].
Press  3/4 to select [CATEGORY PLAY], and then press [MENU/SET].
Press  3/4/2/ 1...

Advanced (Playback)

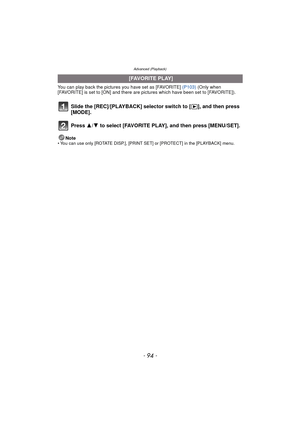

- 94 -
You can play back the pictures you have set as [FAVORITE] (P103) (Only when
[FAVORITE] is set to [ON] and there are pictures which have been set to [FAVORITE]).
Slide the [REC]/[PLAYBACK] selector switch to [ (], and then press
[MODE].
Press  3/4 to select [FAVORITE PLAY], and then press [MENU/SET].
Note• You can use only [ROTATE DISP.], [PRINT SET] or [PROTECT] in the [PLAYBACK] menu.
 [FAVORITE PLAY]

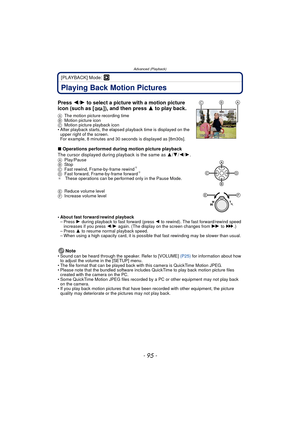

- 95 -
Advanced (Playback)
[PLAYBACK] Mode: ¸
Playing Back Motion Pictures
Press 2/1 to select a picture with a motion picture
icon (such as [ ]), and then press  3 to play back.
A The motion picture recording time
B Motion picture icon
C Motion picture playback icon
• After playback starts, the elapsed playback time is displayed on the  upper right of the screen.
For example, 8 minutes and 30 seconds is displayed as [8m30s].
∫ Operations performed during motion picture playback
The cursor displayed...

Advanced (Playback)
- 96 -
[PLAYBACK] Mode: ¸

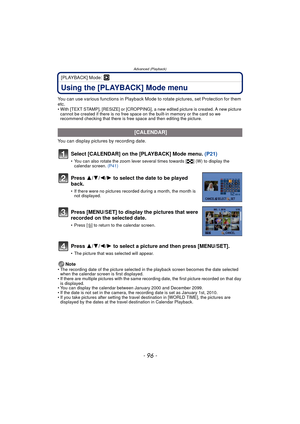

Using the [PLAYBACK] Mode menu
You can use various functions in Playback Mode to rotate pictures, set Protection for them
etc.
• With [TEXT STAMP], [RESIZE] or [CROPPING], a new edited picture is created. A new picture
cannot be created if there is no free space on the built-in memory or the card so we
recommend checking that there is free space and then editing the picture.
You can display pictures by recording date.
Note
• The recording date of the...

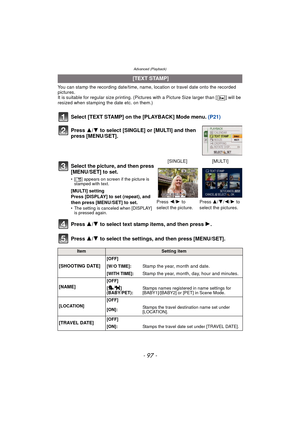

- 97 -
Advanced (Playback)
You can stamp the recording date/time, name, location or travel date onto the recorded
pictures.
It is suitable for regular size printing. (Pictures with a Picture Size larger than [ ] will be
resized when stamping the date etc. on them.)
Select [TEXT STAMP] on the [PLAYBACK] Mode menu.  (P21)
Press  3/4 to select [SINGLE] or [MULTI] and then
press [MENU/SET].
Press  3/4 to select text stamp items, and then press  1.
Press  3/4 to select the settings, and then press...

Advanced (Playback)

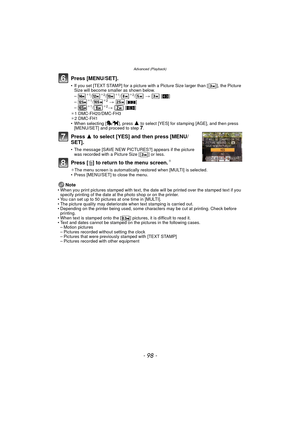

- 98 -
Press [MENU/SET].
• If you set [TEXT STAMP] for a picture with a Picture Size larger than [ ], the Picture
Size will become smaller as shown below.
–
¢1/¢2/¢1/¢2/ >    [X]
–¢1/¢2 >    [Y ]
–¢1/¢2>    [W ]
¢ 1 DMC-FH20/DMC-FH3
¢ 2 DMC-FH1
• When selecting [ ], press
3 to select [YES] for stamping [AGE], and then press
[MENU/SET] and proceed to step 7.
Press  3 to select [YES] and then press [MENU/
SET].
• The message [SAVE NEW PICTURES?] appears if the picture  was recorded...

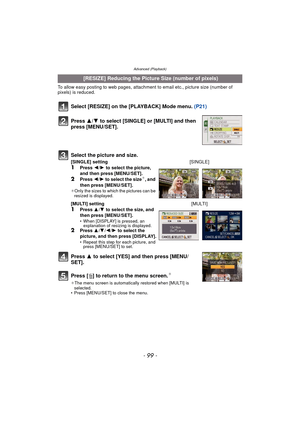

- 99 -
Advanced (Playback)
To allow easy posting to web pages, attachment to email etc., picture size (number of
pixels) is reduced.
Select [RESIZE] on the [PLAYBACK] Mode menu.  (P21)
Press  3 to select [YES] and then press [MENU/
SET].
Press [‚ ] to return to the menu screen.
¢
¢The menu screen is automatically restored when [MULTI] is
selected.
• Press [MENU/SET] to close the menu.
 [RESIZE] Reducing the Picture Size (number of pixels)
Press  3/4 to select [SINGLE] or [MULTI] and then
press...

Advanced (Playback)

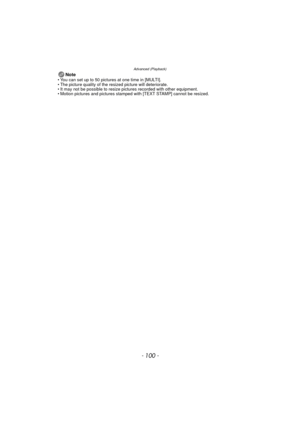

- 100 -
Note• You can set up to 50 pictures at one time in [MULTI].
• The picture quality of the resized picture will deteriorate.
• It may not be possible to resize pictures recorded with other equipment.
• Motion pictures and pictures stamped with [TEXT STAMP] cannot be resized.
