Panasonic Dmc Fh7 Owners Manual
Here you can view all the pages of manual Panasonic Dmc Fh7 Owners Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 11

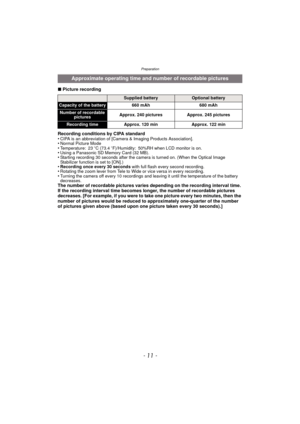

![Page 11
- 11 -
Preparation
∫Picture recording
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Normal Picture Mode•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Starting recording 30 seconds after the camera is turned on. (When the Optical Image
Stabilizer function is set to [ON].)
•Recording once every 30 seconds with full flash every second recording.•Rotating the zoom lever from Tele...](http://img.usermanuals.tech/thumb/58/65785/w300_dmc-fh7_en_adv_om_d-10.png "Page 11
- 11 -
Preparation
∫Picture recording
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Normal Picture Mode•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Starting recording 30 seconds after the camera is turned on. (When the Optical Image
Stabilizer function is set to [ON].)
•Recording once every 30 seconds with full flash every second recording.•Rotating the zoom lever from Tele...")
- 11 - Preparation ∫Picture recording Recording conditions by CIPA standard • CIPA is an abbreviation of [Camera & Imaging Products Association].•Normal Picture Mode•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Starting recording 30 seconds after the camera is turned on. (When the Optical Image Stabilizer function is set to [ON].) •Recording once every 30 seconds with full flash every second recording.•Rotating the zoom lever from Tele...

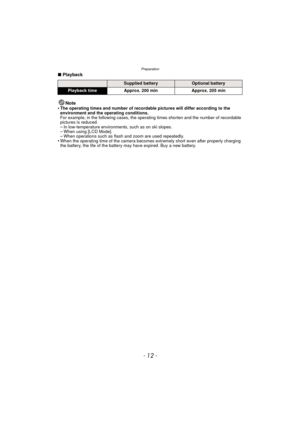

Page 12
![Page 12
Preparation
- 12 -
∫Playback
Note
•
The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
–In low-temperature environments, such as on ski slopes.–When using [LCD Mode].–When operations such as flash and zoom are used repeatedly.•When the operating time of the camera become s extremely short even after properly charging...](http://img.usermanuals.tech/thumb/58/65785/w300_dmc-fh7_en_adv_om_d-11.png "Page 12
Preparation
- 12 -
∫Playback
Note
•
The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
–In low-temperature environments, such as on ski slopes.–When using [LCD Mode].–When operations such as flash and zoom are used repeatedly.•When the operating time of the camera become s extremely short even after properly charging...")
Preparation - 12 - ∫Playback Note • The operating times and number of recordable pictures will differ according to the environment and the operating conditions. For example, in the following cases, the operating times shorten and the number of recordable pictures is reduced. –In low-temperature environments, such as on ski slopes.–When using [LCD Mode].–When operations such as flash and zoom are used repeatedly.•When the operating time of the camera become s extremely short even after properly charging...
Page 13

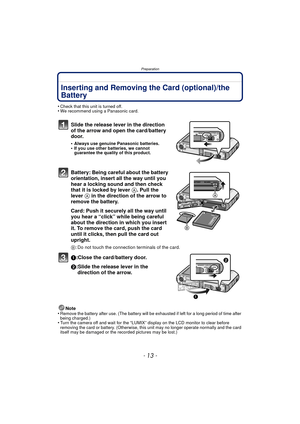

- 13 - Preparation Inserting and Removing the Card (optional)/the Battery •Check that this unit is turned off.•We recommend using a Panasonic card. Slide the release lever in the direction of the arrow and open the card/battery door. •Always use genuine Panasonic batteries.•If you use other batteries, we cannot guarantee the quality of this product. Battery: Being careful about the battery orientation, insert all the way until you hear a locking sound and then check that it is locked by lever A....

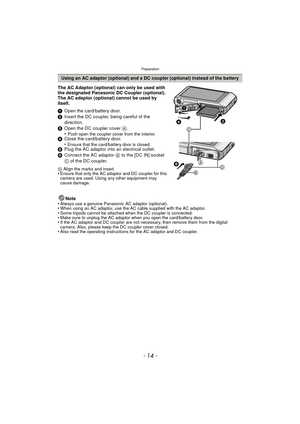

Page 14
![Page 14
Preparation
- 14 -
The AC Adaptor (optional) can only be used with
the designated Panasonic DC Coupler (optional).
The AC adaptor (optional) cannot be used by
itself.
1Open the card/battery door.
2 Insert the DC coupler, being careful of the
direction.
3 Open the DC coupler cover A.
•
Push open the coupler cover from the interior.4 Close the card/battery door.
•Ensure that the card/battery door is closed.5Plug the AC adaptor into an electrical outlet.
6 Connect the AC adaptor B to the [DC IN]...](http://img.usermanuals.tech/thumb/58/65785/w300_dmc-fh7_en_adv_om_d-13.png "Page 14
Preparation
- 14 -
The AC Adaptor (optional) can only be used with
the designated Panasonic DC Coupler (optional).
The AC adaptor (optional) cannot be used by
itself.
1Open the card/battery door.
2 Insert the DC coupler, being careful of the
direction.
3 Open the DC coupler cover A.
•
Push open the coupler cover from the interior.4 Close the card/battery door.
•Ensure that the card/battery door is closed.5Plug the AC adaptor into an electrical outlet.
6 Connect the AC adaptor B to the [DC IN]...")
Preparation - 14 - The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler (optional). The AC adaptor (optional) cannot be used by itself. 1Open the card/battery door. 2 Insert the DC coupler, being careful of the direction. 3 Open the DC coupler cover A. • Push open the coupler cover from the interior.4 Close the card/battery door. •Ensure that the card/battery door is closed.5Plug the AC adaptor into an electrical outlet. 6 Connect the AC adaptor B to the [DC IN]...
Page 15

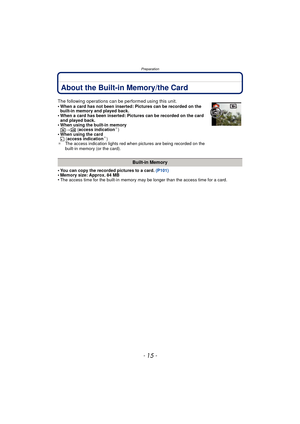

- 15 - Preparation About the Built-in Memory/the Card •You can copy the recorded pictures to a card. (P101)•Memory size: Approx. 84 MB•The access time for the built-in memory may be longer than the access time for a card. The following operations can be performed using this unit. •When a card has not been inserted: Pictures can be recorded on the built-in memory and played back. •When a card has been inserted: Pictures can be recorded on the card and played back. •When using the built-in memory k>ð...
Page 16

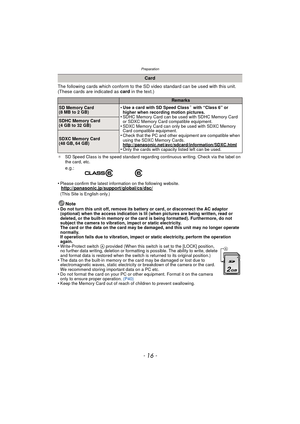

Preparation - 16 - The following cards which conform to the SD video standard can be used with this unit. (These cards are indicated as card in the text.) ¢SD Speed Class is the speed standard regarding continuous writing. Check via the label on the card, etc. •Please confirm the latest information on the following website.http://panasonic.jp/support/global/cs/dsc/(This Site is English only.) Note •Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor (optional) when the...
Page 17

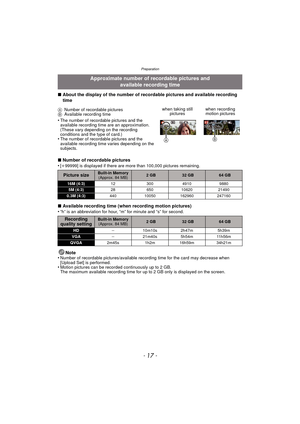

![Page 17
- 17 -
Preparation
∫About the display of the number of recordable pictures and available recording
time
∫ Number of recordable pictures
•
[ i 99999] is displayed if there are more than 100,000 pictures remaining.
∫ Available recording time (when recording motion pictures)
•“h” is an abbreviation for hour, “m” for minute and “s” for second.
Note
•Number of recordable pictures/available recording time for the card may decrease when
[Upload Set] is performed.
•Motion pictures can be recorded continuously...](http://img.usermanuals.tech/thumb/58/65785/w300_dmc-fh7_en_adv_om_d-16.png "Page 17
- 17 -
Preparation
∫About the display of the number of recordable pictures and available recording
time
∫ Number of recordable pictures
•
[ i 99999] is displayed if there are more than 100,000 pictures remaining.
∫ Available recording time (when recording motion pictures)
•“h” is an abbreviation for hour, “m” for minute and “s” for second.
Note
•Number of recordable pictures/available recording time for the card may decrease when
[Upload Set] is performed.
•Motion pictures can be recorded continuously...")
- 17 - Preparation ∫About the display of the number of recordable pictures and available recording time ∫ Number of recordable pictures • [ i 99999] is displayed if there are more than 100,000 pictures remaining. ∫ Available recording time (when recording motion pictures) •“h” is an abbreviation for hour, “m” for minute and “s” for second. Note •Number of recordable pictures/available recording time for the card may decrease when [Upload Set] is performed. •Motion pictures can be recorded continuously...
Page 18

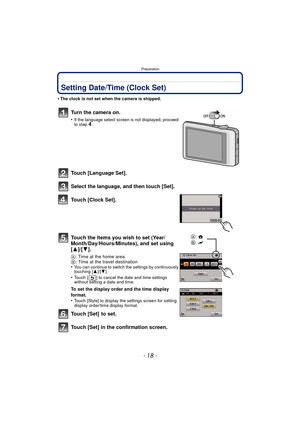

![Page 18
Preparation
- 18 -
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•If the language select screen is not displayed, proceed
to step4.
Touch [Language Set].
Select the language, and then touch [Set].
Touch [Clock Set].
Touch the items you wish to set (Year/
Month/Day/Hours/Minutes), and set using
[3]/[4].
A: Time at the home area
B : Time at the travel destination
•
You can continue to switch the settings by continuously
touching [ 3]/[4].
•Touch [ ]...](http://img.usermanuals.tech/thumb/58/65785/w300_dmc-fh7_en_adv_om_d-17.png "Page 18
Preparation
- 18 -
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•If the language select screen is not displayed, proceed
to step4.
Touch [Language Set].
Select the language, and then touch [Set].
Touch [Clock Set].
Touch the items you wish to set (Year/
Month/Day/Hours/Minutes), and set using
[3]/[4].
A: Time at the home area
B : Time at the travel destination
•
You can continue to switch the settings by continuously
touching [ 3]/[4].
•Touch [ ]...")
Preparation - 18 - Setting Date/Time (Clock Set) •The clock is not set when the camera is shipped. Turn the camera on. •If the language select screen is not displayed, proceed to step4. Touch [Language Set]. Select the language, and then touch [Set]. Touch [Clock Set]. Touch the items you wish to set (Year/ Month/Day/Hours/Minutes), and set using [3]/[4]. A: Time at the home area B : Time at the travel destination • You can continue to switch the settings by continuously touching [ 3]/[4]. •Touch [ ]...
Page 19

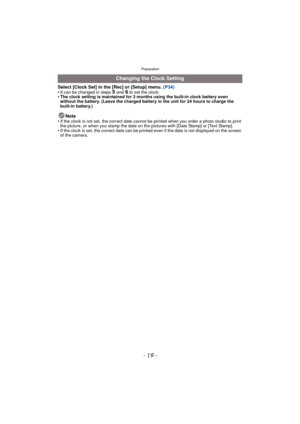

![Page 19
- 19 -
Preparation
Select [Clock Set] in the [Rec] or [Setup] menu. (P34)
•It can be changed in steps 5 and 6 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even
without the battery. (Leave the charged battery in the unit for 24 hours to charge the
built-in battery.)
Note
•If the clock is not set, the correct date cannot be printed when you order a photo studio to print
the picture, or when you stamp the date on t he pictures with [Date Stamp] or [Text...](http://img.usermanuals.tech/thumb/58/65785/w300_dmc-fh7_en_adv_om_d-18.png "Page 19
- 19 -
Preparation
Select [Clock Set] in the [Rec] or [Setup] menu. (P34)
•It can be changed in steps 5 and 6 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even
without the battery. (Leave the charged battery in the unit for 24 hours to charge the
built-in battery.)
Note
•If the clock is not set, the correct date cannot be printed when you order a photo studio to print
the picture, or when you stamp the date on t he pictures with [Date Stamp] or [Text...")
- 19 - Preparation Select [Clock Set] in the [Rec] or [Setup] menu. (P34) •It can be changed in steps 5 and 6 to set the clock.•The clock setting is maintained for 3 months using the built-in clock battery even without the battery. (Leave the charged battery in the unit for 24 hours to charge the built-in battery.) Note •If the clock is not set, the correct date cannot be printed when you order a photo studio to print the picture, or when you stamp the date on t he pictures with [Date Stamp] or [Text...
Page 20

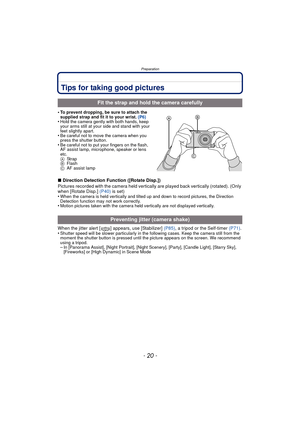

Preparation - 20 - Tips for taking good pictures •To prevent dropping, be sure to attach the supplied strap and fit it to your wrist. (P6) •Hold the camera gently with both hands, keep your arms still at your side and stand with your feet slightly apart. •Be careful not to move the camera when you press the shutter button. •Be careful not to put your fingers on the flash, AF assist lamp, microphone, speaker or lens etc. ASt ra p B Flash C AF assist lamp ∫Direction Detection Function ([Rotate...
