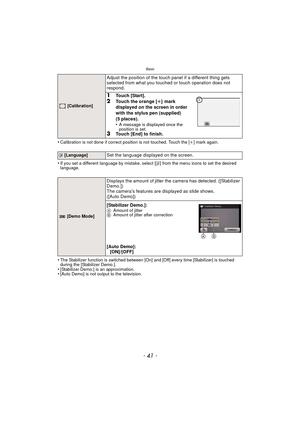

- 41 -
Basic
•Calibration is not done if correct position is not touched. Touch the [i] mark again.
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer function is switched between [On]  and [Off] every time [Stabilizer] is touched
during the [Stabilizer Demo.].
•[Stabilizer Demo.] is an approximation.•[Auto Demo] is not output to the television.
 [Calibration]
Adjust the position of the touch panel if a different thing gets
selected...

Recording

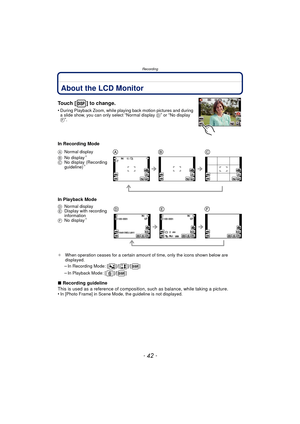

- 42 -
RecordingAbout the LCD Monitor
Touch [ ] to change.
•During Playback Zoom, while playing back motion pictures and during
a slide show, you can only select “Normal display D” or “No display
F”.
In Recording Mode
In Playback Mode
¢ When operation ceases for a certain amount of time, only the icons shown below are
displayed.
–In Recording Mode: [ ]/[ ]/[ ]
–In Playback Mode: [ ]/[ ]
∫Recording guideline
This is used as a reference of composition,  such as balance, while taking a...

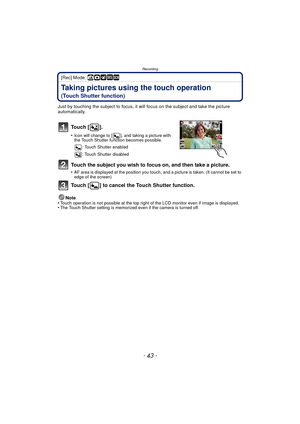

- 43 -
Recording
[Rec] Mode: ñ· ¿
Taking pictures using the touch operation
(Touch Shutter function)
Just by touching the subject to focus, it will focus on the subject and take the picture
automatically.
To u c h  [ ] .
•Icon will change to [ ], and taking a picture with
the Touch Shutter function becomes possible.: Touch Shutter enabled
: Touch Shutter disabled
Touch the subject you wish to focus on, and then take a picture.
•AF area is displayed at the position you touch, and a picture is taken....

Recording

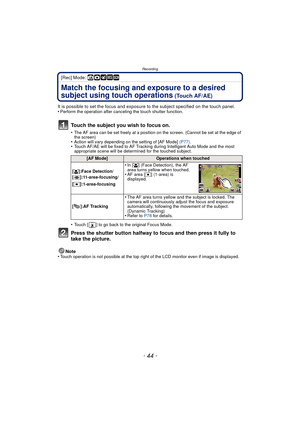

- 44 -
[Rec] Mode: ñ· ¿
Match the focusing and exposure to a desired
subject using touch operations
 (Touch AF/AE)
It is possible to set the focus and exposure to the subject specified on the touch panel.
•Perform the operation after canceling the touch shutter function.
Touch the subject you wish to focus on.
•The AF area can be set freely at a position on the screen. (Cannot be set at the edge of
the screen)
•Action will vary depending on the setting of [AF Mode]  (P77).•Touch AF/AE will be...

- 45 -
Recording
[Rec] Mode: ñ· ¿n
Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle.
To make subjects appear even closer (maximum of 9 k), set the [Picture Size] to [10M] or
less.
∫ Types of zooms
Using the Optical Zoom/Using the Extended Optical Zoom (EZ)/
Using the Intelligent zoom/Using the Digital Zoom
To make subjects appear closer use (Tele)
Rotate the zoom lever towards Tele.
To make subjects appear further away...

Recording

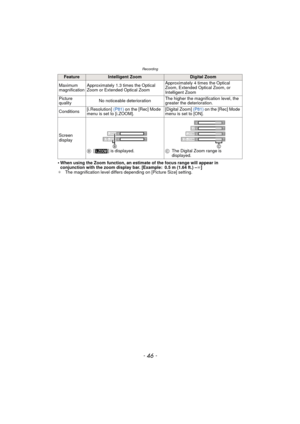

- 46 -
•When using the Zoom function, an estimate of the focus range will appear in
conjunction with the zoom display bar. [Example: 0.5 m (1.64 ft.) –¶]
¢ The magnification level differs depending on [Picture Size] setting.
FeatureIntelligent ZoomDigital Zoom
Maximum
magnification Approximately 1.3 times the Optical
Zoom or Extended Optical Zoom Approximately 4 times the Optical
Zoom, Extended Optical Zoom, or
Intelligent Zoom
quality No noticeable deterioration The higher the...

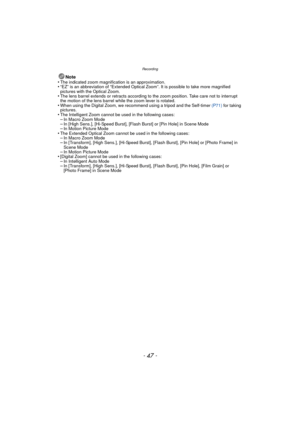

- 47 -
Recording
Note
•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended Optical Zoom”. It is possible to take more magnified
pictures with the Optical Zoom.
•The lens barrel extends or retracts according to the zoom position. Take care not to interrupt
the motion of the lens barrel while the zoom lever is rotated.
•When using the Digital Zoom, we recommend using a tripod and the Self-timer  (P71) for taking
pictures.
•The Intelligent Zoom cannot be used in the...

Recording

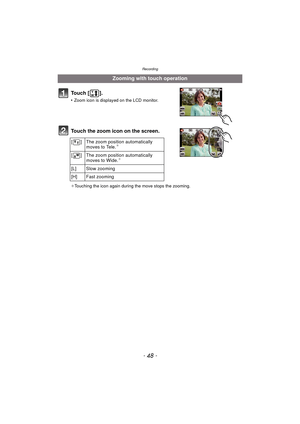

- 48 -
To u c h  [ ] .
•Zoom icon is displayed on the LCD monitor.
Touch the zoom icon on the screen.
¢Touching the icon again during the move stops the zooming.
Zooming with touch operation
[ ] The zoom positio n automatically
moves to Tele.¢
[ ] The zoom positio n automatically
moves to Wide.¢
[L] Slow zooming
[H] Fast zooming

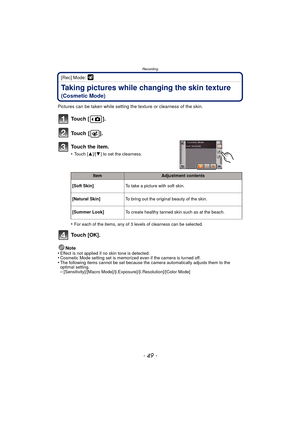

- 49 -
Recording
[Rec] Mode:
Taking pictures while changing the skin texture
(Cosmetic Mode)
Pictures can be taken while setting the texture or clearness of the skin.
•
For each of the items, any of 3 levels of clearness can be selected.
To u c h  [ O K ] .
Note
•Effect is not applied if no skin tone is detected.•Cosmetic Mode setting set is memorized even if the camera is turned off.•The following items cannot be set because the camera automatically adjusts them to the
optimal setting....

Recording

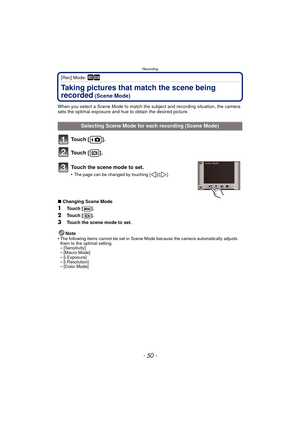

- 50 -
[Rec] Mode: ¿
Taking pictures that match the scene being
recorded
 (Scene Mode)
When you select a Scene Mode to match the subject and recording situation, the camera
sets the optimal exposure and hue to obtain the desired picture.
To u c h  [ ] .
To u c h  [ ] .
Touch the scene mode to set.
•The page can be changed by touching [ ]/[ ].
∫Changing Scene Mode
1Touch [ ].
2Touch [ ].
3Touch the scene mode to set.
Note
•
The following items cannot be set in Scene Mode because the camera...
