91VQT1S88

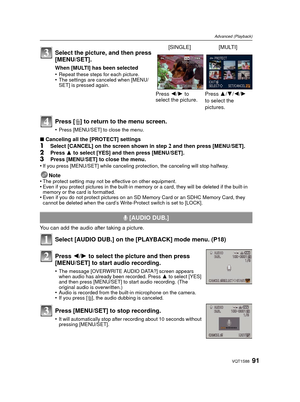

Advanced (Playback)
Press [‚] to return to  the menu screen.
•Press [MENU/SET] to close the menu.
∫Canceling all the [PROTECT] settings
1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].
2Press  3 to select [YES] and then press [MENU/SET].3Press [MENU/SET] to close the menu.
•If you press [MENU/SET] while canceling protection, the canceling will stop halfway.
Note
•The protect setting may not be effective on other equipment.•Even if you protect pictures in the built-in...

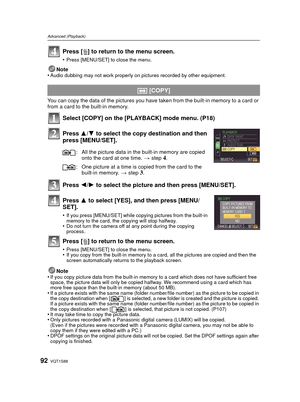

VQT1S8892
Advanced (Playback)
Note
•Audio dubbing may not work properly on pictures recorded by other equipment.
You can copy the data of the pictures you have ta ken from the built-in memory to a card or
from a card to the built-in memory.
Select [COPY] on the [P LAYBACK] mode menu. (P18)
Press  3/4 to select the copy destination and then
press [MENU/SET].
Press  2/1 to select the picture and then press [MENU/SET].
Press  3 to select [YES], and then press [MENU/
SET].
•If you press [MENU/SET] while...

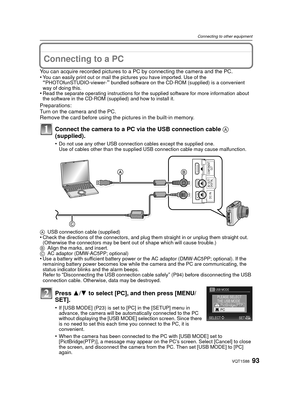

93VQT1S88
Connecting to other equipment
Connecting to other equipmentConnecting to a PC
You can acquire recorded pictures to a PC by connecting the camera and the PC.
•You can easily print out or mail the pictures you have imported. Use of the “PHOTOfunSTUDIO-viewer-” bundled software on the CD-ROM (supplied) is a convenient
way of doing this.
•Read the separate operating instructions for the supplied software for more information about
the software in the CD-ROM (supplied) and how to install it....

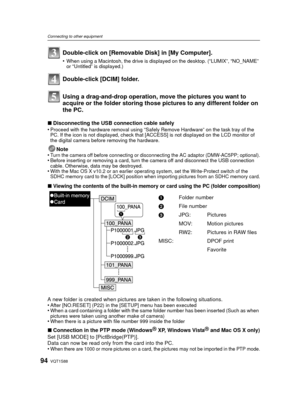

VQT1S8894
Connecting to other equipment
∫Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of
the digital camera before removing the hardware.
Note
•Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC5PP; optional).•Before inserting or removing a card, turn the camera off and disconnect the USB...

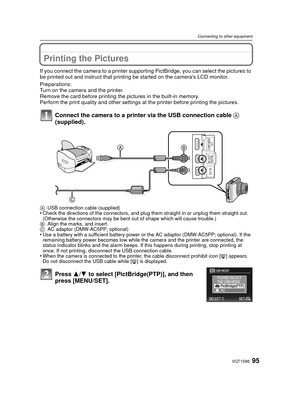

95VQT1S88
Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD monitor.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures in the built-in memory.
Perform the print quality and other settings at the printer before printing the pictures.
Connect the camera to a printer via the USB connection cable...

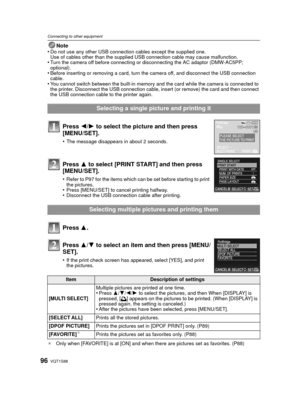

VQT1S8896
Connecting to other equipment
Note
•Do not use any other USB connection cables except the supplied one.
Use of cables other than the supplied USB connection cable may cause malfunction.
•Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC5PP;
optional).
•Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
•You cannot switch between the built-in memory and the card while the camera is connected to
the printer. Disconnect...

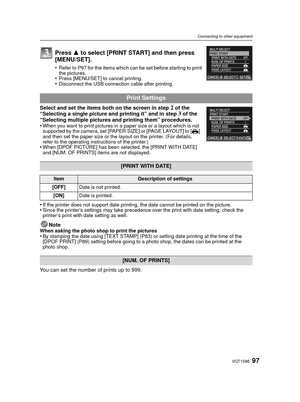

97VQT1S88
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
•
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
•When...

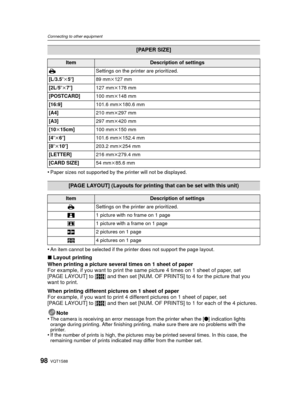

VQT1S8898
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if...

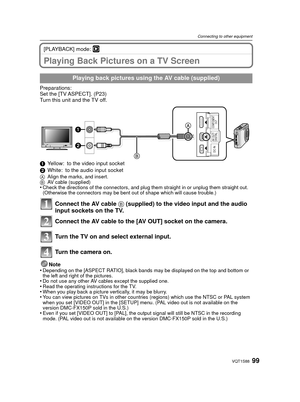

99VQT1S88
Connecting to other equipment
[PLAYBACK] mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P23)
Turn this unit and the TV off.
1Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the AV cable  B (supplied) to the...

VQT1S88100
Connecting to other equipment

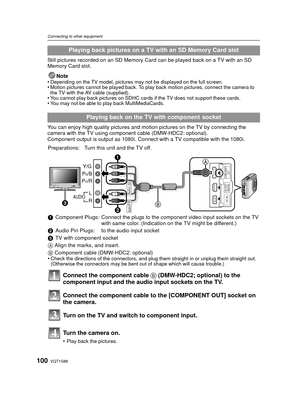

Still pictures recorded on an SD Memory Card can be played back on a TV with an SD
Memory Card slot.
Note
•
Depending on the TV model, pictures may not be displayed on the full screen.•Motion pictures cannot be played back. To play back motion pictures, connect the camera to
the TV with the AV cable (supplied).
•You cannot play back pictures on SDHC cards if the TV does not support these cards.•You may not be able to play back MultiMediaCards.
You can enjoy high...
