Panasonic Dmc Fx150 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx150 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

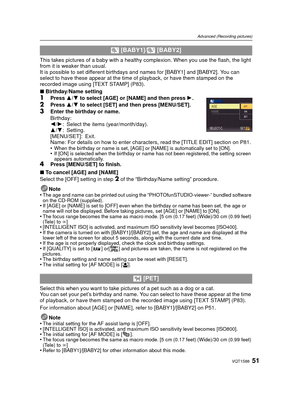

Page 51
![Page 51
51VQT1S88
Advanced (Recording pictures)
This takes pictures of a baby with a healthy complexion. When you use the flash, the light
from it is weaker than usual.
It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can
select to have these appear at the time of playback, or have them stamped on the
recorded image using [TEXT STAMP] (P83).
∫ Birthday/Name setting
1Press 3/4 to select [AGE] or [NAME] and then press 1 .
2Press 3/4 to select [SET] and then press [MENU/SET]....](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-50.png "Page 51
51VQT1S88
Advanced (Recording pictures)
This takes pictures of a baby with a healthy complexion. When you use the flash, the light
from it is weaker than usual.
It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can
select to have these appear at the time of playback, or have them stamped on the
recorded image using [TEXT STAMP] (P83).
∫ Birthday/Name setting
1Press 3/4 to select [AGE] or [NAME] and then press 1 .
2Press 3/4 to select [SET] and then press [MENU/SET]....")
51VQT1S88 Advanced (Recording pictures) This takes pictures of a baby with a healthy complexion. When you use the flash, the light from it is weaker than usual. It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can select to have these appear at the time of playback, or have them stamped on the recorded image using [TEXT STAMP] (P83). ∫ Birthday/Name setting 1Press 3/4 to select [AGE] or [NAME] and then press 1 . 2Press 3/4 to select [SET] and then press [MENU/SET]....

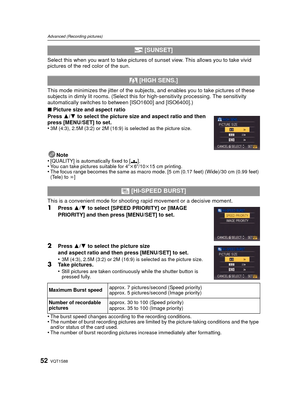

Page 52
![Page 52
VQT1S8852
Advanced (Recording pictures)
Select this when you want to take pictures of sunset view. This allows you to take vivid
pictures of the red color of the sun.
This mode minimizes the jitter of the subjects , and enables you to take pictures of these
subjects in dimly lit rooms. (Select this fo r high-sensitivity processing. The sensitivity
automatically switches to between [ISO1600] and [ISO6400].)
∫ Picture size and aspect ratio
Press 3/4 to select the picture size and aspect ratio and then...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-51.png "Page 52
VQT1S8852
Advanced (Recording pictures)
Select this when you want to take pictures of sunset view. This allows you to take vivid
pictures of the red color of the sun.
This mode minimizes the jitter of the subjects , and enables you to take pictures of these
subjects in dimly lit rooms. (Select this fo r high-sensitivity processing. The sensitivity
automatically switches to between [ISO1600] and [ISO6400].)
∫ Picture size and aspect ratio
Press 3/4 to select the picture size and aspect ratio and then...")
VQT1S8852 Advanced (Recording pictures) Select this when you want to take pictures of sunset view. This allows you to take vivid pictures of the red color of the sun. This mode minimizes the jitter of the subjects , and enables you to take pictures of these subjects in dimly lit rooms. (Select this fo r high-sensitivity processing. The sensitivity automatically switches to between [ISO1600] and [ISO6400].) ∫ Picture size and aspect ratio Press 3/4 to select the picture size and aspect ratio and then...

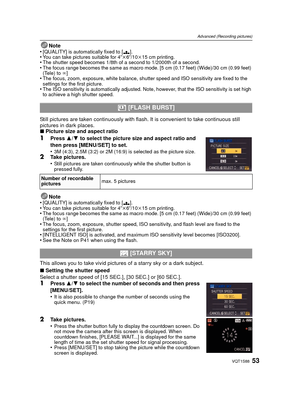

Page 53
![Page 53
53VQT1S88
Advanced (Recording pictures)
Note
•[QUALITY] is automatically fixed to [ ›].•You can take pictures suitable for 4 qk6q/10 k15 cm printing.•The shutter speed becomes 1/8th of a second to 1/2000th of a second.•The focus range becomes the same as macro mode. [5 cm (0.17 feet) (Wide)/30 cm (0.99 feet)
(Tele) to ¶ ]
•The focus, zoom, exposure, white balance, shutter speed and ISO sensitivity are fixed to the
settings for the first picture.
•The ISO sensitivity is automatically adjusted. Note,...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-52.png "Page 53
53VQT1S88
Advanced (Recording pictures)
Note
•[QUALITY] is automatically fixed to [ ›].•You can take pictures suitable for 4 qk6q/10 k15 cm printing.•The shutter speed becomes 1/8th of a second to 1/2000th of a second.•The focus range becomes the same as macro mode. [5 cm (0.17 feet) (Wide)/30 cm (0.99 feet)
(Tele) to ¶ ]
•The focus, zoom, exposure, white balance, shutter speed and ISO sensitivity are fixed to the
settings for the first picture.
•The ISO sensitivity is automatically adjusted. Note,...")
53VQT1S88 Advanced (Recording pictures) Note •[QUALITY] is automatically fixed to [ ›].•You can take pictures suitable for 4 qk6q/10 k15 cm printing.•The shutter speed becomes 1/8th of a second to 1/2000th of a second.•The focus range becomes the same as macro mode. [5 cm (0.17 feet) (Wide)/30 cm (0.99 feet) (Tele) to ¶ ] •The focus, zoom, exposure, white balance, shutter speed and ISO sensitivity are fixed to the settings for the first picture. •The ISO sensitivity is automatically adjusted. Note,...

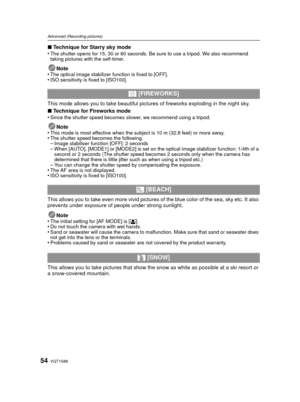

Page 54
![Page 54
VQT1S8854
Advanced (Recording pictures)
∫Technique for Starry sky mode
•The shutter opens for 15, 30 or 60 seconds. Be sure to use a tripod. We also recommend
taking pictures with the self-timer.
Note
•The optical image stabilizer function is fixed to [OFF].•ISO sensitivity is fixed to [ISO100].
This mode allows you to take beautiful pictur es of fireworks exploding in the night sky.
∫ Technique for Fireworks mode
•
Since the shutter speed becomes slower, we recommend using a tripod.
Note
•This mode is...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-53.png "Page 54
VQT1S8854
Advanced (Recording pictures)
∫Technique for Starry sky mode
•The shutter opens for 15, 30 or 60 seconds. Be sure to use a tripod. We also recommend
taking pictures with the self-timer.
Note
•The optical image stabilizer function is fixed to [OFF].•ISO sensitivity is fixed to [ISO100].
This mode allows you to take beautiful pictur es of fireworks exploding in the night sky.
∫ Technique for Fireworks mode
•
Since the shutter speed becomes slower, we recommend using a tripod.
Note
•This mode is...")
VQT1S8854 Advanced (Recording pictures) ∫Technique for Starry sky mode •The shutter opens for 15, 30 or 60 seconds. Be sure to use a tripod. We also recommend taking pictures with the self-timer. Note •The optical image stabilizer function is fixed to [OFF].•ISO sensitivity is fixed to [ISO100]. This mode allows you to take beautiful pictur es of fireworks exploding in the night sky. ∫ Technique for Fireworks mode • Since the shutter speed becomes slower, we recommend using a tripod. Note •This mode is...

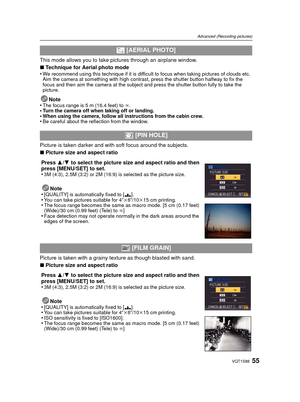

Page 55
55VQT1S88 Advanced (Recording pictures) This mode allows you to take pictures through an airplane window. ∫ Technique for Aerial photo mode • We recommend using this technique if it is difficult to focus when taking pictures of clouds etc. Aim the camera at something with high contrast, press the shutter button halfway to fix the focus and then aim the camera at the subject and press the shutter button fully to take the picture. Note •The focus range is 5 m (16.4 feet) to ¶.•Turn the camera off when...

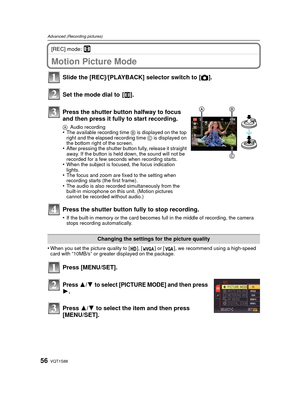

Page 56
![Page 56
VQT1S8856
Advanced (Recording pictures)
[REC] mode: n
Advanced (Recording pictures)Motion Picture Mode
•When you set the picture quality to [ ], [ ] or [ ], we recommend using a high-speed
card with “10MB/s” or greater displayed on the package.
Press 3/4 to select [PICTURE MODE] and then press
1.
Press 3/4 to select the item and then press
[MENU/SET]. Slide the [REC]/[PLAYBACK] selector switch to [!].
Set the mode dial to [ n].
Press the shutter button halfway to focus
and then press it fully to...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-55.png "Page 56
VQT1S8856
Advanced (Recording pictures)
[REC] mode: n
Advanced (Recording pictures)Motion Picture Mode
•When you set the picture quality to [ ], [ ] or [ ], we recommend using a high-speed
card with “10MB/s” or greater displayed on the package.
Press 3/4 to select [PICTURE MODE] and then press
1.
Press 3/4 to select the item and then press
[MENU/SET]. Slide the [REC]/[PLAYBACK] selector switch to [!].
Set the mode dial to [ n].
Press the shutter button halfway to focus
and then press it fully to...")
VQT1S8856 Advanced (Recording pictures) [REC] mode: n Advanced (Recording pictures)Motion Picture Mode •When you set the picture quality to [ ], [ ] or [ ], we recommend using a high-speed card with “10MB/s” or greater displayed on the package. Press 3/4 to select [PICTURE MODE] and then press 1. Press 3/4 to select the item and then press [MENU/SET]. Slide the [REC]/[PLAYBACK] selector switch to [!]. Set the mode dial to [ n]. Press the shutter button halfway to focus and then press it fully to...

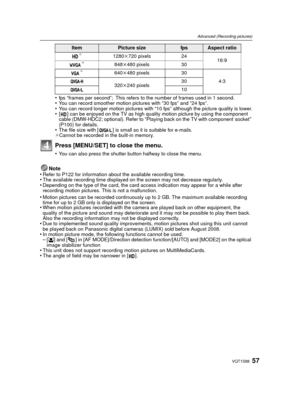

Page 57
![Page 57
57VQT1S88
Advanced (Recording pictures)
•fps “frames per second”; This refers to the number of frames used in 1 second.•You can record smoother motion pictures with “30 fps” and “24 fps”.•You can record longer motion pictures with “10 fps” although the picture quality is lower.•[ ] can be enjoyed on the TV as high quality motion picture by using the component
cable (DMW-HDC2; optional). Refer to “Playing back on the TV with component socket”
(P100) for details.
•The file size with [ ] is small so it...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-56.png "Page 57
57VQT1S88
Advanced (Recording pictures)
•fps “frames per second”; This refers to the number of frames used in 1 second.•You can record smoother motion pictures with “30 fps” and “24 fps”.•You can record longer motion pictures with “10 fps” although the picture quality is lower.•[ ] can be enjoyed on the TV as high quality motion picture by using the component
cable (DMW-HDC2; optional). Refer to “Playing back on the TV with component socket”
(P100) for details.
•The file size with [ ] is small so it...")
57VQT1S88 Advanced (Recording pictures) •fps “frames per second”; This refers to the number of frames used in 1 second.•You can record smoother motion pictures with “30 fps” and “24 fps”.•You can record longer motion pictures with “10 fps” although the picture quality is lower.•[ ] can be enjoyed on the TV as high quality motion picture by using the component cable (DMW-HDC2; optional). Refer to “Playing back on the TV with component socket” (P100) for details. •The file size with [ ] is small so it...
Page 58
![Page 58
VQT1S8858
Advanced (Recording pictures)
[REC] mode: 񳲿n
Useful Functions at Travel Destinations
For details on the [SETUP] menu settings, refer to P18.
If you set the departure date or the travel destination of the vacation in advance, the
number of days that have passed since the depar ture date (which day of the vacation it is)
is recorded when you take the picture. Y ou can display the number of days that have
passed when playing back the pictures and st amp it on the recorded pictures with [TEXT...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-57.png "Page 58
VQT1S8858
Advanced (Recording pictures)
[REC] mode: 񳲿n
Useful Functions at Travel Destinations
For details on the [SETUP] menu settings, refer to P18.
If you set the departure date or the travel destination of the vacation in advance, the
number of days that have passed since the depar ture date (which day of the vacation it is)
is recorded when you take the picture. Y ou can display the number of days that have
passed when playing back the pictures and st amp it on the recorded pictures with [TEXT...")
VQT1S8858 Advanced (Recording pictures) [REC] mode: 񳲿n Useful Functions at Travel Destinations For details on the [SETUP] menu settings, refer to P18. If you set the departure date or the travel destination of the vacation in advance, the number of days that have passed since the depar ture date (which day of the vacation it is) is recorded when you take the picture. Y ou can display the number of days that have passed when playing back the pictures and st amp it on the recorded pictures with [TEXT...

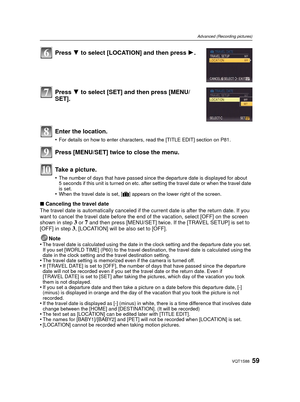

Page 59
![Page 59
59VQT1S88
Advanced (Recording pictures)
∫Canceling the travel date
The travel date is automaticall y canceled if the current date is after the return date. If you
want to cancel the travel date before the end of the vacation, select [OFF] on the screen
shown in step
3 or 7 and then press [MENU/SET] twice. If the [TRAVEL SETUP] is set to
[OFF] in step 3, [LOCATION] will be also set to [OFF].
Note
•
The travel date is calculated using the date in the clock setting and the departure date you set.
If...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-58.png "Page 59
59VQT1S88
Advanced (Recording pictures)
∫Canceling the travel date
The travel date is automaticall y canceled if the current date is after the return date. If you
want to cancel the travel date before the end of the vacation, select [OFF] on the screen
shown in step
3 or 7 and then press [MENU/SET] twice. If the [TRAVEL SETUP] is set to
[OFF] in step 3, [LOCATION] will be also set to [OFF].
Note
•
The travel date is calculated using the date in the clock setting and the departure date you set.
If...")
59VQT1S88 Advanced (Recording pictures) ∫Canceling the travel date The travel date is automaticall y canceled if the current date is after the return date. If you want to cancel the travel date before the end of the vacation, select [OFF] on the screen shown in step 3 or 7 and then press [MENU/SET] twice. If the [TRAVEL SETUP] is set to [OFF] in step 3, [LOCATION] will be also set to [OFF]. Note • The travel date is calculated using the date in the clock setting and the departure date you set. If...
Page 60
![Page 60
VQT1S8860
Advanced (Recording pictures)
For details on the [SETUP] menu settings, refer to P18.You can display the local times at the travel destinations and record them on the pictures you take.•Select [CLOCK SET] to set the current date and time in advance. (P16)
Note
•Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.•If [HOME] is already set, change only the travel destination, and use.•If you cannot find the travel destination in the areas displayed on the...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-59.png "Page 60
VQT1S8860
Advanced (Recording pictures)
For details on the [SETUP] menu settings, refer to P18.You can display the local times at the travel destinations and record them on the pictures you take.•Select [CLOCK SET] to set the current date and time in advance. (P16)
Note
•Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.•If [HOME] is already set, change only the travel destination, and use.•If you cannot find the travel destination in the areas displayed on the...")
VQT1S8860 Advanced (Recording pictures) For details on the [SETUP] menu settings, refer to P18.You can display the local times at the travel destinations and record them on the pictures you take.•Select [CLOCK SET] to set the current date and time in advance. (P16) Note •Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.•If [HOME] is already set, change only the travel destination, and use.•If you cannot find the travel destination in the areas displayed on the...
