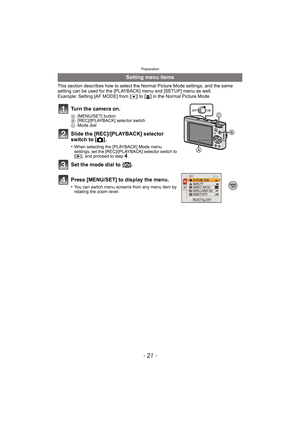

- 21 -
Preparation
This section describes how to select the Normal Picture Mode settings, and the same
setting can be used for the [PLAYBACK] menu and [SETUP] menu as well.
Example: Setting [AF MODE] from [
Ø] to [š] in the Normal Picture Mode
Setting menu items
Turn the camera on.
A [MENU/SET] button
B [REC]/[PLAYBACK] selector switch
C Mode dial
Slide the [REC]/[PLAYBACK] selector
switch to [ !].
•When selecting the [PLAYBACK] Mode menu
settings, set the [REC]/[PLAYBACK] selector switch to
[( ],...

Preparation

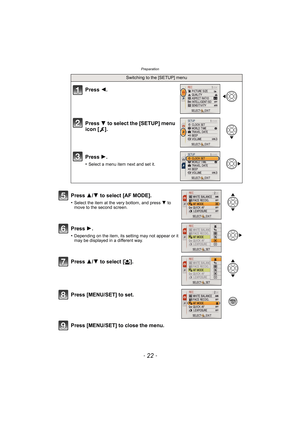

- 22 -
Press [MENU/SET] to close the menu.
Switching to the [SETUP] menu
Press 2.
Press  4 to select the [SETUP] menu
icon [ ].
Press  1.
•Select a menu item next and set it.
Press  3/4 to select [AF MODE].
•Select the item at the very bottom, and press  4 to
move to the second screen.
Press  1.
•Depending on the item, its setting may not appear or it
may be displayed in a different way.
Press 3/4 to select [ š].
Press [MENU/SET] to set.

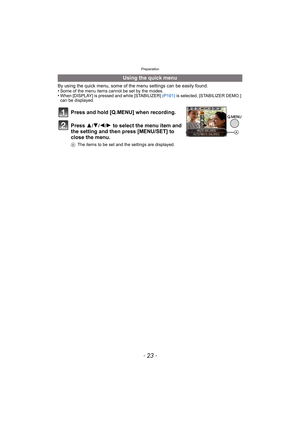

- 23 -
Preparation
By using the quick menu, some of the menu settings can be easily found.
•Some of the menu items cannot be set by the modes.•When [DISPLAY] is pressed and while [STABILIZER] (P101) is selected, [STABILIZER DEMO.]
can be displayed.
Using the quick menu
Press and hold [Q.MENU] when recording.
Press  3
/4/2/1 to select the menu item and
the setting and then press [MENU/SET] to
close the menu.
A The items to be set and the settings are displayed.
A

Preparation

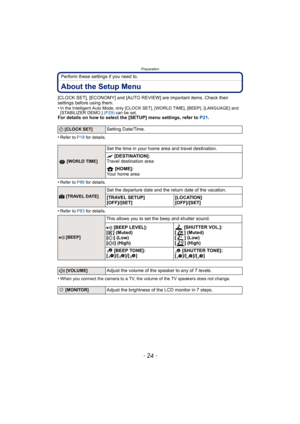

- 24 -
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LANGUAGE] and
[STABILIZER DEMO.] (P29) can be set.
For details on how to select the [SETUP] menu settings, refer to  P21.
•
Refer to P18  for details.
•Refer to P86 for details.
•Refer to P83 for details.
•When you connect the camera to a TV, the volume...

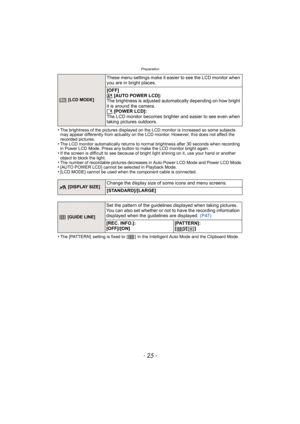

- 25 -
Preparation
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear differently from actuality on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. Press any button to make the LCD monitor bright again.
•If the screen is difficult to see because of bright light shining on it, use your hand or another
object to block the...

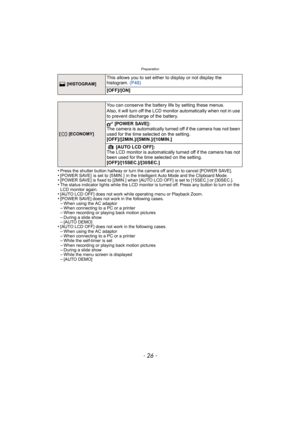

Preparation
- 26 -
•Press the shutter button halfway or turn the camera off and on to cancel [POWER SAVE].•[POWER SAVE]  is set to  [5 MIN. ]  in the Intelligent Auto Mode and the Clipboard Mode.•[POWER SAVE] is fixed to [2MIN.] when [AUTO LCD OFF] is set to [15SEC.] or [30SEC.].•The status indicator lights while the LCD monitor is turned off. Press any button to turn on the
LCD monitor again.
•[AUTO LCD OFF] does not work while operating menu or Playback Zoom.•[POWER SAVE] does not work in the...

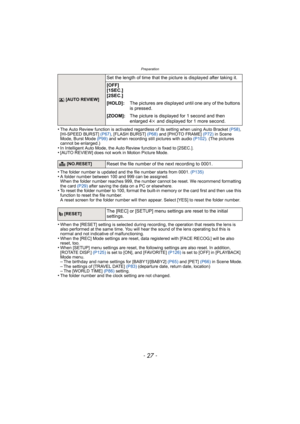

- 27 -
Preparation
•The Auto Review function is activated regardless of its setting when using Auto Bracket (P58),
[HI-SPEED BURST]  (P67), [FLASH BURST]  (P68) and [PHOTO FRAME]  (P72) in Scene
Mode, Burst Mode  (P99) and when recording still pictures with audio  (P102). (The pictures
cannot be enlarged.)
•In Intelligent Auto Mode, the Auto Review function is fixed to [2SEC.].•[AUTO REVIEW] does not work in Motion Picture Mode.
•The folder number is updated and the file number starts from 0001....

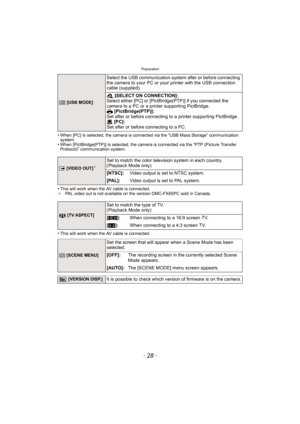

Preparation
- 28 -
•When [PC] is selected, the camera is connected via the “USB Mass Storage” communication
system.
•When [PictBridge(PTP)] is selected, the camera is connected via the “PTP (Picture Transfer
Protocol)” communication system.
•This will work when the AV cable is connected.
¢ PAL video out is not available on the version DMC-FX65PC sold in Canada.
•This will work when the AV cable is connected.
x  [USB MODE]
Select the USB communication system after or before connecting
the camera to...

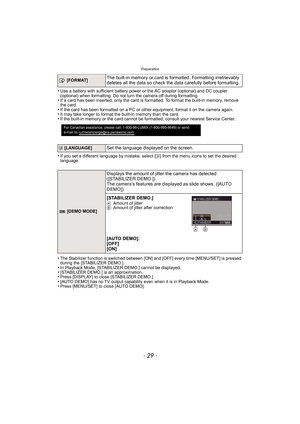

- 29 -
Preparation
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional) when formatting. Do not turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To format the built-in memory, remove
the card.
•If the card has been formatted on a PC or other equipment, format it on the camera again.•It may take longer to format the built-in memory than the card.•If the built-in memory or the card cannot be formatted, consult...

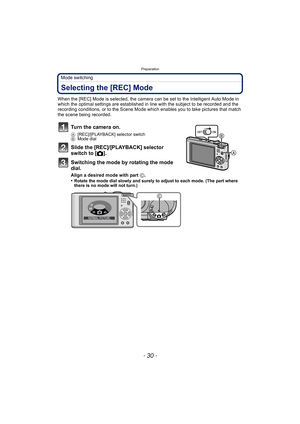

Preparation
- 30 -
Mode switching
Selecting the [REC] Mode
When the [REC] Mode is selected, the camera can be set to the Intelligent Auto Mode in
which the optimal settings are established in line with the subject to be recorded and the
recording conditions, or to the Scene Mode which enables you to take pictures that match
the scene being recorded.
Turn the camera on.
A [REC]/[PLAYBACK] selector switch
B Mode dial
Slide the [REC]/[PLAYBACK] selector
switch to [ !].
Switching the mode by rotating the...
