Panasonic Dmc Fx65 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx65 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

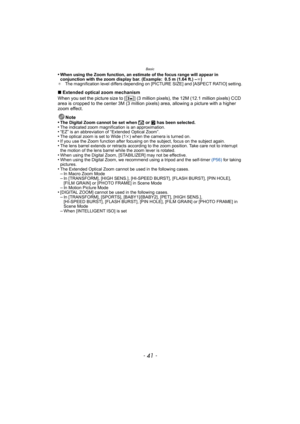

Page 41
![Page 41
- 41 -
Basic
•When using the Zoom function, an estimate of the focus range will appear in
conjunction with the zoom display bar. (Example: 0.5 m (1.64 ft.) –¶)
¢ The magnification level differs depending on [PICTURE SIZE] and [ASPECT RATIO] setting.
∫Extended optical zoom mechanism
When you set the picture size to [ ] (3 million pixels), the 12M (12.1 million pixels) CCD
area is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher
zoom effect.
Note
•
The Digital Zoom...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-40.png "Page 41
- 41 -
Basic
•When using the Zoom function, an estimate of the focus range will appear in
conjunction with the zoom display bar. (Example: 0.5 m (1.64 ft.) –¶)
¢ The magnification level differs depending on [PICTURE SIZE] and [ASPECT RATIO] setting.
∫Extended optical zoom mechanism
When you set the picture size to [ ] (3 million pixels), the 12M (12.1 million pixels) CCD
area is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher
zoom effect.
Note
•
The Digital Zoom...")
- 41 - Basic •When using the Zoom function, an estimate of the focus range will appear in conjunction with the zoom display bar. (Example: 0.5 m (1.64 ft.) –¶) ¢ The magnification level differs depending on [PICTURE SIZE] and [ASPECT RATIO] setting. ∫Extended optical zoom mechanism When you set the picture size to [ ] (3 million pixels), the 12M (12.1 million pixels) CCD area is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher zoom effect. Note • The Digital Zoom...
Page 42
![Page 42
Basic
- 42 -
[PLAYBACK] Mode: ¸
Playing back Pictures ([NORMAL PLAY])
•Speed of picture forwarding/rewinding changes depending on the playback status.
∫Fast forwarding/Fast rewinding
Press and hold 2/1 during playback.
•
The file number A and the picture number B only
change one by one. Release 2/1 when the number of
the desired picture appears to play back the picture.
•If you keep pressing 2/1, the number of pictures forwarded/rewound increases.
Slide the [REC]/[PLAYBACK] selector
switch A to...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-41.png "Page 42
Basic
- 42 -
[PLAYBACK] Mode: ¸
Playing back Pictures ([NORMAL PLAY])
•Speed of picture forwarding/rewinding changes depending on the playback status.
∫Fast forwarding/Fast rewinding
Press and hold 2/1 during playback.
•
The file number A and the picture number B only
change one by one. Release 2/1 when the number of
the desired picture appears to play back the picture.
•If you keep pressing 2/1, the number of pictures forwarded/rewound increases.
Slide the [REC]/[PLAYBACK] selector
switch A to...")
Basic - 42 - [PLAYBACK] Mode: ¸ Playing back Pictures ([NORMAL PLAY]) •Speed of picture forwarding/rewinding changes depending on the playback status. ∫Fast forwarding/Fast rewinding Press and hold 2/1 during playback. • The file number A and the picture number B only change one by one. Release 2/1 when the number of the desired picture appears to play back the picture. •If you keep pressing 2/1, the number of pictures forwarded/rewound increases. Slide the [REC]/[PLAYBACK] selector switch A to...

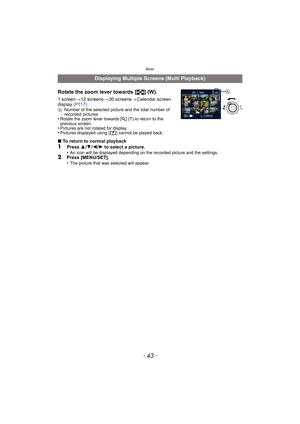

Page 43
![Page 43
- 43 -
Basic
Rotate the zoom lever towards [L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P117)
ANumber of the selected picture and the total number of
recorded pictures
•Rotate the zoom lever towards [ Z] (T) to return to the
previous screen.
•Pictures are not rotated for display.•Pictures displayed using [ ] cannot be played back.
∫ To return to normal playback1Press 3/4 /2 /1 to select a picture.
•An icon will be displayed depending on the recorded picture and the...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-42.png "Page 43
- 43 -
Basic
Rotate the zoom lever towards [L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P117)
ANumber of the selected picture and the total number of
recorded pictures
•Rotate the zoom lever towards [ Z] (T) to return to the
previous screen.
•Pictures are not rotated for display.•Pictures displayed using [ ] cannot be played back.
∫ To return to normal playback1Press 3/4 /2 /1 to select a picture.
•An icon will be displayed depending on the recorded picture and the...")
- 43 - Basic Rotate the zoom lever towards [L] (W). 1 screen >12 screens >30 screens >Calendar screen display (P117) ANumber of the selected picture and the total number of recorded pictures •Rotate the zoom lever towards [ Z] (T) to return to the previous screen. •Pictures are not rotated for display.•Pictures displayed using [ ] cannot be played back. ∫ To return to normal playback1Press 3/4 /2 /1 to select a picture. •An icon will be displayed depending on the recorded picture and the...

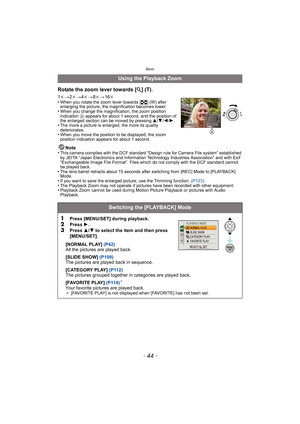

Page 44
![Page 44
Basic
- 44 -
Note
•This camera complies with the DCF standard “D esign rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•The lens barrel retracts about 15 seconds after switching from [REC] Mode to [PLAYBACK]
Mode.
•If you want to save the enlarged picture, use the Trimming function. (P123)•The Playback Zoom may...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-43.png "Page 44
Basic
- 44 -
Note
•This camera complies with the DCF standard “D esign rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•The lens barrel retracts about 15 seconds after switching from [REC] Mode to [PLAYBACK]
Mode.
•If you want to save the enlarged picture, use the Trimming function. (P123)•The Playback Zoom may...")
Basic - 44 - Note •This camera complies with the DCF standard “D esign rule for Camera File system” established by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif “Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot be played back. •The lens barrel retracts about 15 seconds after switching from [REC] Mode to [PLAYBACK] Mode. •If you want to save the enlarged picture, use the Trimming function. (P123)•The Playback Zoom may...

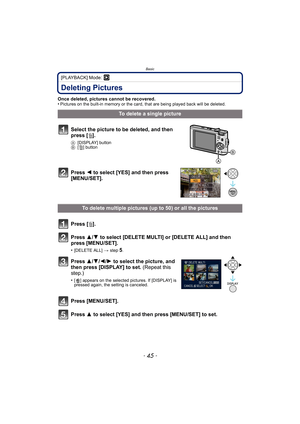

Page 45
![Page 45
- 45 -
Basic
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, that are being played back will be deleted.
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚] button
Press 2 to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
Press [ ‚].
Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET]....](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-44.png "Page 45
- 45 -
Basic
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, that are being played back will be deleted.
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚] button
Press 2 to select [YES] and then press
[MENU/SET].
To delete multiple pictures (up to 50) or all the pictures
Press [ ‚].
Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then
press [MENU/SET]....")
- 45 - Basic [PLAYBACK] Mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures on the built-in memory or the card, that are being played back will be deleted. To delete a single picture Select the picture to be deleted, and then press [ ‚]. A [DISPLAY] button B [‚] button Press 2 to select [YES] and then press [MENU/SET]. To delete multiple pictures (up to 50) or all the pictures Press [ ‚]. Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then press [MENU/SET]....

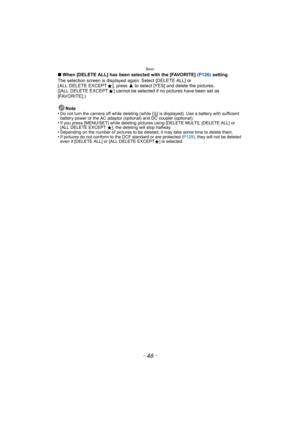

Page 46
![Page 46
Basic
- 46 -
∫When [DELETE ALL] has been selected with the [FAVORITE] (P126) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient
battery power or the AC adaptor (optional) and DC coupler (optional).
•If you press...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-45.png "Page 46
Basic
- 46 -
∫When [DELETE ALL] has been selected with the [FAVORITE] (P126) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient
battery power or the AC adaptor (optional) and DC coupler (optional).
•If you press...")
Basic - 46 - ∫When [DELETE ALL] has been selected with the [FAVORITE] (P126) setting The selection screen is displayed again. Select [DELETE ALL] or [ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures. ([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as [FAVORITE].) Note • Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient battery power or the AC adaptor (optional) and DC coupler (optional). •If you press...

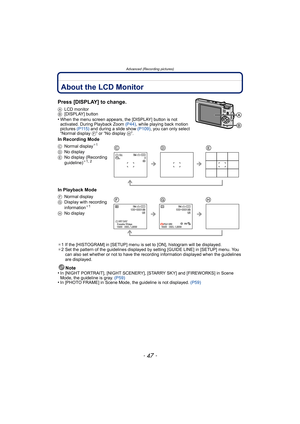

Page 47
![Page 47
- 47 -
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor
Press [DISPLAY] to change.
ALCD monitor
B [DISPLAY] button
•When the menu screen appears, the [DISPLAY] button is not
activated. During Playback Zoom (P44), while playing back motion
pictures (P115) and during a slide show (P109), you can only select
“Normal display F” or “No display H”.
In Recording Mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed.
¢ 2 Set...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-46.png "Page 47
- 47 -
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor
Press [DISPLAY] to change.
ALCD monitor
B [DISPLAY] button
•When the menu screen appears, the [DISPLAY] button is not
activated. During Playback Zoom (P44), while playing back motion
pictures (P115) and during a slide show (P109), you can only select
“Normal display F” or “No display H”.
In Recording Mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed.
¢ 2 Set...")
- 47 - Advanced (Recording pictures) Advanced (Recording pictures)About the LCD Monitor Press [DISPLAY] to change. ALCD monitor B [DISPLAY] button •When the menu screen appears, the [DISPLAY] button is not activated. During Playback Zoom (P44), while playing back motion pictures (P115) and during a slide show (P109), you can only select “Normal display F” or “No display H”. In Recording Mode In Playback Mode ¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed. ¢ 2 Set...

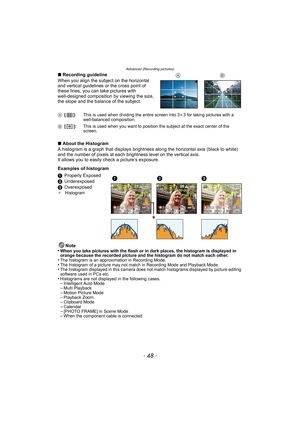

Page 48
Advanced (Recording pictures) - 48 - ∫Recording guideline When you align the subject on the horizontal and vertical guidelines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject. ∫ About the Histogram A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each bri ghtness level on the vertical axis. It allows you to easily check a...
Page 49

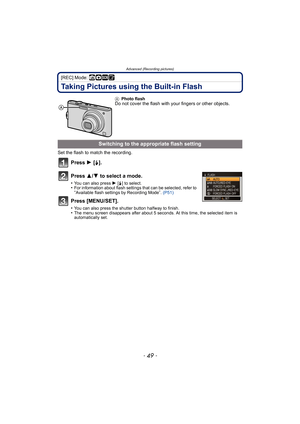

![Page 49
- 49 -
Advanced (Recording pictures)
[REC] Mode: 񷿨
Taking Pictures using the Built-in Flash
Set the flash to match the recording.
Press 1 [‰].
Press 3/4 to select a mode.
•You can also press 1 [‰] to select.•For information about flash settings that can be selected, refer to “Available flash settings by Recording Mode”. (P51)
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is
automatically...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-48.png "Page 49
- 49 -
Advanced (Recording pictures)
[REC] Mode: 񷿨
Taking Pictures using the Built-in Flash
Set the flash to match the recording.
Press 1 [‰].
Press 3/4 to select a mode.
•You can also press 1 [‰] to select.•For information about flash settings that can be selected, refer to “Available flash settings by Recording Mode”. (P51)
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is
automatically...")
- 49 - Advanced (Recording pictures) [REC] Mode: ñ·¿¨ Taking Pictures using the Built-in Flash Set the flash to match the recording. Press 1 [‰]. Press 3/4 to select a mode. •You can also press 1 [‰] to select.•For information about flash settings that can be selected, refer to “Available flash settings by Recording Mode”. (P51) Press [MENU/SET]. •You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is automatically...

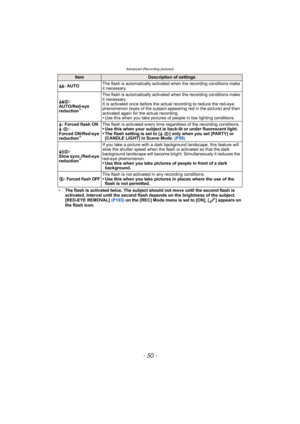

Page 50
![Page 50
Advanced (Recording pictures)
- 50 -
¢The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
[RED-EYE REMOVAL] (P103) on the [REC] Mode menu is set to [ON], [ ] appears on
the flash icon.
ItemDescription of settings
‡ : AUTO The flash is automatically activated when the recording conditions make
it necessary.
ˆ :
AUTO/Red-eye
reduction
¢
The flash is automatically activated when the...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-49.png "Page 50
Advanced (Recording pictures)
- 50 -
¢The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
[RED-EYE REMOVAL] (P103) on the [REC] Mode menu is set to [ON], [ ] appears on
the flash icon.
ItemDescription of settings
‡ : AUTO The flash is automatically activated when the recording conditions make
it necessary.
ˆ :
AUTO/Red-eye
reduction
¢
The flash is automatically activated when the...")
Advanced (Recording pictures) - 50 - ¢The flash is activated twice. The subject should not move until the second flash is activated. Interval until the second flash depends on the brightness of the subject. [RED-EYE REMOVAL] (P103) on the [REC] Mode menu is set to [ON], [ ] appears on the flash icon. ItemDescription of settings ‡ : AUTO The flash is automatically activated when the recording conditions make it necessary. ˆ : AUTO/Red-eye reduction ¢ The flash is automatically activated when the...
