Panasonic Dmc Fx65 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx65 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

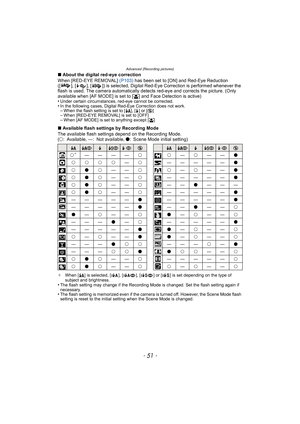

Page 51
![Page 51
- 51 -
Advanced (Recording pictures)
∫About the digital red-eye correction
When [RED-EYE REMOVAL] (P103) has been set to [ON] and Red-Eye Reduction
([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the
flash is used. The camera aut omatically detects red-eye and corrects the picture. (Only
available when [AF MODE] is set to [ š] and Face Detection is active)
•
Under certain circumstances, red-eye cannot be corrected.•In the following cases, Digital Red-Eye Correction does...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-50.png "Page 51
- 51 -
Advanced (Recording pictures)
∫About the digital red-eye correction
When [RED-EYE REMOVAL] (P103) has been set to [ON] and Red-Eye Reduction
([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the
flash is used. The camera aut omatically detects red-eye and corrects the picture. (Only
available when [AF MODE] is set to [ š] and Face Detection is active)
•
Under certain circumstances, red-eye cannot be corrected.•In the following cases, Digital Red-Eye Correction does...")
- 51 - Advanced (Recording pictures) ∫About the digital red-eye correction When [RED-EYE REMOVAL] (P103) has been set to [ON] and Red-Eye Reduction ([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the flash is used. The camera aut omatically detects red-eye and corrects the picture. (Only available when [AF MODE] is set to [ š] and Face Detection is active) • Under certain circumstances, red-eye cannot be corrected.•In the following cases, Digital Red-Eye Correction does...

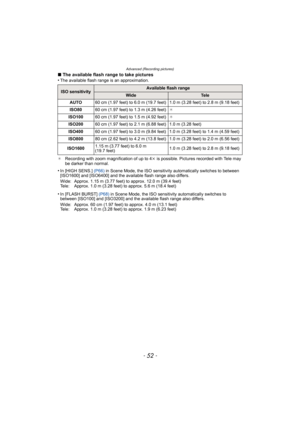

Page 52
![Page 52
Advanced (Recording pictures)
- 52 -
∫The available flash range to take pictures
•The available flash range is an approximation.
¢ Recording with zoom magnification of up to 4 k is possible. Pictures recorded with Tele may
be darker than normal.
•In [HIGH SENS.] (P66) in Scene Mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the av ailable flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 12.0 m (39.4 feet)
Tele: Approx. 1.0 m (3.28 feet) to...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-51.png "Page 52
Advanced (Recording pictures)
- 52 -
∫The available flash range to take pictures
•The available flash range is an approximation.
¢ Recording with zoom magnification of up to 4 k is possible. Pictures recorded with Tele may
be darker than normal.
•In [HIGH SENS.] (P66) in Scene Mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the av ailable flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 12.0 m (39.4 feet)
Tele: Approx. 1.0 m (3.28 feet) to...")
Advanced (Recording pictures) - 52 - ∫The available flash range to take pictures •The available flash range is an approximation. ¢ Recording with zoom magnification of up to 4 k is possible. Pictures recorded with Tele may be darker than normal. •In [HIGH SENS.] (P66) in Scene Mode, the ISO sensitivity automatically switches to between [ISO1600] and [ISO6400] and the av ailable flash range also differs. Wide: Approx. 1.15 m (3.77 feet) to approx. 12.0 m (39.4 feet) Tele: Approx. 1.0 m (3.28 feet) to...

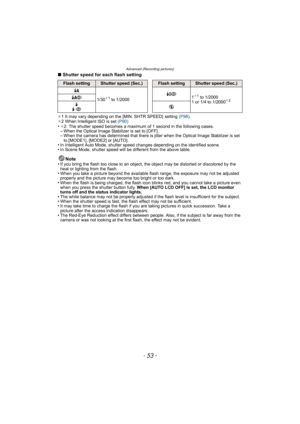

Page 53
![Page 53
- 53 -
Advanced (Recording pictures)
∫Shutter speed for each flash setting
¢1 It may vary depending on the [MIN. SHTR SPEED] setting (P98).
¢ 2 When Intelligent ISO is set (P90)
•¢2: The shutter speed becomes a maximum of 1 second in the following cases.–When the Optical Image Stabilizer is set to [OFF].–When the camera has determined that there is jitter when the Optical Image Stabilizer is set
to [MODE1], [MODE2] or [AUTO].
•In Intelligent Auto Mode, shutter speed changes depending on the...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-52.png "Page 53
- 53 -
Advanced (Recording pictures)
∫Shutter speed for each flash setting
¢1 It may vary depending on the [MIN. SHTR SPEED] setting (P98).
¢ 2 When Intelligent ISO is set (P90)
•¢2: The shutter speed becomes a maximum of 1 second in the following cases.–When the Optical Image Stabilizer is set to [OFF].–When the camera has determined that there is jitter when the Optical Image Stabilizer is set
to [MODE1], [MODE2] or [AUTO].
•In Intelligent Auto Mode, shutter speed changes depending on the...")
- 53 - Advanced (Recording pictures) ∫Shutter speed for each flash setting ¢1 It may vary depending on the [MIN. SHTR SPEED] setting (P98). ¢ 2 When Intelligent ISO is set (P90) •¢2: The shutter speed becomes a maximum of 1 second in the following cases.–When the Optical Image Stabilizer is set to [OFF].–When the camera has determined that there is jitter when the Optical Image Stabilizer is set to [MODE1], [MODE2] or [AUTO]. •In Intelligent Auto Mode, shutter speed changes depending on the...

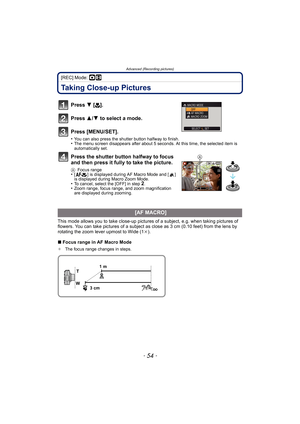

Page 54
![Page 54
Advanced (Recording pictures)
- 54 -
[REC] Mode: ·n
Taking Close-up Pictures
Press 4 [# ].
Press 3/4 to select a mode.
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is
automatically set.
Press the shutter button halfway to focus
and then press it fully to take the picture.
A Focus range•[ ] is displayed during AF Macro Mode and [ ]
is displayed during Macro Zoom Mode.
•To cancel, select the...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-53.png "Page 54
Advanced (Recording pictures)
- 54 -
[REC] Mode: ·n
Taking Close-up Pictures
Press 4 [# ].
Press 3/4 to select a mode.
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is
automatically set.
Press the shutter button halfway to focus
and then press it fully to take the picture.
A Focus range•[ ] is displayed during AF Macro Mode and [ ]
is displayed during Macro Zoom Mode.
•To cancel, select the...")
Advanced (Recording pictures) - 54 - [REC] Mode: ·n Taking Close-up Pictures Press 4 [# ]. Press 3/4 to select a mode. Press [MENU/SET]. •You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is automatically set. Press the shutter button halfway to focus and then press it fully to take the picture. A Focus range•[ ] is displayed during AF Macro Mode and [ ] is displayed during Macro Zoom Mode. •To cancel, select the...

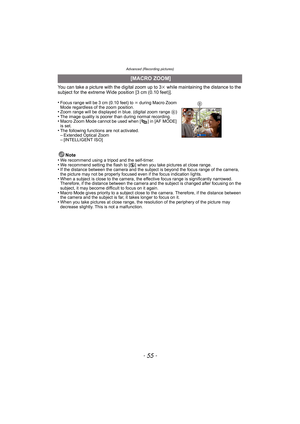

Page 55
![Page 55
- 55 -
Advanced (Recording pictures)
You can take a picture with the digital zoom up to 3k while maintaining the distance to the
subject for the extreme Wide position [3 cm (0.10 feet)].
•
Focus range will be 3 cm (0.10 feet) to ¶ during Macro Zoom
Mode regardless of the zoom position.
•Zoom range will be displayed in blue. (digital zoom range B)•The image quality is poorer than during normal recording.•Macro Zoom Mode cannot be used when [ ] in [AF MODE]
is set.
•The following functions are not...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-54.png "Page 55
- 55 -
Advanced (Recording pictures)
You can take a picture with the digital zoom up to 3k while maintaining the distance to the
subject for the extreme Wide position [3 cm (0.10 feet)].
•
Focus range will be 3 cm (0.10 feet) to ¶ during Macro Zoom
Mode regardless of the zoom position.
•Zoom range will be displayed in blue. (digital zoom range B)•The image quality is poorer than during normal recording.•Macro Zoom Mode cannot be used when [ ] in [AF MODE]
is set.
•The following functions are not...")
- 55 - Advanced (Recording pictures) You can take a picture with the digital zoom up to 3k while maintaining the distance to the subject for the extreme Wide position [3 cm (0.10 feet)]. • Focus range will be 3 cm (0.10 feet) to ¶ during Macro Zoom Mode regardless of the zoom position. •Zoom range will be displayed in blue. (digital zoom range B)•The image quality is poorer than during normal recording.•Macro Zoom Mode cannot be used when [ ] in [AF MODE] is set. •The following functions are not...

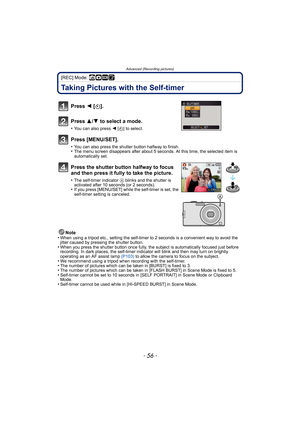

Page 56
![Page 56
Advanced (Recording pictures)
- 56 -
[REC] Mode: 񷿨
Taking Pictures with the Self-timer
Note
•When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the
jitter caused by pressing the shutter button.
•When you press the shutter button once fully, the subject is automatically focused just before
recording. In dark places, the self-timer in dicator will blink and then may turn on brightly
operating as an AF assist lamp (P103) to allow the camera to focus on the...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-55.png "Page 56
Advanced (Recording pictures)
- 56 -
[REC] Mode: 񷿨
Taking Pictures with the Self-timer
Note
•When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the
jitter caused by pressing the shutter button.
•When you press the shutter button once fully, the subject is automatically focused just before
recording. In dark places, the self-timer in dicator will blink and then may turn on brightly
operating as an AF assist lamp (P103) to allow the camera to focus on the...")
Advanced (Recording pictures) - 56 - [REC] Mode: ñ·¿¨ Taking Pictures with the Self-timer Note •When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the jitter caused by pressing the shutter button. •When you press the shutter button once fully, the subject is automatically focused just before recording. In dark places, the self-timer in dicator will blink and then may turn on brightly operating as an AF assist lamp (P103) to allow the camera to focus on the...

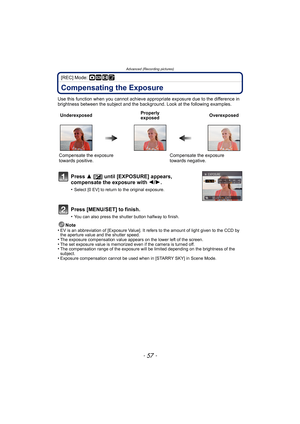

Page 57
![Page 57
- 57 -
Advanced (Recording pictures)
[REC] Mode: ·¿n¨
Compensating the Exposure
Use this function when you cannot achieve appropriate exposure due to the difference in
brightness between the subject and the background. Look at the following examples.
Note
•
EV is an abbreviation of [Exposure Value]. It refers to the amount of light given to the CCD by
the aperture value and the shutter speed.
•The exposure compensation value appears on the lower left of the screen.•The set exposure value is memorized...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-56.png "Page 57
- 57 -
Advanced (Recording pictures)
[REC] Mode: ·¿n¨
Compensating the Exposure
Use this function when you cannot achieve appropriate exposure due to the difference in
brightness between the subject and the background. Look at the following examples.
Note
•
EV is an abbreviation of [Exposure Value]. It refers to the amount of light given to the CCD by
the aperture value and the shutter speed.
•The exposure compensation value appears on the lower left of the screen.•The set exposure value is memorized...")
- 57 - Advanced (Recording pictures) [REC] Mode: ·¿n¨ Compensating the Exposure Use this function when you cannot achieve appropriate exposure due to the difference in brightness between the subject and the background. Look at the following examples. Note • EV is an abbreviation of [Exposure Value]. It refers to the amount of light given to the CCD by the aperture value and the shutter speed. •The exposure compensation value appears on the lower left of the screen.•The set exposure value is memorized...

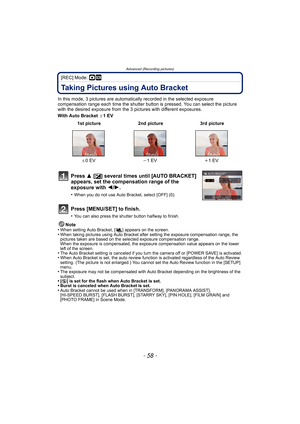

Page 58
![Page 58
Advanced (Recording pictures)
- 58 -
[REC] Mode: ·¿
Taking Pictures using Auto Bracket
In this mode, 3 pictures are automatically recorded in the selected exposure
compensation range each time the shutter button is pressed. You can select the picture
with the desired exposure from the 3 p ictures with different exposures.
With Auto Bracket d1 EV
Note
•
When setting Auto Bracket, [ ] appears on the screen.•When taking pictures using Auto Bracket after setting the exposure compensation range, the...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-57.png "Page 58
Advanced (Recording pictures)
- 58 -
[REC] Mode: ·¿
Taking Pictures using Auto Bracket
In this mode, 3 pictures are automatically recorded in the selected exposure
compensation range each time the shutter button is pressed. You can select the picture
with the desired exposure from the 3 p ictures with different exposures.
With Auto Bracket d1 EV
Note
•
When setting Auto Bracket, [ ] appears on the screen.•When taking pictures using Auto Bracket after setting the exposure compensation range, the...")
Advanced (Recording pictures) - 58 - [REC] Mode: ·¿ Taking Pictures using Auto Bracket In this mode, 3 pictures are automatically recorded in the selected exposure compensation range each time the shutter button is pressed. You can select the picture with the desired exposure from the 3 p ictures with different exposures. With Auto Bracket d1 EV Note • When setting Auto Bracket, [ ] appears on the screen.•When taking pictures using Auto Bracket after setting the exposure compensation range, the...

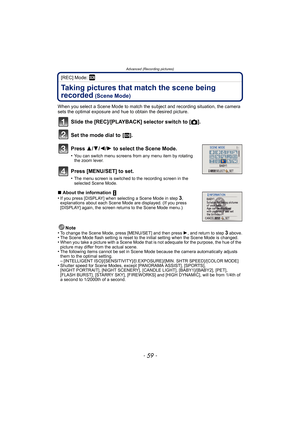

Page 59
![Page 59
- 59 -
Advanced (Recording pictures)
[REC] Mode: ¿
Taking pictures that match the scene being
recorded
(Scene Mode)
When you select a Scene Mode to match the subject and recording situation, the camera
sets the optimal exposure and hue to obtain the desired picture.
Slide the [REC]/[PLAYBACK] selector switch to [!].
Set the mode dial to [ ¿].
Press 3/4/2/ 1 to select the Scene Mode.
•You can switch menu screens from any menu item by rotating
the zoom lever.
Press [MENU/SET] to set.
•The menu screen...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-58.png "Page 59
- 59 -
Advanced (Recording pictures)
[REC] Mode: ¿
Taking pictures that match the scene being
recorded
(Scene Mode)
When you select a Scene Mode to match the subject and recording situation, the camera
sets the optimal exposure and hue to obtain the desired picture.
Slide the [REC]/[PLAYBACK] selector switch to [!].
Set the mode dial to [ ¿].
Press 3/4/2/ 1 to select the Scene Mode.
•You can switch menu screens from any menu item by rotating
the zoom lever.
Press [MENU/SET] to set.
•The menu screen...")
- 59 - Advanced (Recording pictures) [REC] Mode: ¿ Taking pictures that match the scene being recorded (Scene Mode) When you select a Scene Mode to match the subject and recording situation, the camera sets the optimal exposure and hue to obtain the desired picture. Slide the [REC]/[PLAYBACK] selector switch to [!]. Set the mode dial to [ ¿]. Press 3/4/2/ 1 to select the Scene Mode. •You can switch menu screens from any menu item by rotating the zoom lever. Press [MENU/SET] to set. •The menu screen...

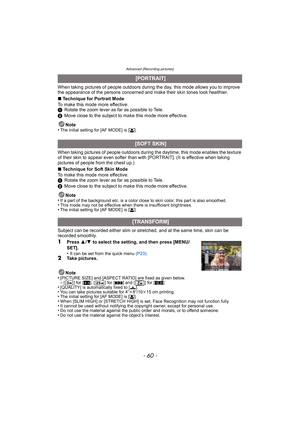

Page 60
![Page 60
Advanced (Recording pictures)
- 60 -
When taking pictures of people outdoors during the day, this mode allows you to improve
the appearance of the persons concerned and make their skin tones look healthier.
∫ Technique for Portrait Mode
To make this mode more effective:
1 Rotate the zoom lever as far as possible to Tele.
2 Move close to the subject to make this mode more effective.
Note
•
The initial setting for [AF MODE] is [ š].
When taking pictures of people outdoors during t he daytime, this mode...](http://img.usermanuals.tech/thumb/58/65594/w300_dmc-fx65_en_adv_om_d-59.png "Page 60
Advanced (Recording pictures)
- 60 -
When taking pictures of people outdoors during the day, this mode allows you to improve
the appearance of the persons concerned and make their skin tones look healthier.
∫ Technique for Portrait Mode
To make this mode more effective:
1 Rotate the zoom lever as far as possible to Tele.
2 Move close to the subject to make this mode more effective.
Note
•
The initial setting for [AF MODE] is [ š].
When taking pictures of people outdoors during t he daytime, this mode...")
Advanced (Recording pictures) - 60 - When taking pictures of people outdoors during the day, this mode allows you to improve the appearance of the persons concerned and make their skin tones look healthier. ∫ Technique for Portrait Mode To make this mode more effective: 1 Rotate the zoom lever as far as possible to Tele. 2 Move close to the subject to make this mode more effective. Note • The initial setting for [AF MODE] is [ š]. When taking pictures of people outdoors during t he daytime, this mode...
