Panasonic Dmc Fx700 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx700 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

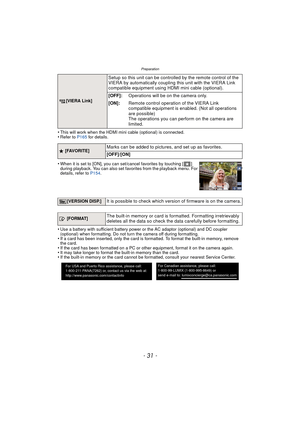

Page 31
![Page 31
- 31 -
Preparation
•This will work when the HDMI mini cable (optional) is connected.•Refer to P165 for details.
•When it is set to [ON], you can set/cancel favorites by touching [ ]
during playback. You can also set favorites from the playback menu. For
details, refer to P154.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional) when formatting. Do not turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-30.png "Page 31
- 31 -
Preparation
•This will work when the HDMI mini cable (optional) is connected.•Refer to P165 for details.
•When it is set to [ON], you can set/cancel favorites by touching [ ]
during playback. You can also set favorites from the playback menu. For
details, refer to P154.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional) when formatting. Do not turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To...")
- 31 - Preparation •This will work when the HDMI mini cable (optional) is connected.•Refer to P165 for details. •When it is set to [ON], you can set/cancel favorites by touching [ ] during playback. You can also set favorites from the playback menu. For details, refer to P154. •Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler (optional) when formatting. Do not turn the camera off during formatting. •If a card has been inserted, only the card is formatted. To...

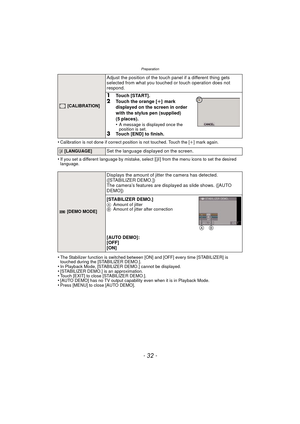

Page 32
![Page 32
Preparation
- 32 -
•Calibration is not done if correct position is not touched. Touch the [i] mark again.
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer function is switched between [ON] and [OFF] every time [STABILIZER] is
touched during the [STABILIZER DEMO.].
•In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•[STABILIZER DEMO.] is an approximation.•Touch [EXIT] to close [STABILIZER DEMO.].•[AUTO DEMO] has no TV output...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-31.png "Page 32
Preparation
- 32 -
•Calibration is not done if correct position is not touched. Touch the [i] mark again.
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer function is switched between [ON] and [OFF] every time [STABILIZER] is
touched during the [STABILIZER DEMO.].
•In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•[STABILIZER DEMO.] is an approximation.•Touch [EXIT] to close [STABILIZER DEMO.].•[AUTO DEMO] has no TV output...")
Preparation - 32 - •Calibration is not done if correct position is not touched. Touch the [i] mark again. •If you set a different language by mistake, select [~] from the menu icons to set the desired language. •The Stabilizer function is switched between [ON] and [OFF] every time [STABILIZER] is touched during the [STABILIZER DEMO.]. •In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•[STABILIZER DEMO.] is an approximation.•Touch [EXIT] to close [STABILIZER DEMO.].•[AUTO DEMO] has no TV output...

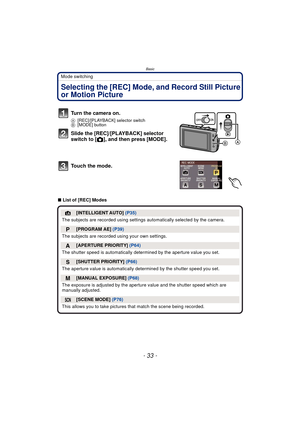

Page 33
![Page 33
- 33 -
Basic
Mode switching
BasicSelecting the [REC] Mode, and Record Still Picture
or Motion Picture
∫List of [REC] Modes
Turn the camera on.
A [REC]/[PLAYBACK] selector switch
B [MODE] button
Slide the [REC]/[PLAYBACK] selector
switch to [ !], and then press [MODE].
Touch the mode.
¦[INTELLIGENT AUTO] (P35)
The subjects are recorded using settings automatically selected by the camera.
»[PROGRAM AE] (P39)
The subjects are recorded using your own settings.
¹[APERTURE PRIORITY] (P64)
The shutter...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-32.png "Page 33
- 33 -
Basic
Mode switching
BasicSelecting the [REC] Mode, and Record Still Picture
or Motion Picture
∫List of [REC] Modes
Turn the camera on.
A [REC]/[PLAYBACK] selector switch
B [MODE] button
Slide the [REC]/[PLAYBACK] selector
switch to [ !], and then press [MODE].
Touch the mode.
¦[INTELLIGENT AUTO] (P35)
The subjects are recorded using settings automatically selected by the camera.
»[PROGRAM AE] (P39)
The subjects are recorded using your own settings.
¹[APERTURE PRIORITY] (P64)
The shutter...")
- 33 - Basic Mode switching BasicSelecting the [REC] Mode, and Record Still Picture or Motion Picture ∫List of [REC] Modes Turn the camera on. A [REC]/[PLAYBACK] selector switch B [MODE] button Slide the [REC]/[PLAYBACK] selector switch to [ !], and then press [MODE]. Touch the mode. ¦[INTELLIGENT AUTO] (P35) The subjects are recorded using settings automatically selected by the camera. »[PROGRAM AE] (P39) The subjects are recorded using your own settings. ¹[APERTURE PRIORITY] (P64) The shutter...

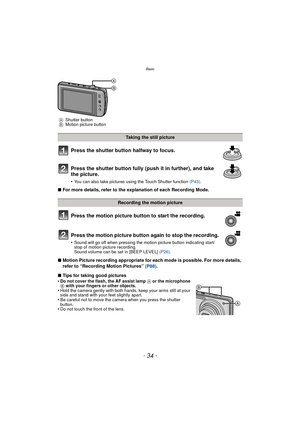

Page 34
Basic - 34 - Press the shutter button halfway to focus. Press the shutter button fully (push it in further), and take the picture. •You can also take pictures using the Touch Shutter function (P43). ∫For more details, refer to the explanation of each Recording Mode. Press the motion picture button to start the recording. Press the motion picture button again to stop the recording. •Sound will go off when pressing the motion picture button indicating start/ stop of motion picture recording. Sound volume...

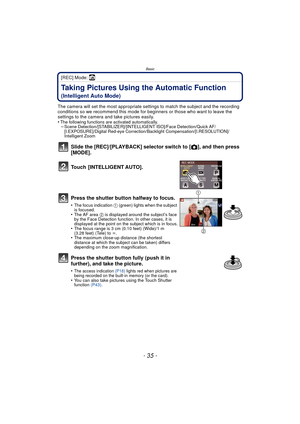

Page 35
![Page 35
- 35 -
Basic
[REC] Mode: ñ
Taking Pictures Using the Automatic Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene Detection/[STABILIZER]/[INTELLIGENT ISO]/Face Detection/Quick AF/
[I.EXPOSURE]/Digital Red-eye Correction/Backlight...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-34.png "Page 35
- 35 -
Basic
[REC] Mode: ñ
Taking Pictures Using the Automatic Function
(Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene Detection/[STABILIZER]/[INTELLIGENT ISO]/Face Detection/Quick AF/
[I.EXPOSURE]/Digital Red-eye Correction/Backlight...")
- 35 - Basic [REC] Mode: ñ Taking Pictures Using the Automatic Function (Intelligent Auto Mode) The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily. • The following functions are activated automatically.–Scene Detection/[STABILIZER]/[INTELLIGENT ISO]/Face Detection/Quick AF/ [I.EXPOSURE]/Digital Red-eye Correction/Backlight...

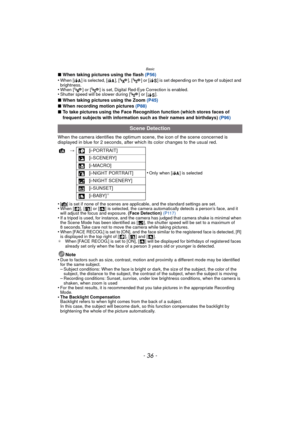

Page 36
![Page 36
Basic
- 36 -
∫When taking pictures using the flash (P56)
•When [ ] is selected, [ ], [ ], [ ] or [ ] is set depending on the type of subject and
brightness.
•When [ ] or [ ] is set, Digital Red-Eye Correction is enabled.•Shutter speed will be slower during [ ] or [ ].
∫ When taking pictures using the Zoom (P45)
∫ When recording motion pictures (P88)
∫ To take pictures using the Face Recognition function (which stores faces of
frequent subjects with information such as their names and birthdays)...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-35.png "Page 36
Basic
- 36 -
∫When taking pictures using the flash (P56)
•When [ ] is selected, [ ], [ ], [ ] or [ ] is set depending on the type of subject and
brightness.
•When [ ] or [ ] is set, Digital Red-Eye Correction is enabled.•Shutter speed will be slower during [ ] or [ ].
∫ When taking pictures using the Zoom (P45)
∫ When recording motion pictures (P88)
∫ To take pictures using the Face Recognition function (which stores faces of
frequent subjects with information such as their names and birthdays)...")
Basic - 36 - ∫When taking pictures using the flash (P56) •When [ ] is selected, [ ], [ ], [ ] or [ ] is set depending on the type of subject and brightness. •When [ ] or [ ] is set, Digital Red-Eye Correction is enabled.•Shutter speed will be slower during [ ] or [ ]. ∫ When taking pictures using the Zoom (P45) ∫ When recording motion pictures (P88) ∫ To take pictures using the Face Recognition function (which stores faces of frequent subjects with information such as their names and birthdays)...
Page 37

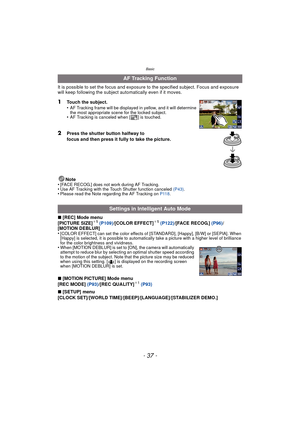

![Page 37
- 37 -
Basic
It is possible to set the focus and exposure to the specified subject. Focus and exposure
will keep following the subject aut omatically even if it moves.
1Touch the subject.
•AF Tracking frame will be displayed in yellow, and it will determine
the most appropriate scene for the locked subject.
•AF Tracking is canceled when [ ] is touched.
2Press the shutter button halfway to
focus and then press it fully to take the picture.
Note
•
[FACE RECOG.] does not work during AF Tracking.•Use AF...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-36.png "Page 37
- 37 -
Basic
It is possible to set the focus and exposure to the specified subject. Focus and exposure
will keep following the subject aut omatically even if it moves.
1Touch the subject.
•AF Tracking frame will be displayed in yellow, and it will determine
the most appropriate scene for the locked subject.
•AF Tracking is canceled when [ ] is touched.
2Press the shutter button halfway to
focus and then press it fully to take the picture.
Note
•
[FACE RECOG.] does not work during AF Tracking.•Use AF...")
- 37 - Basic It is possible to set the focus and exposure to the specified subject. Focus and exposure will keep following the subject aut omatically even if it moves. 1Touch the subject. •AF Tracking frame will be displayed in yellow, and it will determine the most appropriate scene for the locked subject. •AF Tracking is canceled when [ ] is touched. 2Press the shutter button halfway to focus and then press it fully to take the picture. Note • [FACE RECOG.] does not work during AF Tracking.•Use AF...
Page 38

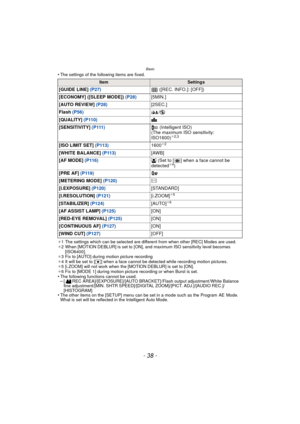

![Page 38
Basic
- 38 -
•The settings of the following items are fixed.
¢ 1 The settings which can be selected are different from when other [REC] Modes are used.
¢ 2 When [MOTION DEBLUR] is set to [ON], and maximum ISO sensitivity level becomes
[ISO6400].
¢ 3 Fix to [AUTO] during motion picture recording
¢ 4 It will be set to [ Ø] when a face cannot be detected while recording motion pictures.
¢ 5 [i.ZOOM] will not work when the [MOTION DEBLUR] is set to [ON].
¢ 6 Fix to [MODE 1] during motion picture recording...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-37.png "Page 38
Basic
- 38 -
•The settings of the following items are fixed.
¢ 1 The settings which can be selected are different from when other [REC] Modes are used.
¢ 2 When [MOTION DEBLUR] is set to [ON], and maximum ISO sensitivity level becomes
[ISO6400].
¢ 3 Fix to [AUTO] during motion picture recording
¢ 4 It will be set to [ Ø] when a face cannot be detected while recording motion pictures.
¢ 5 [i.ZOOM] will not work when the [MOTION DEBLUR] is set to [ON].
¢ 6 Fix to [MODE 1] during motion picture recording...")
Basic - 38 - •The settings of the following items are fixed. ¢ 1 The settings which can be selected are different from when other [REC] Modes are used. ¢ 2 When [MOTION DEBLUR] is set to [ON], and maximum ISO sensitivity level becomes [ISO6400]. ¢ 3 Fix to [AUTO] during motion picture recording ¢ 4 It will be set to [ Ø] when a face cannot be detected while recording motion pictures. ¢ 5 [i.ZOOM] will not work when the [MOTION DEBLUR] is set to [ON]. ¢ 6 Fix to [MODE 1] during motion picture recording...

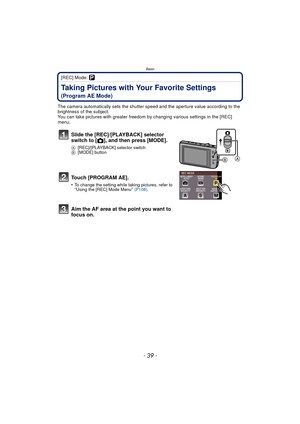

Page 39
![Page 39
- 39 -
Basic
[REC] Mode: ³
Taking Pictures with Your Favorite Settings
(Program AE Mode)
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in the [REC]
menu.
Slide the [REC]/[PLAYBACK] selector
switch to [ !], and then press [MODE].
A [REC]/[PLAYBACK] selector switch
B [MODE] button
Touch [PROGRAM AE].
•To change the setting while taking pictures, refer to “Using...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-38.png "Page 39
- 39 -
Basic
[REC] Mode: ³
Taking Pictures with Your Favorite Settings
(Program AE Mode)
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in the [REC]
menu.
Slide the [REC]/[PLAYBACK] selector
switch to [ !], and then press [MODE].
A [REC]/[PLAYBACK] selector switch
B [MODE] button
Touch [PROGRAM AE].
•To change the setting while taking pictures, refer to “Using...")
- 39 - Basic [REC] Mode: ³ Taking Pictures with Your Favorite Settings (Program AE Mode) The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject. You can take pictures with greater freedom by changing various settings in the [REC] menu. Slide the [REC]/[PLAYBACK] selector switch to [ !], and then press [MODE]. A [REC]/[PLAYBACK] selector switch B [MODE] button Touch [PROGRAM AE]. •To change the setting while taking pictures, refer to “Using...

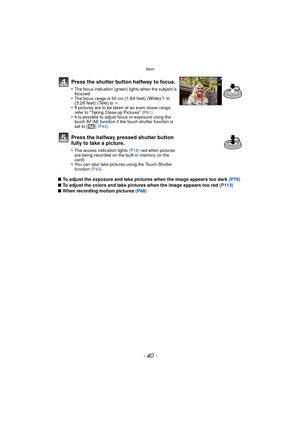

Page 40
Basic - 40 - ∫To adjust the exposure and take pictures when the image appears too dark (P70) ∫ To adjust the colors and take pictures when the image appears too red (P113) ∫ When recording motion pictures (P88) Press the shutter button halfway to focus. •The focus indication (green) lights when the subject is focused. •The focus range is 50 cm (1.64 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶.•If pictures are to be taken at an even closer range, refer to “Taking Close-up Pictures” (P61) .•It is...
