Panasonic Dmc Fx700 Operating Instructions Manual

- 51 -
Basic

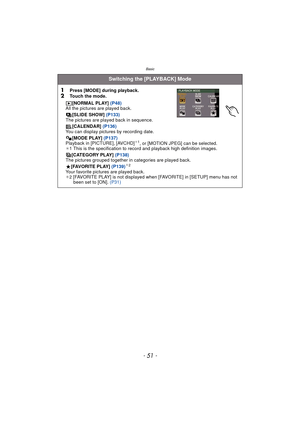

Switching the [PLAYBACK] Mode
1
Press [MODE] during playback.2Touch the mode. [NORMAL PLAY] (P48)
All the pictures are played back.
[SLIDE SHOW]  (P133)
The pictures are played back in sequence.
[CALENDAR]  (P136)
You can display pictures by recording date.
[MODE PLAY]  (P137)
Playback in [PICTURE], [AVCHD]
¢ 1, or [MOTION JPEG] can be selected.
¢1 This is the specification to re cord and playback high definition images.
[CATEGORY PLAY]  (P138)
The pictures grouped together in categories are...

Basic
- 52 -
[PLAYBACK] Mode: ¸

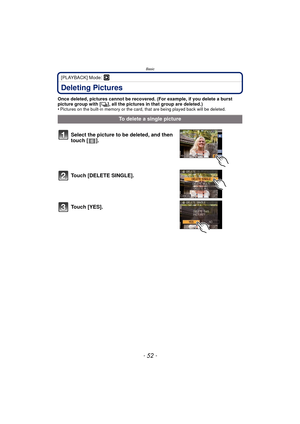

Deleting Pictures
Once deleted, pictures cannot be recovered. (For example, if you delete a burst
picture group with [˜], all the pictures in that group are deleted.)
•
Pictures on the built-in memory or the card, that are being played back will be deleted.
To delete a single picture
Select the picture to be deleted, and then
touch [ ].
Touch [DELETE SINGLE].
Touch [YES].

- 53 -
Basic

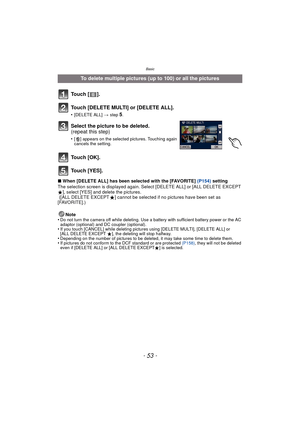

∫When [DELETE ALL] has been selected with the [FAVORITE] (P154)  setting
The selection screen is displayed again. Select [DELETE ALL] or [ALL DELETE EXCEPT
Ü], select [YES] and delete the pictures.
 ([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting. Use a battery with sufficient battery power or the AC
adaptor (optional) and DC coupler (optional).
•If you touch [CANCEL] while deleting pictures using...

Advanced (Recording pictures)
- 54 -

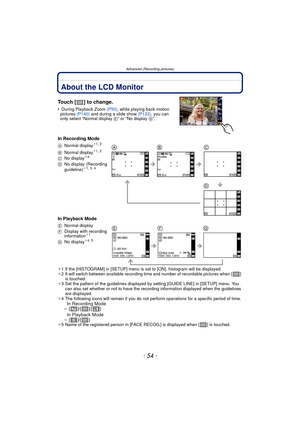

Advanced (Recording pictures)About the LCD Monitor
Touch [ ] to change.
• During Playback Zoom (P50), while playing back motion
pictures  (P140) and during a slide show  (P133), you can
only select “Normal display E” or “No display  G”.
In Recording Mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed.
¢ 2 It will switch between available recording time and number of recordable pictures when [ ]
is touched.
¢ 3 Set...

- 55 -
Advanced (Recording pictures)

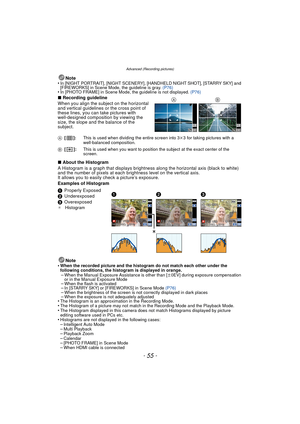

Note
•In [NIGHT PORTRAIT], [NIGHT SCENERY], [HANDHELD NIGHT SHOT], [STARRY SKY] and
[FIREWORKS] in Scene Mode, the guideline is gray.  (P76)
•In [PHOTO FRAME] in Scene Mode, the guideline is not displayed.  (P76)∫Recording guideline
When you align the subject on the horizontal
and vertical guidelines or the cross point of
these lines, you can take pictures with
well-designed composition by viewing the
size, the slope and the balance of the
subject.
∫ About the...

Advanced (Recording pictures)
- 56 -
[REC] Mode:

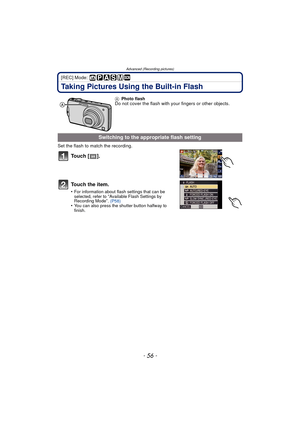

Taking Pictures Using the Built-in Flash
Set the flash to match the recording.
To u c h  [ ] .
To u c h  t h e  i t e m .
•For information about flash settings that can be
selected, refer to “Available Flash Settings by
Recording Mode”.  (P58)•You can also press the shutter button halfway to
finish. A
Photo flash
Do not cover the flash with your fingers or other objects.
Switching to the appropriate flash setting

- 57 -
Advanced (Recording pictures)

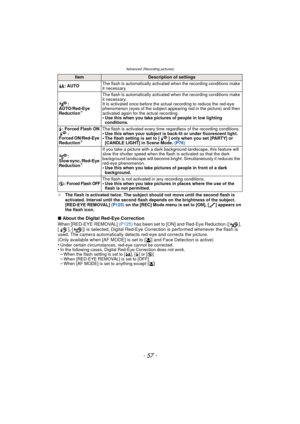

¢The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
[RED-EYE REMOVAL]  (P125) on the [REC] Mode menu is set to [ON], [ ] appears on
the flash icon.
∫ About the Digital Red-Eye Correction
When [RED-EYE REMOVAL]  (P125) has been set to [ON] and Red-Eye Reduction ([ ],
[ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the flash is...

Advanced (Recording pictures)
- 58 -

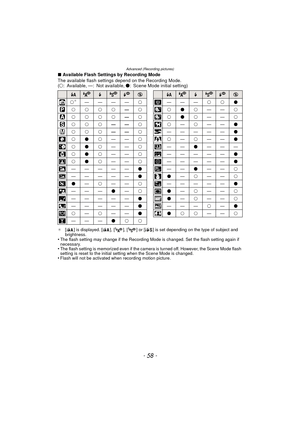

∫Available Flash Settings by Recording Mode
The available flash settings depend on the Recording Mode.
(± : Available, —: Not available,  ¥: Scene Mode initial setting)
¢ [ ] is displayed. [ ], [ ], [ ] or [ ] is set depending on the type of subject and
brightness.
•The flash setting may change if the Recording Mode is changed. Set the flash setting again if
necessary.
•The flash setting is memorized even if the camera is turned off. However, the Scene Mode flash...

- 59 -
Advanced (Recording pictures)

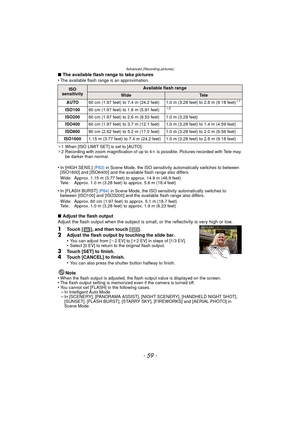

∫The available flash range to take pictures
•The available flash range is an approximation.
¢ 1 When [ISO LIMIT SET] is set to [AUTO].
¢ 2 Recording with zoom magnification of up to 4 k is possible. Pictures recorded with Tele may
be darker than normal.
•In [HIGH SENS.]  (P83) in Scene Mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the av ailable flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 14.9 m...

Advanced (Recording pictures)
- 60 -
∫Shutter speed for each flash setting
¢1 It may vary depending on the [MIN. SHTR SPEED]  setting.  (P121)
¢ 2 When [MIN. SHTR SPEED] is set to [AUTO].  (P121)
•¢2: The shutter speed becomes a maximum of 1 second in the following cases.–When the Optical Image Stabilizer is set to [OFF].–When the camera has determined that there is very little jitter when the Optical Image
Stabilizer is set to [MODE1], [MODE2] or [AUTO].
•In Intelligent Auto Mode, shutter speed changes...
