Panasonic Dmc Fx700 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx700 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 81

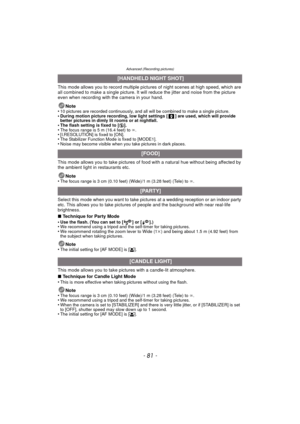

![Page 81
- 81 -
Advanced (Recording pictures)
This mode allows you to record multiple pictures of night scenes at high speed, which are
all combined to make a single picture. It will reduce the jitter and noise from the picture
even when recording with the camera in your hand.
Note
•
10 pictures are recorded continuously, and all will be combined to make a single picture.•During motion picture recording, low light settings [ ] are used, which will provide
better pictures in dimly lit rooms or at nightfall....](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-80.png "Page 81
- 81 -
Advanced (Recording pictures)
This mode allows you to record multiple pictures of night scenes at high speed, which are
all combined to make a single picture. It will reduce the jitter and noise from the picture
even when recording with the camera in your hand.
Note
•
10 pictures are recorded continuously, and all will be combined to make a single picture.•During motion picture recording, low light settings [ ] are used, which will provide
better pictures in dimly lit rooms or at nightfall....")
- 81 - Advanced (Recording pictures) This mode allows you to record multiple pictures of night scenes at high speed, which are all combined to make a single picture. It will reduce the jitter and noise from the picture even when recording with the camera in your hand. Note • 10 pictures are recorded continuously, and all will be combined to make a single picture.•During motion picture recording, low light settings [ ] are used, which will provide better pictures in dimly lit rooms or at nightfall....

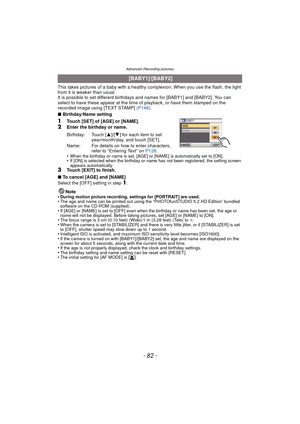

Page 82
![Page 82
Advanced (Recording pictures)
- 82 -
This takes pictures of a baby with a healthy complexion. When you use the flash, the light
from it is weaker than usual.
It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can
select to have these appear at the time of playback, or have them stamped on the
recorded image using [TEXT STAMP] (P146).
∫ Birthday/Name setting
1Touch [SET] of [AGE] or [NAME].
2Enter the birthday or name.
•
When the birthday or name is set, [AGE] or [NAME]...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-81.png "Page 82
Advanced (Recording pictures)
- 82 -
This takes pictures of a baby with a healthy complexion. When you use the flash, the light
from it is weaker than usual.
It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can
select to have these appear at the time of playback, or have them stamped on the
recorded image using [TEXT STAMP] (P146).
∫ Birthday/Name setting
1Touch [SET] of [AGE] or [NAME].
2Enter the birthday or name.
•
When the birthday or name is set, [AGE] or [NAME]...")
Advanced (Recording pictures) - 82 - This takes pictures of a baby with a healthy complexion. When you use the flash, the light from it is weaker than usual. It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can select to have these appear at the time of playback, or have them stamped on the recorded image using [TEXT STAMP] (P146). ∫ Birthday/Name setting 1Touch [SET] of [AGE] or [NAME]. 2Enter the birthday or name. • When the birthday or name is set, [AGE] or [NAME]...
Page 83

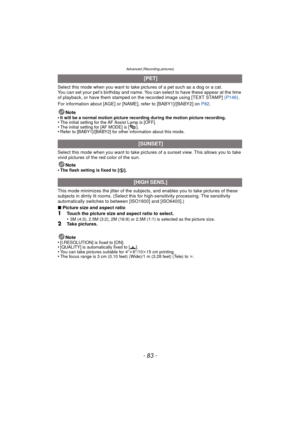

![Page 83
- 83 -
Advanced (Recording pictures)
Select this mode when you want to take pictures of a pet such as a dog or a cat.
You can set your pet’s birthday and name. You can select to have these appear at the time
of playback, or have them stamped on the recorded image using [TEXT STAMP] (P146).
For information about [AGE] or [NAME], refer to [BABY1]/[BABY2] on P82 .
Note
•
It will be a normal motion picture recording during the motion picture recording.•The initial setting for the AF Assist Lamp is...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-82.png "Page 83
- 83 -
Advanced (Recording pictures)
Select this mode when you want to take pictures of a pet such as a dog or a cat.
You can set your pet’s birthday and name. You can select to have these appear at the time
of playback, or have them stamped on the recorded image using [TEXT STAMP] (P146).
For information about [AGE] or [NAME], refer to [BABY1]/[BABY2] on P82 .
Note
•
It will be a normal motion picture recording during the motion picture recording.•The initial setting for the AF Assist Lamp is...")
- 83 - Advanced (Recording pictures) Select this mode when you want to take pictures of a pet such as a dog or a cat. You can set your pet’s birthday and name. You can select to have these appear at the time of playback, or have them stamped on the recorded image using [TEXT STAMP] (P146). For information about [AGE] or [NAME], refer to [BABY1]/[BABY2] on P82 . Note • It will be a normal motion picture recording during the motion picture recording.•The initial setting for the AF Assist Lamp is...
Page 84

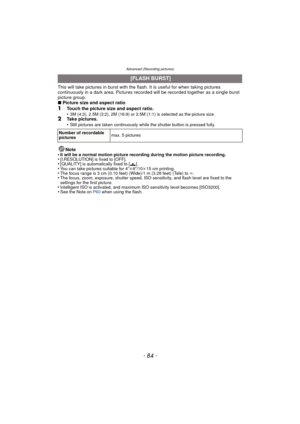

Advanced (Recording pictures) - 84 - This will take pictures in burst with the flash. It is useful for when taking pictures continuously in a dark area. Pictures recor ded will be recorded together as a single burst picture group. ∫ Picture size and aspect ratio 1Touch the picture size and aspect ratio. •3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1) is selected as the picture size.2Take pictures. •Still pictures are taken continuously while the shutter button is pressed fully. Note •It will be a normal...
Page 85
![Page 85
- 85 -
Advanced (Recording pictures)
This allows you to take vivid pictures of a starry sky or a dark subject.
∫ Setting the shutter speed
Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].
1Touch the number of seconds you wish to set.2Take pictures.
•Press the shutter button fully to display the countdown screen.
Do not move the camera after this screen is displayed. When
countdown finishes, [PLEASE WAIT...] is displayed for the same
length of time as the set shutter speed for signal...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-84.png "Page 85
- 85 -
Advanced (Recording pictures)
This allows you to take vivid pictures of a starry sky or a dark subject.
∫ Setting the shutter speed
Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].
1Touch the number of seconds you wish to set.2Take pictures.
•Press the shutter button fully to display the countdown screen.
Do not move the camera after this screen is displayed. When
countdown finishes, [PLEASE WAIT...] is displayed for the same
length of time as the set shutter speed for signal...")
- 85 - Advanced (Recording pictures) This allows you to take vivid pictures of a starry sky or a dark subject. ∫ Setting the shutter speed Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.]. 1Touch the number of seconds you wish to set.2Take pictures. •Press the shutter button fully to display the countdown screen. Do not move the camera after this screen is displayed. When countdown finishes, [PLEASE WAIT...] is displayed for the same length of time as the set shutter speed for signal...
Page 86

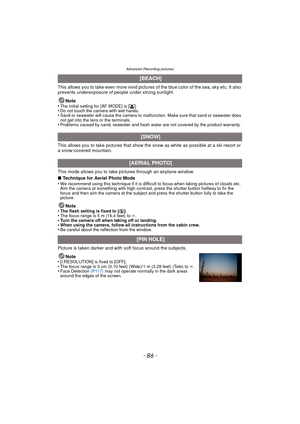

![Page 86
Advanced (Recording pictures)
- 86 -
This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also
prevents underexposure of people under strong sunlight.
Note
•
The initial setting for [AF MODE] is [ š].•Do not touch the camera with wet hands.•Sand or seawater will cause the camera to malfun ction. Make sure that sand or seawater does
not get into the lens or the terminals.
•Problems caused by sand, seawater and fresh water are not covered by the product warranty....](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-85.png "Page 86
Advanced (Recording pictures)
- 86 -
This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also
prevents underexposure of people under strong sunlight.
Note
•
The initial setting for [AF MODE] is [ š].•Do not touch the camera with wet hands.•Sand or seawater will cause the camera to malfun ction. Make sure that sand or seawater does
not get into the lens or the terminals.
•Problems caused by sand, seawater and fresh water are not covered by the product warranty....")
Advanced (Recording pictures) - 86 - This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also prevents underexposure of people under strong sunlight. Note • The initial setting for [AF MODE] is [ š].•Do not touch the camera with wet hands.•Sand or seawater will cause the camera to malfun ction. Make sure that sand or seawater does not get into the lens or the terminals. •Problems caused by sand, seawater and fresh water are not covered by the product warranty....
Page 87

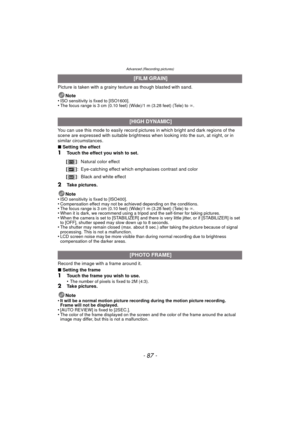

![Page 87
- 87 -
Advanced (Recording pictures)
Picture is taken with a grainy texture as though blasted with sand.Note
•
ISO sensitivity is fixed to [ISO1600].•The focus range is 3 cm (0.10 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶.
You can use this mode to easily record pictur es in which bright and dark regions of the
scene are expressed with suitable brightness w hen looking into the sun, at night, or in
similar circumstances.
∫ Setting the effect
1Touch the effect you wish to set.
2Take pictures.
Note
•
ISO...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-86.png "Page 87
- 87 -
Advanced (Recording pictures)
Picture is taken with a grainy texture as though blasted with sand.Note
•
ISO sensitivity is fixed to [ISO1600].•The focus range is 3 cm (0.10 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶.
You can use this mode to easily record pictur es in which bright and dark regions of the
scene are expressed with suitable brightness w hen looking into the sun, at night, or in
similar circumstances.
∫ Setting the effect
1Touch the effect you wish to set.
2Take pictures.
Note
•
ISO...")
- 87 - Advanced (Recording pictures) Picture is taken with a grainy texture as though blasted with sand.Note • ISO sensitivity is fixed to [ISO1600].•The focus range is 3 cm (0.10 feet) (Wide)/1 m (3.28 feet) (Tele) to ¶. You can use this mode to easily record pictur es in which bright and dark regions of the scene are expressed with suitable brightness w hen looking into the sun, at night, or in similar circumstances. ∫ Setting the effect 1Touch the effect you wish to set. 2Take pictures. Note • ISO...
Page 88

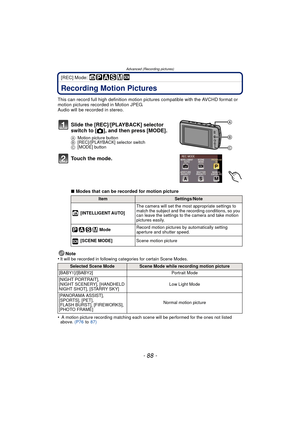

![Page 88
Advanced (Recording pictures)
- 88 -
[REC] Mode:
Advanced (Recording pictures)Recording Motion Pictures
This can record full high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.Note
•
It will be recorded in following categories for certain Scene Modes.
• A motion picture recording matching each scene will be performed for the ones not listed
above. (P76 to 87)
Slide the [REC]/[PLAYBACK] selector
switch to [...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-87.png "Page 88
Advanced (Recording pictures)
- 88 -
[REC] Mode:
Advanced (Recording pictures)Recording Motion Pictures
This can record full high definition motion pictures compatible with the AVCHD format or
motion pictures recorded in Motion JPEG.
Audio will be recorded in stereo.Note
•
It will be recorded in following categories for certain Scene Modes.
• A motion picture recording matching each scene will be performed for the ones not listed
above. (P76 to 87)
Slide the [REC]/[PLAYBACK] selector
switch to [...")
Advanced (Recording pictures) - 88 - [REC] Mode: Advanced (Recording pictures)Recording Motion Pictures This can record full high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG. Audio will be recorded in stereo.Note • It will be recorded in following categories for certain Scene Modes. • A motion picture recording matching each scene will be performed for the ones not listed above. (P76 to 87) Slide the [REC]/[PLAYBACK] selector switch to [...
Page 89

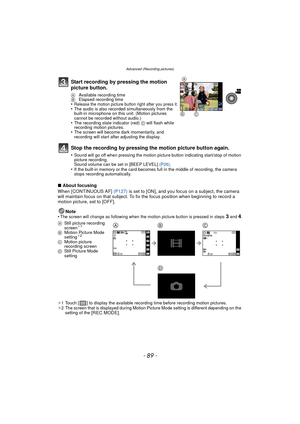

![Page 89
- 89 -
Advanced (Recording pictures)
∫About focusing
When [CONTINUOUS AF] (P127) is set to [ON], and you focus on a subject, the camera
will maintain focus on that subject. To fix the focus position when beginning to record a
motion picture, set to [OFF].
Note
•
The screen will change as following when the motion picture button is pressed in steps 3 and 4.
¢ 1 Touch [ ] to display the available recordin g time before recording motion pictures.
¢ 2 The screen that is displayed during Motion Picture...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-88.png "Page 89
- 89 -
Advanced (Recording pictures)
∫About focusing
When [CONTINUOUS AF] (P127) is set to [ON], and you focus on a subject, the camera
will maintain focus on that subject. To fix the focus position when beginning to record a
motion picture, set to [OFF].
Note
•
The screen will change as following when the motion picture button is pressed in steps 3 and 4.
¢ 1 Touch [ ] to display the available recordin g time before recording motion pictures.
¢ 2 The screen that is displayed during Motion Picture...")
- 89 - Advanced (Recording pictures) ∫About focusing When [CONTINUOUS AF] (P127) is set to [ON], and you focus on a subject, the camera will maintain focus on that subject. To fix the focus position when beginning to record a motion picture, set to [OFF]. Note • The screen will change as following when the motion picture button is pressed in steps 3 and 4. ¢ 1 Touch [ ] to display the available recordin g time before recording motion pictures. ¢ 2 The screen that is displayed during Motion Picture...
Page 90

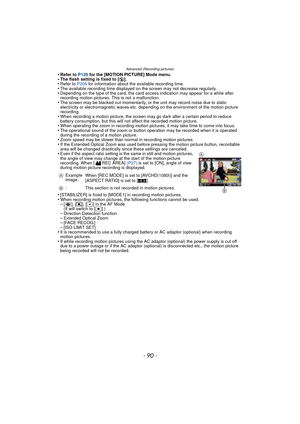

![Page 90
Advanced (Recording pictures)
- 90 -
•Refer to P126 for the [MOTION PICTURE] Mode menu.•The flash setting is fixed to [ Œ].•Refer to P206 for information about the available recording time.•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after
recording motion pictures. This is not a malfunction.
•The screen may be blacked out momentarily, or the unit may record noise due to static...](http://img.usermanuals.tech/thumb/58/65596/w300_dmc-fx700_en_adv_om_d-89.png "Page 90
Advanced (Recording pictures)
- 90 -
•Refer to P126 for the [MOTION PICTURE] Mode menu.•The flash setting is fixed to [ Œ].•Refer to P206 for information about the available recording time.•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after
recording motion pictures. This is not a malfunction.
•The screen may be blacked out momentarily, or the unit may record noise due to static...")
Advanced (Recording pictures) - 90 - •Refer to P126 for the [MOTION PICTURE] Mode menu.•The flash setting is fixed to [ Œ].•Refer to P206 for information about the available recording time.•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after recording motion pictures. This is not a malfunction. •The screen may be blacked out momentarily, or the unit may record noise due to static...
