Panasonic Dmc Fx75 Operating Instructions Manual

- 151 -
Connecting to other equipment

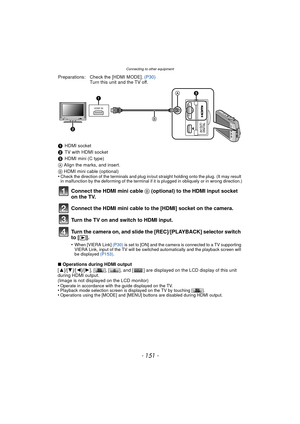

∫Operations during HDMI output
[ 3 ]/[4 ]/[2]/[ 1], [ ], [ ], and [ ] are displayed on the LCD display of this unit
during HDMI output.
(Image is not displayed on the LCD monitor)
•
Operate in accordance with the guide displayed on the TV.•Playback mode selection screen is displayed on the TV by touching [ ].•Operations using the [MODE] and [MENU] buttons are disabled during HDMI output.
Preparations: Check the [HDMI MODE].  (P30)
Turn this unit and the TV off.
1...

Connecting to other equipment
- 152 -

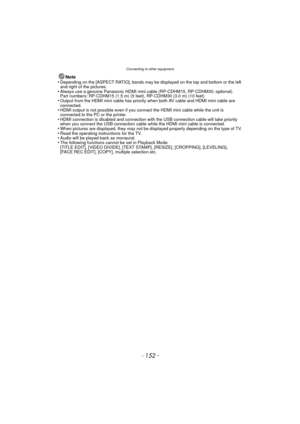

Note
•Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
•Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30; optional).
Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
•Output from the HDMI mini cable has priority  when both AV cable and HDMI mini cable are
connected.
•HDMI output is not possible even if you conne ct the HDMI mini cable while the unit is...

- 153 -
Connecting to other equipment

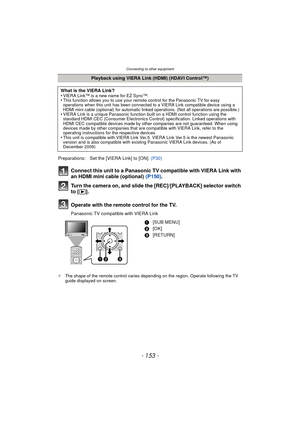

Connect this unit to a Panasonic TV compatible with VIERA Link with
an HDMI mini cable (optional) (P150).
Turn the camera on, and slide the [REC]/[PLAYBACK] selector switch
to [ (].
Operate with the remote control for the TV.
Panasonic TV compatible with VIERA Link
¢ The shape of the remote control varies depending on the region. Operate following the TV
guide displayed on screen.
Playback using VIERA Link (HDMI) (HDAVI Control™)
What is the VIERA Link?
•
VIERA...

Connecting to other equipment
- 154 -

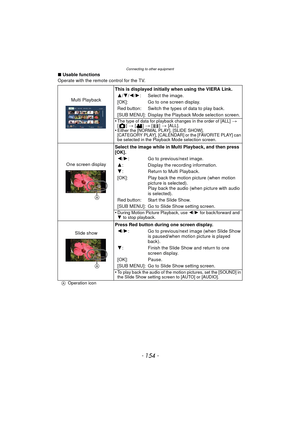

∫Usable functions
Operate with the remote control for the TV.
Multi Playback This is displayed initially when using the VIERA Link.
3 /4/ 2/1: Select the image.
[OK]: Go to one screen display.
Red button: Switch the types of data to play back.
[SUB MENU]: Display the Playback Mode selection screen.
•
The type of data for playback changes in the order of [ALL] > [] > [] > [] > [ALL].•Either the [NORMAL PLAY], [SLIDE SHOW],
[CATEGORY PLAY], [CALENDAR] or the [FAVORITE...

- 155 -
Connecting to other equipment

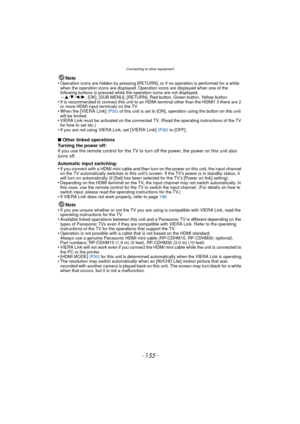

Note
•Operation icons are hidden by pressing [RETURN], or if no operation is performed for a while
when the operation icons are displayed. Operation icons are displayed when one of the
following buttons is pressed while the operation icons are not displayed.
–3/ 4/2 /1, [OK], [SUB MENU], [RETURN], Red button, Green button, Yellow button•It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there are 2
or more HDMI input terminals on...

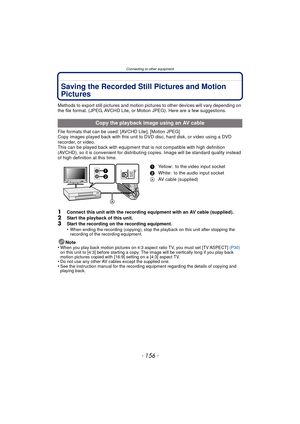

Connecting to other equipment
- 156 -
Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format. (JPEG, AVCHD Lite, or Motion JPEG). Here are a few suggestions.
File formats that can be used: [AVCHD Lite], [Motion JPEG]
Copy images played back with this unit to  DVD disc, hard disk, or video using a DVD
recorder, or video.
This can be played back with equipment that is not compatible with high...

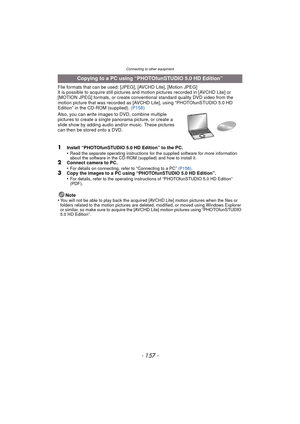

- 157 -
Connecting to other equipment
File formats that can be used: [JPEG], [AVCHD Lite], [Motion JPEG]
It is possible to acquire still pictures and motion pictures recorded in [AVCHD Lite] or
[MOTION JPEG] formats, or create conventional standard quality DVD video from the
motion picture that was recorded as [A VCHD Lite], using “PHOTOfunSTUDIO 5.0 HD
Edition” in the CD-ROM (supplied). (P158)
Also, you can write images to DVD, combine multiple
pictures to create a single  panorama picture, or...

Connecting to other equipment
- 158 -

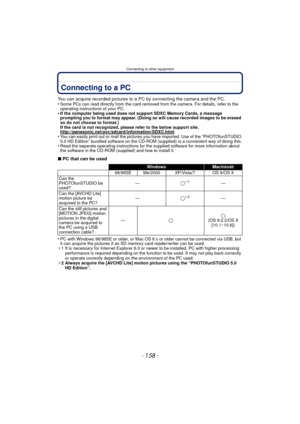

Connecting to a PC
You can acquire recorded pictures to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognized, please refer to the...

- 159 -
Connecting to other equipment

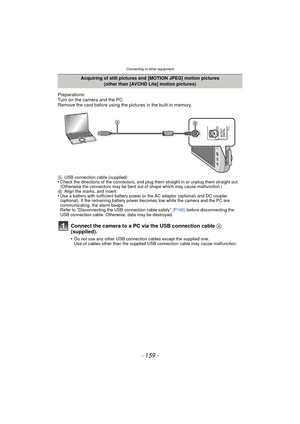

Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
AUSB connection cable (supplied)•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which may cause malfunction.)
B Align the marks, and insert.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional). If the remaining...

Connecting to other equipment
- 160 -

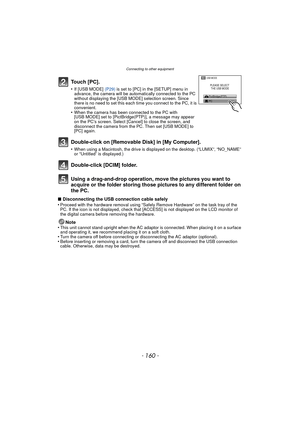

Using a drag-and-drop operation, move the pictures you want to
acquire or the folder storing those pi ctures to any different folder on
the PC.
∫ Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the
PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of
the digital camera before removing the hardware.
Note
•This unit cannot stand upright when...
