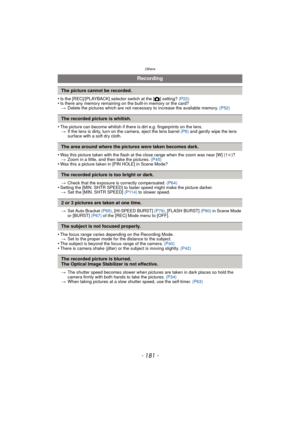

- 181 -
Others
•Is the [REC]/[PLAYBACK] selector switch at the [!] setting?  (P22)•Is there any memory remaining on the built-in memory or the card?
> Delete the pictures which are not necessary to increase the available memory.  (P52)
•The picture can become whitish if there is dirt e.g. fingerprints on the lens.
> If the lens is dirty, turn on the camera, eject the lens barrel  (P8) and gently wipe the lens
surface with a soft dry cloth.
•Was this picture taken with the flash at the close range when...

Others

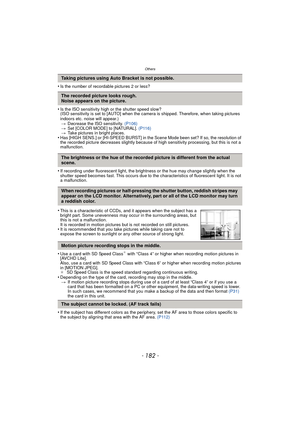

- 182 -
•Is the number of recordable pictures 2 or less?
•Is the ISO sensitivity high or the shutter speed slow?
(ISO sensitivity is set to [AUTO] when the camera is shipped. Therefore, when taking pictures
indoors etc. noise will appear.)> Decrease the ISO sensitivity.  (P106)
> Set [COLOR MODE] to [NATURAL].  (P116)
> Take pictures in bright places.
•Has [HIGH SENS.] or [HI-SPEED BURST] in the Scene Mode been set? If so, the resolution of
the recorded picture decreases slightly because of high...

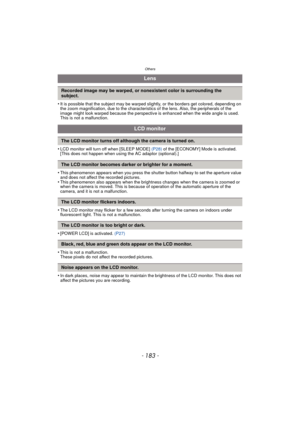

- 183 -
Others
•It is possible that the subject may be warped slightly, or the borders get colored, depending on
the zoom magnification, due to the characteristics of the lens. Also, the peripherals of the
image might look warped because the perspective is enhanced when the wide angle is used.
This is not a malfunction.
•LCD monitor will turn off when [SLEEP MODE]  (P28) of the [ECONOMY] Mode is activated.
[This does not happen when using the AC adaptor (optional).]
•This phenomenon appears when you...

Others

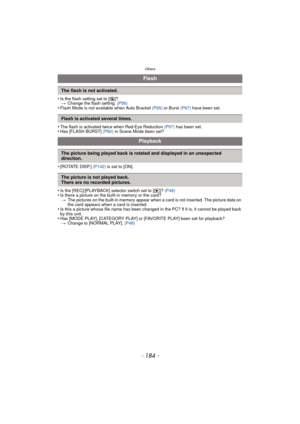

- 184 -
•Is the flash setting set to [Œ]?
> Change the flash setting.  (P56)
•Flash Mode is not available when Auto Bracket  (P65) or Burst  (P67) have been set.
•The flash is activated twice when Red-Eye Reduction  (P57) has been set.•Has [FLASH BURST]  (P80) in Scene Mode been set?
•[ROTATE DISP.]  (P142) is set to [ON].
•Is the [REC]/[PLAYBACK] selector switch set to [ (]? (P48)•Is there a picture on the built-in memory or the card?
> The pictures on the built-in memory appear when a card is...

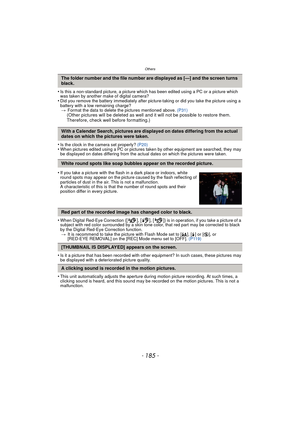

- 185 -
Others
•Is this a non-standard picture, a picture which has been edited using a PC or a picture which
was taken by another make of digital camera?
•Did you remove the battery immediately after pict ure-taking or did you take the picture using a
battery with a low remaining charge? > Format the data to delete the pictures mentioned above.  (P31)
(Other pictures will be deleted as well and it will not be possible to restore them.
Therefore, check well before formatting.)
•
Is the clock in the...

Others

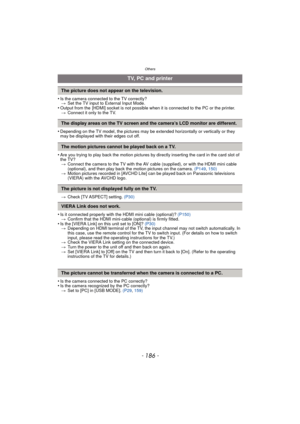

- 186 -
•Is the camera connected to the TV correctly?> Set the TV input to External Input Mode.
•Output from the  [HDMI] socket is not possible when it is connected to the PC or the printer.
> Connect it only to the TV.
•Depending on the TV model, the pictures may be  extended horizontally or vertically or they
may be displayed with their edges cut off.
•Are you trying to play back the motion pictures by directly inserting the card in the card slot of
the TV? > Connect the camera to the TV with...

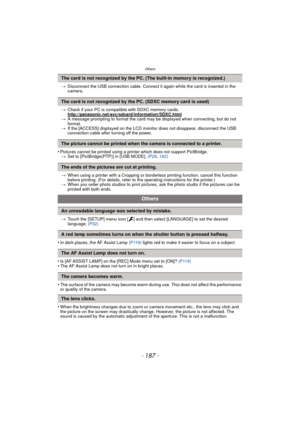

- 187 -
Others
>Disconnect the USB connection cable. Connect it again while the card is inserted in the
camera.
> Check if your PC is compat ible with SDXC memory cards.
http://panasonic.net/avc/sdcard/information/SDXC.html
> A message prompting to format the card may be displayed when connecting, but do not
format.
> If the [ACCESS] displayed on the LCD monitor does not disappear, disconnect the USB
connection cable after turning off the power.
•Pictures cannot be printed using a printer which does...

Others

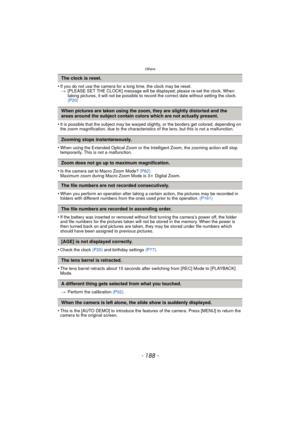

- 188 -
•If you do not use the camera for a long time, the clock may be reset.> [PLEASE SET THE CLOCK] message will be displayed; please re-set the clock. When
taking pictures, it will not be possible to record  the correct date without setting the clock.
(P20)
•It is possible that the subject may be warped slightly, or the borders get colored, depending on
the zoom magnification, due to the characteristics of the lens, but this is not a malfunction.
•When using the Extended Optical Zoom or...

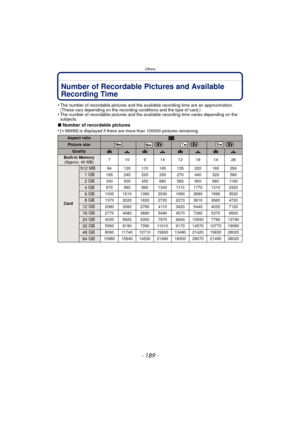

- 189 -
Others
Number of Recordable Pictures and Available
Recording Time
•The number of recordable pictures and the available recording time are an approximation.
(These vary depending on the recording conditions and the type of card.)
•The number of recordable pictures and the available recording time varies depending on the
subjects.
∫Number of recordable pictures
•[ i 99999] is displayed if there are more than 100000 pictures remaining.
Aspect ratioX
Picture size () () ()
QualityA›A›A›A›
Built-in...

Others

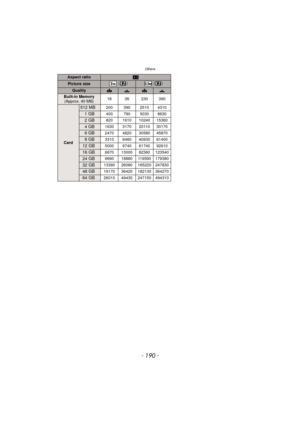

- 190 -
Aspect ratioX
Picture size () ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 18 36 230 390
Card
512 MB200 390 2510 4310
1GB400 790 5030 8630
2GB820 1610 10240 15360
4GB1630 3170 20110 30170
6GB2470 4820 30580 45870
8GB3310 6460 40930 61400
12 GB5000 9740 61740 92610
16 GB6670 13000 82360 123540
24 GB9690 18880 119590 179380
32 GB13390 26080 165220 247830
48 GB19170 36420 182130 364270
64 GB26010 49430 247150 494310
