Panasonic Dmc Fx75 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fx75 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

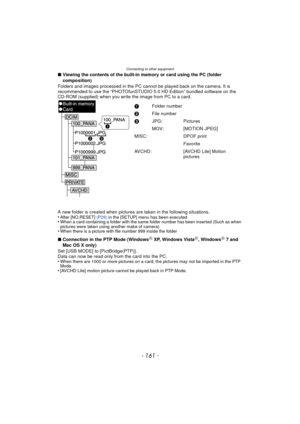

Page 161
![Page 161
- 161 -
Connecting to other equipment
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
Folders and images processed in the PC cannot be played back on the camera. It is
recommended to use the “PHOTOfunSTUDIO 5.0 HD Edition” bundled software on the
CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET] (P29) in the [SETUP] menu has been executed•When a card...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-160.png "Page 161
- 161 -
Connecting to other equipment
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
Folders and images processed in the PC cannot be played back on the camera. It is
recommended to use the “PHOTOfunSTUDIO 5.0 HD Edition” bundled software on the
CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET] (P29) in the [SETUP] menu has been executed•When a card...")
- 161 - Connecting to other equipment ∫Viewing the contents of the built-in memory or card using the PC (folder composition) Folders and images processed in the PC cannot be played back on the camera. It is recommended to use the “PHOTOfunSTUDIO 5.0 HD Edition” bundled software on the CD-ROM (supplied) when you write the image from PC to a card. A new folder is created when pictures are taken in the following situations. • After [NO.RESET] (P29) in the [SETUP] menu has been executed•When a card...

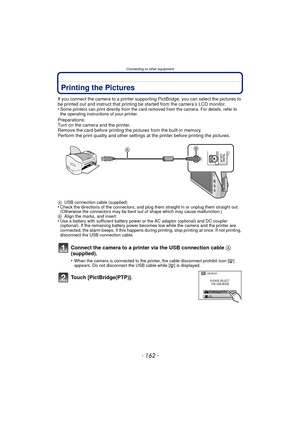

Page 162
Connecting to other equipment - 162 - Printing the Pictures If you connect the camera to a printer supporting PictBridge, you can select the pictures to be printed out and instruct that printing be started from the camera’s LCD monitor. • Some printers can print directly from the card removed from the camera. For details, refer to the operating instructions of your printer. Preparations: Turn on the camera and the printer. Remove the card before printing the pictures from the built-in memory. Perform...

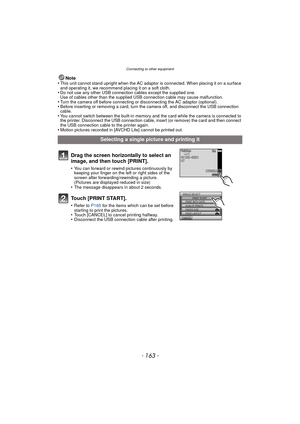

Page 163
- 163 - Connecting to other equipment Note •This unit cannot stand upright when the AC adaptor is connected. When placing it on a surface and operating it, we recommend placing it on a soft cloth. •Do not use any other USB connection cables except the supplied one. Use of cables other than the supplied USB connection cable may cause malfunction. •Turn the camera off before connecting or disconnecting the AC adaptor (optional).•Before inserting or removing a card, turn the camera off, and disconnect the...

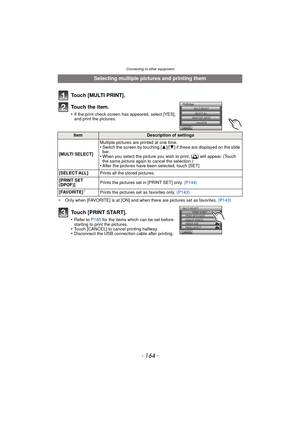

Page 164
![Page 164
Connecting to other equipment
- 164 -
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P143)
Selecting multiple pictures and printing them
Touch [MULTI PRINT].
To u c h t h e i t e m .
•If the print check screen has appeared, select [YES],
and print the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Switch the screen by touching [
3]/[4] if these are displayed on the slide
bar.
•When you select the picture you wish to...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-163.png "Page 164
Connecting to other equipment
- 164 -
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P143)
Selecting multiple pictures and printing them
Touch [MULTI PRINT].
To u c h t h e i t e m .
•If the print check screen has appeared, select [YES],
and print the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Switch the screen by touching [
3]/[4] if these are displayed on the slide
bar.
•When you select the picture you wish to...")
Connecting to other equipment - 164 - ¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P143) Selecting multiple pictures and printing them Touch [MULTI PRINT]. To u c h t h e i t e m . •If the print check screen has appeared, select [YES], and print the pictures. ItemDescription of settings [MULTI SELECT] Multiple pictures are printed at one time. •Switch the screen by touching [ 3]/[4] if these are displayed on the slide bar. •When you select the picture you wish to...

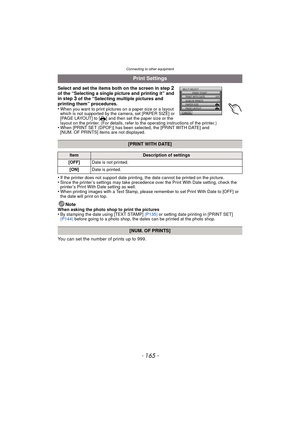

Page 165
![Page 165
- 165 -
Connecting to other equipment
Select and set the items both on the screen in step 2
of the “Selecting a single picture and printing it” and
in step
3 of the “Selecting multiple pictures and
printing them” procedures.
•
When you want to print pictures on a paper size or a layout
which is not supported by the camera, set [PAPER SIZE] or
[PAGE LAYOUT] to [ {] and then set the paper size or the
layout on the printer. (For details, refer to the operating instructions of the printer.)
•When...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-164.png "Page 165
- 165 -
Connecting to other equipment
Select and set the items both on the screen in step 2
of the “Selecting a single picture and printing it” and
in step
3 of the “Selecting multiple pictures and
printing them” procedures.
•
When you want to print pictures on a paper size or a layout
which is not supported by the camera, set [PAPER SIZE] or
[PAGE LAYOUT] to [ {] and then set the paper size or the
layout on the printer. (For details, refer to the operating instructions of the printer.)
•When...")
- 165 -
Connecting to other equipment
Select and set the items both on the screen in step 2
of the “Selecting a single picture and printing it” and
in step
3 of the “Selecting multiple pictures and
printing them” procedures.
•
When you want to print pictures on a paper size or a layout
which is not supported by the camera, set [PAPER SIZE] or
[PAGE LAYOUT] to [ {] and then set the paper size or the
layout on the printer. (For details, refer to the operating instructions of the printer.)
•When...
Page 166
![Page 166
Connecting to other equipment
- 166 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-165.png "Page 166
Connecting to other equipment
- 166 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm")
Connecting to other equipment
- 166 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

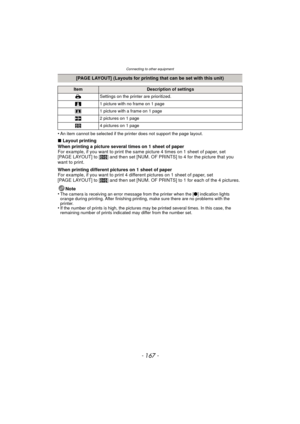

Page 167
![Page 167
- 167 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-166.png "Page 167
- 167 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...")
- 167 - Connecting to other equipment •An item cannot be selected if the printer does not support the page layout. ∫Layout printing When printing a picture several times on 1 sheet of paper For example, if you want to print the same picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you want to print. When printing different pictures on 1 sheet of paper For example, if you want to print 4 different pictures on 1 sheet of paper, set...

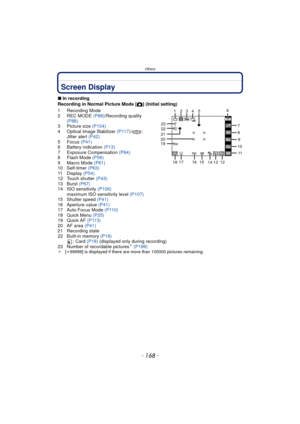

Page 168
![Page 168
Others
- 168 -
OthersScreen Display
∫In recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2REC MODE (P88) /Recording quality
(P88)
3 Picture size (P104)
4 Optical Image Stabilizer (P117) /:
Jitter alert (P42)
5 Focus (P41)
6 Battery indication (P13)
7 Exposure Compensation (P64)
8 Flash Mode (P56)
9 Macro Mode (P61)
10 Self-timer (P63)
11 Display (P54)
12 Touch shutter (P43)
13 Burst (P67)
14 ISO sensitivity (P106) maximum ISO sensitivity level (P107)
15...](http://img.usermanuals.tech/thumb/58/65598/w300_dmc-fx75_adv_en_om_d-167.png "Page 168
Others
- 168 -
OthersScreen Display
∫In recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2REC MODE (P88) /Recording quality
(P88)
3 Picture size (P104)
4 Optical Image Stabilizer (P117) /:
Jitter alert (P42)
5 Focus (P41)
6 Battery indication (P13)
7 Exposure Compensation (P64)
8 Flash Mode (P56)
9 Macro Mode (P61)
10 Self-timer (P63)
11 Display (P54)
12 Touch shutter (P43)
13 Burst (P67)
14 ISO sensitivity (P106) maximum ISO sensitivity level (P107)
15...")
Others - 168 - OthersScreen Display ∫In recording Recording in Normal Picture Mode [ !] (Initial setting) 1 Recording Mode 2REC MODE (P88) /Recording quality (P88) 3 Picture size (P104) 4 Optical Image Stabilizer (P117) /: Jitter alert (P42) 5 Focus (P41) 6 Battery indication (P13) 7 Exposure Compensation (P64) 8 Flash Mode (P56) 9 Macro Mode (P61) 10 Self-timer (P63) 11 Display (P54) 12 Touch shutter (P43) 13 Burst (P67) 14 ISO sensitivity (P106) maximum ISO sensitivity level (P107) 15...

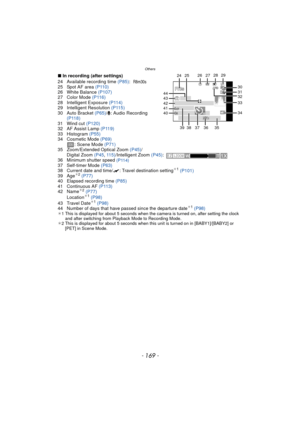

Page 169
- 169 - Others ∫In recording (after settings) 24 Available recording time (P85): 25 Spot AF area (P110) 26 White Balance (P107) 27 Color Mode (P116) 28 Intelligent Exposure (P114) 29 Intelligent Resolution (P115) 30 Auto Bracket (P65)/B : Audio Recording (P118) 31 Wind cut (P120) 32 AF Assist Lamp (P119) 33 Histogram (P55) 34 Cosmetic Mode (P69) : Scene Mode (P71) 35 Zoom/Extended Optical Zoom (P45) / Digital Zoom (P45, 115) /Intelligent Zoom (P45): 36 Minimum shutter speed (P114)37...

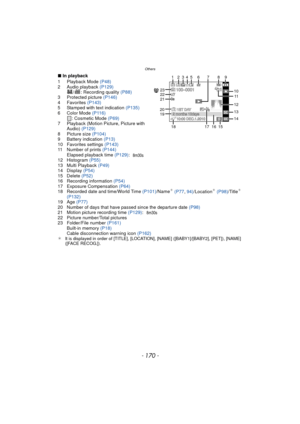

Page 170
Others - 170 - ∫In playback 1 Playback Mode (P48) 2 Audio playback (P129) / : Recording quality (P88) 3 Protected picture (P146) 4 Favorites (P143) 5 Stamped with text indication (P135) 6 Color Mode (P116) : Cosmetic Mode (P69) 7 Playback (Motion Picture, Picture with Audio) (P129) 8 Picture size (P104) 9 Battery indication (P13) 10 Favorites settings (P143) 11 Number of prints (P144) Elapsed playback time (P129): 12 Histogram (P55) 13 Multi Playback (P49) 14 Display (P54) 15 Delete...
