Panasonic Dmc Fx80 Operating Instructions Manual

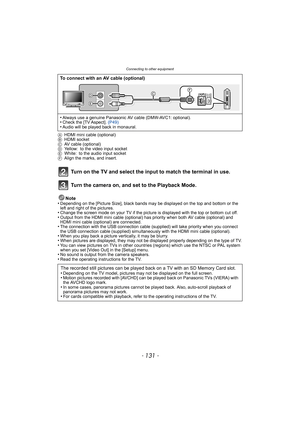

- 131 -
Connecting to other equipment
AHDMI mini cable (optional)
B HDMI socket
C AV cable (optional)
D Yellow: to the video input socket
E White: to the audio input socket
F Align the marks, and insert.
Turn on the TV and select the input to match the terminal in use.
Turn the camera on, and set to the Playback Mode.
Note
•Depending on the [Picture Size], black bands ma y be displayed on the top and bottom or the
left and right of the pictures.
•Change the screen mode on your TV if the picture is...

Connecting to other equipment

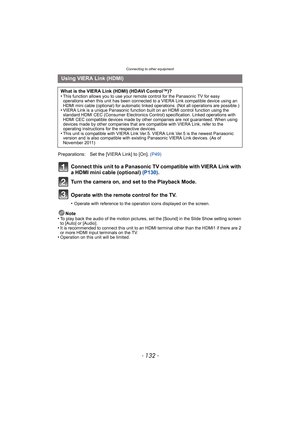

- 132 -
Connect this unit to a Panasonic TV compatible with VIERA Link with
a HDMI mini cable (optional) (P130).
Turn the camera on, and set to the Playback Mode.
Operate with the remote control for the TV.
•Operate with reference to the operation icons displayed on the screen.
Note
•To play back the audio of the motion pictures, set the [Sound] in the Slide Show setting screen
to [Auto] or [Audio].
•It is recommended to connect this unit to an HDMI terminal other than the...

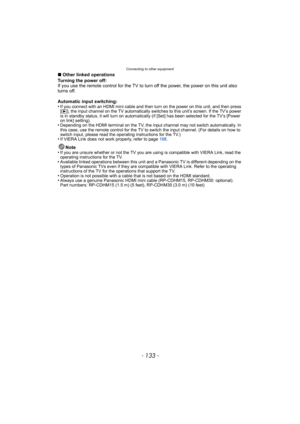

- 133 -
Connecting to other equipment
∫Other linked operations
Turning the power off:
If you use the remote control for the TV to turn off the power, the power on this unit also
turns off.
Automatic input switching:
•
If you connect with an HDMI mini cable and then turn on the power on this unit, and then press
[ ( ], the input channel on the TV automatically switches to this unit’s screen. If the TV’s power
is in standby status, it will turn on automatically (if [Set] has been selected for the TV’s...

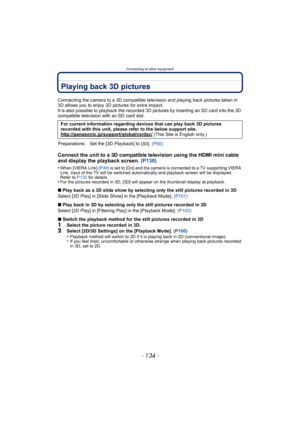

Connecting to other equipment
- 134 -
Playing back 3D pictures
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to playback the recorded 3D pictures by inserting an SD card into the 3D
compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI mini cable
and display the playback screen. (P130)
•When [VIERA Link] (P49) is set to [On] and the...

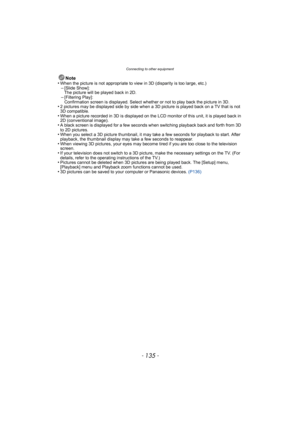

- 135 -
Connecting to other equipment
Note
•When the picture is not appropriate to view in 3D (disparity is too large, etc.)–[Slide Show]:
The picture will be played back in 2D.
–[Filtering Play]:
Confirmation screen is displayed. Select whether or not to play back the picture in 3D.
•2 pictures may be displayed side by side when a 3D  picture is played back on a TV that is not
3D compatible.
•When a picture recorded in 3D is displayed on the LCD monitor of this unit, it is played back in
2D...

Connecting to other equipment

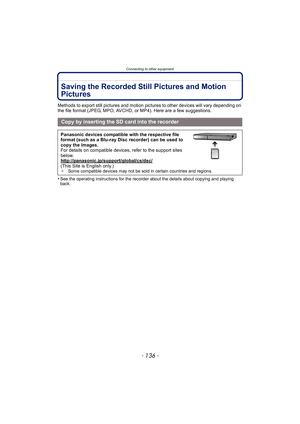

- 136 -
Saving the Recorded Still Pictures and Motion
Pictures
Methods to export still pictures and motion pictures to other devices will vary depending on
the file format (JPEG, MPO, AVCHD,  or MP4). Here are a few suggestions.
•
See the operating instructions for the recorder about the details about copying and playing
back.
Copy by inserting the SD card into the recorder
Panasonic devices compatible with the respective file
format (such as a Blu-ray Disc recorder) can...

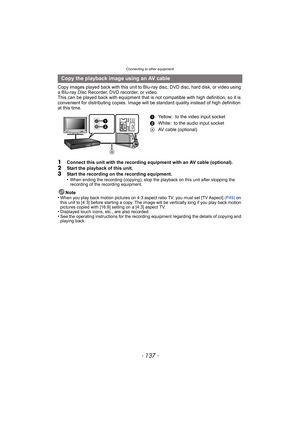

- 137 -
Connecting to other equipment
Copy images played back with this unit to Blu-ray disc, DVD disc, hard disk, or video using
a Blu-ray Disc Recorder, DVD recorder, or video.
This can be played back with equipment that is not compatible with high definition, so it is
convenient for distributing copies. Image will be standard quality instead of high definition
at this time.
1Connect this unit with the recording equipment with an AV cable (optional).
2Start the playback of this unit.3Start the...

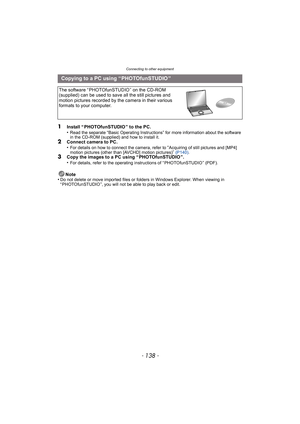

Connecting to other equipment
- 138 -
1Install “ PHOTOfunSTUDIO ” to the PC.
•Read the separate “Basic Operating Instructions” for more information about the software
in the CD-ROM (supplied) and how to install it.
2Connect camera to PC.
•For details on how to connect the camera, refer to “Acquiring of still pictures and [MP4]
motion pictures (other than [AVCHD] motion pictures)”  (P140) .3Copy the images to a PC using “ PHOTOfunSTUDIO ”.
•For details, refer to the operating instructions of “...

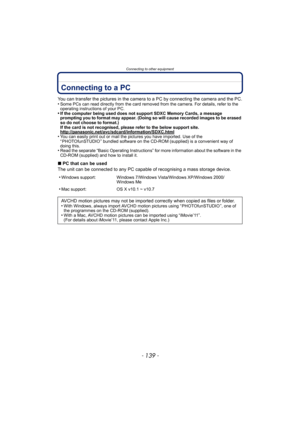

- 139 -
Connecting to other equipment
Connecting to a PC
You can transfer the pictures in the camera to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognised, please refer...

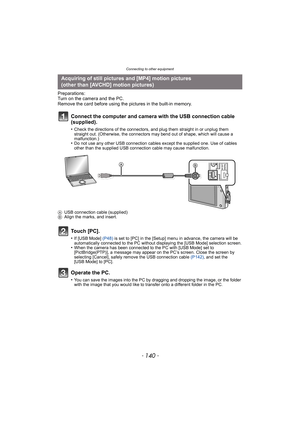

Connecting to other equipment
- 140 -
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
Connect the computer and camera with the USB connection cable
(supplied).
•Check the directions of the connectors, and plug them straight in or unplug them
straight out. (Otherwise, the connectors may bend out of shape, which will cause a
malfunction.)
•Do not use any other USB connection cables except the supplied one. Use of cables
other than the...
