Panasonic Dmc Fx80 Operating Instructions Manual

Operating Instructionsfor advanced features
Digital Camera
Model No. DMC-FX80
VQT4A54
F0112MC0
Before use, please read these instructions completely.
until
2011/9/6

- 2 -
Contents
Before Use
Care of the camera ................................... 5
Standard Accessories ............................... 6
Names and Functions of Main Parts ......... 7
How to Use the Touch Screen .................. 8
Preparation
Charging the Battery ................................. 9• Inserting the Battery .......................... 10
• Charging ........................................... 11
• Approximate operating time and number of recordable pictures .......... 13
Inserting and...

- 3 -
• [Photo Frame] ................................... 67
Taking 3D pictures (3D Photo Mode) ...... 68
Taking pictures while changing the skin
texture (Cosmetic Mode) ......................... 69
Taking a Picture with Face Recognition
Function .................................................. 70 • Face Settings .................................... 71
Entering Text ........................................... 74
Using the [Rec] Menu.............................. 75 • [Flash]...

- 4 -
• Uploading the images to sharing sites ................................................ 143
Printing the Pictures .............................. 144 • Selecting a single picture and printing it ......................................... 145
• Selecting multiple pictures and  printing them ................................... 145
• Print Settings................................... 146
Others
Screen Display ...................................... 149
Cautions for Use ......................................

- 5 -
Before Use

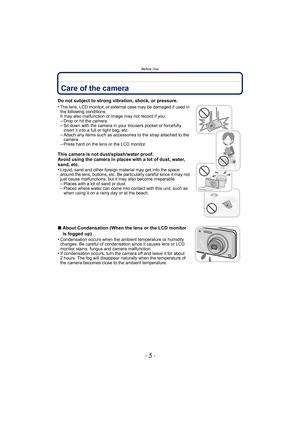

Before UseCare of the camera
Do not subject to strong vibration, shock, or pressure.
•
The lens, LCD monitor, or external case may be damaged if used in
the following conditions.
It may also malfunction or image may not record if you:
–Drop or hit the camera.–Sit down with the camera in your trousers pocket or forcefully
insert it into a full or tight bag, etc.
–Attach any items such as accessories to the strap attached to the
camera.
–Press hard on the lens or the LCD monitor.
This...

Before Use
- 6 -

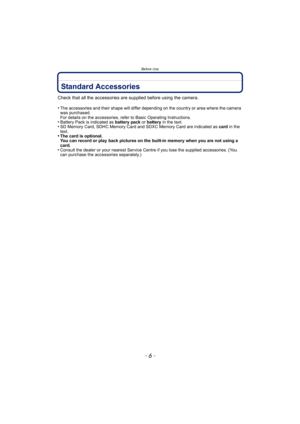

Standard Accessories
Check that all the accessories are supplied before using the camera.
•
The accessories and their shape will differ depending on the country or area where the camera
was purchased.
For details on the accessories, refer to Basic Operating Instructions.
•Battery Pack is indicated as battery pack or battery  in the text.•SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as  card in the
text.
•The card is optional.
You can record or play back pictures...

- 7 -
Before Use

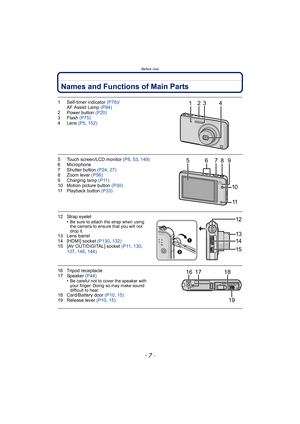

Names and Functions of Main Parts
1 Self-timer indicator (P78)/
AF Assist Lamp  (P94)
2 Power button  (P20)
3Flash  (P75)
4 Lens  (P5, 152)
5 Touch screen/LCD monitor  (P8, 53,  149)
6 Microphone
7 Shutter button  (P24, 27)
8 Zoom lever  (P56)
9 Charging lamp (P11)
10 Motion picture button  (P30)
11 Playback button (P33)
12 Strap eyelet •Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
13 Lens barrel
14 [HDMI] socket  (P130, 132)
15 [AV...

Before Use
- 8 -

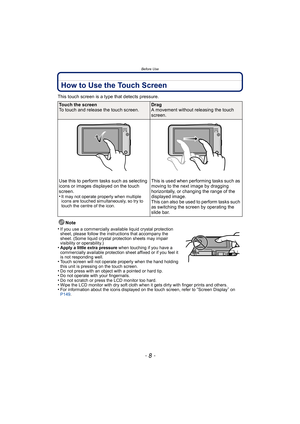

How to Use the Touch Screen
This touch screen is a type that detects pressure.Note
•
If you use a commercially available liquid crystal protection
sheet, please follow the instructions that accompany the
sheet. (Some liquid crystal protection sheets may impair
visibility or operability.)
•Apply a little extra pressure  when touching if you have a
commercially available protection sheet affixed or if you feel it
is not responding well.
•Touch screen will not operate properly when the...

- 9 -
Preparation

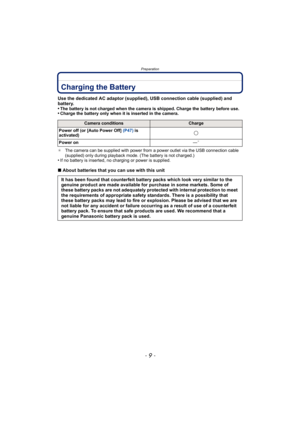

PreparationCharging the Battery
Use the dedicated AC adaptor (supplied), USB connection cable (supplied) and
battery.
•
The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery only when it is inserted in the camera.
¢ The camera can be supplied with power from a power outlet via the USB connection cable
(supplied) only during playback mode. (The battery is not charged.)
•If no battery is inserted, no charging or power is supplied....

Preparation
- 10 -

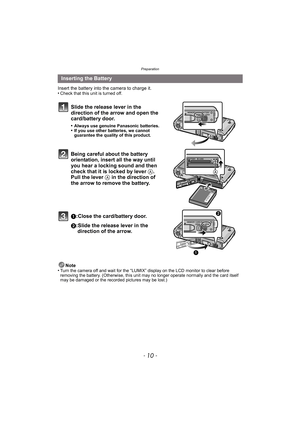

Insert the battery into the camera to charge it.
•Check that this unit is turned off.
Slide the release lever in the
direction of the arrow and open the
card/battery door.
•Always use genuine Panasonic batteries.•If you use other batteries, we cannot
guarantee the quality of this product.
Being careful about the battery
orientation, insert all the way until
you hear a locking sound and then
check that it is locked by lever A.
Pull the lever A in the direction of
the arrow to...
