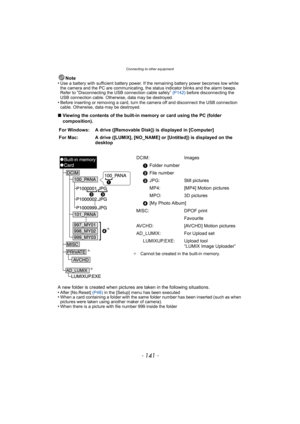

Panasonic Dmc Fx80 Operating Instructions Manual

- 141 -
Connecting to other equipment
Note
•Use a battery with sufficient battery power. If the remaining battery power becomes low while
the camera and the PC are communicating, the status indicator blinks and the alarm beeps.
Refer to
“Disconnecting the USB connection cable safely”  (P142)  before disconnecting the
USB connection cable. Otherwise, data may be destroyed.
•Before inserting or removing a card, turn the camera off and disconnect the USB connection
cable. Otherwise, data may be...

Connecting to other equipment
- 142 -

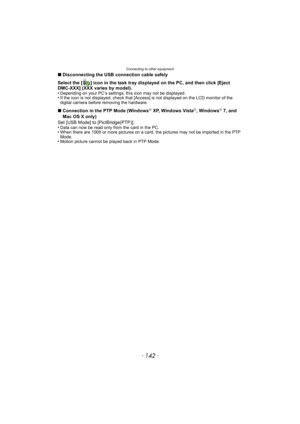

∫Disconnecting the USB connection cable safely
Select the [ ] icon in the task tray displayed on the PC, and then click [Eject
DMC-XXX] (XXX varies by model).
•
Depending on your PC’s settings, this icon may not be displayed.•If the icon is not displayed, check that [Access] is not displayed on the LCD monitor of the
digital camera before removing the hardware.
∫ Connection in the PTP Mode (WindowsR XP, Windows VistaR, WindowsR 7, and
Mac OS X only)
Set [USB Mode]...

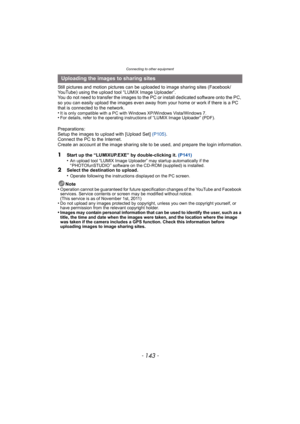

- 143 -
Connecting to other equipment
Still pictures and motion pictures can be uploaded to image sharing sites (Facebook/
YouTube) using the upload tool “LUMIX Image Uploader”.
You do not need to transfer the images to the PC or install dedicated software onto the PC,
so you can easily upload the images even away from your home or work if there is a PC
that is connected to the network.
•
It is only compatible with a PC with Windows XP/Windows Vista/Windows 7.•For details, refer to the operating...

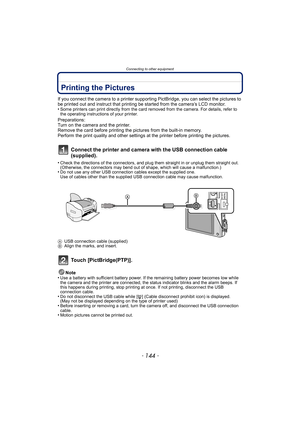

Connecting to other equipment
- 144 -
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started from the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in memory.
Perform...

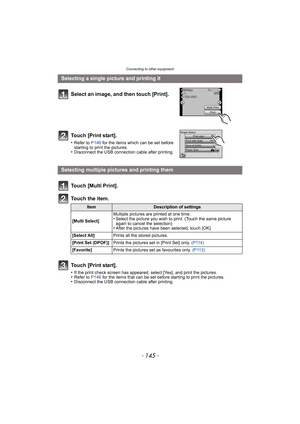

- 145 -
Connecting to other equipment
Selecting a single picture and printing itSelect an image, and then touch [Print].
Touch [Print start].
•Refer to  P146 for the items which can be set before
starting to print the pictures.
•Disconnect the USB connecti on cable after printing.
Selecting multiple pictures and printing them
Touch [Multi Print].
To u c h  t h e  i t e m .
ItemDescription of settings
[Multi Select] Multiple pictures are printed at one time.
•Select the picture you wish to print. (Touch...

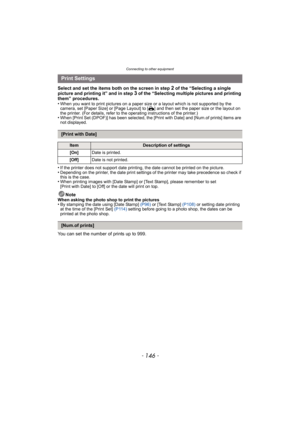

Connecting to other equipment
- 146 -
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures on a paper size or a layout which is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer. (For details, refer to the operating instructions of the printer.)
•When [Print...

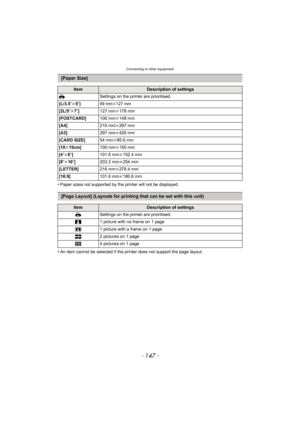

- 147 -
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
•An item cannot be selected if the printer does not support the page layout.
[Paper Size]
ItemDescription of settings
{ Settings on the printer are prioritised.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[CARD SIZE] 54 mmk85.6 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4...

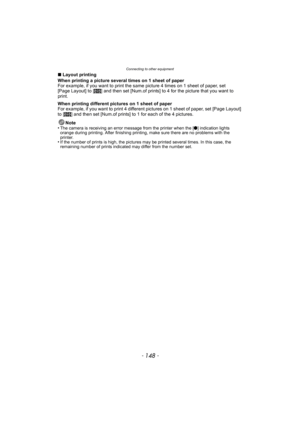

Connecting to other equipment
- 148 -
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[Page Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to
print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set [Page Layout]
to [ ä ] and then set [Num.of prints] to 1 for each of the 4...

- 149 -
Others

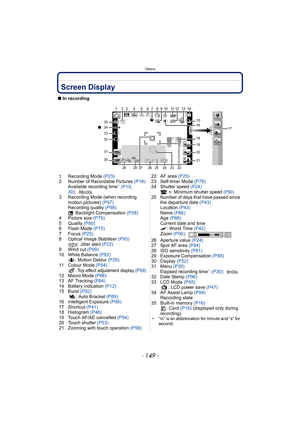

OthersScreen Display
∫In recording
1 Recording Mode (P23)
2 Number of Recordable Pictures  (P18)
Available recording time
¢  (P19 ,
30) :
3 Recording Mode (when recording  motion pictures)  (P97)
Recording quality  (P98)
: Backlight Compensation  (P28)
4 Picture size (P79)
5 Quality  (P80)
6 Flash Mode  (P75)
7 Focus  (P25)
8 Optical Image Stabiliser  (P95)
: Jitter alert  (P22)
9 Wind cut  (P99)
10 White Balance (P82) : Motion Deblur  (P29)
11 Colour Mode  (P94)
: Toy effect adjustment...

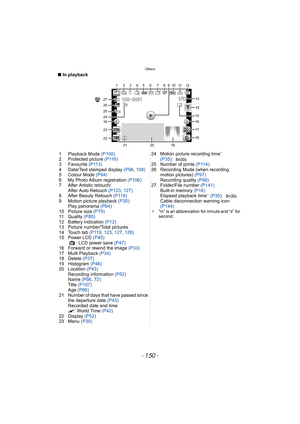

Others
- 150 -
∫In playback
1 Playback Mode (P100)
2 Protected picture  (P116)
3 Favourite  (P113)
4 Date/Text stamped display  (P96, 108)
5 Colour Mode  (P94)
6 My Photo Album registration  (P106)
7 After Artistic retouch/ After Auto Retouch  (P123, 127)
8 After Beauty Retouch  (P119)
9 Motion picture playback  (P35)
Play panorama (P64)
10 Picture size (P79)
11 Quality  (P80)
12 Battery indication  (P12)
13 Picture number/Total pictures
14 Touch tab  (P119, 123,  127, 128)
15 Power LCD  (P45)
: LCD...
