Owner’s Manual
for advanced features
Digital Camera
Model No. DMC-FX90
VQT3S36-1
 Before connecting, operating or adjusting this product, please read the inst ructions completely.
until
2011/9/6

- 2 -
Contents
Before Use
Care of the camera ................................... 5
Standard Accessories ............................... 6
Names and Functions of Main Parts ......... 7
How to Use the Touch Panel .................... 8
Preparation
Charging the Battery ................................. 9• Charging ............................................. 9
• Approximate operating time and
number of recordable pictures .......... 11
Inserting and Removing the Card
(optional)/the Battery...

- 3 -
• [AF Mode] ......................................... 82
• [Macro Mode] .................................... 84
• [Quick AF] ......................................... 85
• [Face Recog.].................................... 85
• [Exposure] ......................................... 86
• [i.Exposure] ....................................... 88
• [Min. Shtr Speed] .............................. 88
• [i.Resolution] ..................................... 89
• [Digital Zoom]...

- 4 -
Connecting to other equipment
Playing Back Pictures on a TV
Screen ................................................... 144• Playback using VIERA Link (HDMI) ............................................ 146
Playing back 3D pictures....................... 148
Saving the Recorded Still Pictures and
Motion Pictures ..................................... 150 • Copy by inserting the SD card into
the recorder .................................... 150
• Copy the playback image using  an AV cable...

- 5 -
Before Use

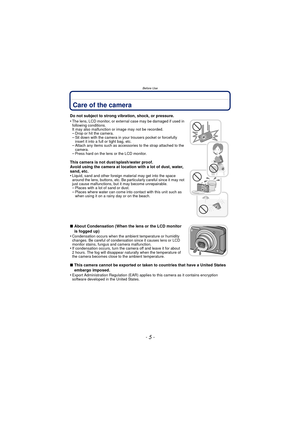

Before UseCare of the camera
Do not subject to strong vibration, shock, or pressure.
•
The lens, LCD monitor, or external case may be damaged if used in
following conditions.
It may also malfunction or image may not be recorded.
–Drop or hit the camera.–Sit down with the camera in your trousers pocket or forcefully
insert it into a full or tight bag, etc.
–Attach any items such as accessories to the strap attached to the
camera.
–Press hard on the lens or the LCD monitor.
This camera...

Before Use
- 6 -

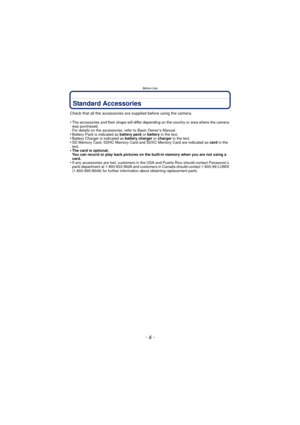

Standard Accessories
Check that all the accessories are supplied before using the camera.
•
The accessories and their shape will differ depending on the country or area where the camera
was purchased.
For details on the accessories, refer to Basic Owner’s Manual.
•Battery Pack is indicated as battery pack or battery  in the text.•Battery Charger is indicated as battery charger  or charger in the text.•SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as  card in the...

- 7 -
Before Use

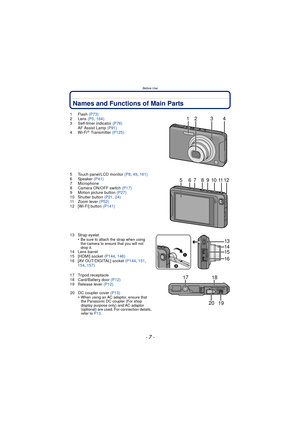

Names and Functions of Main Parts
1Flash (P73)
2 Lens  (P5, 164)
3 Self-timer indicator  (P76)
AF Assist Lamp  (P91)
4Wi-Fi
R Transmitter (P125)
5 Touch panel/LCD monitor  (P8, 49,  161)
6 Speaker  (P41)
7 Microphone
8 Camera ON/OFF switch (P17)
9 Motion picture button  (P27)
10 Shutter button  (P21, 24)
11 Zoom lever  (P53)
12 [Wi-Fi] button  (P141)
13 Strap eyelet •
Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
14 Lens barrel
15 [HDMI] socket...

Before Use
- 8 -

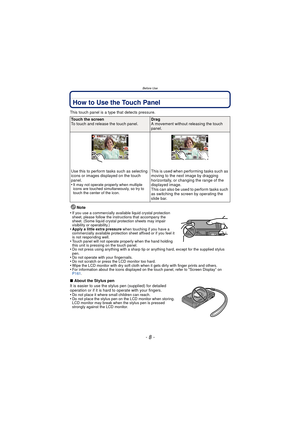

How to Use the Touch Panel
This touch panel is a type that detects pressure.Note
•
If you use a commercially available liquid crystal protection
sheet, please follow the instructions that accompany the
sheet. (Some liquid crystal protection sheets may impair
visibility or operability.)
•Apply a little extra pressure  when touching if you have a
commercially available protection sheet affixed or if you feel it
is not responding well.
•Touch panel will not operate properly when the...

- 9 -
Preparation

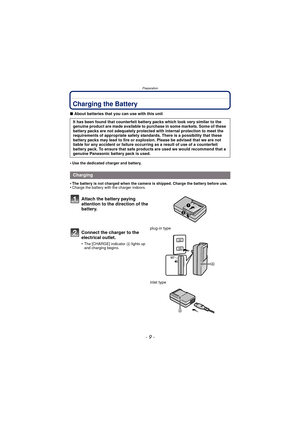

PreparationCharging the Battery
∫About batteries that you can use with this unit
•
Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors.
It has been found that counterfeit battery packs which look very similar to the
genuine product are made available to purchase in some markets. Some of these
battery packs are not adequately protected with internal protection to meet...

Preparation
- 10 -

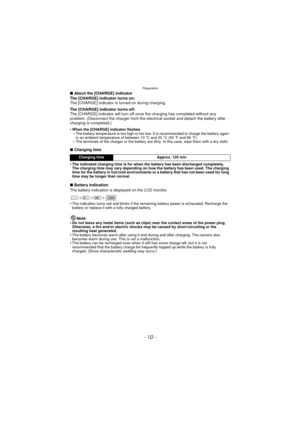

∫About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from the elec trical socket and detach the battery after
charging is completed.)
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again
in an...
