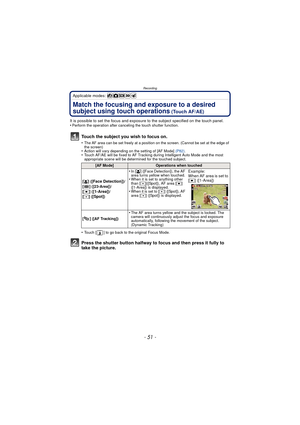

- 51 -
Recording
Applicable modes:
Match the focusing and exposure to a desired
subject using touch operations
 (Touch AF/AE)
It is possible to set the focus and exposure to the subject specified on the touch panel.
•Perform the operation after canceling the touch shutter function.
Touch the subject you wish to focus on.
•The AF area can be set freely at a position on the screen. (Cannot be set at the edge of
the screen)
•Action will vary depending on the setting of [AF Mode]  (P82).•Touch AF/AE will...

Recording

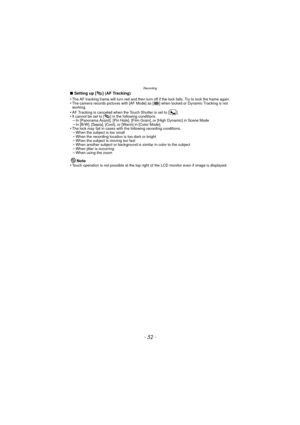

- 52 -
∫Setting up [ ] (AF Tracking)
•
The AF tracking frame will turn red and then turn off if the lock fails. Try to lock the frame again.•The camera records pictures with [AF Mode] as [ ] when locked or Dynamic Tracking is not
working.
•AF Tracking is canceled when the Touch Shutter is set to [ ].•It cannot be set to [ ] in the following conditions–In [Panorama Assist], [Pin Hole], [Film Grain], or [High Dynamic] in Scene Mode–In [B/W], [Sepia], [Cool], or [Warm] in [Color Mode].•The lock...

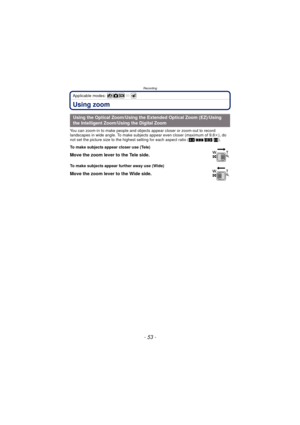

- 53 -
Recording
Applicable modes:
Using zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjects appear even closer (maximum of 9.8 k), do
not set the picture size to the highest setting for each aspect ratio ( X/Y /W /).
Using the Optical Zoom/Using the Extended Optical Zoom (EZ)/Using
the Intelligent Zoom/Using the Digital Zoom
To make subjects appear closer use (Tele)
Move the zoom lever to the Tele side.
To make subjects...

Recording

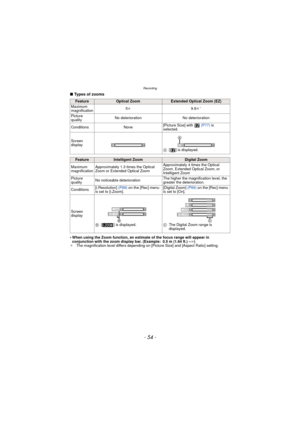

- 54 -
∫Types of zooms
•
When using the Zoom function, an estimate of the focus range will appear in
conjunction with the zoom display bar. (Example: 0.5 m (1.64 ft.) – ¶)
¢ The magnification level differs depending on [Picture Size] and [Aspect Ratio] setting.
FeatureOptical ZoomExtended Optical Zoom (EZ)
Maximum
magnification 5
k 9.8k
¢
quality No deterioration No deterioration
Conditions None [Picture Size] with
(P77) is
selected.
Screen
display A[ ] is displayed....

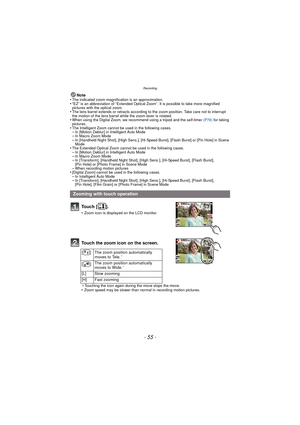

- 55 -
Recording
Note
•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended Optical Zoom”. It is possible to take more magnified
pictures with the optical zoom.
•The lens barrel extends or retracts according to the zoom position. Take care not to interrupt
the motion of the lens barrel while the zoom lever is rotated.
•When using the Digital Zoom, we recommend using a tripod and the self-timer  (P76) for taking
pictures.
•The Intelligent Zoom cannot be used in the...

Recording

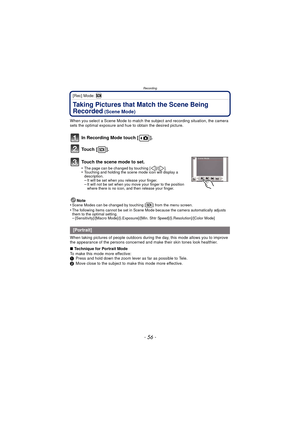

- 56 -
[Rec] Mode:
Taking Pictures that Match the Scene Being
Recorded
 (Scene Mode)
When you select a Scene Mode to match the subject and recording situation, the camera
sets the optimal exposure and hue to obtain the desired picture.
In Recording Mode touch [ ].
To u c h  [ ] .
Touch the scene mode to set.
•The page can be changed by touching [ ]/[ ].•Touching and holding the scene mode icon will display a
description.
–It will be set when you release your finger.–It will not be set when...

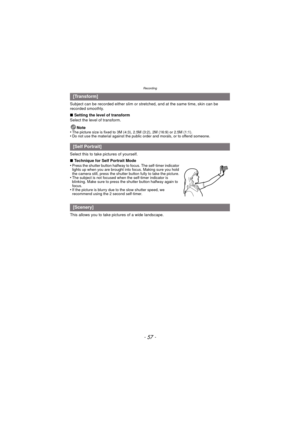

- 57 -
Recording
Subject can be recorded either slim or stretched, and at the same time, skin can be
recorded smoothly.
∫ Setting the level of transform
Select the level of transform.
Note
•
The picture size is fixed to 3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1).•Do not use the material against the public order and morals, or to offend someone.
Select this to take pictures of yourself.
∫ Technique for Self Portrait Mode
•
Press the shutter button halfway to focus. The self-timer indicator
lights up...

Recording

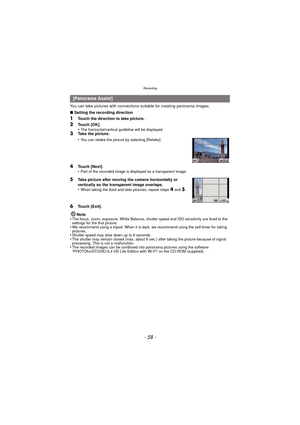

- 58 -
You can take pictures with connections suitable for creating panorama images.
∫ Setting the recording direction
1Touch the direction to take picture.
2Touch [OK].
•The horizontal/vertical guideline will be displayed.3Take the picture.
•
You can retake the picture by selecting [Retake].
4Touch [Next].
•Part of the recorded image is displayed as a transparent image.
5Take picture after moving the camera horizontally or
vertically so the transparent image overlaps.
•
When taking the third...

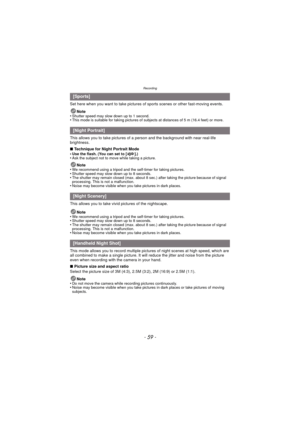

- 59 -
Recording
Set here when you want to take pictures of sports scenes or other fast-moving events.
Note
•
Shutter speed may slow down up to 1 second.•This mode is suitable for taking pictures of subjects at distances of 5 m (16.4 feet) or more.
This allows you to take pictures of a  person and the background with near real-life
brightness.
∫ Technique for Night Portrait Mode
•
Use the flash. (You can set to [ ].)•Ask the subject not to move while taking a picture.
Note
•We recommend using a tripod...

Recording

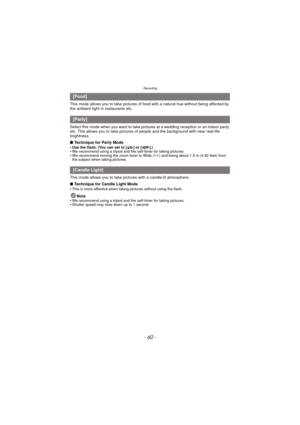

- 60 -
This mode allows you to take pictures of food with a natural hue without being affected by
the ambient light in restaurants etc.
Select this mode when you want to take pictures at a wedding reception or an indoor party
etc. This allows you to take pictures of people and the background with near real-life
brightness.
∫ Technique for Party Mode
•
Use the flash. (You can set to [ ] or [ ].)•We recommend using a tripod and the self-timer for taking pictures.•We recommend moving the zoom...
