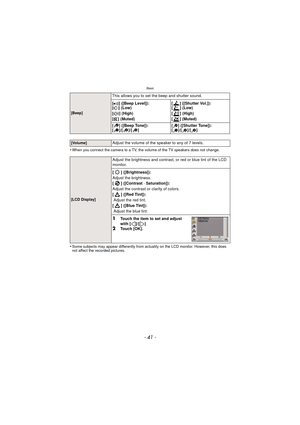

- 41 -
Basic
•When you connect the camera to a TV, the volume of the TV speakers does not change.
•Some subjects may appear differently from actuality on the LCD monitor. However, this does
not affect the recorded pictures.
[Beep]
This allows you to set the beep and shutter sound.
[
r] ([Beep Level]):
[t ] (Low)
[u ] (High)
[s ] (Muted) [] ([Shutter Vol.]):
[] (Low)
[ ] (High)
[] (Muted)
[] ([Beep Tone]):
[]/[]/[][] ([Shutter Tone]):
[]/[]/[]
[Volume]Adjust the volume of the speaker to any of 7 levels....

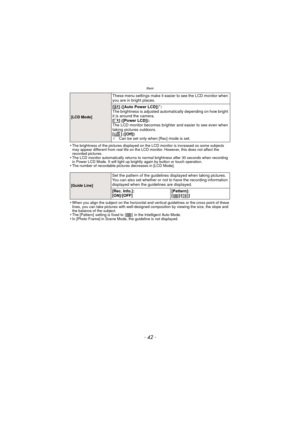

Basic
- 42 -
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear different from real life on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. It will light up brightly again by button or touch operation.
•The number of recordable pictures decreases in [LCD Mode].
•When you align the subject on the horizontal and vertical...

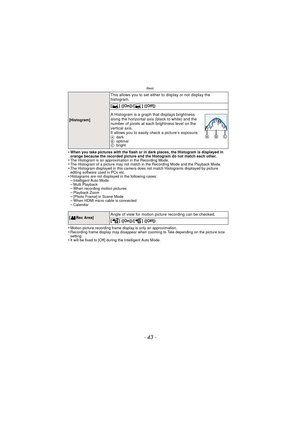

- 43 -
Basic
•When you take pictures with the flash or in dark places, the Histogram is displayed in
orange because the recorded picture and the Histogram do not match each other.
•The Histogram is an approximation in the Recording Mode.•The Histogram of a picture may not match in the Recording Mode and the Playback Mode.•The Histogram displayed in this camera does not match Histograms displayed by picture
editing software used in PCs etc.
•Histograms are not displayed in the following...

Basic

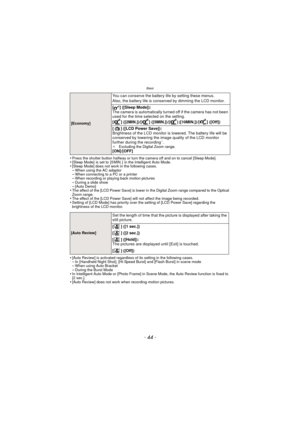

- 44 -
•Press the shutter button halfway or turn the camera off and on to cancel [Sleep Mode].•[Sleep Mode]  is set to  [5 MIN. ]  in the Intelligent Auto Mode.•[Sleep Mode] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a printer–When recording or playing back motion pictures–During a slide show–[Auto Demo]•The effect of the [LCD Power Save] is lower in the Digital Zoom range compared to the Optical
Zoom range.
•The effect of the [LCD Power Save] will...

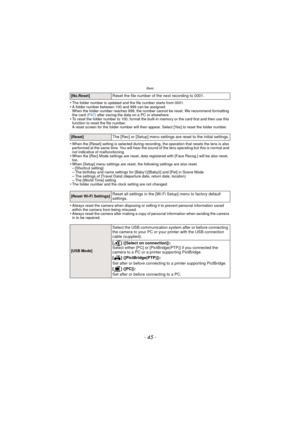

- 45 -
Basic
•The folder number is updated and the file number starts from 0001.•A folder number between 100 and 999 can be assigned.
When the folder number reaches 999, the number cannot be reset. We recommend formatting
the card (P47) after saving the data on a PC or elsewhere.
•To reset the folder number to 100, format the built-in memory or the card first and then use this
function to reset the file number.
A reset screen for the folder number will then appear. Select [Yes] to reset the folder...

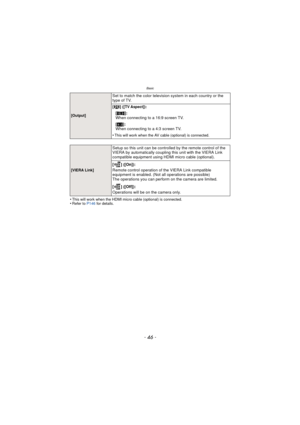

Basic
- 46 -
•This will work when the HDMI micro cable (optional) is connected.•Refer to P146 for details.
Set to match the color television system in each country or the
type of TV.
[] ([TV Aspect]):
[Output][W]:
When connecting to a 16:9 screen TV.
[X ]:
When connecting to a 4:3 screen TV.
•This will work when the AV cable (optional) is connected.
[VIERA Link]
Setup so this unit can be controlled by the remote control of the
VIERA by automatically coupling this unit with the VIERA Link
compatible...

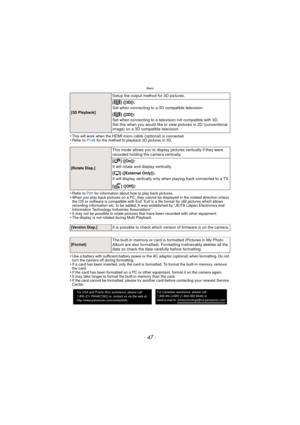

- 47 -
Basic
•This will work when the HDMI micro cable (optional) is connected.•Refer to P148 for the method to playback 3D pictures in 3D.
•Refer to P30 for information about how to play back pictures.•When you play back pictures on a PC, they canno t be displayed in the rotated direction unless
the OS or software is compatible with Exif. Exif  is a file format for still pictures which allows
recording information etc. to be added. It was established by “JEITA (Japan Electronics and
Information...

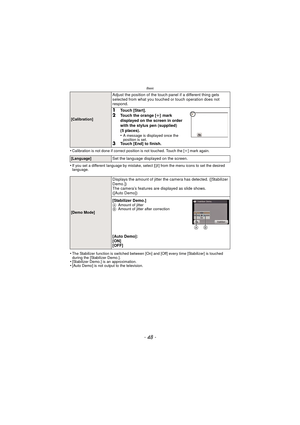

Basic
- 48 -
•Calibration is not done if correct position is not touched. Touch the [i] mark again.
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer function is switched between [On]  and [Off] every time [Stabilizer] is touched
during the [Stabilizer Demo.].
•[Stabilizer Demo.] is an approximation.•[Auto Demo] is not output to the television.
[Calibration]
Adjust the position of the touch panel if a different thing gets
selected...

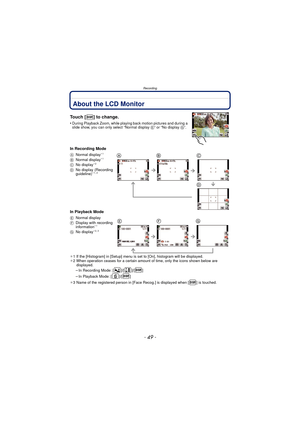

- 49 -
Recording
RecordingAbout the LCD Monitor
Touch [ ] to change.
•During Playback Zoom, while playing back motion pictures and during a
slide show, you can only select “Normal display E” or “No display G”.
In Recording Mode
In Playback Mode
¢1 If the [Histogram] in [Setup] menu is set to [On], histogram will be displayed.
¢ 2 When operation ceases for a certain amount of time, only the icons shown below are
displayed.
–In Recording Mode: [ ]/[ ]/[ ]
–In Playback Mode: [ ]/[ ]
¢ 3 Name of the...

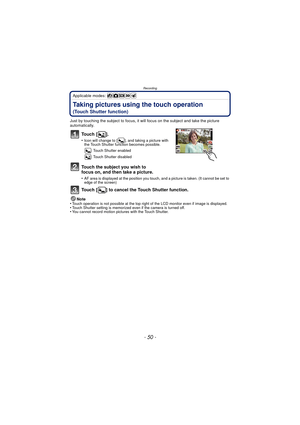

Recording
- 50 -
Applicable modes:
Taking pictures using the touch operation
(Touch Shutter function)
Just by touching the subject to focus, it will focus on the subject and take the picture
automatically.
To u c h  [ ] .
•Icon will change to [ ], and taking a picture with
the Touch Shutter function becomes possible.: Touch Shutter enabled
: Touch Shutter disabled
Touch the subject you wish to
focus on, and then take a picture.
•AF area is displayed at the position you touch, and a picture is taken....
