Panasonic Dmc Fz10 Operating Instructions Manual

Preparation
11

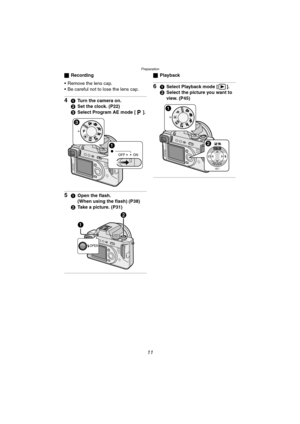

ªRecording
 Remove the lens cap.
 Be careful not to lose the lens cap.
41Turn the camera on.
2Set the clock. (P22)
3Select Program AE mode [ ].
51Open the flash.
(When using the flash) (P38)
2Take a picture. (P31)
ªPlayback
61Select Playback mode [ ].
2Select the picture you want to
view. (P45)
OFF ON
A/S/M
P
OPEN
SET
WB
REVIEW
A
/S/MP
FZ10-PP.book  11 ページ  ２００３年１１月１８日　火曜日　午後１時７分

Preparation
12
Charging the Battery
Charge the battery before using.
1Connect the AC cable.
 The [POWER] Indicator A lights.
 The battery cannot be charged
when the DC cable is connected to
the AC adaptor.
2Attach the battery to the AC
adaptor.
 When the [CHARGE] Indicator B
lights, charging starts.
 When the [CHARGE] Indicator B
turns off (in about 90 minutes),
charging is finished.
3Detach the battery.
¬Suggestions/Tips ¬
 After use, be sure to disconnect the
AC cable.
 The battery becomes...

Preparation
13

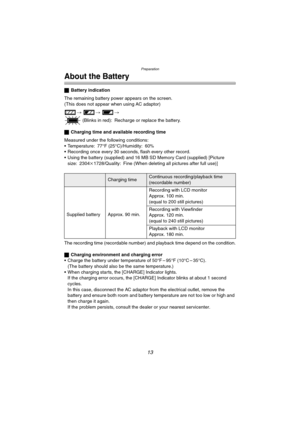

About the Battery
ªBattery indication
The remaining battery power appears on the screen.
(This does not appear when using AC adaptor)
> > >
 (Blinks in red): Recharge or replace the battery.
ªCharging time and available recording time
Measured under the following conditions:
 Temperature: 77°F (25°C)/Humidity: 60
% Recording once every 30 seconds, flash every other record.
 Using the battery (supplied) and 16 MB SD Memory Card (supplied) [Picture
size: 2304k1728/Quality: Fine (When...

Preparation
14

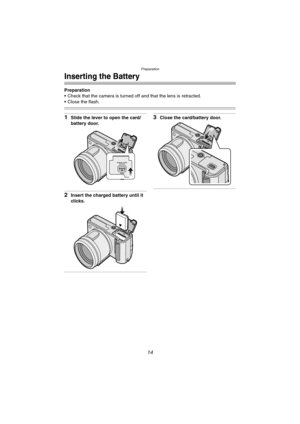

Inserting the Battery
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Close the flash.
1Slide the lever to open the card/
battery door.
2Insert the charged battery until it
clicks.
3Close the card/battery door.
OPEN
MEMORY CARD/
BATTERY
FZ10-PP.book  14 ページ  ２００３年１１月１８日　火曜日　午後１時７分

Preparation
15

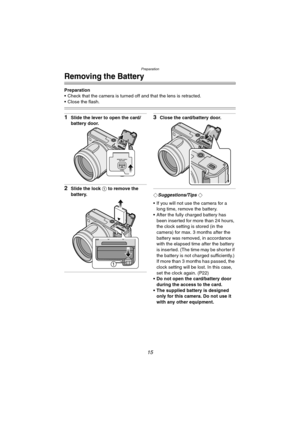

Removing the Battery
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Close the flash.
1Slide the lever to open the card/
battery door.
2Slide the lock 1 to remove the
battery.
3Close the card/battery door.
¬Suggestions/Tips ¬
 If you will not use the camera for a
long time, remove the battery.
 After the fully charged battery has
been inserted for more than 24 hours,
the clock setting is stored (in the
camera) for max. 3 months after the
battery...

Preparation
16

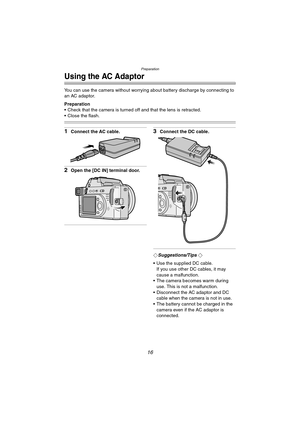

Using the AC Adaptor
You can use the camera without worrying about battery discharge by connecting to
an AC adaptor.
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Close the flash.
1Connect the AC cable.
2Open the [DC IN] terminal door.
3Connect the DC cable.
¬Suggestions/Tips ¬
 Use the supplied DC cable.
If you use other DC cables, it may
cause a malfunction.
 The camera becomes warm during
use. This is not a malfunction.
 Disconnect the AC...

Preparation
17

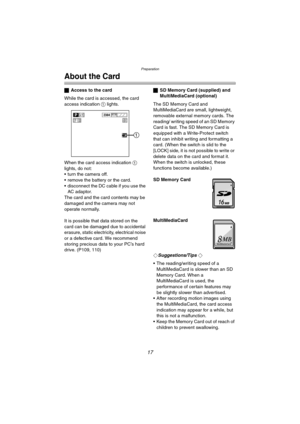

About the Card
ªAccess to the card
While the card is accessed, the card
access indication 1 lights.
When the card access indication 1
lights, do not:
 turn the camera off.
 remove the battery or the card.
 disconnect the DC cable if you use the
AC adaptor.
The card and the card contents may be
damaged and the camera may not
operate normally.
It is possible that data stored on the
card can be damaged due to accidental
erasure, static electricity, electrical noise
or a defective...

Preparation
18

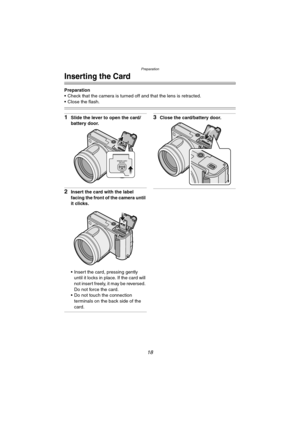

Inserting the Card
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Close the flash.
1Slide the lever to open the card/
battery door.
2Insert the card with the label
facing the front of the camera until
it clicks.
 Insert the card, pressing gently
until it locks in place. If the card will
not insert freely, it may be reversed.
Do not force the card.
 Do not touch the connection
terminals on the back side of the
card.
3Close the card/battery...

Preparation
19

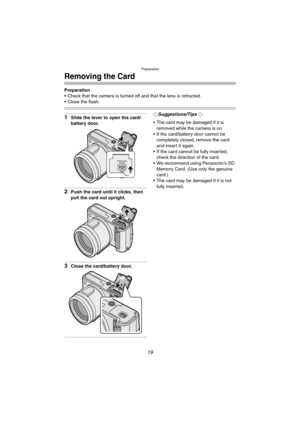

Removing the Card
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Close the flash.
1Slide the lever to open the card/
battery door.
2Push the card until it clicks, then
pull the card out upright.
3Close the card/battery door.
¬Suggestions/Tips ¬
 The card may be damaged if it is
removed while the camera is on.
 If the card/battery door cannot be
completely closed, remove the card
and insert it again.
 If the card cannot be fully inserted,
check...

Preparation
20

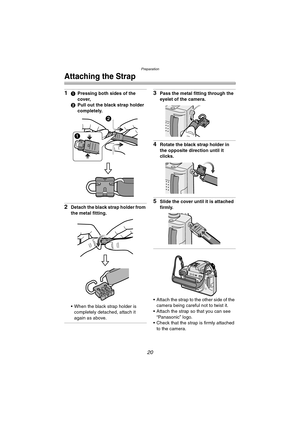

Attaching the Strap
11Pressing both sides of the
cover,
2Pull out the black strap holder
completely.
2Detach the black strap holder from
the metal fitting.
 When the black strap holder is
completely detached, attach it
again as above.
3Pass the metal fitting through the
eyelet of the camera.
4Rotate the black strap holder in
the opposite direction until it
clicks.
5Slide the cover until it is attached
firmly.
 Attach the strap to the other side of the
camera being careful not...
