Preparation
21

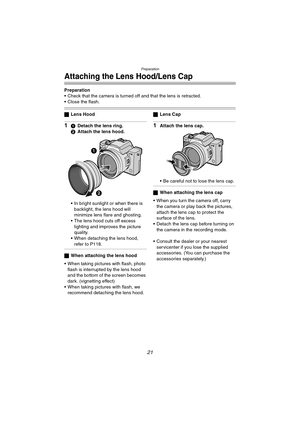

Attaching the Lens Hood/Lens Cap
Preparation
 Check that the camera is turned off and that the lens is retracted.
 Close the flash.
ªLens Hood
11Detach the lens ring.
2Attach the lens hood.
 In bright sunlight or when there is
backlight, the lens hood will
minimize lens flare and ghosting.
 The lens hood cuts off excess
lighting and improves the picture
quality.
 When detaching the lens hood,
refer to P118.
ªWhen attaching the lens hood
 When taking pictures with flash, photo...

Preparation
22

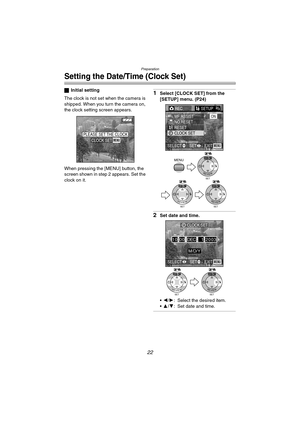

Setting the Date/Time (Clock Set)
ªInitial setting
The clock is not set when the camera is
shipped. When you turn the camera on,
the clock setting screen appears.
When pressing the [MENU] button, the
screen shown in step 2 appears. Set the
clock on it.1Select [CLOCK SET] from the
[SETUP] menu. (P24)
2Set date and time.
2/1: Select the desired item.
3/4: Set date and time.
PLEASE SET THE CLOCKMENUCLOCK SET
RECSETUP2/3
NO.RESET MF ASSIST
RESET
CLOCK SETON
EXITSET SELECTMENU
MENU
SET...

Preparation
23
3Select [M/D/Y], [D/M/Y] or [Y/M/D].
 Close the menu by pressing the
[MENU] button 2 times after
finishing the setting.
 Check if the clock setting is correct,
after turning the camera off and on.
ªDate Printing
 You can set the date printing in DPOF
print setting on this camera. (P95)
 Using the supplied software, [SD
Viewer for DSC], it is possible to have
the date imprinted on the picture. For
details, please read the supplied
operating instructions for PC
connection.
...

Preparation
24

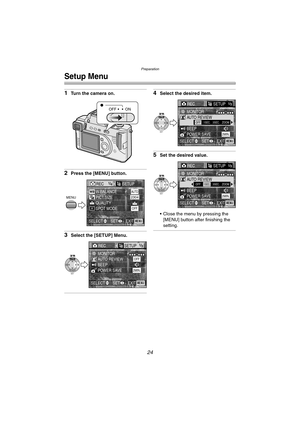

Setup Menu
1Turn the camera on.
2Press the [MENU] button.
3Select the [SETUP] Menu.
4Select the desired item.
5Set the desired value.
 Close the menu by pressing the
[MENU] button after finishing the
setting.
OFF ON
REC1/4SETUP
PICT.SIZE W.BALANCE
QUALITY
SPOT MODE
AUTO2304
OFF
MENU
EXITSET SELECTMENU
RECSETUP1/3
AUTO REVIEW MONITOR
BEEP
POWER SAVE
2MIN.
OFF
SET
WB
REVIEW
EXITSET SELECTMENU
OFF1SEC. 3SEC. ZOOMAUTO REVIEW MONITOR
BEEP
POWER SAVE
2MIN.SET
WB
REVIEW
EXITSET SELECTMENU...

Preparation
25

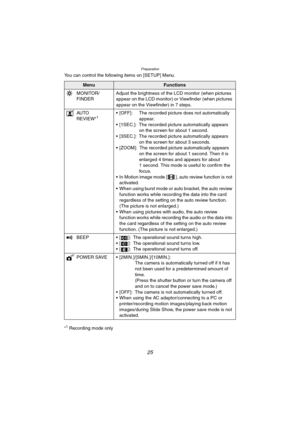

You can control the following items on [SETUP] Menu.
°
1 Recording mode only
MenuFunctions
MONITOR/
FINDERAdjust the brightness of the LCD monitor (when pictures
appear on the LCD monitor) or Viewfinder (when pictures
appear on the Viewfinder) in 7 steps.
AU TO
REVIEW°
1 [OFF]: The recorded picture does not automatically
appear.
 [1SEC.]: The recorded picture automatically appears
on the screen for about 1 second.
 [3SEC.]: The recorded picture automatically appears
on the screen...

Preparation
26

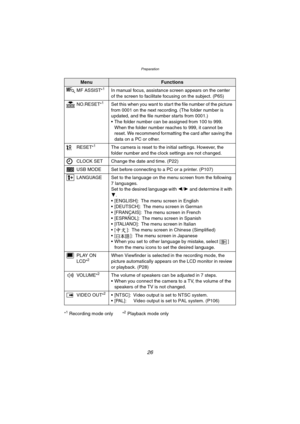

°1 Recording mode only°2 Playback mode only
MenuFunctions
MF ASSIST°
1In manual focus, assistance screen appears on the center
of the screen to facilitate focusing on the subject. (P65)
NO.RESET°
1Set this when you want to start the file number of the picture
from 0001 on the next recording. (The folder number is
updated, and the file number starts from 0001.)
 The folder number can be assigned from 100 to 999.
When the folder number reaches to 999, it cannot be
reset. We recommend...

Preparation
27

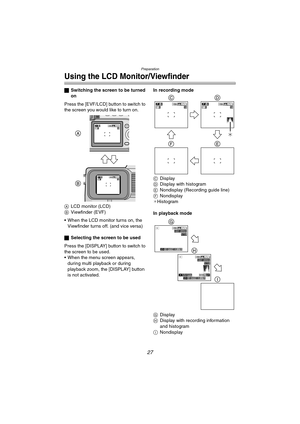

Using the LCD Monitor/Viewfinder
ªSwitching the screen to be turned
on
Press the [EVF/LCD] button to switch to
the screen you would like to turn on.
A LCD monitor (LCD)
B Viewfinder (EVF)
 When the LCD monitor turns on, the  Viewfinder turns off. (and vice versa)
ª Selecting the screen to be used
Press the [DISPLAY] button to switch to
the screen to be used.
 When the menu screen appears,  during multi playback or during
playback zoom, the [DISPLAY] button
is not activated. In...

Preparation
28

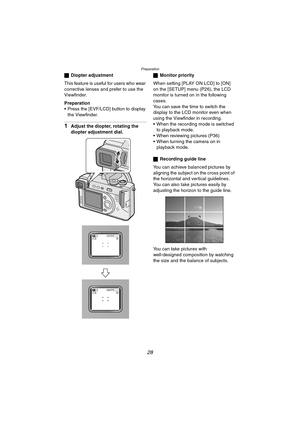

ªDiopter adjustment
This feature is useful for users who wear
corrective lenses and prefer to use the
Viewfinder.
Preparation
 Press the [EVF/LCD] button to display
the Viewfinder.
1Adjust the diopter, rotating the
diopter adjustment dial.ªMonitor priority
When setting [PLAY ON LCD] to [ON]
on the [SETUP] menu (P26), the LCD
monitor is turned on in the following
cases.
You can save the time to switch the
display to the LCD monitor even when
using the Viewfinder in recording.
...

Preparation
29

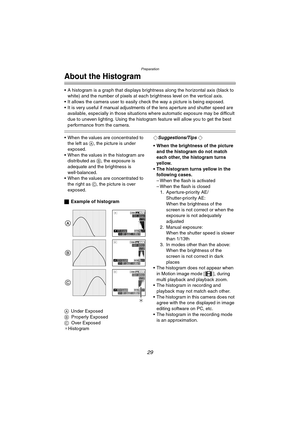

About the Histogram
 A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis.
 It allows the camera user to easily  check the way a picture is being exposed.
 It is very useful if manual adjustment s of the lens aperture and shutter speed are
available, especially in those situations  where automatic exposure may be difficult
due to uneven lighting. Using the histogram feature...

Preparation
30

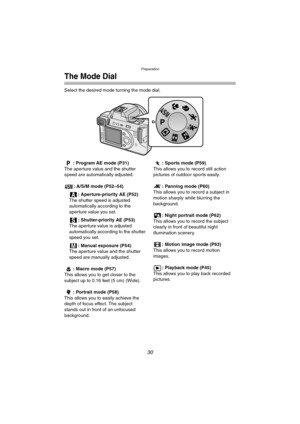

The Mode Dial
Select the desired mode turning the mode dial.
: Program AE mode (P31)
The aperture value and the shutter
speed are automatically adjusted.
: A/S/M mode (P52–54)
: Aperture-priority AE (P52)
The shutter speed is adjusted
automatically according to the
aperture value you set.
: Shutter-priority AE (P53)
The aperture value is adjusted
automatically according to the shutter
speed you set.
: Manual exposure (P54)
The aperture value and the shutter
speed are manually...
