Panasonic Dmc Fz10 Operating Instructions Manual

Recording pictures (basic)
31
Recording pictures (basic)

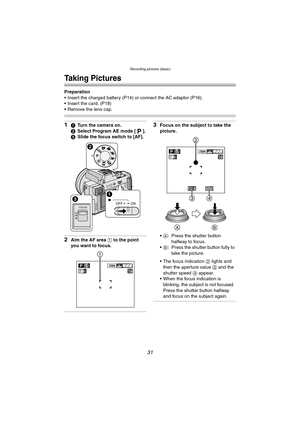

Taking Pictures
Preparation
 Insert the charged battery (P14) or connect the AC adaptor (P16).
 Insert the card. (P18)
 Remove the lens cap.
11Turn the camera on.
2 Select Program AE mode [ ].
3 Slide the focus switch to [AF].
2Aim the AF area  1 to the point
you want to focus.
3Focus on the subject to take the
picture.
 A : Press the shutter button
halfway to focus.
 B : Press the shutter button fully to
take the picture.
 The focus...

Recording pictures (basic)
32

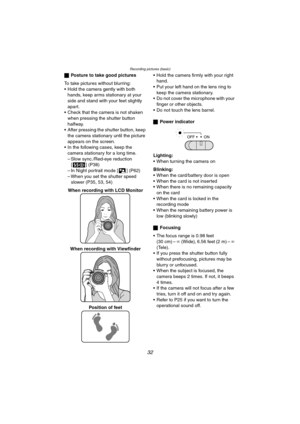

ªPosture to take good pictures
To take pictures without blurring:
 Hold the camera gently with both
hands, keep arms stationary at your
side and stand with your feet slightly
apart.
 Check that the camera is not shaken
when pressing the shutter button
halfway.
 After pressing the shutter button, keep
the camera stationary until the picture
appears on the screen.
 In the following cases, keep the
camera stationary for a long time.
– Slow sync./Red-eye reduction
[...

Recording pictures (basic)
33
 In the following cases, the camera cannot focus on subjects properly in
Program AE mode.
– When including both near and  distant subjects in a scene
– When there is dirt on the glass
between the lens and the subject
– When there are illuminated or  glittering objects around the subject
– When taking a picture in a dark place
– When the subject moves fast
– When the scene is poor in contrast
– When jitter occurs
– When recording a very bright subject
We recommend taking...

Recording pictures (basic)
34

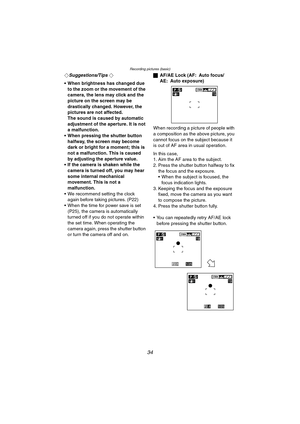

¬Suggestions/Tips ¬
 When brightness has changed due  to the zoom or the movement of the
camera, the lens may click and the
picture on the screen may be
drastically changed. However, the
pictures are not affected.
The sound is caused by automatic
adjustment of the aperture. It is not
a malfunction.
 When pressing the shutter button
halfway, the screen may become
dark or bright for a moment; this is
not a malfunction. This is caused
by adjusting the aperture...

Recording pictures (basic)
35

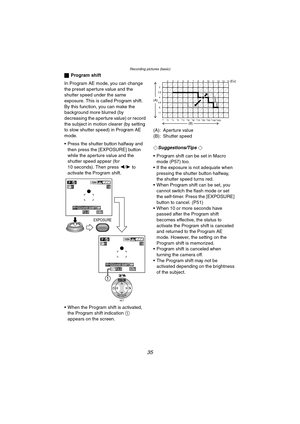

ªProgram shift
In Program AE mode, you can change
the preset aperture value and the
shutter speed under the same
exposure. This is called Program shift.
By this function, you can make the
background more blurred (by
decreasing the aperture value) or record
the subject in motion clearer (by setting
to slow shutter speed) in Program AE
mode.
 Press the shutter button halfway and  then press the [EXPOSURE] button
while the aperture value and the
shutter speed appear...

Recording pictures (basic)
36

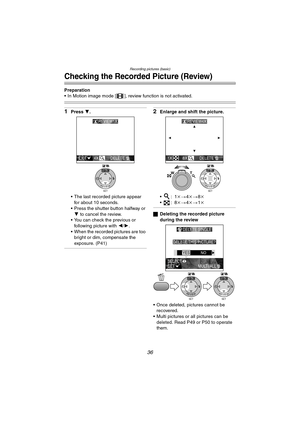

Checking the Recorded Picture (Review)
Preparation
 In Motion image mode [ ], review function is not activated.
1Press 4.
 The last recorded picture appear  for about 10 seconds.
 Press the shutter button halfway or  4  to cancel the review.
 You can check the previous or
following picture with  2/1.
 When the recorded pictures are too  bright or dim, compensate the
exposure. (P41)2Enlarge and shift the picture.
:1 k>4k> 8k
:8 k>4k> 1k
ª Deleting the recorded...

Recording pictures (basic)
37

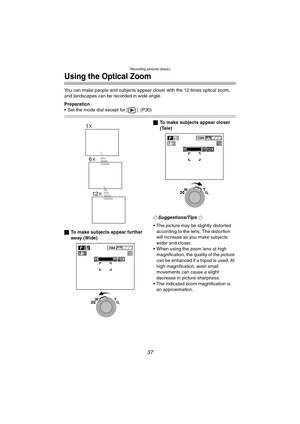

Using the Optical Zoom
You can make people and subjects appear closer with the 12 times optical zoom,
and landscapes can be recorded in wide angle.
Preparation
 Set the mode dial except for [ ]. (P30)
ªTo make subjects appear further
away (Wide) ª
To make subjects appear closer
(Tele)
¬
Suggestions/Tips ¬
 The picture may be slightly distorted  according to the lens. The distortion
will increase as you make subjects
wider and closer.
 When using the zoom lens at high...

Recording pictures (basic)
38
Taking Pictures using the Built-in Flash
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
ªTo open the flash
Press the [ OPEN] button.
ªTo close the flash
Press the flash until it clicks.
 Be sure to close the flash when not in
use.
ªSwitching the flash setting:AUTO
The flash is automatically activated
according to the recording condition.
: AUTO/Red-eye reduction
The flash is automatically activated
according to the recording condition.
It reduces the red-eye...

Recording pictures (basic)
39
ªAvailable flash settings
ªThe available flash range to take pictures
 The available flash range is an approximation.
 Refer to P32 for the focus range.
ªShutter speed for each flash mode
 Refer to P56 for the A/S/M modes.
ISO sensitivityAvailable flash range
ISO AUTO 1.31 feet (40 cm) – 13.1 feet (4 m)
ISO100 1.31 feet (40 cm) – 6.56 feet (2 m)
ISO200 1.97 feet (60 cm) – 9.18 feet (2.8 m)
ISO400 2.62 feet (80 cm) – 13.1 feet (4 m)
Flash modeShutter speed
: AUTO 1/60 –...

Recording pictures (basic)
40
ªAdjusting flash output
Adjust the flash output when the subject
is small or reflection ratio is extremely
high or low.
1Press  3 until [ FLASH]
appears on the screen to set the
flash output.
 You can adjust this from  j2EV to
i 2 EV in steps of 1/3 EV.
 The determined flash output is
memorized even if the camera is
turned off.
¬Suggestions/Tips ¬
 In Night portrait mode [ ], flash  setting is fixed to Slow sync./Red-eye
reduction [ ].
 In Motion image mode [ ]...
