Panasonic Dmc Fz100 Operating Instructions Manual

Preparation
- 21 -

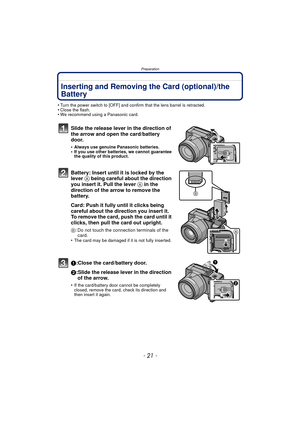

Inserting and Removing the Card (optional)/the
Battery
•Turn the power switch to [OFF] and confirm that the lens barrel is retracted.•Close the flash.•We recommend using a Panasonic card.
Slide the release lever in the direction of
the arrow and open the card/battery
door.
•Always use genuine Panasonic batteries.•If you use other batteries, we cannot guarantee
the quality of this product.
Battery: Insert until it is locked by the
lever A being careful about the direction
you...

- 22 -
Preparation

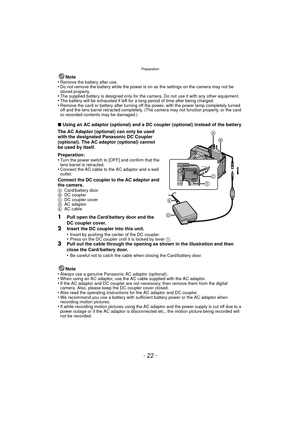

Note
•Remove the battery after use.•Do not remove the battery while the power is on as the settings on the camera may not be
stored properly.
•The supplied battery is designed only for the camera. Do not use it with any other equipment.•The battery will be exhaus ted if left for a long period of time after being charged.•Remove the card or battery after turning off the power, with the power lamp completely turned
off and the lens barrel retracted completely. (The camera may not...

Preparation
- 23 -
About the Built-in Memory/the Card
•You can copy the recorded pictures to a card. (P182)•Memory size: Approx. 40 MB•Recordable motion pictures: QVGA (320k240 pixels) only•The built-in memory can be used as a temporary storage device when the card being used
becomes full.
•The access time for the built-in memory may be longer than the access time for a card.
The following operations can be performed using this unit.
•When a card has not been inserted: Pictures can be recorded in
the...

- 24 -
Preparation
The following cards which conform to the SD video standard can be used with this unit.
(These cards are indicated as card in the text.)
•
Only cards bearing the SDHC logo (indicating that the card conforms to SD video standards)
may be used as 4 GB to 32 GB cards.
•Only cards bearing the SDXC logo (indicating that the card conforms to SD video standards)
may be used as 48 GB, 64 GB cards.
•Use a card with SD Speed Class¢ with “Class 4” or higher when recording motion pictures in...

Preparation
- 25 -

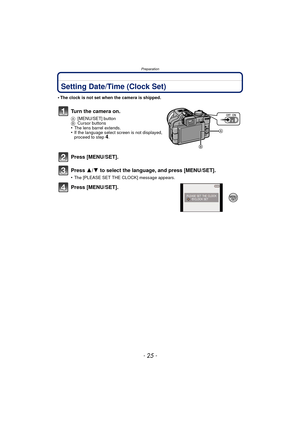

Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
A[MENU/SET] button
B Cursor buttons
•The lens barrel extends.•If the language select screen is not displayed,
proceed to step4.
Press [MENU/SET].
Press  3/4 to select the language, and press [MENU/SET].
•The [PLEASE SET THE CLOCK] message appears.
Press [MENU/SET].

- 26 -
Preparation

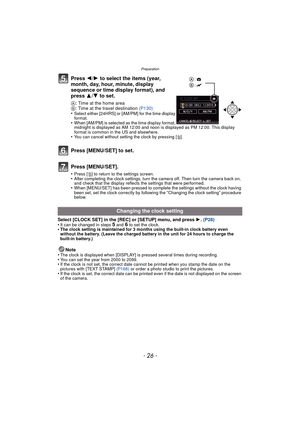

Press 2/1 to select the items (year,
month, day, hour, minute, display
sequence or time display format), and
press  3/4 to set.
A: Time at the home area
B : Time at the travel destination  (P130)
•
Select either [24HRS] or [AM/PM] for the time display
format.
•When [AM/PM] is selected as the time display format,
midnight is displayed as AM 12:00 and noon is displayed as PM 12:00. This display
format is common in the US and elsewhere.
•You can cancel without setting the clock by...

Preparation
- 27 -

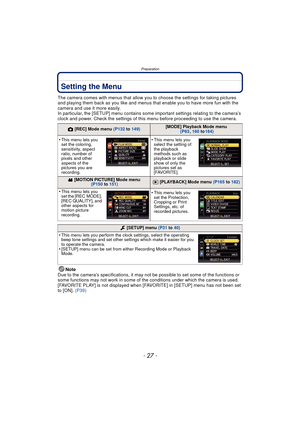

Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back as you like and menus that enable you to have more fun with the
camera and use it more easily.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Note
Due to the camera’s specifications, it may not be possible to set some of the...

- 28 -
Preparation
This section describes how to select the Program AE Mode (P53), and the same setting
can be used for the [MOTION PICTURE] mode menu, [PLAYBACK] menu and [SETUP]
menu as well.
Example:To change the [AF MODE] from [
Ø] (1-area-focusing) to [š] (Face Detection) in
Program AE Mode with the focus selector switch set to [AF].
Turn the camera on.
A Mode dial
B [MENU/SET] button
•The lens barrel extends.
Set the mode dial to  [ ].
•To set the playback menu, proceed to step 3 by
pressing...

Preparation
- 29 -

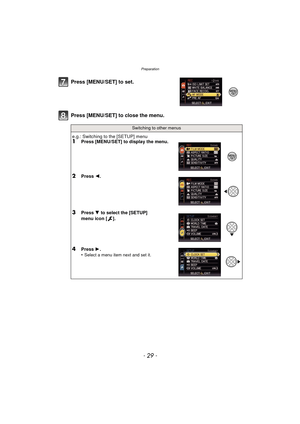

Press [MENU/SET] to close the menu. Press [MENU/SET] to set.
Switching to other menus
e.g.: Switching to the [SETUP] menu1Press [MENU/SET] to display the menu.
2Press 2.
3Press 4 to select the [SETUP]
menu icon [ ].
4Press  1.
•Select a menu item next and set it.

- 30 -
Preparation

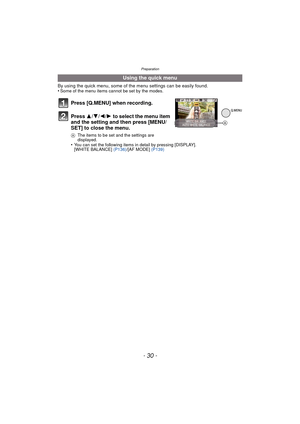

By using the quick menu, some of the menu settings can be easily found.
•Some of the menu items cannot be set by the modes.
•You can set the following items in detail by pressing [DISPLAY].
[WHITE BALANCE] (P136)/[AF MODE]  (P139)
Using the quick menu
Press [Q.MENU] when recording.
Press  3/4/2/1 to select the menu item
and the setting and then press [MENU/
SET] to close the menu.
A The items to be set and the settings are
displayed.
A
