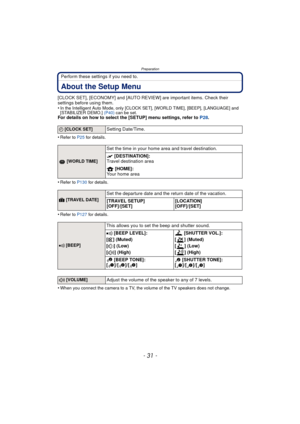

Page 31
![Page 31
Preparation
- 31 -
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LANGUAGE] and
[STABILIZER DEMO.] (P40) can be set.
For details on how to select the [SETUP] menu settings, refer to P28.
•
Refer to P25 for details.
•Refer to P130 for details.
•Refer to P127 for details.
•When you connect the camera to a TV, the...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-30.png "Page 31
Preparation
- 31 -
Perform these settings if you need to.
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
•
In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LANGUAGE] and
[STABILIZER DEMO.] (P40) can be set.
For details on how to select the [SETUP] menu settings, refer to P28.
•
Refer to P25 for details.
•Refer to P130 for details.
•Refer to P127 for details.
•When you connect the camera to a TV, the...")
Preparation - 31 - Perform these settings if you need to. About the Setup Menu [CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their settings before using them. • In the Intelligent Auto Mode, only [CLOCK SET], [WORLD TIME], [BEEP], [LANGUAGE] and [STABILIZER DEMO.] (P40) can be set. For details on how to select the [SETUP] menu settings, refer to P28. • Refer to P25 for details. •Refer to P130 for details. •Refer to P127 for details. •When you connect the camera to a TV, the...

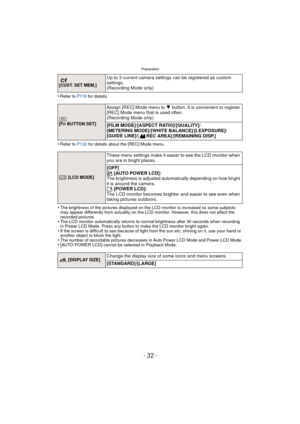

Page 32
![Page 32
- 32 -
Preparation
•Refer to P116 for details.
•Refer to P132 for details about the [REC] Mode menu.
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear differently from actuality on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. Press any button to make the LCD monitor bright again.
•If the screen is difficult to see...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-31.png "Page 32
- 32 -
Preparation
•Refer to P116 for details.
•Refer to P132 for details about the [REC] Mode menu.
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear differently from actuality on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. Press any button to make the LCD monitor bright again.
•If the screen is difficult to see...")
- 32 - Preparation •Refer to P116 for details. •Refer to P132 for details about the [REC] Mode menu. •The brightness of the pictures displayed on the LCD monitor is increased so some subjects may appear differently from actuality on the LCD monitor. However, this does not affect the recorded pictures. •The LCD monitor automatically returns to normal brightness after 30 seconds when recording in Power LCD Mode. Press any button to make the LCD monitor bright again. •If the screen is difficult to see...
Page 33
![Page 33
Preparation
- 33 -
•The [PATTERN] setting is fixed to [ ] in the Intelligent Auto Mode.
•Motion picture recording frame display is only an approximation.•Recording frame display may disappear when zooming to Tele depending on the picture size
setting.
•This cannot be used during Intelligent Auto Mode.
[GUIDE LINE]
Set the pattern of the guide lines displayed when taking pictures.
You can also set whether or not to have the recording information
displayed when the guide lines are displayed. (P66)...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-32.png "Page 33
Preparation
- 33 -
•The [PATTERN] setting is fixed to [ ] in the Intelligent Auto Mode.
•Motion picture recording frame display is only an approximation.•Recording frame display may disappear when zooming to Tele depending on the picture size
setting.
•This cannot be used during Intelligent Auto Mode.
[GUIDE LINE]
Set the pattern of the guide lines displayed when taking pictures.
You can also set whether or not to have the recording information
displayed when the guide lines are displayed. (P66)...")
Preparation - 33 - •The [PATTERN] setting is fixed to [ ] in the Intelligent Auto Mode. •Motion picture recording frame display is only an approximation.•Recording frame display may disappear when zooming to Tele depending on the picture size setting. •This cannot be used during Intelligent Auto Mode. [GUIDE LINE] Set the pattern of the guide lines displayed when taking pictures. You can also set whether or not to have the recording information displayed when the guide lines are displayed. (P66)...

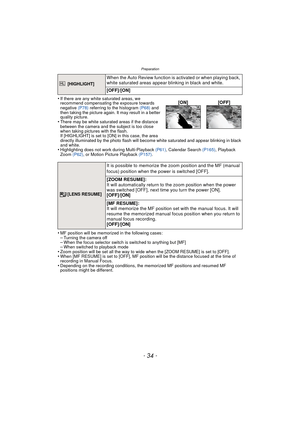

Page 34
![Page 34
- 34 -
Preparation
•If there are any white saturated areas, we
recommend compensating the exposure towards
negative (P78) referring to the histogram (P68) and
then taking the picture again. It may result in a better
quality picture.
•There may be white saturated areas if the distance
between the camera and the subject is too close
when taking pictures with the flash.
If [HIGHLIGHT] is set to [ON] in this case, the area
directly illuminated by the photo flash will become white saturated and...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-33.png "Page 34
- 34 -
Preparation
•If there are any white saturated areas, we
recommend compensating the exposure towards
negative (P78) referring to the histogram (P68) and
then taking the picture again. It may result in a better
quality picture.
•There may be white saturated areas if the distance
between the camera and the subject is too close
when taking pictures with the flash.
If [HIGHLIGHT] is set to [ON] in this case, the area
directly illuminated by the photo flash will become white saturated and...")
- 34 - Preparation •If there are any white saturated areas, we recommend compensating the exposure towards negative (P78) referring to the histogram (P68) and then taking the picture again. It may result in a better quality picture. •There may be white saturated areas if the distance between the camera and the subject is too close when taking pictures with the flash. If [HIGHLIGHT] is set to [ON] in this case, the area directly illuminated by the photo flash will become white saturated and...

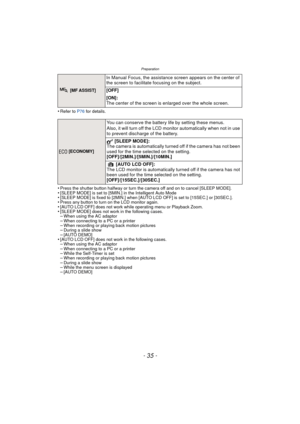

Page 35
![Page 35
Preparation
- 35 -
•Refer to P76 for details.
•Press the shutter button halfway or turn the camera off and on to cancel [SLEEP MODE].•[SLEEP MODE] is set to [5MIN.] in the Intelligent Auto Mode•[SLEEP MODE] is fixed to [2MIN.] when [AUTO LCD OFF] is set to [15SEC.] or [30SEC.].•Press any button to turn on the LCD monitor again.•[AUTO LCD OFF] does not work while operating menu or Playback Zoom.•[SLEEP MODE] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-34.png "Page 35
Preparation
- 35 -
•Refer to P76 for details.
•Press the shutter button halfway or turn the camera off and on to cancel [SLEEP MODE].•[SLEEP MODE] is set to [5MIN.] in the Intelligent Auto Mode•[SLEEP MODE] is fixed to [2MIN.] when [AUTO LCD OFF] is set to [15SEC.] or [30SEC.].•Press any button to turn on the LCD monitor again.•[AUTO LCD OFF] does not work while operating menu or Playback Zoom.•[SLEEP MODE] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a...")
Preparation - 35 - •Refer to P76 for details. •Press the shutter button halfway or turn the camera off and on to cancel [SLEEP MODE].•[SLEEP MODE] is set to [5MIN.] in the Intelligent Auto Mode•[SLEEP MODE] is fixed to [2MIN.] when [AUTO LCD OFF] is set to [15SEC.] or [30SEC.].•Press any button to turn on the LCD monitor again.•[AUTO LCD OFF] does not work while operating menu or Playback Zoom.•[SLEEP MODE] does not work in the following cases.–When using the AC adaptor–When connecting to a PC or a...

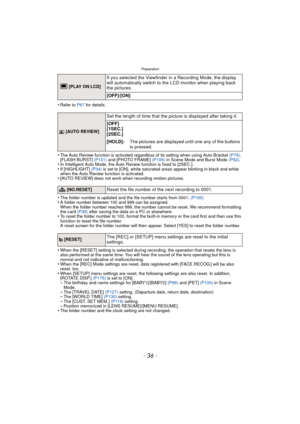

Page 36
![Page 36
- 36 -
Preparation
•Refer to P67 for details.
•The Auto Review function is activated regardless of its setting when using Auto Bracket (P79),
[FLASH BURST] (P101) and [PHOTO FRAME] (P105) in Scene Mode and Burst Mode (P82).
•In Intelligent Auto Mode, the Auto Review function is fixed to [2SEC.].•If [HIGHLIGHT] (P34) is set to [ON], white saturated areas appear blinking in black and white
when the Auto Review function is activated.
•[AUTO REVIEW] does not work when recording motion pictures.
•The...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-35.png "Page 36
- 36 -
Preparation
•Refer to P67 for details.
•The Auto Review function is activated regardless of its setting when using Auto Bracket (P79),
[FLASH BURST] (P101) and [PHOTO FRAME] (P105) in Scene Mode and Burst Mode (P82).
•In Intelligent Auto Mode, the Auto Review function is fixed to [2SEC.].•If [HIGHLIGHT] (P34) is set to [ON], white saturated areas appear blinking in black and white
when the Auto Review function is activated.
•[AUTO REVIEW] does not work when recording motion pictures.
•The...")
- 36 - Preparation •Refer to P67 for details. •The Auto Review function is activated regardless of its setting when using Auto Bracket (P79), [FLASH BURST] (P101) and [PHOTO FRAME] (P105) in Scene Mode and Burst Mode (P82). •In Intelligent Auto Mode, the Auto Review function is fixed to [2SEC.].•If [HIGHLIGHT] (P34) is set to [ON], white saturated areas appear blinking in black and white when the Auto Review function is activated. •[AUTO REVIEW] does not work when recording motion pictures. •The...

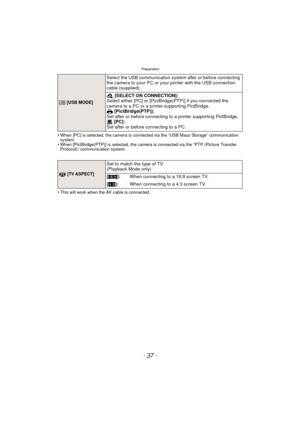

Page 37
![Page 37
Preparation
- 37 -
•When [PC] is selected, the camera is connected via the “USB Mass Storage” communication
system.
•When [PictBridge(PTP)] is selected, the camera is connected via the “PTP (Picture Transfer
Protocol)” communication system.
•This will work when the AV cable is connected.
x [USB MODE]
Select the USB communication system after or before connecting
the camera to your PC or your printer with the USB connection
cable (supplied).
y [SELECT ON CONNECTION]:
Select either [PC] or...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-36.png "Page 37
Preparation
- 37 -
•When [PC] is selected, the camera is connected via the “USB Mass Storage” communication
system.
•When [PictBridge(PTP)] is selected, the camera is connected via the “PTP (Picture Transfer
Protocol)” communication system.
•This will work when the AV cable is connected.
x [USB MODE]
Select the USB communication system after or before connecting
the camera to your PC or your printer with the USB connection
cable (supplied).
y [SELECT ON CONNECTION]:
Select either [PC] or...")
Preparation - 37 - •When [PC] is selected, the camera is connected via the “USB Mass Storage” communication system. •When [PictBridge(PTP)] is selected, the camera is connected via the “PTP (Picture Transfer Protocol)” communication system. •This will work when the AV cable is connected. x [USB MODE] Select the USB communication system after or before connecting the camera to your PC or your printer with the USB connection cable (supplied). y [SELECT ON CONNECTION]: Select either [PC] or...

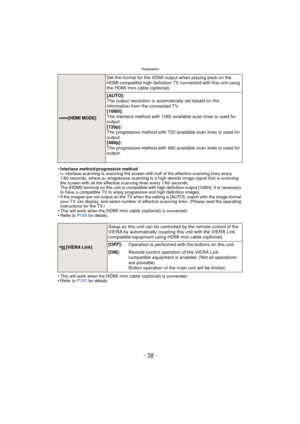

Page 38
![Page 38
- 38 -
Preparation
•Interlace method/progressive method
i= interlace scanning is scanning the screen with half of the effective scanning lines every
1/60 seconds, where p= progressive scanning is a high density image signal that is scanning
the screen with all the effective scanning lines every 1/60 seconds.
The [HDMI] terminal on this unit is compatible with high definition output [1080i]. It is necessary
to have a compatible TV to enjoy progressive and high definition images.
•If the images are not...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-37.png "Page 38
- 38 -
Preparation
•Interlace method/progressive method
i= interlace scanning is scanning the screen with half of the effective scanning lines every
1/60 seconds, where p= progressive scanning is a high density image signal that is scanning
the screen with all the effective scanning lines every 1/60 seconds.
The [HDMI] terminal on this unit is compatible with high definition output [1080i]. It is necessary
to have a compatible TV to enjoy progressive and high definition images.
•If the images are not...")
- 38 - Preparation •Interlace method/progressive method i= interlace scanning is scanning the screen with half of the effective scanning lines every 1/60 seconds, where p= progressive scanning is a high density image signal that is scanning the screen with all the effective scanning lines every 1/60 seconds. The [HDMI] terminal on this unit is compatible with high definition output [1080i]. It is necessary to have a compatible TV to enjoy progressive and high definition images. •If the images are not...

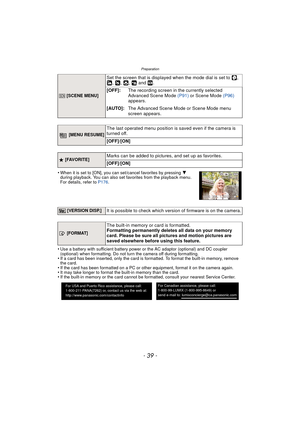

Page 39
![Page 39
Preparation
- 39 -
•When it is set to [ON], you can set/cancel favorites by pressing 4
during playback. You can also set favorites from the playback menu.
For details, refer to P176.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional) when formatting. Do not turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To format the built-in memory, remove
the card.
•If the card has been formatted on a PC or other...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-38.png "Page 39
Preparation
- 39 -
•When it is set to [ON], you can set/cancel favorites by pressing 4
during playback. You can also set favorites from the playback menu.
For details, refer to P176.
•Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler
(optional) when formatting. Do not turn the camera off during formatting.
•If a card has been inserted, only the card is formatted. To format the built-in memory, remove
the card.
•If the card has been formatted on a PC or other...")
Preparation - 39 - •When it is set to [ON], you can set/cancel favorites by pressing 4 during playback. You can also set favorites from the playback menu. For details, refer to P176. •Use a battery with sufficient battery power or the AC adaptor (optional) and DC coupler (optional) when formatting. Do not turn the camera off during formatting. •If a card has been inserted, only the card is formatted. To format the built-in memory, remove the card. •If the card has been formatted on a PC or other...

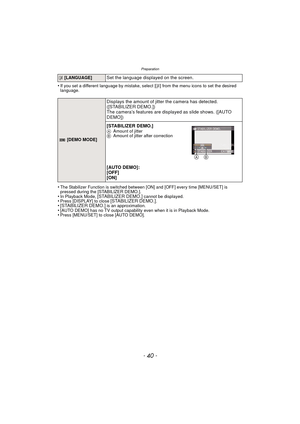

Page 40
![Page 40
- 40 -
Preparation
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer Function is switched between [ON] and [OFF] every time [MENU/SET] is
pressed during the [STABILIZER DEMO.].
•In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•Press [DISPLAY] to close [STABILIZER DEMO.].• [STABILIZER DEMO.] is an approximation.•[AUTO DEMO] has no TV output capability even when it is in Playback Mode.•Press [MENU/SET] to close [AUTO DEMO].
~...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-39.png "Page 40
- 40 -
Preparation
•If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
•The Stabilizer Function is switched between [ON] and [OFF] every time [MENU/SET] is
pressed during the [STABILIZER DEMO.].
•In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•Press [DISPLAY] to close [STABILIZER DEMO.].• [STABILIZER DEMO.] is an approximation.•[AUTO DEMO] has no TV output capability even when it is in Playback Mode.•Press [MENU/SET] to close [AUTO DEMO].
~...")
- 40 - Preparation •If you set a different language by mistake, select [~] from the menu icons to set the desired language. •The Stabilizer Function is switched between [ON] and [OFF] every time [MENU/SET] is pressed during the [STABILIZER DEMO.]. •In Playback Mode, [STABILIZER DEMO.] cannot be displayed.•Press [DISPLAY] to close [STABILIZER DEMO.].• [STABILIZER DEMO.] is an approximation.•[AUTO DEMO] has no TV output capability even when it is in Playback Mode.•Press [MENU/SET] to close [AUTO DEMO]. ~...
