Panasonic Dmc Fz100 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz100 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 61

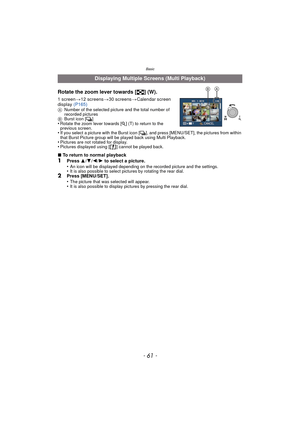

![Page 61
Basic
- 61 -
Rotate the zoom lever towards [L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P165)
ANumber of the selected picture and the total number of
recorded pictures
B Burst icon [ ˜]
•Rotate the zoom lever towards [ Z] (T) to return to the
previous screen.
•If you select a picture with the Burst icon [ ˜], and press [MENU/SET], the pictures from within
that Burst Picture group will be played back using Multi Playback.
•Pictures are not rotated for display.•Pictures...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-60.png "Page 61
Basic
- 61 -
Rotate the zoom lever towards [L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P165)
ANumber of the selected picture and the total number of
recorded pictures
B Burst icon [ ˜]
•Rotate the zoom lever towards [ Z] (T) to return to the
previous screen.
•If you select a picture with the Burst icon [ ˜], and press [MENU/SET], the pictures from within
that Burst Picture group will be played back using Multi Playback.
•Pictures are not rotated for display.•Pictures...")
Basic - 61 - Rotate the zoom lever towards [L] (W). 1 screen >12 screens >30 screens >Calendar screen display (P165) ANumber of the selected picture and the total number of recorded pictures B Burst icon [ ˜] •Rotate the zoom lever towards [ Z] (T) to return to the previous screen. •If you select a picture with the Burst icon [ ˜], and press [MENU/SET], the pictures from within that Burst Picture group will be played back using Multi Playback. •Pictures are not rotated for display.•Pictures...
Page 62

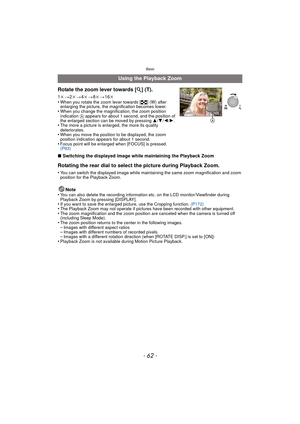

![Page 62
- 62 -
Basic
∫Switching the displayed image while maintaining the Playback Zoom
Rotating the rear dial to select the picture during Playback Zoom.
•You can switch the displayed image while maintaining the same zoom magnification and zoom
position for the Playback Zoom.
Note
•You can also delete the recording information etc. on the LCD monitor/Viewfinder during
Playback Zoom by pressing [DISPLAY].
•If you want to save the enlarged pi cture, use the Cropping function. (P172)•The Playback Zoom may not...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-61.png "Page 62
- 62 -
Basic
∫Switching the displayed image while maintaining the Playback Zoom
Rotating the rear dial to select the picture during Playback Zoom.
•You can switch the displayed image while maintaining the same zoom magnification and zoom
position for the Playback Zoom.
Note
•You can also delete the recording information etc. on the LCD monitor/Viewfinder during
Playback Zoom by pressing [DISPLAY].
•If you want to save the enlarged pi cture, use the Cropping function. (P172)•The Playback Zoom may not...")
- 62 - Basic ∫Switching the displayed image while maintaining the Playback Zoom Rotating the rear dial to select the picture during Playback Zoom. •You can switch the displayed image while maintaining the same zoom magnification and zoom position for the Playback Zoom. Note •You can also delete the recording information etc. on the LCD monitor/Viewfinder during Playback Zoom by pressing [DISPLAY]. •If you want to save the enlarged pi cture, use the Cropping function. (P172)•The Playback Zoom may not...
Page 63
![Page 63

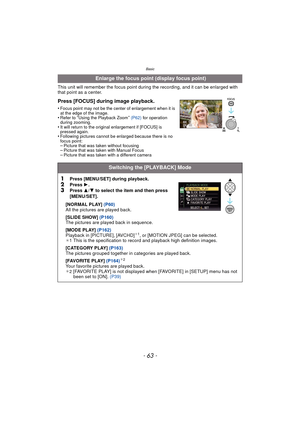

Basic
- 63 -
This unit will remember the focus point during the recording, and it can be enlarged with
that point as a center.
Press [FOCUS] during image playback.
•Focus point may not be the center of enlargement when it is
at the edge of the image.
•Refer to “Using the Playback Zoom” (P62) for operation
during zooming.
•It will return to the original enlargement if [FOCUS] is
pressed again.
•Following pictures cannot be enlarged because there is no
focus point:
–Picture that was taken without...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-62.png "Page 63
Basic
- 63 -
This unit will remember the focus point during the recording, and it can be enlarged with
that point as a center.
Press [FOCUS] during image playback.
•Focus point may not be the center of enlargement when it is
at the edge of the image.
•Refer to “Using the Playback Zoom” (P62) for operation
during zooming.
•It will return to the original enlargement if [FOCUS] is
pressed again.
•Following pictures cannot be enlarged because there is no
focus point:
–Picture that was taken without...")
Basic - 63 - This unit will remember the focus point during the recording, and it can be enlarged with that point as a center. Press [FOCUS] during image playback. •Focus point may not be the center of enlargement when it is at the edge of the image. •Refer to “Using the Playback Zoom” (P62) for operation during zooming. •It will return to the original enlargement if [FOCUS] is pressed again. •Following pictures cannot be enlarged because there is no focus point: –Picture that was taken without...
Page 64
![Page 64

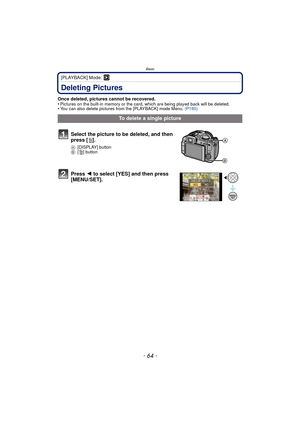

- 64 -
Basic
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which are being played back will be deleted.•You can also delete pictures from the [PLAYBACK] mode Menu. (P180)
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚] button
Press 2 to select [YES] and then press
[MENU/SET].](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-63.png "Page 64
- 64 -
Basic
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which are being played back will be deleted.•You can also delete pictures from the [PLAYBACK] mode Menu. (P180)
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚] button
Press 2 to select [YES] and then press
[MENU/SET].")
- 64 - Basic [PLAYBACK] Mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures on the built-in memory or the card, which are being played back will be deleted.•You can also delete pictures from the [PLAYBACK] mode Menu. (P180) To delete a single picture Select the picture to be deleted, and then press [ ‚]. A [DISPLAY] button B [‚] button Press 2 to select [YES] and then press [MENU/SET].
Page 65

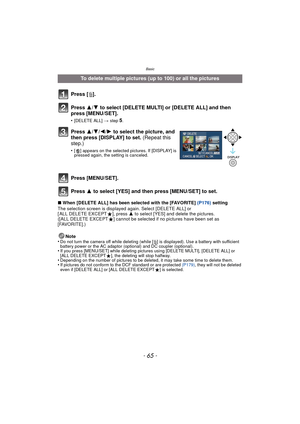

![Page 65
Basic
- 65 -
∫When [DELETE ALL] has been selected with the [FAVORITE] (P176) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient
battery power or the AC adaptor (optional) and DC coupler (optional).
•If you press...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-64.png "Page 65
Basic
- 65 -
∫When [DELETE ALL] has been selected with the [FAVORITE] (P176) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient
battery power or the AC adaptor (optional) and DC coupler (optional).
•If you press...")
Basic - 65 - ∫When [DELETE ALL] has been selected with the [FAVORITE] (P176) setting The selection screen is displayed again. Select [DELETE ALL] or [ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures. ([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as [FAVORITE].) Note • Do not turn the camera off while deleting (while [ ‚] is displayed). Use a ba ttery with sufficient battery power or the AC adaptor (optional) and DC coupler (optional). •If you press...
Page 66

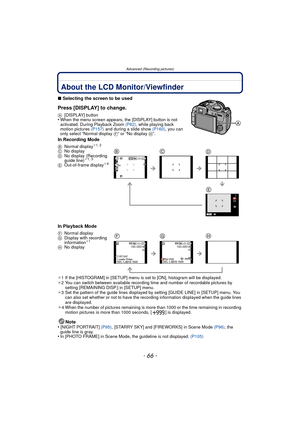

![Page 66
- 66 -
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor/Viewfinder
∫Selecting the screen to be used
Press [DISPLAY] to change.
A [DISPLAY] button•When the menu screen appears, the [DISPLAY] button is not
activated. During Playback Zoom (P62), while playing back
motion pictures (P157) and during a slide show (P160), you can
only select “Normal display F” or “No display H”.
In Recording Mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON],...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-65.png "Page 66
- 66 -
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor/Viewfinder
∫Selecting the screen to be used
Press [DISPLAY] to change.
A [DISPLAY] button•When the menu screen appears, the [DISPLAY] button is not
activated. During Playback Zoom (P62), while playing back
motion pictures (P157) and during a slide show (P160), you can
only select “Normal display F” or “No display H”.
In Recording Mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON],...")
- 66 - Advanced (Recording pictures) Advanced (Recording pictures)About the LCD Monitor/Viewfinder ∫Selecting the screen to be used Press [DISPLAY] to change. A [DISPLAY] button•When the menu screen appears, the [DISPLAY] button is not activated. During Playback Zoom (P62), while playing back motion pictures (P157) and during a slide show (P160), you can only select “Normal display F” or “No display H”. In Recording Mode In Playback Mode ¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON],...
Page 67

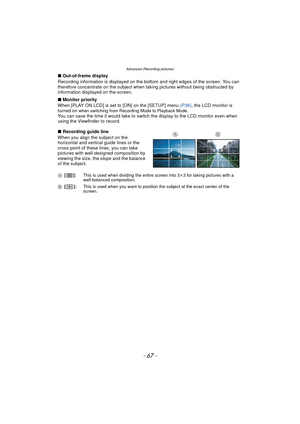

![Page 67
Advanced (Recording pictures)
- 67 -
∫Out-of-frame display
Recording information is displayed on the bottom and right edges of the screen. You can
therefore concentrate on the subject when ta king pictures without being obstructed by
information displayed on the screen.
∫ Monitor priority
When [PLAY ON LCD] is set to [ON] on the [SETUP] menu (P36), the LCD monitor is
turned on
when switching from Recording Mode to Playback Mode.You can save the time it would take to switch the display to the LCD...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-66.png "Page 67
Advanced (Recording pictures)
- 67 -
∫Out-of-frame display
Recording information is displayed on the bottom and right edges of the screen. You can
therefore concentrate on the subject when ta king pictures without being obstructed by
information displayed on the screen.
∫ Monitor priority
When [PLAY ON LCD] is set to [ON] on the [SETUP] menu (P36), the LCD monitor is
turned on
when switching from Recording Mode to Playback Mode.You can save the time it would take to switch the display to the LCD...")
Advanced (Recording pictures) - 67 - ∫Out-of-frame display Recording information is displayed on the bottom and right edges of the screen. You can therefore concentrate on the subject when ta king pictures without being obstructed by information displayed on the screen. ∫ Monitor priority When [PLAY ON LCD] is set to [ON] on the [SETUP] menu (P36), the LCD monitor is turned on when switching from Recording Mode to Playback Mode.You can save the time it would take to switch the display to the LCD...
Page 68

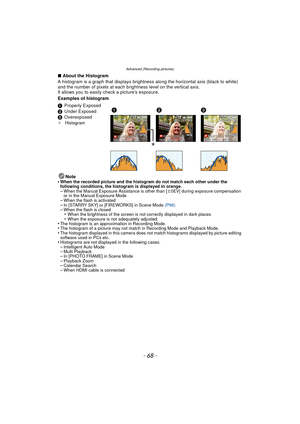

![Page 68
- 68 -
Advanced (Recording pictures)
∫About the Histogram
A histogram is a graph that displays brightness along the horizontal axis (black to white)
and the number of pixels at each bri ghtness level on the vertical axis.
It allows you to easily check a picture’s exposure.
Examples of histogram
Note
•
When the recorded picture and the hi stogram do not match each other under the
following conditions, the histogram is displayed in orange.
–When the Manual Exposure Assistance is other than [ n0EV]...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-67.png "Page 68
- 68 -
Advanced (Recording pictures)
∫About the Histogram
A histogram is a graph that displays brightness along the horizontal axis (black to white)
and the number of pixels at each bri ghtness level on the vertical axis.
It allows you to easily check a picture’s exposure.
Examples of histogram
Note
•
When the recorded picture and the hi stogram do not match each other under the
following conditions, the histogram is displayed in orange.
–When the Manual Exposure Assistance is other than [ n0EV]...")
- 68 - Advanced (Recording pictures) ∫About the Histogram A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each bri ghtness level on the vertical axis. It allows you to easily check a picture’s exposure. Examples of histogram Note • When the recorded picture and the hi stogram do not match each other under the following conditions, the histogram is displayed in orange. –When the Manual Exposure Assistance is other than [ n0EV]...
Page 69

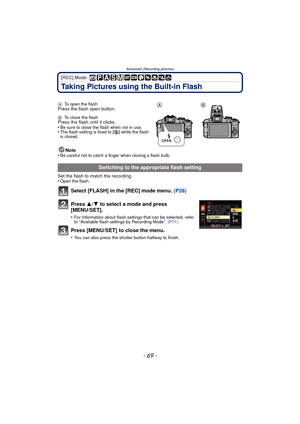

![Page 69
Advanced (Recording pictures)
- 69 -
[REC] Mode:
Taking Pictures using the Built-in Flash
ATo open the flashPress the flash open button.
BTo close the flashPress the flash until it clicks.
•Be sure to close the flash when not in use.•The flash setting is fixed to [ Œ] while the flash
is closed.
Note
•Be careful not to catch a finger when closing a flash bulb.
Set the flash to match the recording.
•Open the flash.
Select [FLASH] in the [REC] mode menu. (P28)
Press 3/4 to select a mode and press...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-68.png "Page 69
Advanced (Recording pictures)
- 69 -
[REC] Mode:
Taking Pictures using the Built-in Flash
ATo open the flashPress the flash open button.
BTo close the flashPress the flash until it clicks.
•Be sure to close the flash when not in use.•The flash setting is fixed to [ Œ] while the flash
is closed.
Note
•Be careful not to catch a finger when closing a flash bulb.
Set the flash to match the recording.
•Open the flash.
Select [FLASH] in the [REC] mode menu. (P28)
Press 3/4 to select a mode and press...")
Advanced (Recording pictures) - 69 - [REC] Mode: Taking Pictures using the Built-in Flash ATo open the flashPress the flash open button. BTo close the flashPress the flash until it clicks. •Be sure to close the flash when not in use.•The flash setting is fixed to [ Œ] while the flash is closed. Note •Be careful not to catch a finger when closing a flash bulb. Set the flash to match the recording. •Open the flash. Select [FLASH] in the [REC] mode menu. (P28) Press 3/4 to select a mode and press...
Page 70

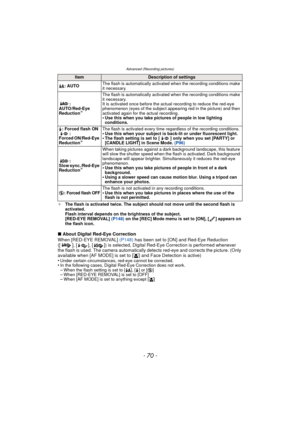

![Page 70
- 70 -
Advanced (Recording pictures)
¢The flash is activated twice. The subject should not move until the second flash is
activated.
Flash interval depends on the brightness of the subject.
[RED-EYE REMOVAL] (P148) on the [REC] Mode menu is set to [ON], [ ] appears on
the flash icon.
∫ About Digital Red-Eye Correction
When [RED-EYE REMOVAL] (P148) has been set to [ON] and Red-Eye Reduction
([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever
the flash is used. The camera...](http://img.usermanuals.tech/thumb/58/65616/w300_dmc-fz100_adv_en_om_d-69.png "Page 70
- 70 -
Advanced (Recording pictures)
¢The flash is activated twice. The subject should not move until the second flash is
activated.
Flash interval depends on the brightness of the subject.
[RED-EYE REMOVAL] (P148) on the [REC] Mode menu is set to [ON], [ ] appears on
the flash icon.
∫ About Digital Red-Eye Correction
When [RED-EYE REMOVAL] (P148) has been set to [ON] and Red-Eye Reduction
([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever
the flash is used. The camera...")
- 70 - Advanced (Recording pictures) ¢The flash is activated twice. The subject should not move until the second flash is activated. Flash interval depends on the brightness of the subject. [RED-EYE REMOVAL] (P148) on the [REC] Mode menu is set to [ON], [ ] appears on the flash icon. ∫ About Digital Red-Eye Correction When [RED-EYE REMOVAL] (P148) has been set to [ON] and Red-Eye Reduction ([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is performed whenever the flash is used. The camera...
