Panasonic Dmc Fz1000 Owners Manual

321
14. Others
If you use the shutter remote control (DMW-RSL1: optional), you can
avoid jitter (camera shake) when  using a tripod and you can keep the
shutter pressed fully when taking pi ctures with [B] (Bulb) or Burst
Mode. The shutter remote control works similar to the shutter button
on the camera.
•
Always use a genuine Panasonic shutter remote control (DMW-RSL1: optional).•Record with Creative Video Mode  (P118) when using for motion picture recording. Motion
picture recording can be...

14. Others
322
Using a stereo shotgun microphone (DMW-MS2: optional) or stereo
microphone (VW-VMS10: optional), you can record sounds with
quality superior to those recorded with the built-in microphone.
Using the stereo shotgun microphone (DMW-MS2: optional), you
can switch between the gun (ultra-directional) recording and the
wide range stereo recording.
Preparations:
•
Close the built-in flash, and then turn this unit off.•Remove the hot shoe cover that is attached to the camera.  (P319)
∫Setting...

323
14. Others
By connecting the AC adaptor (optional), and t hen plugging them into an electrical socket,
you can connect this unit to a PC or printer and use without worrying about the capacity of
the battery.
To use the AC adaptor, a DC coupler (optional) is required.
•
Always use a genuine Panasonic AC adaptor (optional).•When using an AC adaptor, use the AC  cable supplied with the AC adaptor.
•Also read the operating instructions for the AC adaptor and DC coupler.
The MC protector is a...

14. Others
324
Monitor Display/Viewfinder Display
•The following images are examples of when the display screen is set to [ ] (monitor
style) in the monitor.
∫In recording
1
Recording Mode  (P62)
Custom settings (P120)
Photo Style (P122)
Creative control adjustment
display (P108)
‰ŒFlash Mode  (P203)
Flash (P206, 209)
Recording format/
Recording quality  (P212)
Picture size/Aspect Ratio
(P131)
Card (displayed only during
recording) (P30)
Elapsed recording time¢1
(P215)
Simultaneous recording...

325
14. Others

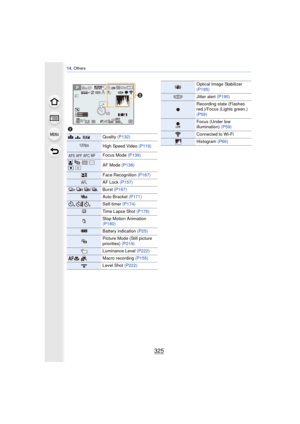

2
A›Quality  (P132)
High Speed Video  (P119)
Focus Mode (P139)
š
ØAF Mode (P138)
Face Recognition  (P187)
AF Lock (P157)
Burst (P167)
Auto Bracket (P171)
Self-timer  (P174)
Time Lapse Shot  (P176)
Stop Motion Animation
(P180)
Battery indication  (P25)
Picture Mode (Still picture
priorities) (P219)
Luminance Level  (P222)
Macro recording (P155)
Level Shot (P222)
98989820000200200606060
2.82.82.8
AFSAFSAFSL3:2
00AELAELAELBKTBKTBKTAWBAWBAWB
0é0å0ó0é0å0ó
120fps
AFSAFFAFCMF
AFL
Optical Image...

14. Others
326
¢1 m: minute, s: second
¢ 2 This is displayed for about 5 seconds when the camera is turned on, after setting the clock
and after switching from Playback Mode to Recording Mode.
¢ 3 This is displayed during countdown.
¢ 4 It is possible to switch the display between th e number of recordable pictures and available
recording time with the [Remaining Disp.] setting in the [Custom] menu.
3
Name¢2  (P192)
Number of days that have passed since the
departure date
¢2  (P48)
Age
¢2  (P192)...

327
14. Others

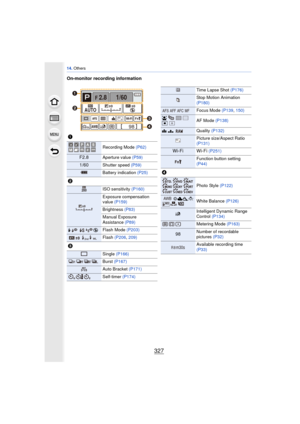

On-monitor recording information
1
Recording Mode  (P62)
F2.8Aperture value (P59)
1/60Shutter speed (P59)
Battery indication  (P25)
2
ISO sensitivity (P160)
Exposure compensation
value (P159)
Brightness  (P83)
Manual Exposure
Assistance  (P89)
‰ŒFlash Mode  (P203)
Flash (P206, 209)
3
Single  (P166)
Burst (P167)
Auto Bracket (P171)
Self-timer  (P174)
F 2.8
98AW B
1/60
000
Fn
ISOAUTO
Wi-FiL3:2AFS
AFS




C1EXPS
EXPS
ISO200
00
WL
Time Lapse Shot
(P176)
Stop Motion Animation
(P180)...

14. Others
328

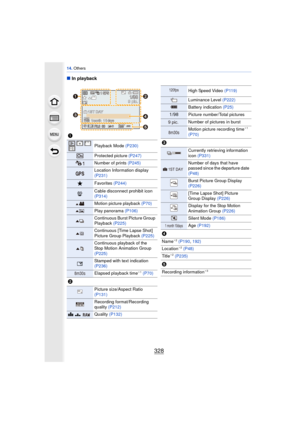

∫In playback
1
Playback Mode  (P230)
Protected picture  (P247)
Number of prints (P245)
Location Information display
(P231)
ÜFavorites (P244)
åCable disconnect prohibit icon
(P314)
Motion picture playback (P70)
Play panorama (P106)
Continuous Burst Picture Group
Playback (P225)
Continuous [Time Lapse Shot]
Picture Group Playback  (P225)
Continuous playback of the
Stop Motion Animation Group
(P225)
‘Stamped with text indication
(P236)
Elapsed playback time¢1 (P70)
2
Picture...

329
14. Others
Detailed information display
Histogram display
¢1 m: minute, s: second
¢ 2 It is displayed in order of [Title], [Location], [Name] ([Baby1]/[Baby2], [Pet]), [Name] ([Face
Recog.]).
¢ 3 This is not displayed for motion pictures recorded in [AVCHD].
¢ 4 This is not displayed for motion pictures.
F2.8 60
P
s
RGB
AFS200
0WB WBISO
ISOAWB
STD.
STD.
STD.
L3:2100-0001
(&



1
Recording information
Intelligent Dynamic Range
Control¢
3 (P134)
HDR¢ 4 (P135)
Intelligent Resolution...

14. Others
330
Message Display
Confirmation messages or error messages will be displayed on the screen in some cases.
The major messages are described below as examples.
[This picture is protected]
•
Delete the picture after canceling the protect setting.  (P247)
[Some pictures cannot be deleted]/[This picture cannot be deleted]
•
This feature can only be used with pictures that comply with the DCF standard.
Perform formatting (P31) on this unit after saving necessary data on a PC, etc.
[Cannot be set on...
