13. Connecting to other equipment
∫Copying to a PC without using “ PHOTOfunSTUDIO ”
If you are not able to install “ PHOTOfunSTUDIO ”, you can copy files and folders to your
PC by dragging and dropping files from this unit.
•
The content (folder structure) on the card of this unit is as follows.
•A new folder is created when pictures are taken in the following situations.
–After [No.Reset]  (P54) in the [Setup] menu has been executed–When a card containing a folder with the same folder number has...

13. Connecting to other equipment
312
Saving still pictures and motion pictures on a
Recorder
If you insert card holding content recorded with this unit into a
Panasonic recorder, you can dub the content to a Blu-ray Disc or
DVD etc.
Methods to export still pictures  and motion pictures to other
devices will vary depending on the file format. (JPEG, RAW,
AVCHD, or MP4).
•
See the operating instructions for the recorder about the details about copying and playing
back.
∫ Dubbing with non-compatible...

313
13. Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s monitor.
•
Group pictures will not be displayed as group pictures but as single pictures.•Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
1Connect the printer and camera with the USB connection...

13. Connecting to other equipment
314

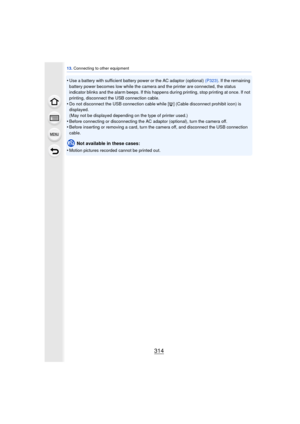

•Use a battery with sufficient battery power or the AC adaptor (optional)  (P323). If the remaining
battery power becomes low while the camera and the printer are connected, the status
indicator blinks and the alarm beeps. If this happens during printing, stop printing at once. If not
printing, disconnect the USB connection cable.
•Do not disconnect the USB connection cable while [ å] (Cable disconnect prohibit icon) is
displayed.
(May not be displayed depending...

315
13. Connecting to other equipment
1Press  3.
2Press  3/4  to select an item and then press [MENU/SET].
Selecting a single picture and printing it
1Press  2/1  to select the picture and then press
[MENU/SET].
2Press  3 to select [Print start] and then press [MENU/SET].
•Refer to P316  for the items that can be set before starting to print the pictures.
•Disconnect the USB connection cable after printing.
Selecting multiple pictures and printing them
[Multi Select] Multiple pictures are printed at one...

13. Connecting to other equipment
316
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures on a paper size or a layout which is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer.
(For details, refer to the operating instructions of the printer.)
•When [Print...

317
13. Connecting to other equipment
∫[Paper Size]
•
Paper sizes not supported by the printer will not be displayed.
∫ [Page Layout] (Layouts for printing that can be set with this unit)
•
An item cannot be selected if the printer does not support the page layout.
{ Settings on the printer are prioritized.
[L/3.5qk5q]89 mmk127 mm
[2L/5 qk7q] 127 mm k178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk 6q] 101.6 mm k152.4 mm
[8 qk10...

13. Connecting to other equipment
318
∫Layout printing
When printing a picture several times on 1 sheet of paper.
For example, if you want to print the same picture 4 times on 1 sheet of paper, set [Page
Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to print.
When printing different pictures on 1 sheet of paper.
For example, if you want to print 4 different pictures on 1 sheet of paper, set [Page Layout]
to [ ä ] and then set [Num.of prints] to 1 for each of the 4...

319
14.Others
Optional accessories
After attaching the flash (DMW-FL360L, DMW-FL580L: optional), the effective range will
be increased when compared to the camera’s built in flash.
Preparations:
•
Turn off the camera and close the built-in flash.
∫ Using the dedicated flash (DMW-FL360L: optional)
1Attach the dedicated flash to the hot shoe and then turn on the camera and the
dedicated flash.
2Select the menu.
3Press  3/4  to select [Flash Mode] and then press [MENU/SET].4Press  3/4  to select an item...

14. Others
320
•You can set the aperture value, the shutter speed and the ISO sensitivity on the camera even
when attaching the external flash.
•Some commercial external flashes have synchro terminals with high-voltage or reversed
polarity. Using such extra flashes may cause a malfunction or the camera may not operate
normally.
•If you use commercially available external flashes with communication functions other than the
dedicated one, they may not operate normally or they may be damaged. Do not use...
