301
13. Connecting to other equipment
Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
1Connect the camera and a TV.
•Check the direction of the terminals and plug in/out straight holding onto the
plug.
(It may result in malfunction by the deforming of the terminal if it is plugged in
obliquely or in wrong direction.)
Do not connect devices to incorrect terminals. Doing so may cause malfunction.
Preparations: Turn this unit and the TV off.
•...

13. Connecting to other equipment
302
2Turn on the TV and select the input to match the connector in use.
3Turn the camera on and then press [ (].
•Input of the TV will switch automatically  and playback screen is displayed when
connected to a VIERA Link compatible TV using an HDMI micro cable with the [VIERA
Link]  (P53)  set to [ON].  (P304)
•Depending on the [Aspect Ratio], black bands may be displayed on the top and bottom or the
left and right of the pictures.
•Change the screen mode on your TV...

303
13. Connecting to other equipment
The recorded pictures can be played back on a TV with an SD Memory Card
slot
•
Depending on the TV model, pictures may not be displayed on the full screen.•The file format of the motion pictures that can be played back differs depending on the TV
model.
•In some cases, panorama pictures cannot be played back. Also, auto-scroll playback of
panorama pictures may not work.
•For cards compatible with playback, refer to the operating instructions of the TV.

13. Connecting to other equipment
304
1Connect this unit to a Panasonic TV compatible with VIERA Link with
an HDMI micro cable  (P301).
2Turn the camera on and then press [ (].
3Operate with the remote control for the TV.
•Operate with reference to the operation icons displayed on the screen.
•To play back the sound of a film during a slide show, set [Sound] to [AUTO] or [Audio] on the
Slide Show setting screen.
•It is recommended to connect this unit to an HDMI terminal other than the HDMI1 if there...

305
13. Connecting to other equipment
∫Other linked operations
Turning this unit off:
If you use the remote control for the TV to turn the TV off, this unit is also turned off.
Automatic input switching:
•
If you connect with an HDMI micro cable and then turn this unit on, and then press [ (], the
input channel on the TV automatically switches to this unit’s screen. If the TV’s power is in
standby status, it will turn on automatically (if [Set] has been selected for the TV’s [Power on
link] setting)....

13. Connecting to other equipment
306
Saving still pictures and motion pictures on
your PC
You can acquire recorded pictures to a  PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear.
(Doing so will cause recorded images to be erased so do not choose to format.)
If the card is not...

307
13. Connecting to other equipment
The supplied DVD includes the following software.
Install the software on to your computer before use.
•
PHOTOfunSTUDIO 9.5 PE
(Windows XP/Windows Vista/Windows 7/Windows 8/Windows 8.1)
This software allows you to manage images. For example, you can send pictures and motion
pictures to a PC and sort them by recording date or model name. You can also perform
operations such as writing images to a DVD, processing and correcting images, and editing
motion pictures....

13. Connecting to other equipment
308
∫Installing supplied software
•
Before inserting the DVD, cl ose all running applications.
1Check the environment of your PC.
•Operating environment of “ PHOTOfunSTUDIO ”–OS:
WindowsR XP (32bit) SP3,
Windows VistaR (32bit) SP2,
WindowsR 7 (32bit/64bit) or SP1,
WindowsR 8 (32bit/64bit),
WindowsR 8.1 (32bit/64bit)–CPU:
PentiumR III 500 MHz or higher (WindowsR XP),
PentiumR III 800 MHz or higher (Windows VistaR),
PentiumR III 1 GHz or higher (WindowsR 7/WindowsR...

309
13. Connecting to other equipment

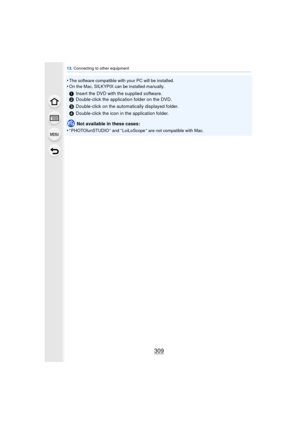

•The software compatible with your PC will be installed.
•On the Mac, SILKYPIX can be installed manually.
1 Insert the DVD with the supplied software.
2 Double-click the application folder on the DVD.
3 Double-click on the automatically displayed folder.
4 Double-click the icon in the application folder.
Not available in these cases:
•
“ PHOTOfunSTUDIO ” and “ LoiLoScope ” are not compatible with Mac.

13. Connecting to other equipment
310
∫Transferring pictures to a PC
1Connect the computer and camera with the USB connection cable
(supplied).
•Please turn this unit on and your PC before connecting.•Check the direction of the terminals and plug in/out straight holding onto the
plug.
(It may result in malfunction by the deforming of the terminal if it is plugged in
obliquely or in wrong direction.)
Do not connect devices to incorrect terminals. Doing so may cause malfunction.
•Do not use any other...
