Page 171

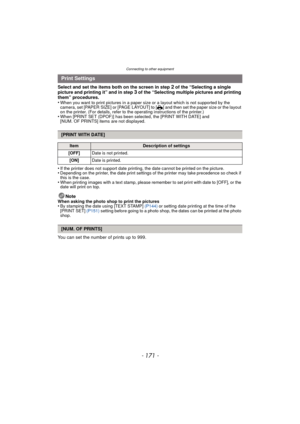

![Page 171
- 171 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout which is not supported by the
camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {] and then set the paper size or the layout
on the printer. (For details, refer to the operating instructions of the printer.)
•When [PRINT...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-170.png "Page 171
- 171 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout which is not supported by the
camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {] and then set the paper size or the layout
on the printer. (For details, refer to the operating instructions of the printer.)
•When [PRINT...")
- 171 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout which is not supported by the
camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {] and then set the paper size or the layout
on the printer. (For details, refer to the operating instructions of the printer.)
•When [PRINT...
Page 172
![Page 172
Connecting to other equipment
- 172 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-171.png "Page 172
Connecting to other equipment
- 172 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm")
Connecting to other equipment
- 172 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm
Page 173

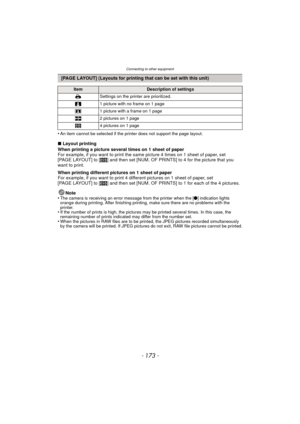

![Page 173
- 173 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-172.png "Page 173
- 173 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...")
- 173 - Connecting to other equipment •An item cannot be selected if the printer does not support the page layout. ∫Layout printing When printing a picture several times on 1 sheet of paper For example, if you want to print the same picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you want to print. When printing different pictures on 1 sheet of paper For example, if you want to print 4 different pictures on 1 sheet of paper, set...
Page 174

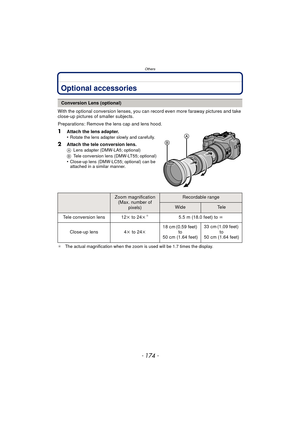

Others - 174 - OthersOptional accessories With the optional conversion lenses, you can record even more faraway pictures and take close-up pictures of smaller subjects. Preparations: Remove the lens cap and lens hood. 1Attach the lens adapter. •Rotate the lens adapter slowly and carefully. 2Attach the tele conversion lens.A Lens adapter (DMW-LA5; optional) B Tele conversion lens (DMW-LT55; optional) •Close-up lens (DMW-LC55; optional) can be attached in a similar manner. ¢ The actual magnific ation...
Page 175

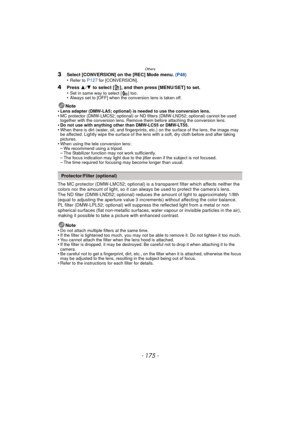

![Page 175
- 175 -
Others
3Select [CONVERSION] on the [REC] Mode menu. (P48)
•Refer to P127 for [CONVERSION].
4Press 3/4 to select [ ], and then press [MENU/SET] to set.
•Set in same way to select [ ] too.•Always set to [OFF] when the conversion lens is taken off.
Note
•Lens adapter (DMW-LA5; optional) is needed to use the conversion lens.•MC protector (DMW-LMC52; optional) or ND f ilters (DMW-LND52; optional) cannot be used
together with the conversion lens. Remove them before attaching the conversion lens.
•Do...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-174.png "Page 175
- 175 -
Others
3Select [CONVERSION] on the [REC] Mode menu. (P48)
•Refer to P127 for [CONVERSION].
4Press 3/4 to select [ ], and then press [MENU/SET] to set.
•Set in same way to select [ ] too.•Always set to [OFF] when the conversion lens is taken off.
Note
•Lens adapter (DMW-LA5; optional) is needed to use the conversion lens.•MC protector (DMW-LMC52; optional) or ND f ilters (DMW-LND52; optional) cannot be used
together with the conversion lens. Remove them before attaching the conversion lens.
•Do...")
- 175 - Others 3Select [CONVERSION] on the [REC] Mode menu. (P48) •Refer to P127 for [CONVERSION]. 4Press 3/4 to select [ ], and then press [MENU/SET] to set. •Set in same way to select [ ] too.•Always set to [OFF] when the conversion lens is taken off. Note •Lens adapter (DMW-LA5; optional) is needed to use the conversion lens.•MC protector (DMW-LMC52; optional) or ND f ilters (DMW-LND52; optional) cannot be used together with the conversion lens. Remove them before attaching the conversion lens. •Do...
Page 176

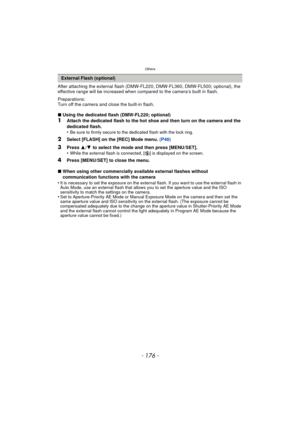

![Page 176
Others
- 176 -
After attaching the external flash (DMW-FL220, DMW-FL360, DMW-FL500; optional), the
effective range will be increased when compared to the camera’s built in flash.
Preparations:
Turn off the camera and close the built-in flash.
∫Using the dedicated flash (DMW-FL220; optional)
1Attach the dedicated flash to the hot shoe and then turn on the camera and the
dedicated flash.
•
Be sure to firmly secure to the dedicated flash with the lock ring.
2Select [FLASH] on the [REC] Mode menu. (P48)...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-175.png "Page 176
Others
- 176 -
After attaching the external flash (DMW-FL220, DMW-FL360, DMW-FL500; optional), the
effective range will be increased when compared to the camera’s built in flash.
Preparations:
Turn off the camera and close the built-in flash.
∫Using the dedicated flash (DMW-FL220; optional)
1Attach the dedicated flash to the hot shoe and then turn on the camera and the
dedicated flash.
•
Be sure to firmly secure to the dedicated flash with the lock ring.
2Select [FLASH] on the [REC] Mode menu. (P48)...")
Others - 176 - After attaching the external flash (DMW-FL220, DMW-FL360, DMW-FL500; optional), the effective range will be increased when compared to the camera’s built in flash. Preparations: Turn off the camera and close the built-in flash. ∫Using the dedicated flash (DMW-FL220; optional) 1Attach the dedicated flash to the hot shoe and then turn on the camera and the dedicated flash. • Be sure to firmly secure to the dedicated flash with the lock ring. 2Select [FLASH] on the [REC] Mode menu. (P48)...
Page 177

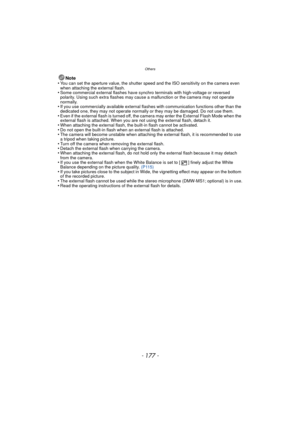

- 177 - Others Note •You can set the aperture value, the shutter speed and the ISO sensitivity on the camera even when attaching the external flash. •Some commercial external flashes have synchro terminals with high-voltage or reversed polarity. Using such extra flashes may cause a malfunction or the camera may not operate normally. •If you use commercially available external flashes with communication functions other than the dedicated one, they may not operate normally or they may be damaged. Do...
Page 178

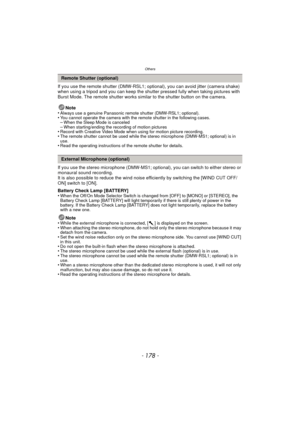

Others - 178 - If you use the remote shutter (DMW-RSL1; optional), you can avoid jitter (camera shake) when using a tripod and you can keep the shutter pressed fully when taking pictures with Burst Mode. The remote shutter works similar to the shutter button on the camera. Note • Always use a genuine Panasonic remote shutter (DMW-RSL1; optional).•You cannot operate the camera with the remote shutter in the following cases.–When the Sleep Mode is canceled–When starting/ending the recording of motion...
Page 179

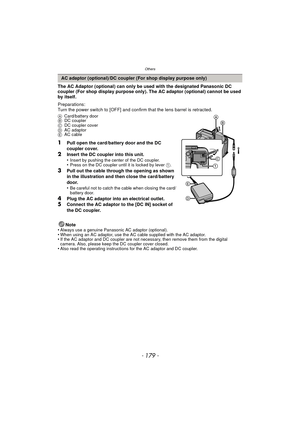

![Page 179
- 179 -
Others
The AC Adaptor (optional) can only be used with the designated Panasonic DC
coupler (For shop display purpose only). The AC adaptor (optional) cannot be used
by itself.
Preparations:
Turn the power switch to [OFF] and confirm that the lens barrel is retracted.
ACard/battery door
B DC coupler
C DC coupler cover
D AC adaptor
E AC cable
1Pull open the card/battery door and the DC
coupler cover.
2Insert the DC coupler into this unit.
•Insert by pushing the center of the DC coupler.•Press on...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-178.png "Page 179
- 179 -
Others
The AC Adaptor (optional) can only be used with the designated Panasonic DC
coupler (For shop display purpose only). The AC adaptor (optional) cannot be used
by itself.
Preparations:
Turn the power switch to [OFF] and confirm that the lens barrel is retracted.
ACard/battery door
B DC coupler
C DC coupler cover
D AC adaptor
E AC cable
1Pull open the card/battery door and the DC
coupler cover.
2Insert the DC coupler into this unit.
•Insert by pushing the center of the DC coupler.•Press on...")
- 179 - Others The AC Adaptor (optional) can only be used with the designated Panasonic DC coupler (For shop display purpose only). The AC adaptor (optional) cannot be used by itself. Preparations: Turn the power switch to [OFF] and confirm that the lens barrel is retracted. ACard/battery door B DC coupler C DC coupler cover D AC adaptor E AC cable 1Pull open the card/battery door and the DC coupler cover. 2Insert the DC coupler into this unit. •Insert by pushing the center of the DC coupler.•Press on...
Page 180

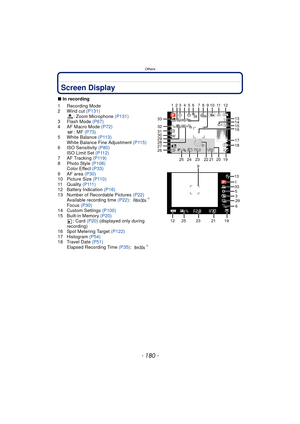

Others - 180 - Screen Display ∫In recording 1 Recording Mode 2 Wind cut (P131) : Zoom Microphone (P131) 3 Flash Mode (P67) 4 AF Macro Mode (P72) : MF (P73) 5 White Balance (P113) White Balance Fine Adjustment (P115) 6 ISO Sensitivity (P80) ISO Limit Set (P112) 7 AF Tracking (P119) 8 Photo Style (P108) Color Effect (P33) 9 AF area (P30) 10 Picture Size (P110) 11 Quality ( P 111 ) 12 Battery Indication (P16) 13 Number of Recordable Pictures (P22) Available recording time (P22): ¢ Focus...
