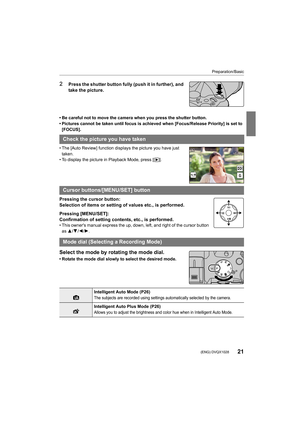

21
Preparation/Basic
 (ENG) DVQX1028
2Press the shutter button fully (push it in further), and
take the picture.
• Be careful not to move the camera when you press the shutter button.
• Pictures cannot be taken until focus is achieved when [Focus/R elease Priority] is set to
[FOCUS].
• The [Auto Review] function displays the picture you have just  taken.
• To display the picture in Playback Mode, press [ (].
Pressing the cursor button:
Selection of items or setting of values etc., is performed....

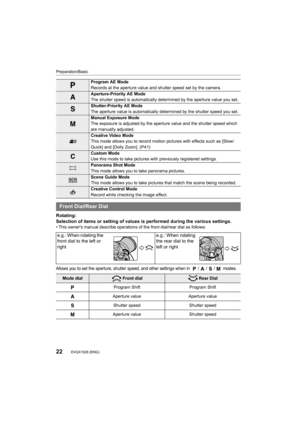

Preparation/Basic
22DVQX1028 (ENG)
Rotating:
Selection of items or setting of values is performed during the various settings.
• This owner's manual describe operations of the front dial/rear dial as follows:
Allows you to set the aperture, shutter speed, and other settings when in  /// modes.
Program AE Mode
Records at the aperture value and shutter speed set by the camera.
Aperture-Priority AE Mode
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE...

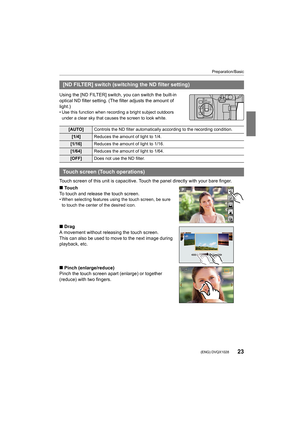

23
Preparation/Basic
 (ENG) DVQX1028
Using the [ND FILTER] switch, you can switch the built-in
optical ND filter setting. (The filter adjusts the amount of
light.)
• Use this function when recording a bright subject outdoors under a clear sky that causes the screen to look white.
Touch screen of this unit is capacitive. Touch the panel direct ly with your bare finger.
∫ To u c h
To touch and release the touch screen.
• When selecting features using the touch screen, be sure
to touch the center of the...

Preparation/Basic
24DVQX1028 (ENG)

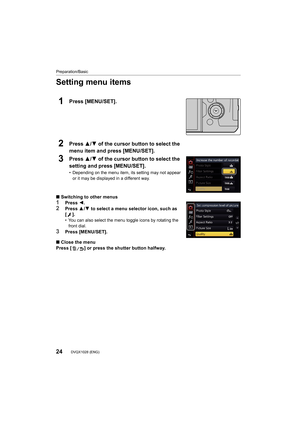

Setting menu items
1Press [MENU/SET].
2Press 3/4 of the cursor button to select the
menu item and press [MENU/SET].
3Press 3/ 4 of the cursor button to select the
setting and press [MENU/SET].
• Depending on the menu item, its setting may not appear
or it may be displayed in a different way.
∫ Switching to other menus1Press  2.
2Press  3/4 to select a menu selector icon, such as
[].
• You can also select the menu toggle icons by rotating the
front dial.
3Press...

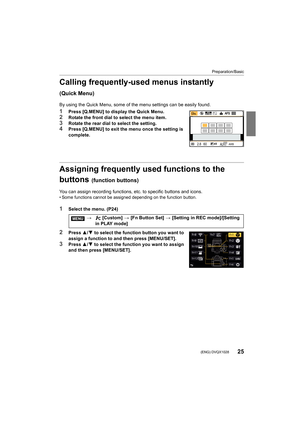

25
Preparation/Basic
 (ENG) DVQX1028
Calling frequently-used menus instantly
(Quick Menu)
By using the Quick Menu, some of the menu settings can be easily found.
1Press [Q.MENU] to display the Quick Menu.2Rotate the front dial to select the menu item.
3Rotate the rear dial to select the setting.4Press [Q.MENU] to exit the menu once the setting is
complete.
Assigning frequently used functions to the
buttons
(function buttons)
You can assign recording functions, etc. to specific buttons and icons.•...

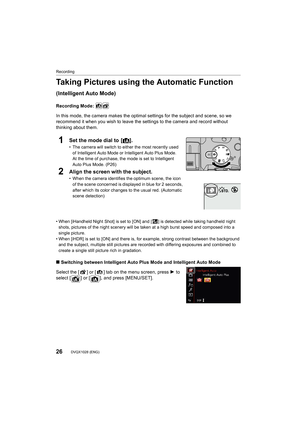

Recording
26DVQX1028 (ENG)
Taking Pictures using the Automatic Function
(Intelligent Auto Mode)
Recording Mode:
In this mode, the camera makes the optimal settings for the sub ject and scene, so we
recommend it when you wish to leave the settings to the camera  and record without
thinking about them.
1Set the mode dial to  [ ¦].
• The camera will switch to either the most recently used
of Intelligent Auto Mode or Intelligent Auto Plus Mode.
At the time of purchase, the mode is set to Intelligent...

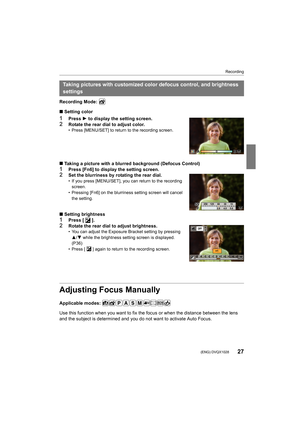

27
Recording
 (ENG) DVQX1028
Recording Mode:
∫Setting color
1Press  1 to display the setting screen.2Rotate the rear dial to adjust color.• Press [MENU/SET] to return to the recording screen.
∫Taking a picture with a blurred background (Defocus Control)
1Press [Fn6] to display the setting screen.2Set the blurriness by rotating the rear dial.• If you press [MENU/SET], you can return to the recording
screen.
• Pressing [Fn6] on the blurriness setting screen will cancel
the setting.
∫ Setting...

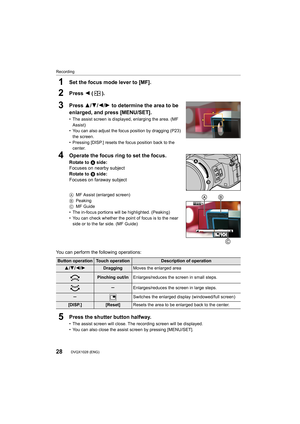

Recording
28DVQX1028 (ENG)
1Set the focus mode lever to [MF].
2Press 2 ().
3Press 3/ 4/2/1 to determine the area to be
enlarged, and press [MENU/SET].
• The assist screen is displayed, enlarging the area. (MF
Assist)
• You can also adjust the focus position by dragging (P23)
the screen.
• Pressing [DISP.] resets the focus position back to the  center.
4Operate the focus ring to set the focus.
Rotate to  A side:
Focuses on nearby subject
Rotate to  B side:
Focuses on faraway subject
A MF Assist...

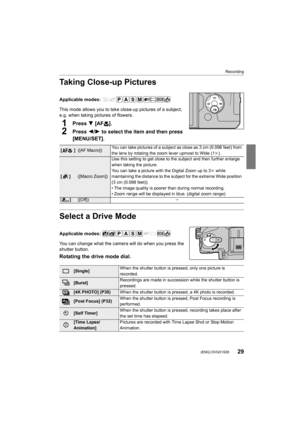

29
Recording
 (ENG) DVQX1028
Taking Close-up Pictures
Applicable modes:
This mode allows you to take close-up pictures of a subject,
e.g. when taking pictures of flowers.
1Press  4 [AF #].
2Press  2/1 to select the item and then press
[MENU/SET].
Select a Drive Mode
Applicable modes:
You can change what the camera will do when you press the
shutter button.
Rotating the drive mode dial.

[]([AF Macro]) You can take pictures of a subject as close as 3 cm (0.098 feet)
from
the lens by rotating the...

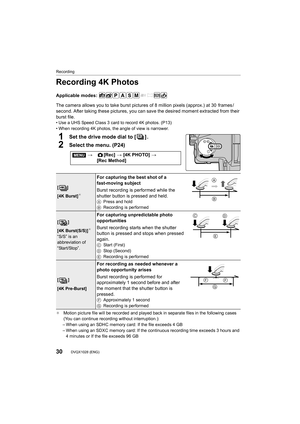

Recording
30DVQX1028 (ENG)
Recording 4K Photos
Applicable modes:
The camera allows you to take burst pictures of 8 million pixels (approx.) at 30  frames /
second. After taking these pictures, you can save the desired m oment extracted from their
burst file.
• Use a UHS Speed Class 3 card to record 4K photos. (P13)
• When recording 4K photos, the angle of view is narrower.
1Set the drive mode dial to [ ] .
2Select the menu. (P24)
¢ Motion picture file will be recorded and played back in separat e...
