Panasonic Dmc Fz2500 Basic Owners Manual

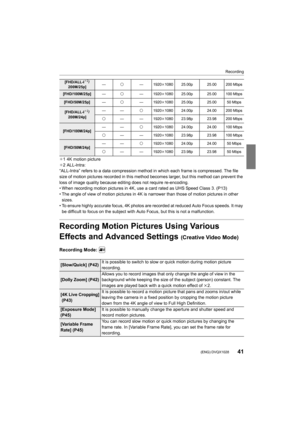

41
Recording
 (ENG) DVQX1028
¢1 4K motion picture
¢ 2 ALL-lntra:
“ALL-Intra” refers to a data compression method in which each f rame is compressed. The file
size of motion pictures recorded in this method becomes larger,  but this method can prevent the
loss of image quality because edi ting does not require re-encoding.
• When recording motion pictures in 4K, use a card rated as UHS  Speed Class 3. (P13)
• The angle of view of motion pictures in 4K is narrower than th ose of motion pictures in other...

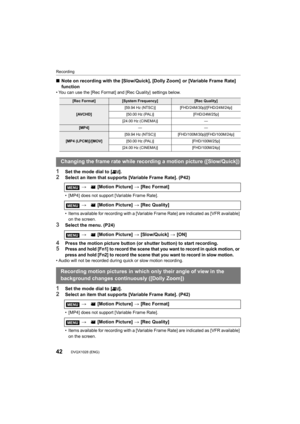

Recording
42DVQX1028 (ENG)
∫Note on recording with the [Slow/Quick], [Dolly Zoom]  or [Varia ble Frame Rate]
function
• You can use the [Rec Format] and [Rec Quality]  settings below.
1Set the mode dial to [ ].2Select an item that supports [Variable Frame Rate]. (P42)
• [MP4] does not support [Variable Frame Rate].
• Items available for recording with a [Variable Frame Rate] are  indicated as [VFR available]
on the screen.
3Select the menu. (P24)
4Press the motion picture button (or shutter button) to...

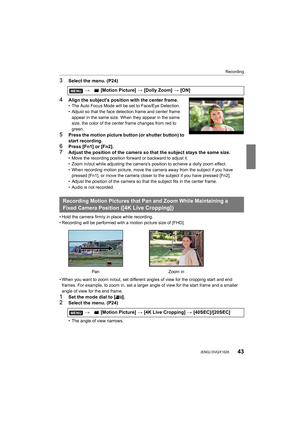

43
Recording
 (ENG) DVQX1028
3Select the menu. (P24)
4Align the subject's position with the center frame.• The Auto Focus Mode will be set to Face/Eye Detection.
• Adjust so that the face detection frame and center frame appear in the same size. When they appear in the same
size, the color of the center frame changes from red to
green.
5Press the motion picture button (or shutter button) to
start recording.
6Press [Fn1] or [Fn2].7Adjust the position of the camera so that the subject stays the...

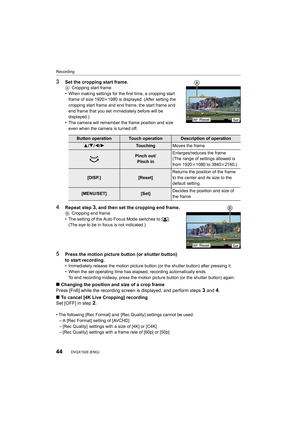

Recording
44DVQX1028 (ENG)
3Set the cropping start frame.ACropping start frame
• When making settings for the first time, a cropping start  frame of size 1920 k1080 is displayed. (After setting the
cropping start frame and end frame, the start frame and
end frame that you set immediately before will be
displayed.)
• The camera will remember the frame position and size  even when the camera is turned off.
4Repeat step 3, and then set the cropping end frame.B Cropping end frame
• The setting of the...

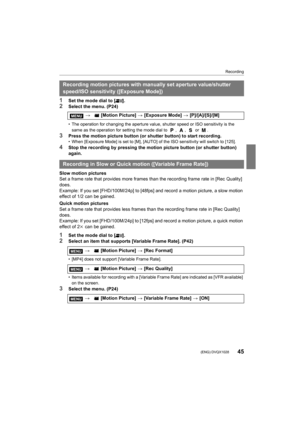

45
Recording
 (ENG) DVQX1028
1Set the mode dial to [ ].2Select the menu. (P24)
• The operation for changing the aperture value, shutter speed or ISO sensitivity is the
same as the operation for setting the mode dial to  ,  ,   or  .
3Press the motion picture button (or shutter button) to start re cording.• When [Exposure Mode] is set to [M], [AUTO] of the ISO sensitivity will switch to [125].
4Stop the recording by pressing the motion picture button (or sh utter button)
again.
Slow motion pictures
Set...

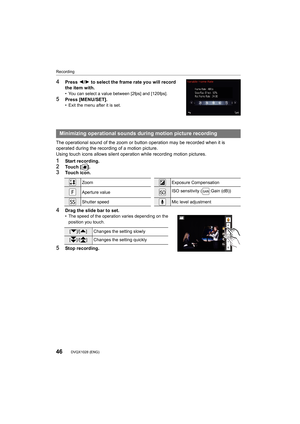

Recording
46DVQX1028 (ENG)
4Press 2/1 to select the frame rate you will record
the item with.
• You can select a value between [2fps] and [120fps].
5Press [MENU/SET].• Exit the menu after it is set.
The operational sound of the zoom or button operation may be re corded when it is
operated during the recording of a motion picture.
Using touch icons allows silent operation while recording motion pictures.
1Start recording.2To u c h   [ ] .3Touch icon.
4Drag the slide bar to set.• The speed of the...

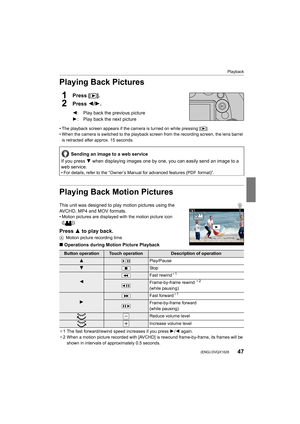

47
Playback
 (ENG) DVQX1028
Playing Back Pictures
1Press [(].
2Press  2/1.
• The playback screen appears if the camera is turned on while p ressing [(].
• When the camera is switched to the playback screen from the re cording screen, the lens barrel
is retracted after approx. 15 seconds.
Playing Back Motion Pictures
This unit was designed to play motion pictures using the
AVCHD, MP4 and MOV formats.
• Motion pictures are displayed with the motion picture icon  ([ ]).
Press  3 to play back.
A Motion...

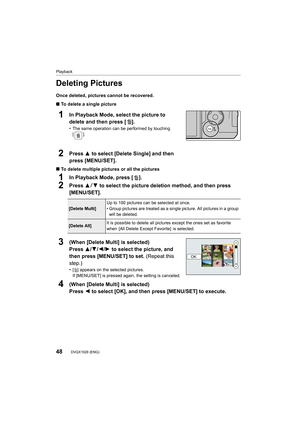

Playback
48DVQX1028 (ENG)
Deleting Pictures
Once deleted, pictures cannot be recovered.
∫To delete a single picture
∫ To delete multiple pictures or all the pictures
1In Playback Mode, press [ ].
2Press 3 4 to select the picture deletion method, and then press
[MENU/SET].
1In Playback Mode, select the picture to
delete and then press [ ].
• The same operation can be performed by touching
[].
2Press 3 to select [Delete Single] and then
press [MENU/SET].
[Delete Multi] Up to 100 pictures can be...

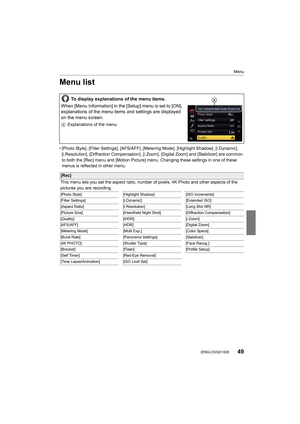

49
Menu
 (ENG) DVQX1028
Menu list
• [Photo Style], [Filter Settings], [AFS/AFF], [Metering Mode], [Highlight Shadow], [i.Dynamic],
[i.Resolution], [Diffraction Compensation], [i.Zoom] , [Digital Zoom] and [Stabilizer] are common
to both the [Rec] menu and [Mot ion Picture] menu. Changing thes e settings in one of these
menus is reflected in other menu.
To display explanations of the menu items.
When [Menu Information] in the [Setup] menu is set to [ON],
explanations of the menu items and settings are...

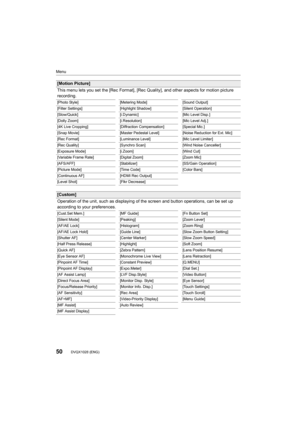

Menu
50DVQX1028 (ENG)
[Motion Picture]
This menu lets you set the [Rec Format], [Rec Quality], and other aspects for motion picture
recording.
[Photo Style] [Metering Mode][Sound Output]
[Filter Settings] [Highlight Shadow] [Silent Operation]
[Slow/Quick] [i.Dynamic][Mic Level Disp.]
[Dolly Zoom] [i.Resolution] [Mic Level Adj.]
[4K Live Cropping] [Diffraction Compensation] [Special Mic.]
[Snap Movie] [Master Pedestal Level][Noise Reduction for Ext. Mic]
[Rec Format] [Luminance Level] [Mic Level...
