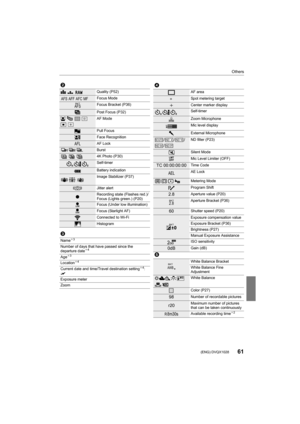

Page 61
61 Others (ENG) DVQX1028 2 A›Quality (P52) Focus Mode Focus Bracket (P36) Post Focus (P32) š ØAF Mode Pull Focus Face Recognition AF Lock Burst 4K Photo (P30) Self-timer Battery indication Image Stabilizer (P37) Jitter alert Recording state (Flashes red.)/ Focus (Lights green.) (P20) Focus (Under low illumination) Focus (Starlight AF) Connected to Wi-Fi Histogram 3 Name¢ 3 Number of days that have passed since the departure date¢4 Age¢3 Location¢4 Current date and time/Travel destination setting¢4:...

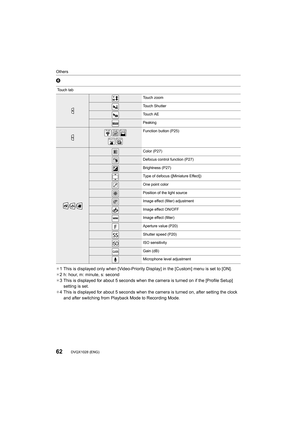

Page 62
![Page 62
Others
62DVQX1028 (ENG)
6
¢1 This is displayed only when [Video-Priority Display] in the [C ustom] menu is set to [ON].
¢ 2 h: hour, m: minute, s: second
¢ 3 This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup]
setting is set.
¢ 4 This is displayed for about 5 seconds when the camera is turned on, after setting the clock
and after switching from Playback Mode to Recording Mode.
Touch tab
Touch zoom
Touch Shutter
Touch AE
Peaking
Function button (P25)
//
Color...](http://img.usermanuals.tech/thumb/58/65484/w300_dmc-fz2500_en_om_d-61.png "Page 62
Others
62DVQX1028 (ENG)
6
¢1 This is displayed only when [Video-Priority Display] in the [C ustom] menu is set to [ON].
¢ 2 h: hour, m: minute, s: second
¢ 3 This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup]
setting is set.
¢ 4 This is displayed for about 5 seconds when the camera is turned on, after setting the clock
and after switching from Playback Mode to Recording Mode.
Touch tab
Touch zoom
Touch Shutter
Touch AE
Peaking
Function button (P25)
//
Color...")
Others 62DVQX1028 (ENG) 6 ¢1 This is displayed only when [Video-Priority Display] in the [C ustom] menu is set to [ON]. ¢ 2 h: hour, m: minute, s: second ¢ 3 This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup] setting is set. ¢ 4 This is displayed for about 5 seconds when the camera is turned on, after setting the clock and after switching from Playback Mode to Recording Mode. Touch tab Touch zoom Touch Shutter Touch AE Peaking Function button (P25) // Color...

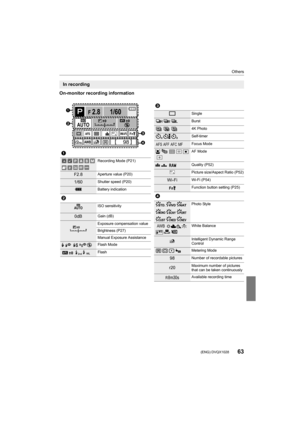

Page 63
63 Others (ENG) DVQX1028 On-monitor recording information In recording 1 Recording Mode (P21) F2.8Aperture value (P20) 1/60Shutter speed (P20) Battery indication 2 ISO sensitivity 0dBGain (dB) Exposure compensation value Brightness (P27) Manual Exposure Assistance ‰ŒFlash Mode Flash F 2.8 98AW B 1/60 000 Fn ISOAUTO Wi-FiL3:2AFSAFS C11EXPSEXPS ISOAUTO 00 WL 3 Single Burst 4K Photo Self-timer Focus Mode šØAF Mode A›Quality (P52) Picture size/Aspect Ratio (P52) Wi-FiWi-Fi (P54) Function button...

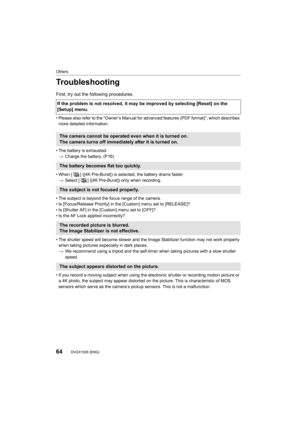

Page 64
![Page 64
Others
64DVQX1028 (ENG)
Troubleshooting
First, try out the following procedures.
• Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes
more detailed information.
• The battery is exhausted. > Charge the battery. (P16)
• When [ ] ([4K Pre-Burst]) is selected, the battery drains faste r.
> Select [ ] ([4K Pre-Burst]) only when recording.
• The subject is beyond the focus range of the camera.
• Is [Focus/Release Priority] in the [Custom] menu set to [RELEA SE]?
•...](http://img.usermanuals.tech/thumb/58/65484/w300_dmc-fz2500_en_om_d-63.png "Page 64
Others
64DVQX1028 (ENG)
Troubleshooting
First, try out the following procedures.
• Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes
more detailed information.
• The battery is exhausted. > Charge the battery. (P16)
• When [ ] ([4K Pre-Burst]) is selected, the battery drains faste r.
> Select [ ] ([4K Pre-Burst]) only when recording.
• The subject is beyond the focus range of the camera.
• Is [Focus/Release Priority] in the [Custom] menu set to [RELEA SE]?
•...")
Others 64DVQX1028 (ENG) Troubleshooting First, try out the following procedures. • Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes more detailed information. • The battery is exhausted. > Charge the battery. (P16) • When [ ] ([4K Pre-Burst]) is selected, the battery drains faste r. > Select [ ] ([4K Pre-Burst]) only when recording. • The subject is beyond the focus range of the camera. • Is [Focus/Release Priority] in the [Custom] menu set to [RELEA SE]? •...

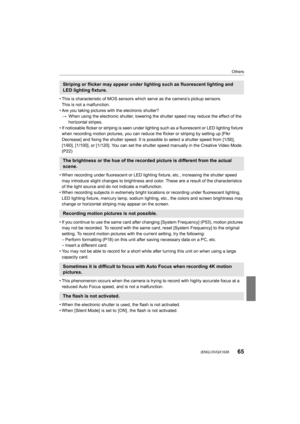

Page 65
65 Others (ENG) DVQX1028 • This is characteristic of MOS sensors which serve as the camera’s pickup sensors. This is not a malfunction. • Are you taking pictures with the electronic shutter? > When using the electronic shutter, lowering the shutter speed m ay reduce the effect of the horizontal stripes. • If noticeable flicker or striping is seen under lighting such as a fluorescent or LED lighting fixture when recording motion pictures, you can reduce the flicker or s triping by setting up [Flkr...

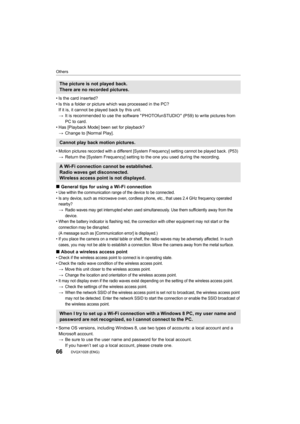

Page 66
![Page 66
Others
66DVQX1028 (ENG)
• Is the card inserted?
• Is this a folder or picture which was processed in the PC?If it is, it cannot be played back by this unit.
> It is recommended to use the software " PHOTOfunSTUDIO " (P59) to write pictures from
PC to card.
• Has [Playback Mode] been set for playback?
> Change to [Normal Play].
• Motion pictures recorded with a different [System Frequency] s etting cannot be played back. (P53)>Return the [System Frequency] setting to the one you used durin g...](http://img.usermanuals.tech/thumb/58/65484/w300_dmc-fz2500_en_om_d-65.png "Page 66
Others
66DVQX1028 (ENG)
• Is the card inserted?
• Is this a folder or picture which was processed in the PC?If it is, it cannot be played back by this unit.
> It is recommended to use the software \" PHOTOfunSTUDIO \" (P59) to write pictures from
PC to card.
• Has [Playback Mode] been set for playback?
> Change to [Normal Play].
• Motion pictures recorded with a different [System Frequency] s etting cannot be played back. (P53)>Return the [System Frequency] setting to the one you used durin g...")
Others 66DVQX1028 (ENG) • Is the card inserted? • Is this a folder or picture which was processed in the PC?If it is, it cannot be played back by this unit. > It is recommended to use the software " PHOTOfunSTUDIO " (P59) to write pictures from PC to card. • Has [Playback Mode] been set for playback? > Change to [Normal Play]. • Motion pictures recorded with a different [System Frequency] s etting cannot be played back. (P53)>Return the [System Frequency] setting to the one you used durin g...

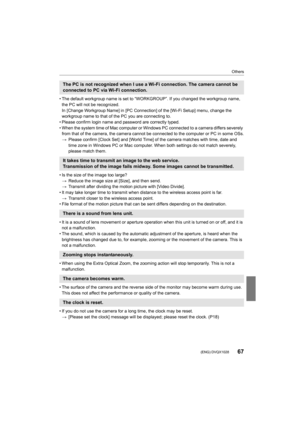

Page 67
![Page 67
67
Others
(ENG) DVQX1028
• The default workgroup name is set to “WORKGROUP”. If you changed the workgroup name,
the PC will not be recognized.
In [Change Workgroup Name] in [PC Connection] of the [Wi-Fi Set up] menu, change the
workgroup name to that of the PC you are connecting to.
• Please confirm login name and password are correctly typed.
• When the system time of Mac computer or Windows PC connected t o a camera differs severely
from that of the camera, the camera cannot be connected to the...](http://img.usermanuals.tech/thumb/58/65484/w300_dmc-fz2500_en_om_d-66.png "Page 67
67
Others
(ENG) DVQX1028
• The default workgroup name is set to “WORKGROUP”. If you changed the workgroup name,
the PC will not be recognized.
In [Change Workgroup Name] in [PC Connection] of the [Wi-Fi Set up] menu, change the
workgroup name to that of the PC you are connecting to.
• Please confirm login name and password are correctly typed.
• When the system time of Mac computer or Windows PC connected t o a camera differs severely
from that of the camera, the camera cannot be connected to the...")
67 Others (ENG) DVQX1028 • The default workgroup name is set to “WORKGROUP”. If you changed the workgroup name, the PC will not be recognized. In [Change Workgroup Name] in [PC Connection] of the [Wi-Fi Set up] menu, change the workgroup name to that of the PC you are connecting to. • Please confirm login name and password are correctly typed. • When the system time of Mac computer or Windows PC connected t o a camera differs severely from that of the camera, the camera cannot be connected to the...

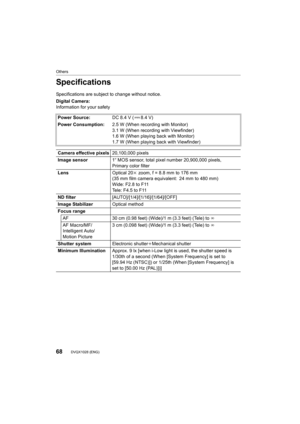

Page 68
Others 68DVQX1028 (ENG) Specifications Specifications are subject to change without notice. Digital Camera: Information for your safetyPower Source: DC 8.4 V ( 8.4 V) Power Consumption: 2.5 W (When recording with Monitor) 3.1 W (When recording with Viewfinder) 1.6 W (When playing back with Monitor) 1.7 W (When playing back with Viewfinder) Camera effective pixels 20,100,000 pixels Image sensor 1q MOS sensor, total pixel number 20,900,000 pixels, Primary color filter Lens Optical 20k zoom, f = 8.8 mm to...

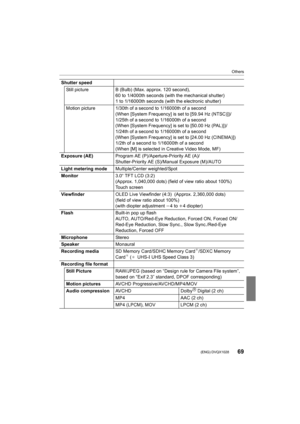

Page 69
![Page 69
69
Others
(ENG) DVQX1028
Shutter speedStill picture B (Bulb) (Max. approx. 120 second),
60 to 1/4000th seconds (with the mechanical shutter)
1 to 1/16000th seconds (with the electronic shutter)
Motion picture 1/30th of a second to 1/16000th of a second (When [System Frequency] is set to [59.94 Hz (NTSC)])/
1/25th of a second to 1/16000th of a second
(When [System Frequency] is set to [50.00 Hz (PAL)])/
1/24th of a second to 1/16000th of a second
(When [System Frequency] is set to [24.00 Hz...](http://img.usermanuals.tech/thumb/58/65484/w300_dmc-fz2500_en_om_d-68.png "Page 69
69
Others
(ENG) DVQX1028
Shutter speedStill picture B (Bulb) (Max. approx. 120 second),
60 to 1/4000th seconds (with the mechanical shutter)
1 to 1/16000th seconds (with the electronic shutter)
Motion picture 1/30th of a second to 1/16000th of a second (When [System Frequency] is set to [59.94 Hz (NTSC)])/
1/25th of a second to 1/16000th of a second
(When [System Frequency] is set to [50.00 Hz (PAL)])/
1/24th of a second to 1/16000th of a second
(When [System Frequency] is set to [24.00 Hz...")
69 Others (ENG) DVQX1028 Shutter speedStill picture B (Bulb) (Max. approx. 120 second), 60 to 1/4000th seconds (with the mechanical shutter) 1 to 1/16000th seconds (with the electronic shutter) Motion picture 1/30th of a second to 1/16000th of a second (When [System Frequency] is set to [59.94 Hz (NTSC)])/ 1/25th of a second to 1/16000th of a second (When [System Frequency] is set to [50.00 Hz (PAL)])/ 1/24th of a second to 1/16000th of a second (When [System Frequency] is set to [24.00 Hz...

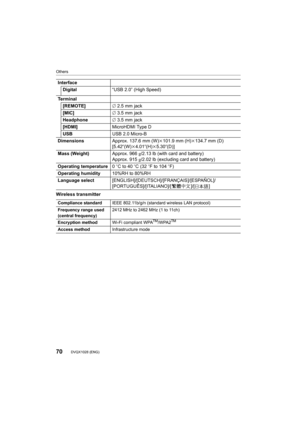

Page 70
![Page 70
Others
70DVQX1028 (ENG)
Wireless transmitterInterface
Digital “USB 2.0” (High Speed)
Terminal [REMOTE] ‰ 2.5 mm jack
[MIC] ‰ 3.5 mm jack
Headphone ‰ 3.5 mm jack
[HDMI] MicroHDMI Type D
USB USB 2.0 Micro-B
Dimensions Approx. 137.6 mm (W)k101.9 mm (H) k134.7 mm (D)
[5.42 q(W)k4.01 q(H)k5.30 q(D)]
Mass (Weight) Approx. 966g/2.13 lb (with card and battery)
Approx. 915 g/2.02 lb (excluding card and battery)
Operating temperature 0oC to 40 oC (32oF to 104 oF)
Operating humidity 10%RH to 80%RH
Language select...](http://img.usermanuals.tech/thumb/58/65484/w300_dmc-fz2500_en_om_d-69.png "Page 70
Others
70DVQX1028 (ENG)
Wireless transmitterInterface
Digital “USB 2.0” (High Speed)
Terminal [REMOTE] ‰ 2.5 mm jack
[MIC] ‰ 3.5 mm jack
Headphone ‰ 3.5 mm jack
[HDMI] MicroHDMI Type D
USB USB 2.0 Micro-B
Dimensions Approx. 137.6 mm (W)k101.9 mm (H) k134.7 mm (D)
[5.42 q(W)k4.01 q(H)k5.30 q(D)]
Mass (Weight) Approx. 966g/2.13 lb (with card and battery)
Approx. 915 g/2.02 lb (excluding card and battery)
Operating temperature 0oC to 40 oC (32oF to 104 oF)
Operating humidity 10%RH to 80%RH
Language select...")
Others 70DVQX1028 (ENG) Wireless transmitterInterface Digital “USB 2.0” (High Speed) Terminal [REMOTE] ‰ 2.5 mm jack [MIC] ‰ 3.5 mm jack Headphone ‰ 3.5 mm jack [HDMI] MicroHDMI Type D USB USB 2.0 Micro-B Dimensions Approx. 137.6 mm (W)k101.9 mm (H) k134.7 mm (D) [5.42 q(W)k4.01 q(H)k5.30 q(D)] Mass (Weight) Approx. 966g/2.13 lb (with card and battery) Approx. 915 g/2.02 lb (excluding card and battery) Operating temperature 0oC to 40 oC (32oF to 104 oF) Operating humidity 10%RH to 80%RH Language select...
