Panasonic Dmc Fz28 Operating Instructions Manual

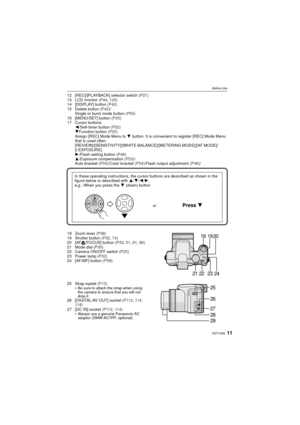

11VQT1S36
Before Use
12 [REC]/[PLAYBACK] selector switch (P21)
13 LCD monitor  (P44, 123)
14 [DISPLAY] button  (P42)
15 Delete button  (P42)/
Single or burst mode button  (P55)
16 [MENU/SET] button  (P20)
17 Cursor buttons 2/Self-timer button  (P52)
4Function button  (P25)
Assign [REC] Mode Menu to  4 button. It is convenient to register [REC] Mode Menu
that is used often.
[REVIEW]/[SENSITIVITY]/[WHITE BALANCE]/[METERING MODE]/[AF MODE]/
[I.EXPOSURE]
1/Flash setting button  (P46)
3/Exposure...

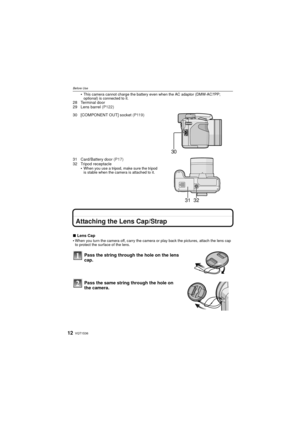

VQT1S3612
Before Use
This camera cannot charge the battery even when the AC adaptor (DMW-AC7PP;
optional) is connected to it.
28 Terminal door
29 Lens barrel (P122)
30 [COMPONENT OUT] socket (P119)
31 Card/Battery door  (P17)
32 Tripod receptacle
When you use a tripod, make sure the tripod
is stable when the camera is attached to it.
Attaching the Lens Cap/Strap
∫Lens Cap
When you turn the camera off, carry the camera or play back the pictures, attach the lens cap
to protect the surface of the lens....

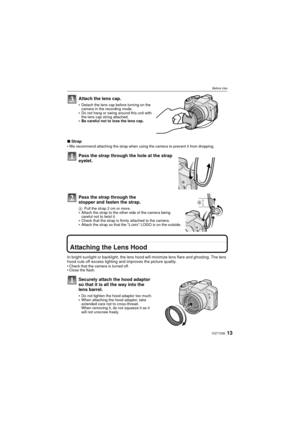

13VQT1S36
Before Use
Attach the lens cap.
Detach the lens cap before turning on the
camera in the recording mode.
Do not hang or swing around this unit with
the lens cap string attached.
Be careful not to lose the lens cap.
∫Strap
We recommend attaching the strap when using the camera to prevent it from dropping.
Pass the strap through the hole at the strap
eyelet.
Pass the strap through the
stopper and fasten the strap.
A Pull the strap 2 cm or more.Attach the strap to the other side of the camera...

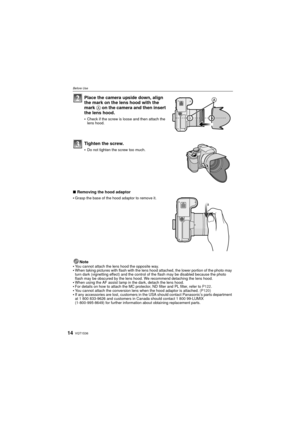

VQT1S3614
Before Use
Place the camera upside down, align
the mark on the lens hood with the
mark A on the camera and then insert
the lens hood.
Check if the screw is loose and then attach the
lens hood.
Tighten the screw.
Do not tighten the screw too much.
∫ Removing the hood adaptor

Grasp the base of the hood adaptor to remove it.
Note
You cannot attach the lens hood the opposite way.When taking pictures with flash with the lens hood attached, the lower portion of the photo may
turn dark...

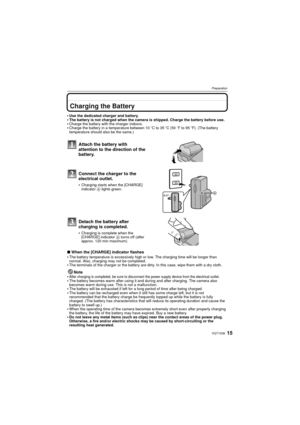

15VQT1S36
Preparation
PreparationCharging the Battery
Use the dedicated charger and battery.The battery is not charged when the camera is shipped. Charge the battery before use.Charge the battery with the charger indoors.Charge the battery in a temperature between 10oC to 35 oC (50 oF to 95 oF). (The battery
temperature should also be the same.)
∫ When the [CHARGE] indicator flashes
The battery temperature is exce ssively high or low. The charging time will be longer than
normal. Also, charging may not...

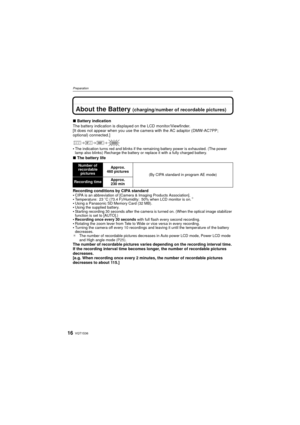

VQT1S3616
Preparation
About the Battery (charging/number of recordable pictures)
∫Battery indication
The battery indication is displayed on the LCD monitor/Viewfinder.
[It does not appear when you use the camera with the AC adaptor (DMW-AC7PP;
optional) connected.]

The indication turns red and blinks if the remaining battery power is exhausted. (The power
lamp also blinks) Recharge the battery or replace it with a fully charged battery.
∫ The battery life
Recording conditions by CIPA standard

CIPA is...

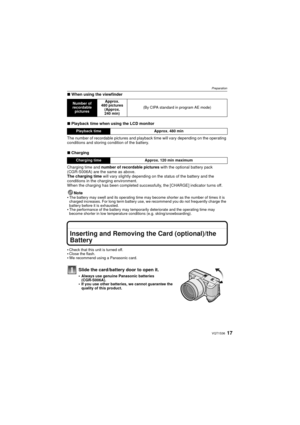

17VQT1S36
Preparation
∫When using the viewfinder
∫ Playback time when using the LCD monitor
The number of recordable pictures and playback time will vary depending on the operating
conditions and storing condition of the battery.
∫ Charging
Charging time and number of recordable pictures  with the optional battery pack
(CGR-S006A) are the same as above.
The charging time  will vary slightly depending on the status of the battery and the
conditions in the charging environment.
When the charging has...

VQT1S3618

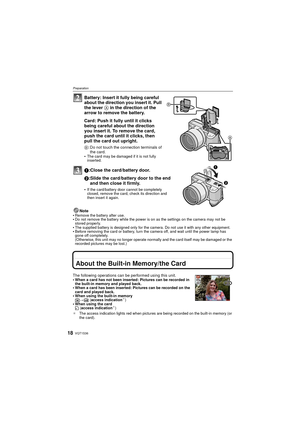

Preparation
Battery: Insert it fully being careful
about the direction you insert it. Pull
the lever A in the direction of the
arrow to remove the battery.
Card: Push it fully until it clicks
being careful about the direction
you insert it. To remove the card,
push the card until it clicks, then
pull the card out upright.
B: Do not touch the connection terminals of
the card.

The card may be damaged if it is not fully
inserted.
1:Close the card/battery door.
2:Slide the card/battery...

19VQT1S36

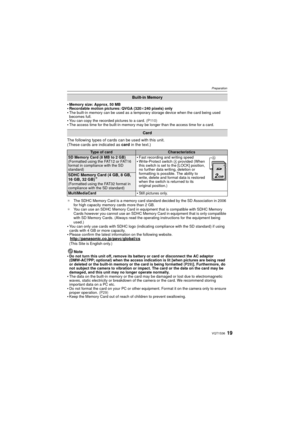

Preparation
Memory size: Approx. 50 MBRecordable motion pictures: QVGA (320k240 pixels) onlyThe built-in memory can be used as a temporary storage device when the card being used
becomes full.
You can copy the recorded pictures to a card.  (P110)The access time for the built-in memory may be longer than the access time for a card.
The following types of cards can be used with this unit.
(These cards are indicated as card in the text.)
¢The SDHC Memory Card is a memory card standard decided by...

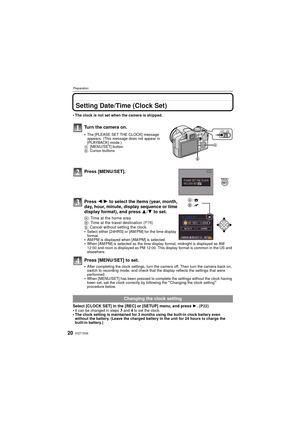

VQT1S3620
Preparation
Setting Date/Time (Clock Set)
The clock is not set when the camera is shipped.
Turn the camera on.
The [PLEASE SET THE CLOCK] message
appears. (This message does not appear in
[PLAYBACK] mode.)
A [MENU/SET] button
B Cursor buttons
Press [MENU/SET].
Press  2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press  3/4 to set.
A: Time at the home area
B : Time at the travel destination  (P78)
‚ : Cancel without setting the clock....
