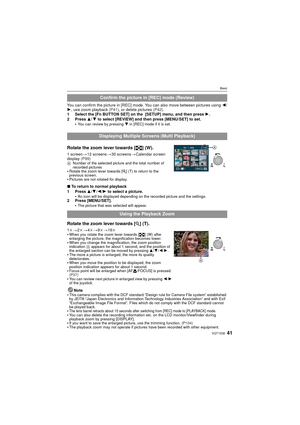

Page 41
![Page 41
41VQT1S36
Basic
You can confirm the picture in [REC] mode. You can also move between pictures using 2/
1 , use zoom playback (P41), or delete pictures (P42).
1 Select the [Fn BUTTON SET] on the [SETUP] menu, and then press 1.
2 Press 3/4 to select [REVIEW] and then press [MENU/SET] to set.
You can review by pressing 4 in [REC] mode if it is set.
Rotate the zoom lever towards [ L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P99)
ANumber of the selected picture and the total...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-40.png "Page 41
41VQT1S36
Basic
You can confirm the picture in [REC] mode. You can also move between pictures using 2/
1 , use zoom playback (P41), or delete pictures (P42).
1 Select the [Fn BUTTON SET] on the [SETUP] menu, and then press 1.
2 Press 3/4 to select [REVIEW] and then press [MENU/SET] to set.
You can review by pressing 4 in [REC] mode if it is set.
Rotate the zoom lever towards [ L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P99)
ANumber of the selected picture and the total...")
41VQT1S36 Basic You can confirm the picture in [REC] mode. You can also move between pictures using 2/ 1 , use zoom playback (P41), or delete pictures (P42). 1 Select the [Fn BUTTON SET] on the [SETUP] menu, and then press 1. 2 Press 3/4 to select [REVIEW] and then press [MENU/SET] to set. You can review by pressing 4 in [REC] mode if it is set. Rotate the zoom lever towards [ L] (W). 1 screen >12 screens >30 screens >Calendar screen display (P99) ANumber of the selected picture and the total...

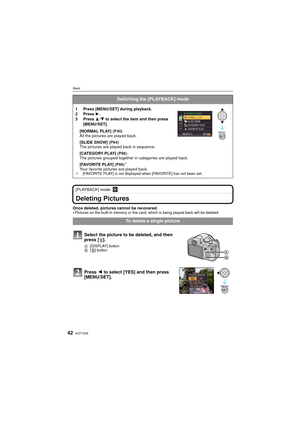

Page 42
![Page 42
VQT1S3642
Basic
[PLAYBACK] mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
Pictures on the built-in memory or the card, which is being played back will be deleted.
Switching the [PLAYBACK] mode
1 Press [MENU/SET] during playback.
2 Press 1.
3 Press 3/4 to select the item and then press
[MENU/SET].
[NORMAL PLAY] (P40)
All the pictures are played back.
[SLIDE SHOW] (P94)
The pictures are played back in sequence.
[CATEGORY PLAY] (P96)
The pictures grouped together in...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-41.png "Page 42
VQT1S3642
Basic
[PLAYBACK] mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
Pictures on the built-in memory or the card, which is being played back will be deleted.
Switching the [PLAYBACK] mode
1 Press [MENU/SET] during playback.
2 Press 1.
3 Press 3/4 to select the item and then press
[MENU/SET].
[NORMAL PLAY] (P40)
All the pictures are played back.
[SLIDE SHOW] (P94)
The pictures are played back in sequence.
[CATEGORY PLAY] (P96)
The pictures grouped together in...")
VQT1S3642 Basic [PLAYBACK] mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered. Pictures on the built-in memory or the card, which is being played back will be deleted. Switching the [PLAYBACK] mode 1 Press [MENU/SET] during playback. 2 Press 1. 3 Press 3/4 to select the item and then press [MENU/SET]. [NORMAL PLAY] (P40) All the pictures are played back. [SLIDE SHOW] (P94) The pictures are played back in sequence. [CATEGORY PLAY] (P96) The pictures grouped together in...

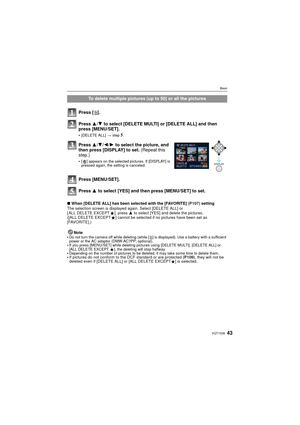

Page 43
![Page 43
43VQT1S36
Basic
∫When [DELETE ALL] has been selected with the [FAVORITE] (P107) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with a sufficient
power or the AC adaptor (DMW-AC7PP; optional).
If you press [MENU/SET] while...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-42.png "Page 43
43VQT1S36
Basic
∫When [DELETE ALL] has been selected with the [FAVORITE] (P107) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with a sufficient
power or the AC adaptor (DMW-AC7PP; optional).
If you press [MENU/SET] while...")
43VQT1S36 Basic ∫When [DELETE ALL] has been selected with the [FAVORITE] (P107) setting The selection screen is displayed again. Select [DELETE ALL] or [ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures. ([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as [FAVORITE].) Note Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with a sufficient power or the AC adaptor (DMW-AC7PP; optional). If you press [MENU/SET] while...

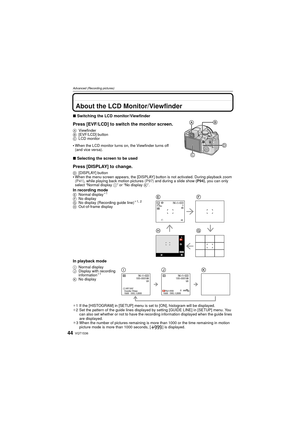

Page 44
![Page 44
VQT1S3644
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor/Viewfinder
∫Switching the LCD monitor/Viewfinder
Press [EVF/LCD] to switch the monitor screen.
A Viewfinder
B [EVF/LCD] button
C LCD monitor
When the LCD monitor turns on, the Viewfinder turns off
(and vice versa).
∫Selecting the screen to be used
Press [DISPLAY] to change.
D [DISPLAY] buttonWhen the menu screen appears, the [DISPLAY] button is not activated. During playback zoom
(P41) , while playing back motion...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-43.png "Page 44
VQT1S3644
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor/Viewfinder
∫Switching the LCD monitor/Viewfinder
Press [EVF/LCD] to switch the monitor screen.
A Viewfinder
B [EVF/LCD] button
C LCD monitor
When the LCD monitor turns on, the Viewfinder turns off
(and vice versa).
∫Selecting the screen to be used
Press [DISPLAY] to change.
D [DISPLAY] buttonWhen the menu screen appears, the [DISPLAY] button is not activated. During playback zoom
(P41) , while playing back motion...")
VQT1S3644 Advanced (Recording pictures) Advanced (Recording pictures)About the LCD Monitor/Viewfinder ∫Switching the LCD monitor/Viewfinder Press [EVF/LCD] to switch the monitor screen. A Viewfinder B [EVF/LCD] button C LCD monitor When the LCD monitor turns on, the Viewfinder turns off (and vice versa). ∫Selecting the screen to be used Press [DISPLAY] to change. D [DISPLAY] buttonWhen the menu screen appears, the [DISPLAY] button is not activated. During playback zoom (P41) , while playing back motion...

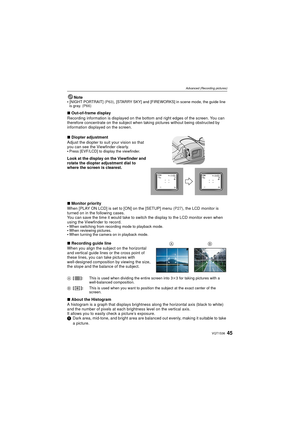

Page 45
![Page 45
45VQT1S36
Advanced (Recording pictures)
Note
[NIGHT PORTRAIT] (P63), [STARRY SKY] and [FIREWORKS] in scene mode, the guide line
is gray. (P66)
∫Out-of-frame display
Recording information is displayed on the bottom and right edges of the screen. You can
therefore concentrate on the subject when taking pictures without being obstructed by
information displayed on the screen.
∫ Diopter adjustment
Adjust the diopter to suit your vision so that
you can see the Viewfinder clearly.
Press [EVF/LCD] to...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-44.png "Page 45
45VQT1S36
Advanced (Recording pictures)
Note
[NIGHT PORTRAIT] (P63), [STARRY SKY] and [FIREWORKS] in scene mode, the guide line
is gray. (P66)
∫Out-of-frame display
Recording information is displayed on the bottom and right edges of the screen. You can
therefore concentrate on the subject when taking pictures without being obstructed by
information displayed on the screen.
∫ Diopter adjustment
Adjust the diopter to suit your vision so that
you can see the Viewfinder clearly.
Press [EVF/LCD] to...")
45VQT1S36 Advanced (Recording pictures) Note [NIGHT PORTRAIT] (P63), [STARRY SKY] and [FIREWORKS] in scene mode, the guide line is gray. (P66) ∫Out-of-frame display Recording information is displayed on the bottom and right edges of the screen. You can therefore concentrate on the subject when taking pictures without being obstructed by information displayed on the screen. ∫ Diopter adjustment Adjust the diopter to suit your vision so that you can see the Viewfinder clearly. Press [EVF/LCD] to...

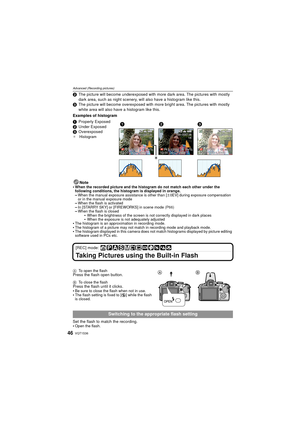

Page 46
VQT1S3646 Advanced (Recording pictures) 2The picture will become underexposed with more dark area. The pictures with mostly dark area, such as night scenery, will also have a histogram like this. 3 The picture will become overexposed with more bright area. The pictures with mostly white area will also have a histogram like this. Examples of histogram Note When the recorded picture and the histogram do not match each other under the following conditions, the histogram is displayed in orange. –When the...
Page 47

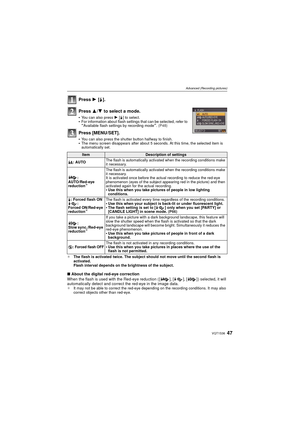

![Page 47
47VQT1S36
Advanced (Recording pictures)
Press 1 [‰].
Press 3/4 to select a mode.
You can also press 1 [‰] to select.For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P48)
Press [MENU/SET].
You can also press the shutter button halfway to finish.The menu screen disappears after about 5 seconds. At this time, the selected item is
automatically set.
¢ The flash is activated twice. The subject should not move until the second flash is...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-46.png "Page 47
47VQT1S36
Advanced (Recording pictures)
Press 1 [‰].
Press 3/4 to select a mode.
You can also press 1 [‰] to select.For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P48)
Press [MENU/SET].
You can also press the shutter button halfway to finish.The menu screen disappears after about 5 seconds. At this time, the selected item is
automatically set.
¢ The flash is activated twice. The subject should not move until the second flash is...")
47VQT1S36 Advanced (Recording pictures) Press 1 [‰]. Press 3/4 to select a mode. You can also press 1 [‰] to select.For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P48) Press [MENU/SET]. You can also press the shutter button halfway to finish.The menu screen disappears after about 5 seconds. At this time, the selected item is automatically set. ¢ The flash is activated twice. The subject should not move until the second flash is...
Page 48
![Page 48
VQT1S3648
Advanced (Recording pictures)
∫Available flash settings by recording mode
The available flash settings depend on the recording mode.
( ±: Available, —: Not available, ¥: Initial setting of advanced scene mode and scene
mode)
¢ When [ ‡] is selected, [ ], [iˆ ] or [i‹ ] is set depending on the type of subject and
brightness.
The flash setting may change if the recording mode is changed. Set the flash setting again if
necessary.
The flash setting is memorized even if the camera is turned off....](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-47.png "Page 48
VQT1S3648
Advanced (Recording pictures)
∫Available flash settings by recording mode
The available flash settings depend on the recording mode.
( ±: Available, —: Not available, ¥: Initial setting of advanced scene mode and scene
mode)
¢ When [ ‡] is selected, [ ], [iˆ ] or [i‹ ] is set depending on the type of subject and
brightness.
The flash setting may change if the recording mode is changed. Set the flash setting again if
necessary.
The flash setting is memorized even if the camera is turned off....")
VQT1S3648 Advanced (Recording pictures) ∫Available flash settings by recording mode The available flash settings depend on the recording mode. ( ±: Available, —: Not available, ¥: Initial setting of advanced scene mode and scene mode) ¢ When [ ‡] is selected, [ ], [iˆ ] or [i‹ ] is set depending on the type of subject and brightness. The flash setting may change if the recording mode is changed. Set the flash setting again if necessary. The flash setting is memorized even if the camera is turned off....

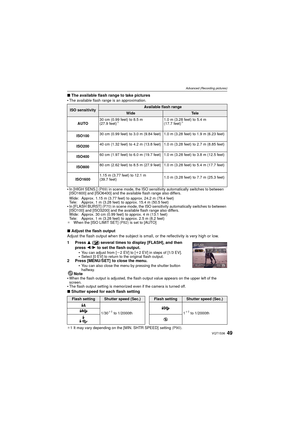

Page 49
![Page 49
49VQT1S36
Advanced (Recording pictures)
∫The available flash range to take pictures
The available flash range is an approximation.
In [HIGH SENS.] (P69) in scene mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 24.2 m (79.4 feet)
Tele: Approx. 1 m (3.28 feet) to approx. 15.4 m (50.5 feet)
In [FLASH BURST] (P70) in scene mode, the ISO sensitivity automatically switches to between...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-48.png "Page 49
49VQT1S36
Advanced (Recording pictures)
∫The available flash range to take pictures
The available flash range is an approximation.
In [HIGH SENS.] (P69) in scene mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 24.2 m (79.4 feet)
Tele: Approx. 1 m (3.28 feet) to approx. 15.4 m (50.5 feet)
In [FLASH BURST] (P70) in scene mode, the ISO sensitivity automatically switches to between...")
49VQT1S36 Advanced (Recording pictures) ∫The available flash range to take pictures The available flash range is an approximation. In [HIGH SENS.] (P69) in scene mode, the ISO sensitivity automatically switches to between [ISO1600] and [ISO6400] and the available flash range also differs. Wide: Approx. 1.15 m (3.77 feet) to approx. 24.2 m (79.4 feet) Tele: Approx. 1 m (3.28 feet) to approx. 15.4 m (50.5 feet) In [FLASH BURST] (P70) in scene mode, the ISO sensitivity automatically switches to between...

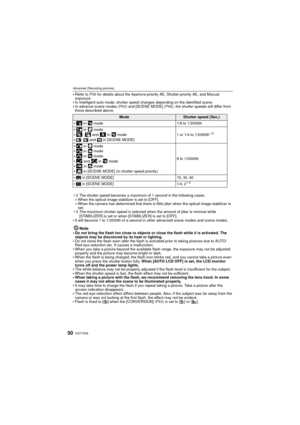

Page 50
![Page 50
VQT1S3650
Advanced (Recording pictures)
Refer to P58 for details about the Aperture-priority AE, Shutter-priority AE, and Manual
exposure.
In Intelligent auto mode, shutter speed changes depending on the identified scene.In advance scene modes (P63) and [SCENE MODE] (P66), the shutter speeds will differ from
those described above.
¢ 2 The shutter speed becomes a maximum of 1 second in the following cases.
–When the optical image stabilizer is set to [OFF].–When the camera has determined that there is...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-49.png "Page 50
VQT1S3650
Advanced (Recording pictures)
Refer to P58 for details about the Aperture-priority AE, Shutter-priority AE, and Manual
exposure.
In Intelligent auto mode, shutter speed changes depending on the identified scene.In advance scene modes (P63) and [SCENE MODE] (P66), the shutter speeds will differ from
those described above.
¢ 2 The shutter speed becomes a maximum of 1 second in the following cases.
–When the optical image stabilizer is set to [OFF].–When the camera has determined that there is...")
VQT1S3650 Advanced (Recording pictures) Refer to P58 for details about the Aperture-priority AE, Shutter-priority AE, and Manual exposure. In Intelligent auto mode, shutter speed changes depending on the identified scene.In advance scene modes (P63) and [SCENE MODE] (P66), the shutter speeds will differ from those described above. ¢ 2 The shutter speed becomes a maximum of 1 second in the following cases. –When the optical image stabilizer is set to [OFF].–When the camera has determined that there is...
