Panasonic Dmc Fz28 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz28 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

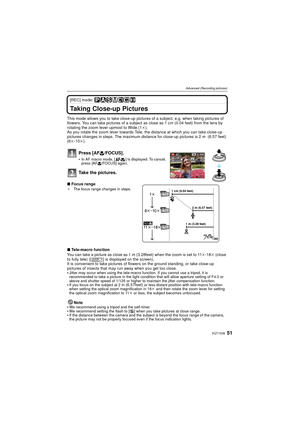

Page 51
![Page 51
51VQT1S36
Advanced (Recording pictures)
[REC] mode:
Taking Close-up Pictures
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of
flowers. You can take pictures of a subject as close as 1 cm (0.04 feet) from the lens by
rotating the zoom lever upmost to Wide (1 k).
As you rotate the zoom lever towards Tele, the distance at which you can take close-up
pictures changes in steps. The maximum distanc e for close-up pictures is 2 m (6.57 feet)
(6 k-10 k).
Press...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-50.png "Page 51
51VQT1S36
Advanced (Recording pictures)
[REC] mode:
Taking Close-up Pictures
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of
flowers. You can take pictures of a subject as close as 1 cm (0.04 feet) from the lens by
rotating the zoom lever upmost to Wide (1 k).
As you rotate the zoom lever towards Tele, the distance at which you can take close-up
pictures changes in steps. The maximum distanc e for close-up pictures is 2 m (6.57 feet)
(6 k-10 k).
Press...")
51VQT1S36 Advanced (Recording pictures) [REC] mode: Taking Close-up Pictures This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers. You can take pictures of a subject as close as 1 cm (0.04 feet) from the lens by rotating the zoom lever upmost to Wide (1 k). As you rotate the zoom lever towards Tele, the distance at which you can take close-up pictures changes in steps. The maximum distanc e for close-up pictures is 2 m (6.57 feet) (6 k-10 k). Press...

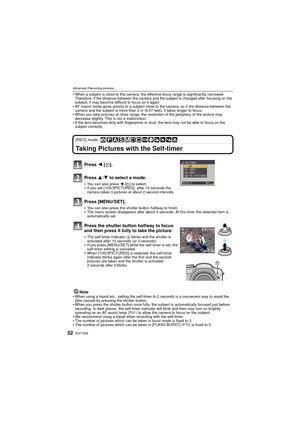

Page 52
VQT1S3652 Advanced (Recording pictures) When a subject is close to the camera, the effective focus range is significantly narrowed. Therefore, if the distance between the camera and the subject is changed after focusing on the subject, it may become difficult to focus on it again. AF macro mode gives priority to a subject close to the camera, so if the distance between the camera and the subject is more than 2 m (6.57 feet), it takes longer to focus. When you take pictures at close range, the...

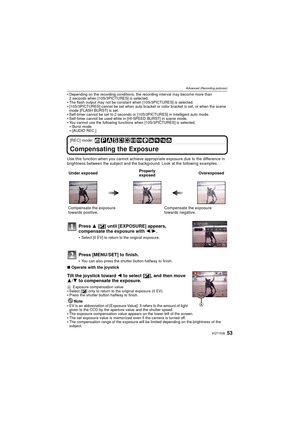

Page 53
![Page 53
53VQT1S36
Advanced (Recording pictures)
Depending on the recording conditions, the recording interval may become more than
2 seconds when [10S/3PICTURES] is selected.
The flash output may not be constant when [10S/3PICTURES] is selected.[10S/3PICTURES] cannot be set when auto bracket or color bracket is set, or when the scene
mode [FLASH BURST] is set.
Self-timer cannot be set to 2 seconds or [10S/3PICTURES] in Intelligent auto mode.Self-timer cannot be used while in [HI-SPEED BURST] in scene mode.You...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-52.png "Page 53
53VQT1S36
Advanced (Recording pictures)
Depending on the recording conditions, the recording interval may become more than
2 seconds when [10S/3PICTURES] is selected.
The flash output may not be constant when [10S/3PICTURES] is selected.[10S/3PICTURES] cannot be set when auto bracket or color bracket is set, or when the scene
mode [FLASH BURST] is set.
Self-timer cannot be set to 2 seconds or [10S/3PICTURES] in Intelligent auto mode.Self-timer cannot be used while in [HI-SPEED BURST] in scene mode.You...")
53VQT1S36 Advanced (Recording pictures) Depending on the recording conditions, the recording interval may become more than 2 seconds when [10S/3PICTURES] is selected. The flash output may not be constant when [10S/3PICTURES] is selected.[10S/3PICTURES] cannot be set when auto bracket or color bracket is set, or when the scene mode [FLASH BURST] is set. Self-timer cannot be set to 2 seconds or [10S/3PICTURES] in Intelligent auto mode.Self-timer cannot be used while in [HI-SPEED BURST] in scene mode.You...

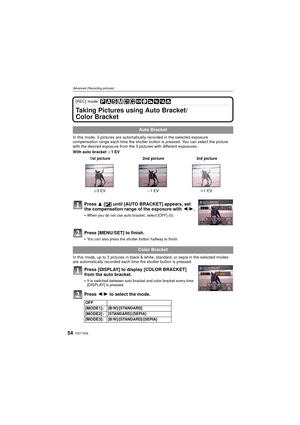

Page 54
![Page 54
VQT1S3654
Advanced (Recording pictures)
[REC] mode:
Taking Pictures using Auto Bracket/
Color Bracket
In this mode, 3 pictures are automatically recorded in the selected exposure
compensation range each time the shutter button is pressed. You can select the picture
with the desired exposure from the 3 pictures with different exposures.
With auto bracket d1 EV
In this mode, up to 3 pictures in black & white, standard, or sepia in the selected modes
are automatically recorded each time the shutter...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-53.png "Page 54
VQT1S3654
Advanced (Recording pictures)
[REC] mode:
Taking Pictures using Auto Bracket/
Color Bracket
In this mode, 3 pictures are automatically recorded in the selected exposure
compensation range each time the shutter button is pressed. You can select the picture
with the desired exposure from the 3 pictures with different exposures.
With auto bracket d1 EV
In this mode, up to 3 pictures in black & white, standard, or sepia in the selected modes
are automatically recorded each time the shutter...")
VQT1S3654 Advanced (Recording pictures) [REC] mode: Taking Pictures using Auto Bracket/ Color Bracket In this mode, 3 pictures are automatically recorded in the selected exposure compensation range each time the shutter button is pressed. You can select the picture with the desired exposure from the 3 pictures with different exposures. With auto bracket d1 EV In this mode, up to 3 pictures in black & white, standard, or sepia in the selected modes are automatically recorded each time the shutter...

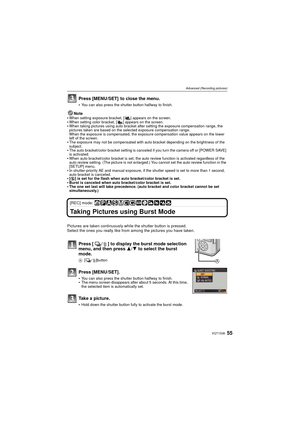

Page 55
![Page 55
55VQT1S36
Advanced (Recording pictures)
Press [MENU/SET] to close the menu.
You can also press the shutter button halfway to finish.
Note
When setting exposure bracket, [ ] appears on the screen.When setting color bracket, [ ] appears on the screen.When taking pictures using auto bracket after setting the exposure compensation range, the
pictures taken are based on the selected exposure compensation range.
When the exposure is compensated, the exposure compensation value appears on the lower
left of...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-54.png "Page 55
55VQT1S36
Advanced (Recording pictures)
Press [MENU/SET] to close the menu.
You can also press the shutter button halfway to finish.
Note
When setting exposure bracket, [ ] appears on the screen.When setting color bracket, [ ] appears on the screen.When taking pictures using auto bracket after setting the exposure compensation range, the
pictures taken are based on the selected exposure compensation range.
When the exposure is compensated, the exposure compensation value appears on the lower
left of...")
55VQT1S36 Advanced (Recording pictures) Press [MENU/SET] to close the menu. You can also press the shutter button halfway to finish. Note When setting exposure bracket, [ ] appears on the screen.When setting color bracket, [ ] appears on the screen.When taking pictures using auto bracket after setting the exposure compensation range, the pictures taken are based on the selected exposure compensation range. When the exposure is compensated, the exposure compensation value appears on the lower left of...

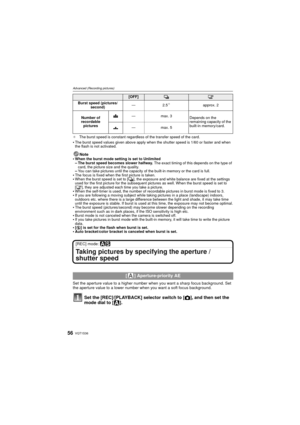

Page 56
VQT1S3656 Advanced (Recording pictures) ¢The burst speed is constant regardless of the transfer speed of the card. The burst speed values given above apply when the shutter speed is 1/60 or faster and when the flash is not activated. Note When the burst mode setting is set to Unlimited–The burst speed becomes slower halfway. The exact timing of this depends on the type of card, the picture size and the quality. –You can take pictures until the capacity of the built-in memory or the card is full.The...
Page 57

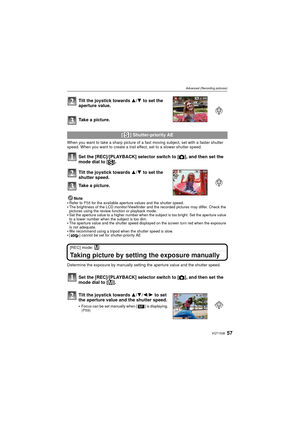

![Page 57
57VQT1S36
Advanced (Recording pictures)
Tilt the joystick towards 3/4 to set the
aperture value.
Take a picture.
When you want to take a sharp picture of a fast moving subject, set with a faster shutter
speed. When you want to create a trail effect, set to a slower shutter speed.
Set the [REC]/[PLAYBACK] selector switch to [ !], and then set the
mode dial to [ ].
Tilt the joystick towards 3/4 to set the
shutter speed.
Take a picture.
Note
Refer to P58 for the available aperture values and the...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-56.png "Page 57
57VQT1S36
Advanced (Recording pictures)
Tilt the joystick towards 3/4 to set the
aperture value.
Take a picture.
When you want to take a sharp picture of a fast moving subject, set with a faster shutter
speed. When you want to create a trail effect, set to a slower shutter speed.
Set the [REC]/[PLAYBACK] selector switch to [ !], and then set the
mode dial to [ ].
Tilt the joystick towards 3/4 to set the
shutter speed.
Take a picture.
Note
Refer to P58 for the available aperture values and the...")
57VQT1S36 Advanced (Recording pictures) Tilt the joystick towards 3/4 to set the aperture value. Take a picture. When you want to take a sharp picture of a fast moving subject, set with a faster shutter speed. When you want to create a trail effect, set to a slower shutter speed. Set the [REC]/[PLAYBACK] selector switch to [ !], and then set the mode dial to [ ]. Tilt the joystick towards 3/4 to set the shutter speed. Take a picture. Note Refer to P58 for the available aperture values and the...
Page 58
VQT1S3658 Advanced (Recording pictures) Press the shutter button halfway. The manual exposure assistance A appears for about 10 seconds to indicate the exposure. Set the aperture value and the shutter speed again when the exposure is not adequate. Take the picture. ∫ Manual Exposure Assistance The manual exposure assistance is an approximation. We recommend checking the pictures after taking them using the review function. Note Refer to P58 for the available aperture values and the shutter speed.The...
Page 59
![Page 59
59VQT1S36
Advanced (Recording pictures)
Shutter-priority AE
Manual exposureNote
•
The aperture values given in the table above are values when the zoom lever is rotated to
Wide.
Depending on the zoom magnification, some of the aperture values cannot be selected.
[REC] mode:
Taking Pictures with Manual Focus
Use this function when you want to fix the focus or when the distance between the lens
and the subject is determined and you do not want to activate auto focus.
Press and hold [AF/MF] until the...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-58.png "Page 59
59VQT1S36
Advanced (Recording pictures)
Shutter-priority AE
Manual exposureNote
•
The aperture values given in the table above are values when the zoom lever is rotated to
Wide.
Depending on the zoom magnification, some of the aperture values cannot be selected.
[REC] mode:
Taking Pictures with Manual Focus
Use this function when you want to fix the focus or when the distance between the lens
and the subject is determined and you do not want to activate auto focus.
Press and hold [AF/MF] until the...")
59VQT1S36 Advanced (Recording pictures) Shutter-priority AE Manual exposureNote • The aperture values given in the table above are values when the zoom lever is rotated to Wide. Depending on the zoom magnification, some of the aperture values cannot be selected. [REC] mode: Taking Pictures with Manual Focus Use this function when you want to fix the focus or when the distance between the lens and the subject is determined and you do not want to activate auto focus. Press and hold [AF/MF] until the...

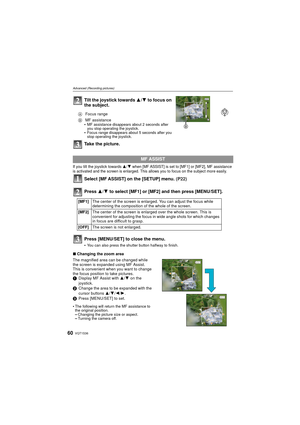

Page 60
![Page 60
VQT1S3660
Advanced (Recording pictures)
Tilt the joystick towards 3/4 to focus on
the subject.
MF assistance disappears about 2 seconds after
you stop operating the joystick.
Focus range disappears about 5 seconds after you
stop operating the joystick.
Take the picture.
If you tilt the joystick towards 3/4 when [MF ASSIST] is set to [MF1] or [MF2], MF assistance
is activated and the screen is enlarged. This allows you to focus on the subject more easily.
Select [MF ASSIST] on the [SETUP] menu....](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-59.png "Page 60
VQT1S3660
Advanced (Recording pictures)
Tilt the joystick towards 3/4 to focus on
the subject.
MF assistance disappears about 2 seconds after
you stop operating the joystick.
Focus range disappears about 5 seconds after you
stop operating the joystick.
Take the picture.
If you tilt the joystick towards 3/4 when [MF ASSIST] is set to [MF1] or [MF2], MF assistance
is activated and the screen is enlarged. This allows you to focus on the subject more easily.
Select [MF ASSIST] on the [SETUP] menu....")
VQT1S3660 Advanced (Recording pictures) Tilt the joystick towards 3/4 to focus on the subject. MF assistance disappears about 2 seconds after you stop operating the joystick. Focus range disappears about 5 seconds after you stop operating the joystick. Take the picture. If you tilt the joystick towards 3/4 when [MF ASSIST] is set to [MF1] or [MF2], MF assistance is activated and the screen is enlarged. This allows you to focus on the subject more easily. Select [MF ASSIST] on the [SETUP] menu....
